2503-28-02-S-A datasheet, PDF - EEWORLD Datasheet

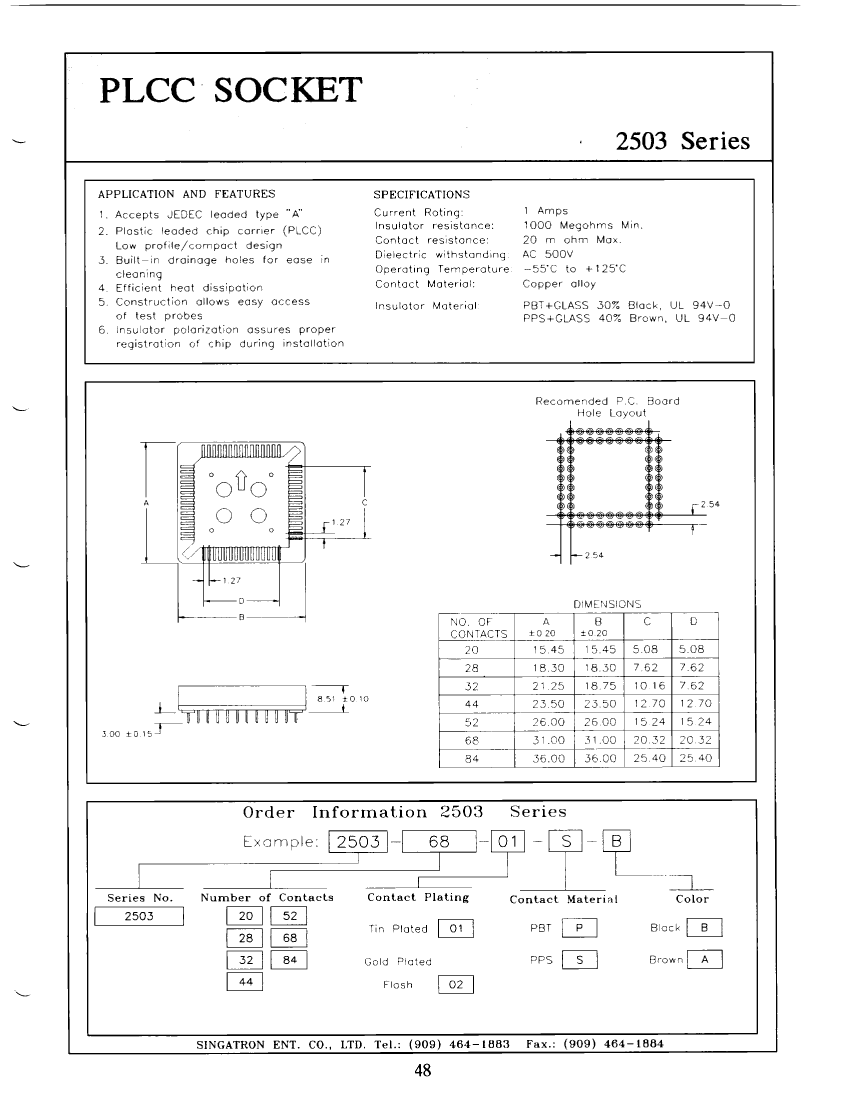

2503-28-02-S-A: DescriptionIC Socket, PLCC28, 28 Contact(s), Solder; CategoryThe connector socket; File Size35KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2503-28-02-S-A Overview

IC Socket, PLCC28, 28 Contact(s), Solder

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.711 inch
subject depth	0.327 inch
body length	0.711 inch
Contact structure	7X7
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC28
Dielectric withstand voltage	600VAC V
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	2503
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER
Base Number Matches	1
