T2SD-10-28-L-03.00-S datasheet, PDF

Datasheet> All Categories > The connector> The connector> T2SD-10-28-L-03.00-S

T2SD-10-28-L-03.00-S: DescriptionInterconnection Device; CategoryThe connector The connector; File Size388KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

T2SD-10-28-L-03.00-S Overview

Interconnection Device

T2SD-10-28-L-03.00-S Parametric

Parameter Name	Attribute value
Objectid	1337122460
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.303 inch
subject depth	0.606 inch
body length	0.875 inch
Connector type	INTERCONNECTION DEVICE
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-10 °C
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.6 A
Guideline	UL
reliability	COMMERCIAL
Termination type	WIRE
Total number of contacts	20
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

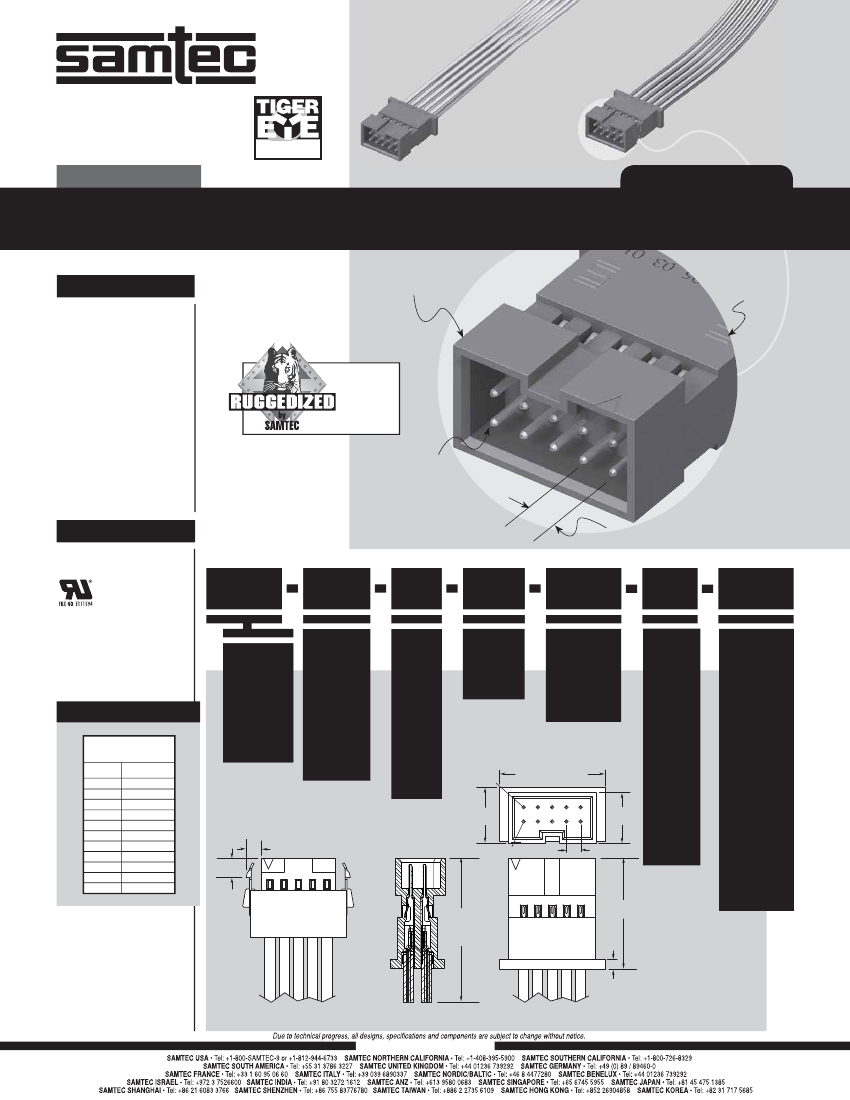

F-214 SUPPLEMENT

™

T2SD–05–28–L–03.25–S

•

(2,00 mm) .0787"

T2SDT–05–24–L–03.00–TR–NUX

T2SD, T2SDT SERIES

TIGER EYE CABLE ASSEMBLY

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?T2SD or

www.samtec.com?T2SDT

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au over 50µ" (1,27 µm) Ni

Wire:

24, 26, 28 or 30 AWG

Current Rating (T2SD/S2M):

2.6 A per pin

(1 pin powered per row)

Operating Temp Range:

-35°C to +105°C (PVC)

-55°C to +125°C (*Teﬂon

)

Voltage Rating:

350 VAC

RoHS Compliant:

Yes

™

Mates with:

T2M (Requires –T or –TR),

S2M

Single or

Double ended

Transfer option

available

• Transfer

end

• Retention

latches

Up to 30 positions

per row

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(2,00 mm) .0787" Pitch

TYPE

PINS PER

ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

END

OPTION

END 2

OPTION

T2SD

= Double Row

PVC Cable

APPLICATION

–24C CABLE

COLOR CODING

ETC

T2SDT

= Double Row

*Teﬂon

Cable

(24, 28, 30 Wire

Gauge only)

–05,

–07,

–10,

–15,

–20,

–25,

–30

(Standard

sizes)

–24

–24C

= Color

Coded

Cable

(T2SD

only)

–L

= 10µ"

(0,25 µm)

Gold on

contact

–“XX.XX”

= Wire Length

in Inches

–S = (76,3 mm)

03.00" min.

–D = (82,55 mm)

03.25" min.

= Single

End

–S

(Only available

with –D, –T

& –TR)

= Double

End

–D

–T

–NUS

= Notch up,

straight

(Pin 1 to Pin N-1)

COLOR

BROWN

RED

ORANGE

YELLOW

GREEN

VIOLET

GRAY

WHITE

BLACK

BLUE

REPEAT

–26

–28

–30

No. of positions x

(2,00) .0787 + (4,75) .187

= Transfer

End

(Socket on

end 2)

–NDS

= Notch down,

straight

(Pin 1 to Pin 2)

–TR

(7,50)

.295

(7,00)

.276

(2,11) .083

(2,64)

.104

(2,00) .0787

= Transfer

End with

Retention

Latch

on Socket

–NUX

= Notch up,

crossed

(Pin 1 to Pin N)

–NDX

= Notch down,

crossed

(Pin 1 to Pin 1)

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

Note:

For wiring option

information refer to drawing

on web.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–TR

–D–NUS

Assembly

Length

± (3,18)

.125

(15,40)

.606

(1,30)

.051

WWW.SAMTEC.COM
