MIC5209-5.0YS TR datasheet, PDF

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> MIC5209-5.0YS TR

MIC5209-5.0YS TR: Descriptionldo voltage regulators 500ma 1% low noise ldo(lead free); Categorysemiconductor Other integrated circuit (IC); File Size2MB，19 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MIC5209-5.0YS TR Overview

ldo voltage regulators 500ma 1% low noise ldo(lead free)

MIC5209-5.0YS TR Parametric

Parameter Name	Attribute value
Manufacture	Micrel
Product Category	LDO Voltage Regulators
RoHS	Yes
Input Voltage MAX	16 V
Output Voltage	5 V
Dropout Voltage - Max	600 mV
Output Curre	500 mA
Load Regulati	0.05 %
Number of Outputs	1 Outpu
Output Type	Fixed
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOT-223
Line Regulati	0.009 %
Minimum Operating Temperature	- 40 C
Output Voltage Tolerance	2 %
Packaging	Reel
PSRR / Ripple Rejection - Ty	75 dB
Factory Pack Quantity	2500

Preview

Download Datasheet

View All

MIC5209

500mA Low-Noise LDO Regulator

General Description

The MIC5209 is an efﬁcient linear voltage regulator with

very low dropout voltage, typically 10mV at light loads and

less than 500mV at full load, with better than 1% output

voltage accuracy

Designed especially for hand-held, battery-powered

devices, the MIC5209 features low ground current to help

prolong battery life. An enable/shutdown pin on SO-8 and

TO-263- 5 versions can further improve battery life with

near-zero shutdown current.

Key features include reversed-battery protection, current

limiting, overtemperature shutdown, ultra-low-noise

capability (SO-8 and TO-263-5 versions), and availability

in thermally-efﬁcient packaging. The MIC5209 is available

in adjustable or ﬁxed output voltages.

Datasheets and support documentation are available on

Micrel’s web site at:

www.micrel.com.

Features



Output voltage range: 1.8V





Meets Intel Slot 1 and Slot 2 requirements



Guaranteed 500mA output over the full operating

temperature range



Low 500mV maximum dropout voltage at full load



Extremely tight load and line regulation



Thermally-efﬁcient surface-mount package



Low temperature coefﬁcient



Current and thermal limiting



Reversed-battery protection



No-load stability



1% output accuracy



Ultra-low-noise capability in SO-8 and TO-263-5



Ultra-small 3mm × 3mm DFN package

Applications



Pentium II Slot 1 and Slot 2 support circuits

Laptop, notebook, and palmtop computers

Cellular telephones

Consumer and personal electronics

SMPS post-regulator/DC-to-DC modules

High-efﬁciency linear power supplies

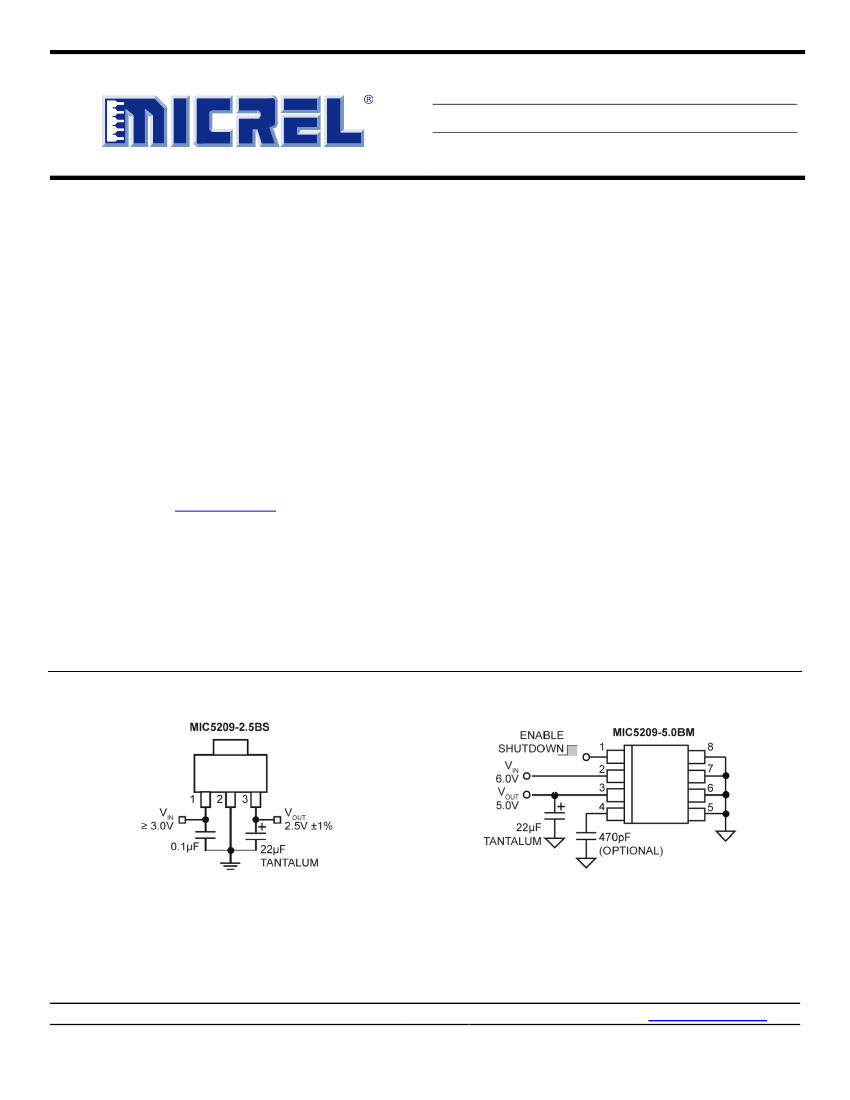

Typical Application

3.3V Nominal Input Slot 1 Power Supply

Ultra-Low Noise 5V Regulator

Intel is a registered trademark of Intel Corporation.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

July 15, 2014

Revision 3.1

MIC5209-5.0YS TR Related Products

	MIC5209-5.0YS TR	MIC5209-3.3YS TR	MIC5209-5.0YM TR	MIC5209YU TR
Description	ldo voltage regulators 500ma 1% low noise ldo(lead free)	ldo voltage regulators 500ma 1% low noise ldo(lead free)	ldo voltage regulators 500ma 1% low noise ldo(lead free)	ldo voltage regulators 500ma 1% low noise ldo(lead free)
Manufacture	Micrel	Micrel	Micrel	Micrel
Product Category	LDO Voltage Regulators	LDO Voltage Regulators	LDO Voltage Regulators	LDO Voltage Regulators
RoHS	Yes	Yes	Yes	Yes
Input Voltage MAX	16 V	16 V	16 V	16 V
Output Voltage	5 V	3.3 V	5 V	Adj
Dropout Voltage - Max	600 mV	600 mV	600 mV	600 mV
Output Curre	500 mA	500 mA	500 mA	500 mA
Load Regulati	0.05 %	0.05 %	0.05 %	0.05 %
Number of Outputs	1 Outpu	1 Outpu	1 Outpu	1 Outpu
Output Type	Fixed	Fixed	Fixed	Adjustable
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	SOT-223	SOT-223	SOIC-8	TO-263-5
Line Regulati	0.009 %	0.009 % / V	0.009 % / V	0.009 % / V
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C
Packaging	Reel	Reel	Reel	Reel
PSRR / Ripple Rejection - Ty	75 dB	75 dB	75 dB	75 dB
Factory Pack Quantity	2500	2500	2500	750
Output Voltage Tolerance	2 %	2 %	2 %	-
