6063-X-2220-B-1

Description
Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size386KB,3 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric View All

6063-X-2220-B-1 Overview

Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

6063-X-2220-B-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1215458367
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresSTANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
insulator materialPOLYAMIDE6
MIL complianceNO
Power Connector Ratings10/15A, 250VAC
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts3

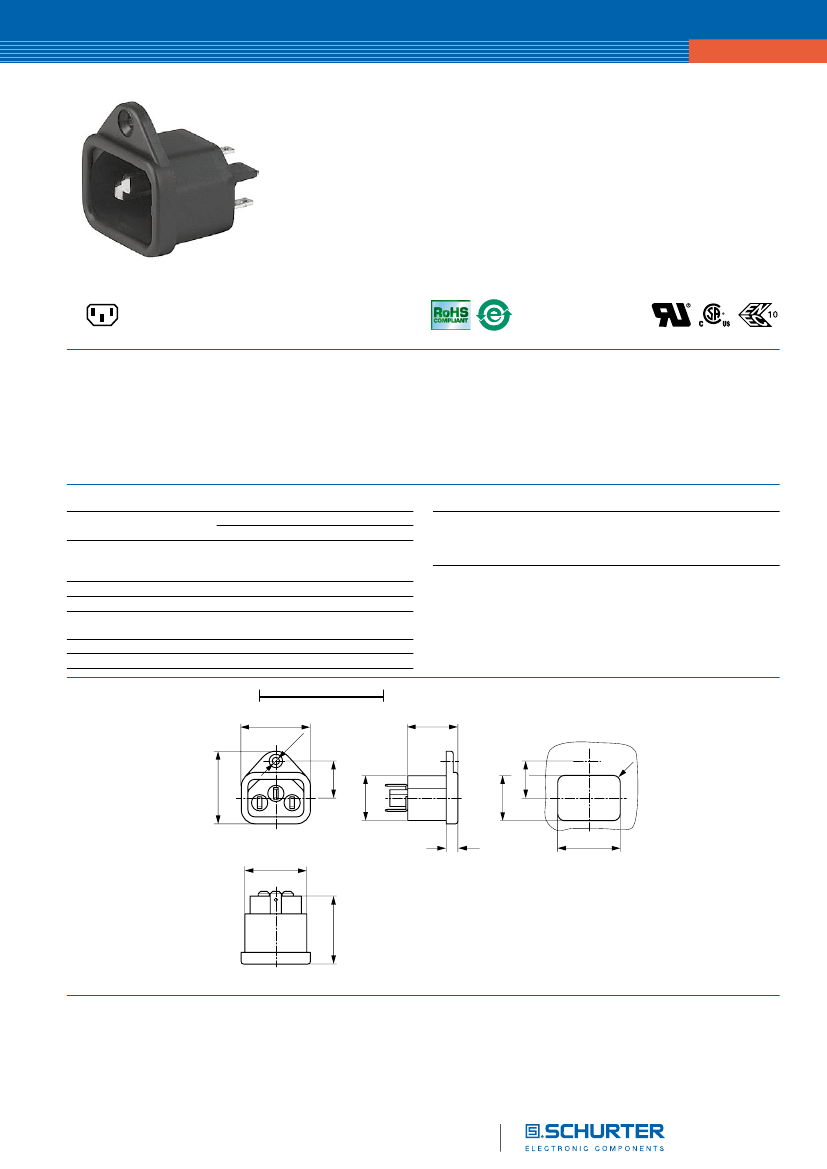

Connectors (Inlets/Outlets)
www.schurter.com/pg07
IEC Appliance Inlet C14, Screw-on Mounting, Front Side, Solder or Quick-connect, PCB or Screw Terminal
6063
C14
70° C
Description
- Panel Mount:
Screw-on mounting, Frontside
- Appliance Inlet, Pin temperature 70 °C, Protection class I
- Solder, quick-connect, screw, PCB
Approvals
- VDE Certificate Number: 40011871
- UL File Number: E96454
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
SE
31.3 mm
29.8
ø
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Solder, quick-connect, screw, PCB
PA6, black / grey / white, UL 94V-0
3.
2
PH
A
31.3
16
26.7
29.3
19.5
- 0
19.3
+0.2
16
5
26.9
- 0
+0.2
Length of the terminal please find at the order code configuration table
Connectors
R
3
-O
UT
References
Weblinks
This type is Phase-out without alternate type
Last order possibility: 31.05.2011
Appliance Inlet
21.6
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

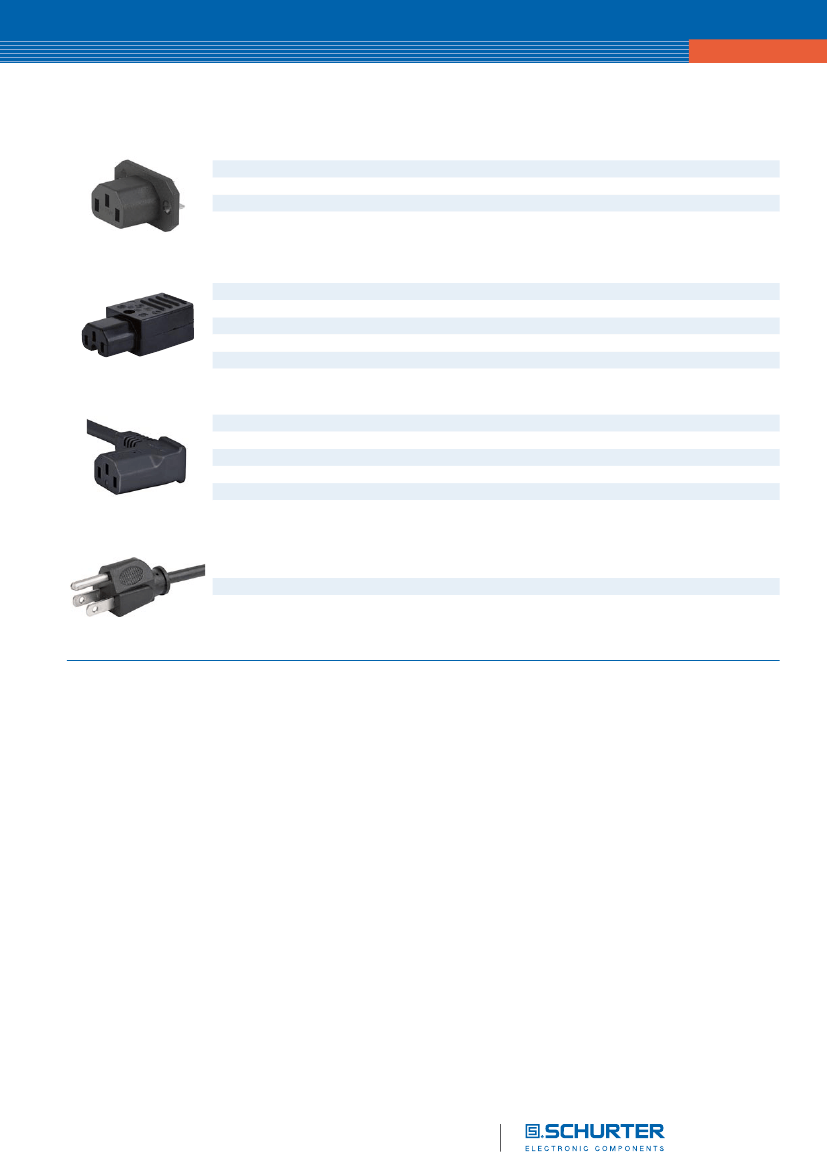

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories, Detailed request for product
C14 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
