6065-B-320-D-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6065-B-320-D-2

6065-B-320-D-2: DescriptionMains Power Connector; CategoryThe connector The connector; File Size367KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

6065-B-320-D-2 Overview

Mains Power Connector

6065-B-320-D-2 Parametric

Parameter Name	Attribute value
Objectid	1250437794
Reach Compliance Code	unknown
Connector type	MAINS POWER CONNECTOR
Manufacturer's serial number	6065

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/pg07

IEC Appliance Inlet C18, Screw-on Mounting, Front Side, Solder or Quick-connect, PCB or Screw Terminal

6065

C18

70° C

Description

- Panel Mount:

Screw-on mounting, Frontside

- Appliance Inlet, Pin temperature 70 °C, Protection class II

- Solder, quick-connect, screw, PCB

Approvals

- VDE Certificate Number: 40011871

- UL File Number: E96454

- CSA File Number: 27324

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

50.2

21.5

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 3 kVAC between L-N

> 1.5 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 2 acc. to IEC 61140

Solder, quick-connect, screw, PCB

PA6, black / grey / white, UL 94V-0

27.2

19.5

- 0

22.2

19.3

+0.2

27.4

- 0

+0.2

Length of the terminal please find at the order code configuration table

Connectors

-O

We recommend for new applications the type 6102-3

Last order possibility: 10.12.2010

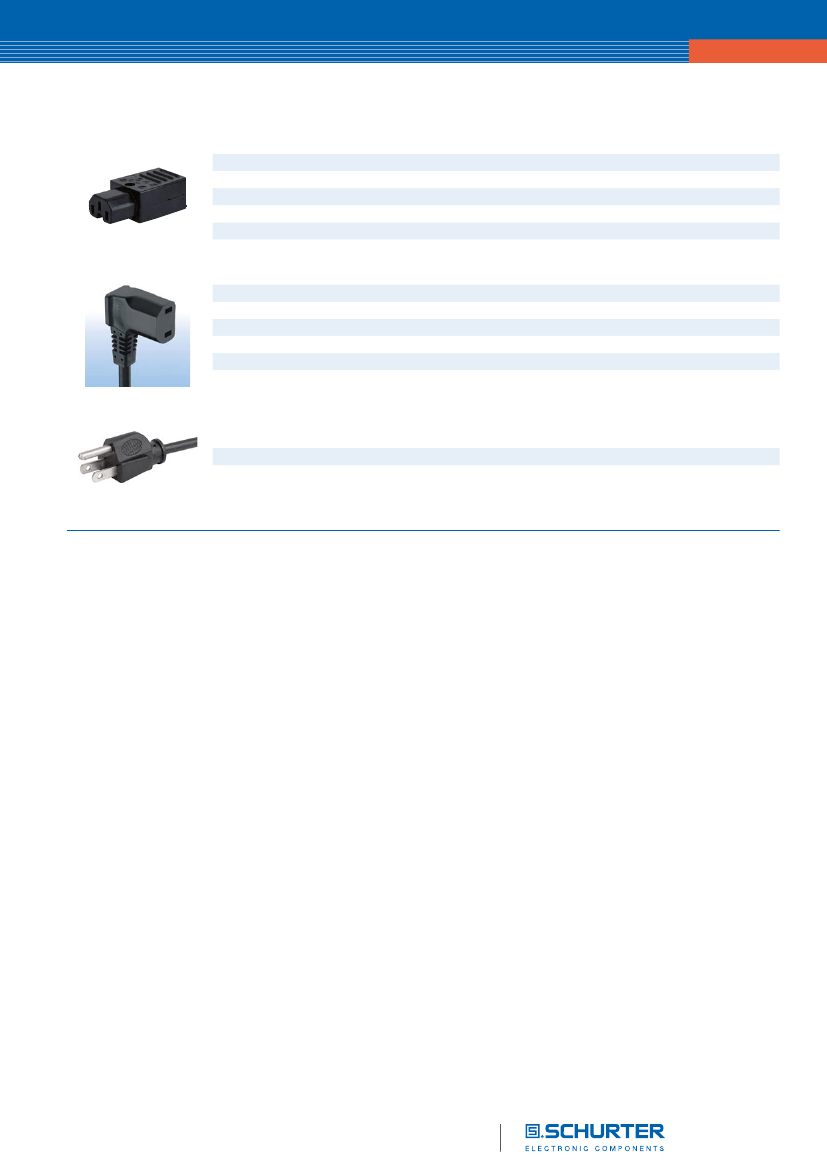

References

Weblinks

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Appliance Inlet

C18 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 2

50.2 mm
