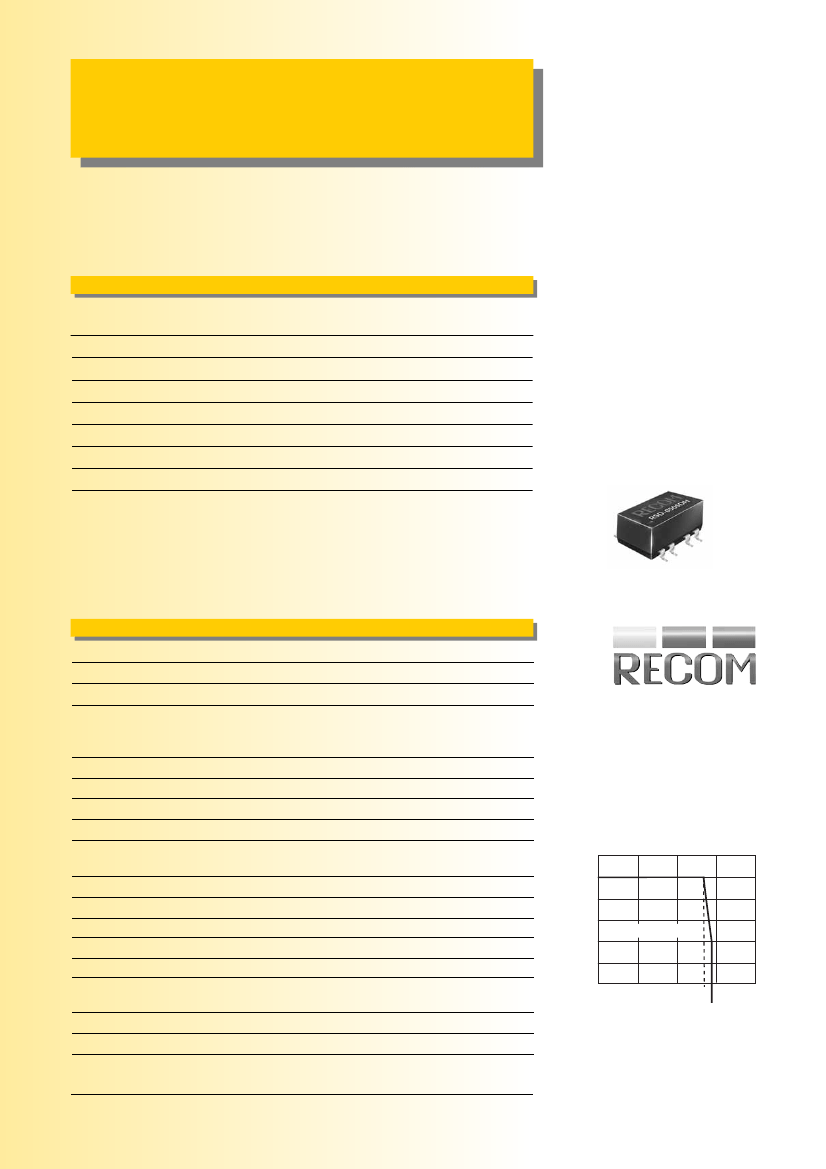

RSD-3.324DH

Description
1 Watt SMD Dual Output
File Size78KB,3 Pages
ManufacturerRECOM Power GmbH
Websitehttps://www.recom-power.com/
Download Datasheet View All

RSD-3.324DH Overview

1 Watt SMD Dual Output

Features
Unregulated
Converters
3kVDC Isolation
Internal SMD Construction
UL94V-0 Package Material
Toroidal Magnetics
Efficiency to 84%
ECONOLINE
DC/DC-Converter
RSD/DH
Series
Selection Guide
Part
Number
SMD
RSD-xx3.3DH
RSD-xx05DH
RSD-xx09DH
RSD-xx12DH
RSD-xx15DH
RSD-xx24DH
xx = Input Voltage
Input
Voltage
(VDC)
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
3.3, 5, 9, 12, 15, 24
Output
Voltage
(VDC)
±3.3
±5
±9
±12
±15
±24
Output
Current
(mA)
±152
±100
±56
±42
±33
±21
Efficiency
(%)
70
74-78
76-78
82
80-84
80-84
1 Watt
SMD
Dual Output
Specifications
(Core Operating Area)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
Operating Temperature Range (free air convection)
Storage Temperature Range
Reflow Temperature
(for more details see Application Notes)
Relative Humidity
Package Weight
MTBF (+25°C)
(+85°C)
26
ROHS compliant
MSL Level 1
using MIL-HDBK 217F
using MIL-HDBK 217F
(tested for 1 second)
(long term isolation)
3.3V output types
5V output type
9V, 12V, 15V, 24V output types
±10%
±5%
1.2%/1% of Vin max.
20% max.
15% max.
10% max.
±100mVp-p max.
50kHz min. / 100kHz typ. / 105kHz max.
70% min. / 80% typ.
87mW min. / 130mW typ. / 190mW max.
3.000VDC min.
see Application Notes
15pF min. / 70pF max.
15 GΩ min.
Output Power (%)
Derating-Graph
(Ambient Temperature)
100
80
60
40
20
0
85 100
95
Operating Temperature °C
-40
0
50
150
1 Second
-40°C to +85°C (see Graph)
-55°C to +125°C
245°C (30 sec) max.
95% RH
2.2g
1045 x 10
3
hours
183 x 10
3
hours
Safe Operating Area
}
Detailed Information see
Application Notes chapter "MTBF"
26-October-2005
