LRG020V-3301-P-T01 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> LRG020V-3301-P-T01

LRG020V-3301-P-T01: DescriptionFixed Resistor, Thin Film, 0.3W, 3300ohm, 250V, 0.02% +/-Tol, 5ppm/Cel, Through Hole Mount, RADIAL LEADED; CategoryPassive components The resistor; File Size208KB，2 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

LRG020V-3301-P-T01 Overview

Fixed Resistor, Thin Film, 0.3W, 3300ohm, 250V, 0.02% +/-Tol, 5ppm/Cel, Through Hole Mount, RADIAL LEADED

LRG020V-3301-P-T01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145058822457
package instruction	RADIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
structure	Rectangular
Lead length	5.08 mm
lead spacing	5.08 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	8.6 mm
Package length	7.9 mm
Package form	Radial
Package width	4 mm
Rated power dissipation(P)	0.3 W
Rated temperature	70 °C
resistance	3300 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	THIN FILM
Temperature Coefficient	5 ppm/°C
Terminal shape	FLAT
Tolerance	0.02%
Operating Voltage	250 V

Preview

Download Datasheet

View All

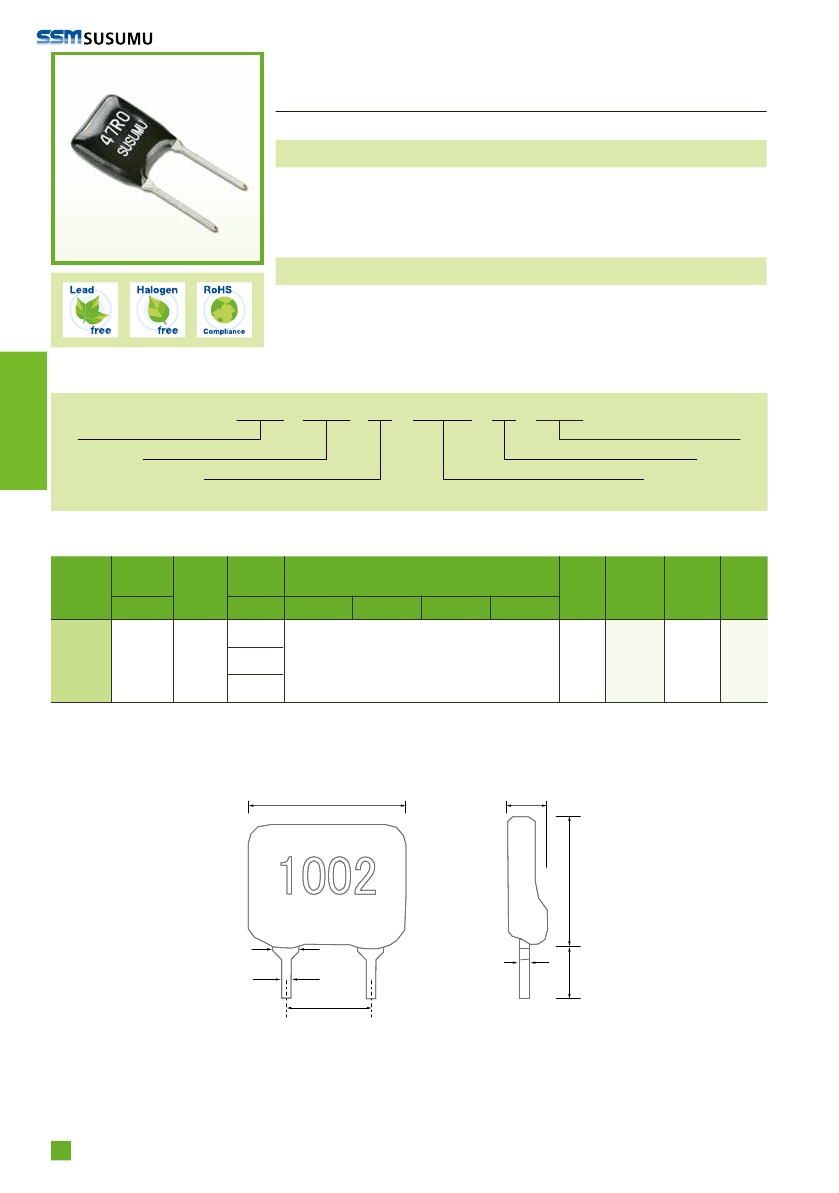

■LRG

series

Features

Radial lead metal thin film chip

resistors

(the highest reliability and precision)

・

Most reliable and the highest precision radial read thin film resistor

・

The tightest resistance tolerance: +/-0.01%,the smallest temperature coefficient of

resistance: ±1ppm/°C

Applications

・

Industrial measurement, electrical scales

・

High precision sensors, medical electronics

Resistors with radial leads

◆Part

numbering system

LRG 020

Series code

Size

Temperature coefficient of resistance

L - 1002 - L - T01

Packaging quantity: T01(100pcs)

Resistance tolerance

Nominal resistance value

LRG series

◆Electrical

Specification

Type

Lead

pitch

(mm)

Power

ratings

Temperature

coefficient

of resistance

Resistance range(Ω) Resistance tolerance

±0.01% (L)

±0.02% (P)

±0.05% (W)

±0.5% (D)

Maximum

voltage

Resistance

value series

Operating Packaging

temperature quantity

(ppm/°C)

±1

（K）

LRG020

5.08

0.3W

±2

（L）

±5

（V）

100≦R≦100k

250V

E-24, E-96

-55℃

~ 125℃

100pcs

◆Dimensions

7.9mm max

4.0mm max

8.6mm max

1.1±0.05mm

0.5±0.05mm

0.25±0.05mm

5.08mm min

5.08±0.25mm
