MX7548KN+: Descriptiondigital to analog converters - dac 12-bit precision dac; CategoryAnalog mixed-signal IC converter; File Size5MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MX7548KN+ Overview

digital to analog converters - dac 12-bit precision dac

MX7548KN+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-PDIP-T20
JESD-609 code	e3
length	26.67 mm
Maximum linear error (EL)	0.0122%
Humidity sensitivity level	1
Number of digits	12
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	3.93 mm
Maximum stabilization time	1 µs
Maximum slew rate	3 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

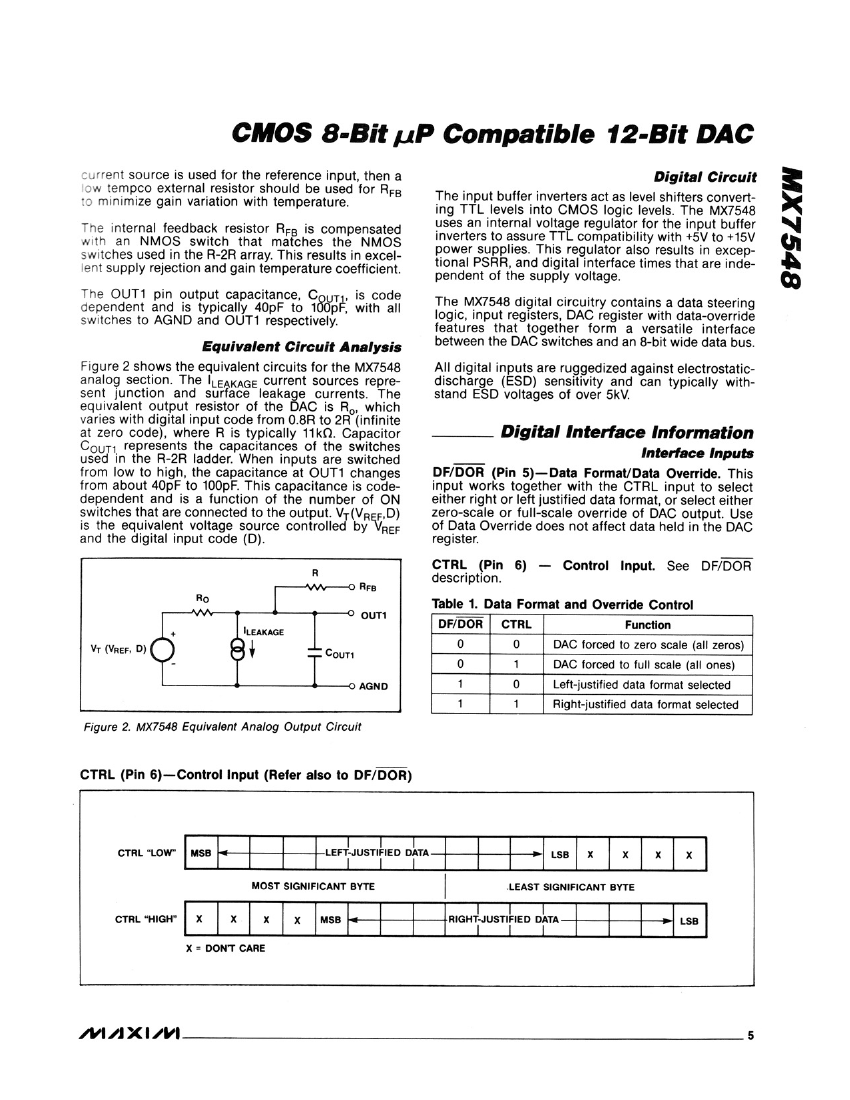

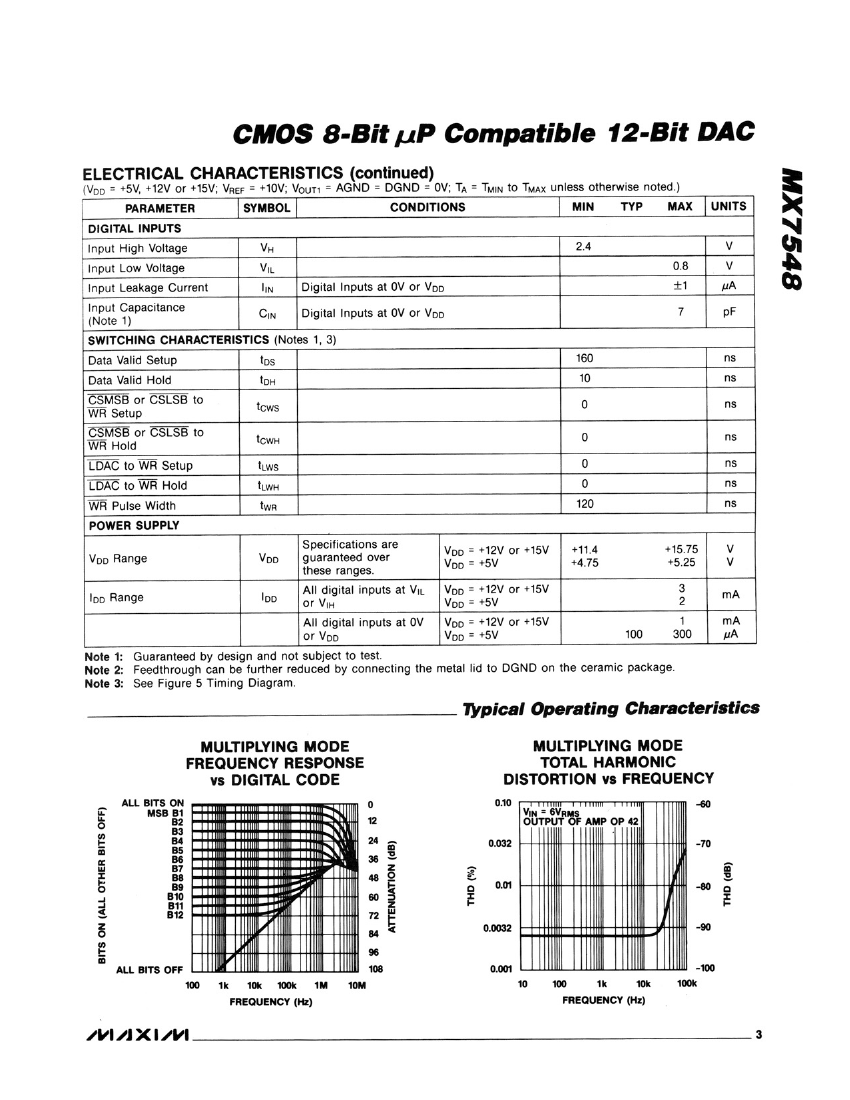

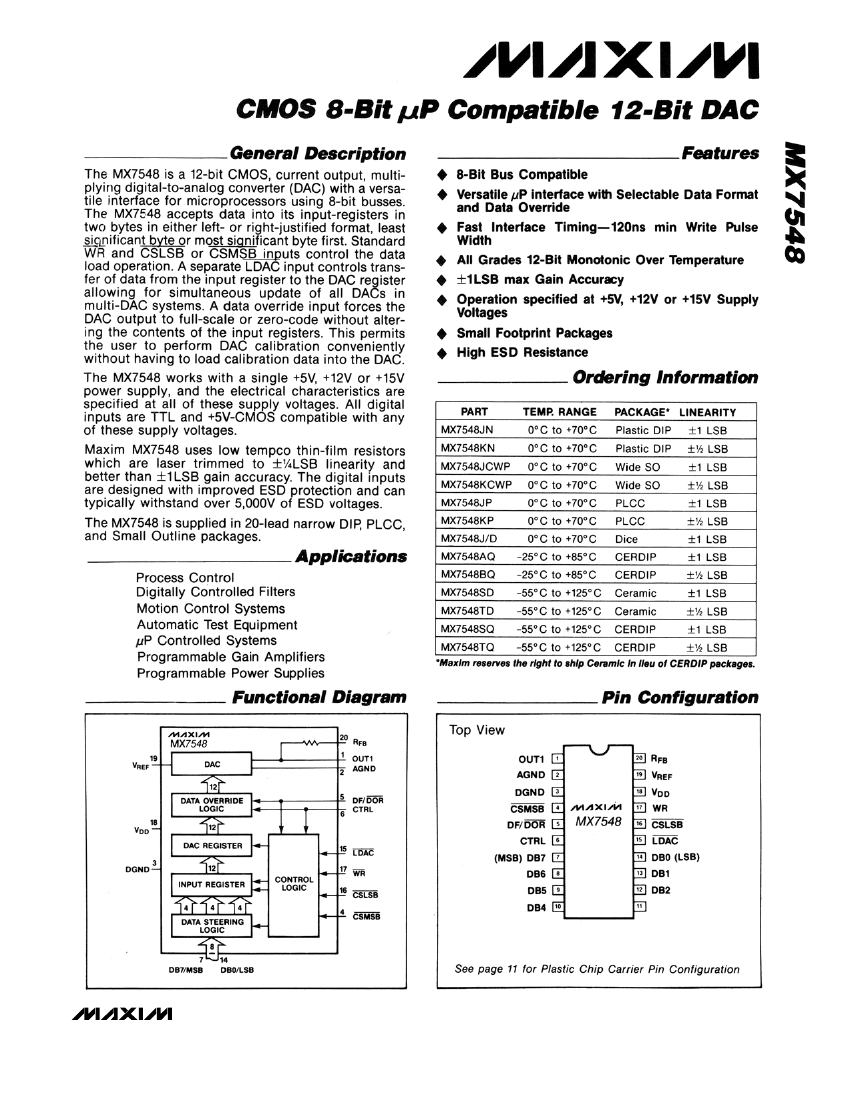

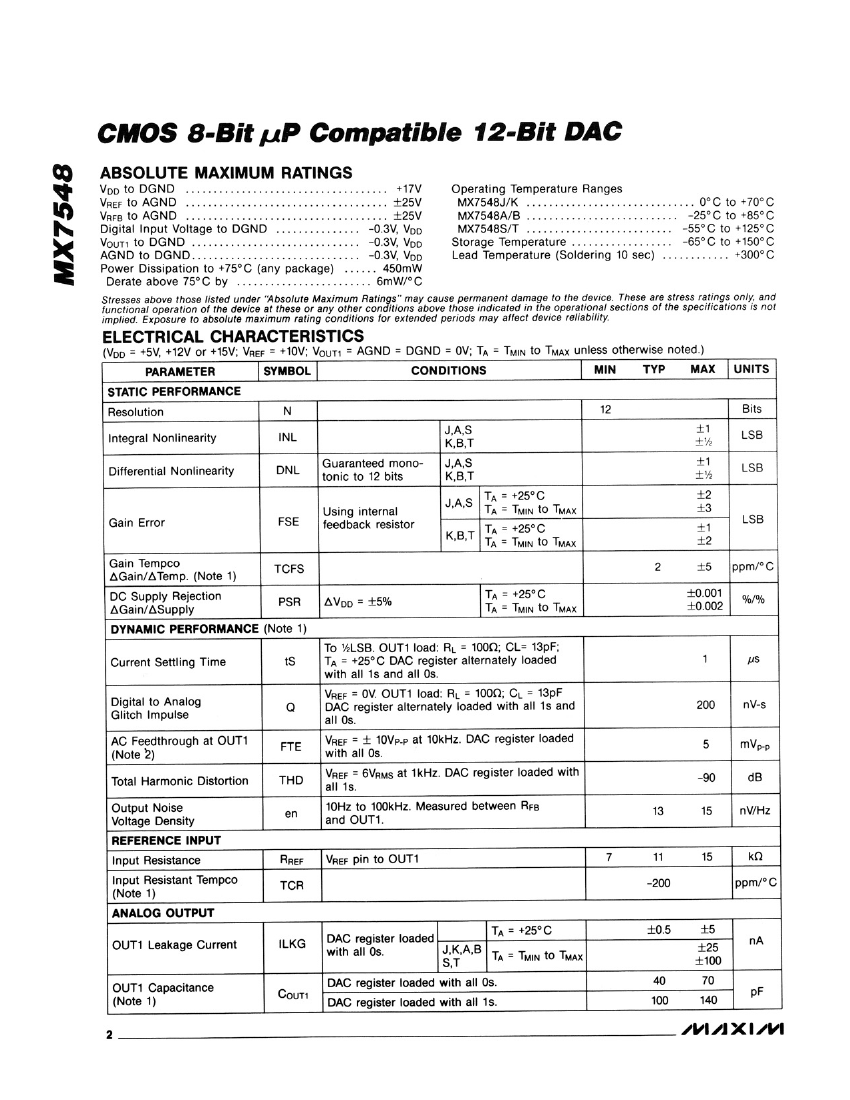

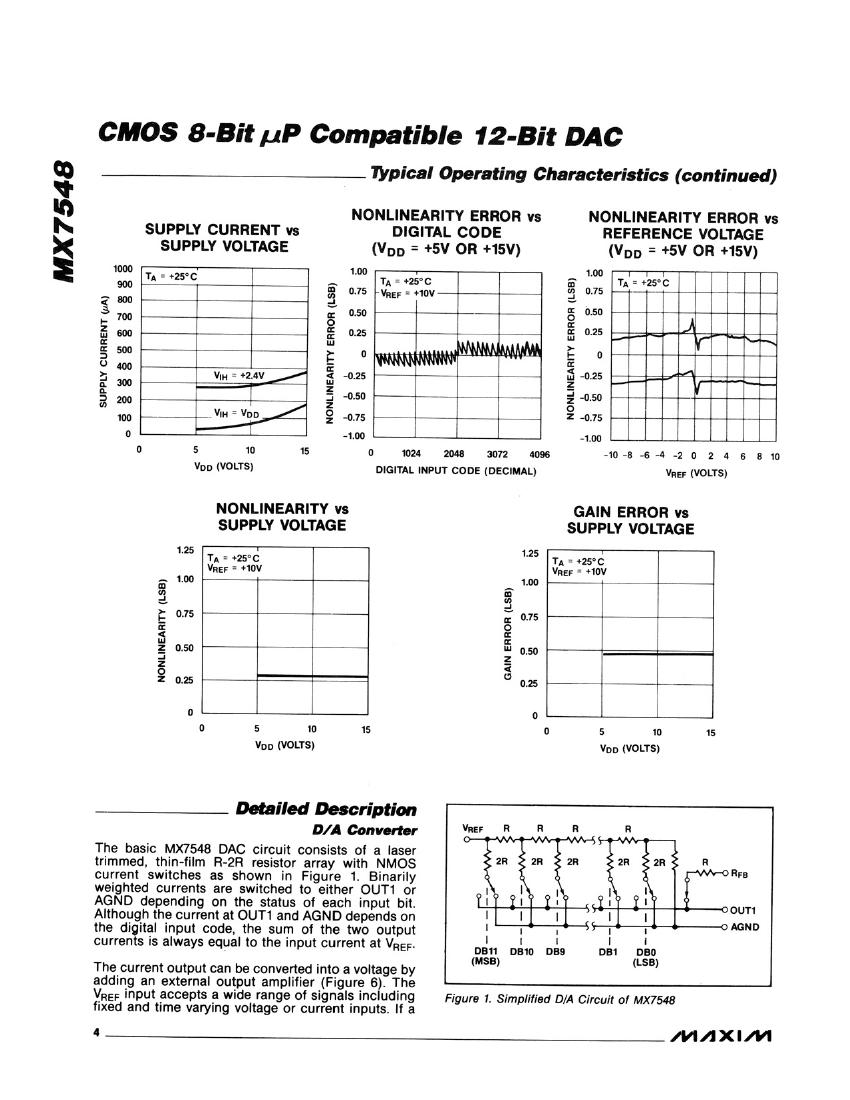

Preview

Download Datasheet

View All

____________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

MX7548KN+ Related Products

	MX7548KN+	MX7548JP+T	MX7548JEWP+	MX7548JN+	MX7548KP+T	MX7548JCWP+T	MX7548KCWP+T
Description	digital to analog converters - dac 12-bit precision dac	digital to analog converters - dac 12-bit precision dac	digital to analog converters - dac 12-bit precision dac	digital to analog converters - dac 12-bit precision dac	digital to analog converters - dac 12-bit precision dac	digital to analog converters - dac 12-bit precision dac	digital to analog converters - dac 12-bit precision dac
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	QLCC	SOIC	DIP	QLCC	SOIC	SOIC
package instruction	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ	SOP, SOP20,.4	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ	SOP, SOP20,.4	SOP, SOP20,.4
Contacts	20	20	20	20	20	20	20
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	compliant
Factory Lead Time	13 weeks	13 weeks	13 weeks	13 weeks	12 weeks	13 weeks	13 weeks
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY	BINARY, OFFSET BINARY, 2\'S COMPLEMENT BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-PDIP-T20	S-PQCC-J20	R-PDSO-G20	R-PDIP-T20	S-PQCC-J20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
length	26.67 mm	8.992 mm	13.005 mm	26.67 mm	8.992 mm	13.005 mm	13.005 mm
Maximum linear error (EL)	0.0122%	0.0244%	0.0244%	0.0244%	0.0122%	0.0244%	0.0122%
Humidity sensitivity level	1	1	1	1	1	1	1
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	SOP	DIP	QCCJ	SOP	SOP
Encapsulate equivalent code	DIP20,.3	LDCC20,.4SQ	SOP20,.4	DIP20,.3	LDCC20,.4SQ	SOP20,.4	SOP20,.4
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	SMALL OUTLINE	IN-LINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	245	260	260
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.93 mm	4.496 mm	2.642 mm	3.93 mm	4.496 mm	2.642 mm	2.642 mm
Maximum stabilization time	1 µs	1 µs	1 µs	1 µs	1 µs	1 µs	1 µs
Maximum slew rate	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	J BEND	GULL WING	THROUGH-HOLE	J BEND	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.992 mm	7.67 mm	7.62 mm	8.992 mm	7.67 mm	7.67 mm
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	-
