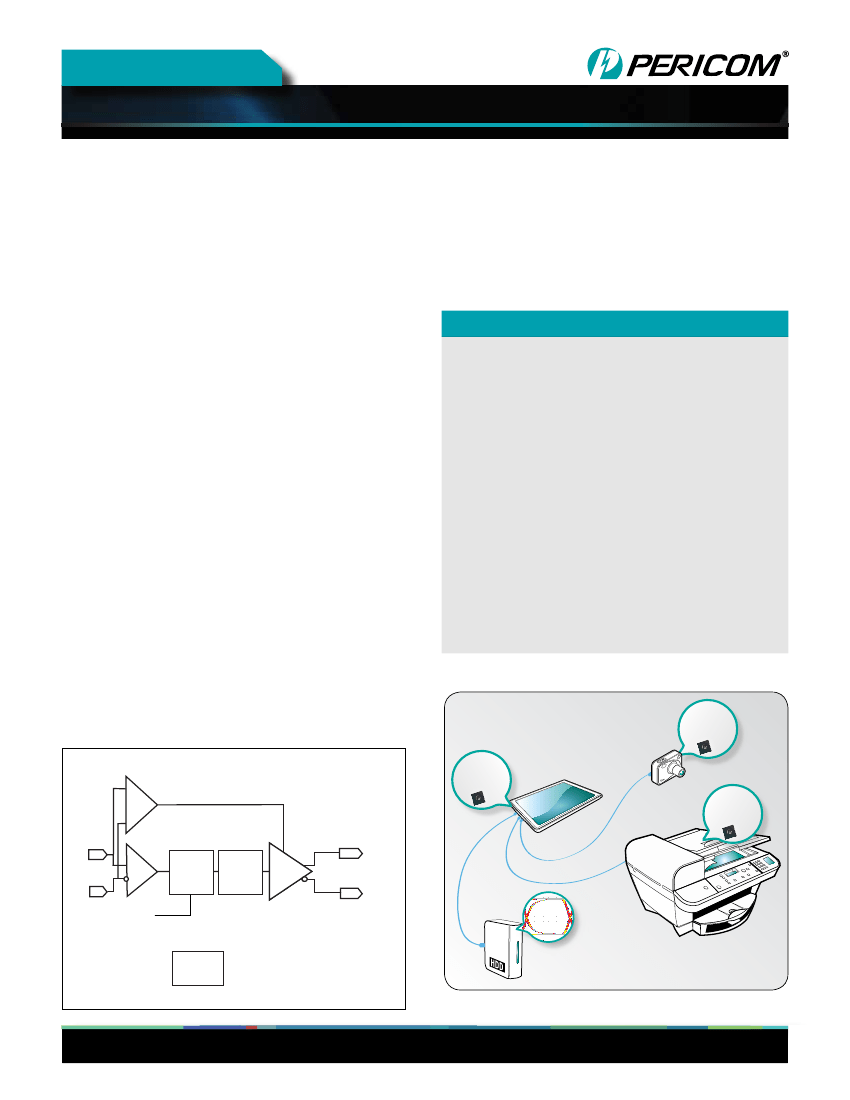

New Product Brief
Product Databrief
PI2EQX502T
1.2V 5.0Gbps, 1-port (2-Channel) USB3.0 ReDriver™
Pericom Semiconductor’s PI2EQX502T is a low power, high
performance 5.0 Gbps signal ReDriver™ designed specifically
for the USB 3.0 protocol. The device provides programmable
equalization and De-Emphasis to optimize performance
over a variety of physical mediums by reducing Inter-Symbol
Interference. PI2EQX502T supports two 100Ω Differential
CML data I/O’s between the Protocol ASIC to a switch fabric,
over cable, or to extend the signals across other distant data
pathways on the user’s platform.
The integrated equalization circuitry provides flexibility with
signal integrity of the signal before the ReDriver. A low-
level input signal detection and output squelch function
is provided for each channel. Each channel operates fully
independently. The channels’ input signal level (on xI+/-)
determines whether the output is active. If the input signal
level of the channel falls below the active threshold level
(Vth-) then the outputs are driven to the common mode
voltage.
The PI2EQX502T also includes an automatic receiver detect
function. The receiver detection loop will be active again
if the corresponding channel’s signal detector is idle for
longer than 7.3mS. The channel will then move to Unplug
Mode if load not detected, or it will return to Low Power
Mode (Slumber Mode) due to inactivity.
Block Diagram
Signal Detection
Features
ÎÎ
USB
ÎÎ
Full
ÎÎ
Two
3.0 compatible
5.0Gbps differential signal pairs
Receiver Equalization
Differential CML I/O’s
Output Swing
Compliancy to USB3.0 Super Speed Standard
ÎÎ
Adjustable
ÎÎ
100Ω
ÎÎ
Pin
Configured Output Emphasis Control
signal level detect and squelch for each channel
Receiver Detect
ÎÎ
Programmable
ÎÎ
Input
ÎÎ
Low
ÎÎ
Automatic
ÎÎ
Auto
Power : 135mW ± 10%
"Slumber" mode for adaptive power
management
Supply Voltage: 1.2V
16-Pin TQFN
ÎÎ
Single
ÎÎ
Packaging:
Application Diagram
Pericom
USB3.0
ReDriver
Pericom
USB3.0
ReDriver
Tablet PC
Digital Camera
CML
CML
XI+
Equalizer
XI –
EQ_x
Limiting
Amp
XO –
XO+
Pericom
USB3.0
ReDriver
USB 3.0 Cable
USB 3.0 Cable
- Repeated 2 times -
Multi-function
Printer
External
Storage
Device
Power
Management
www.pericom.com | 1-408-435-0800
