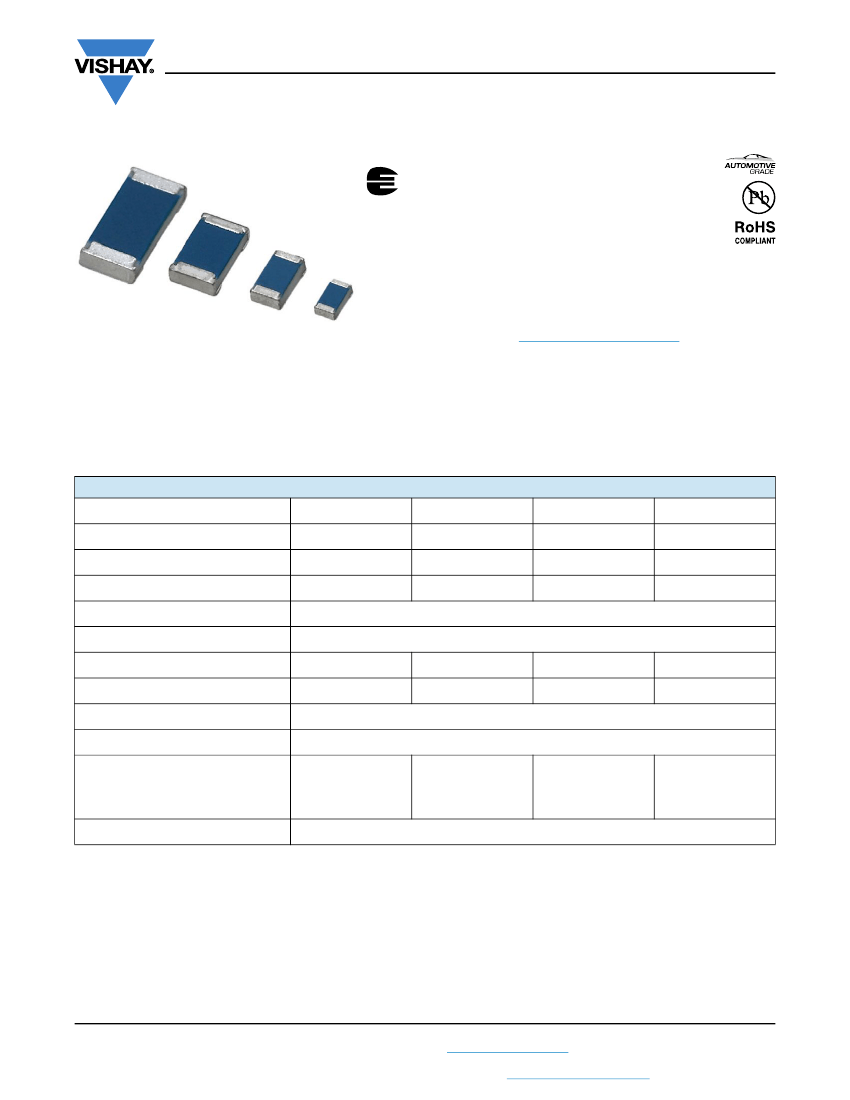

MCS 0402 AT, MCT 0603 AT, MCU 0805 AT, MCA 1206 AT - Professional
www.vishay.com
Vishay Beyschlag
Professional Thin Film Chip Resistors
FEATURES
• Operating temperature up to 175 °C for 1000 h
• Rated dissipation
P
85
up to 0.4 W for size 1206
• AEC-Q200 qualified
• Approved to EN 140401-801
• Advanced sulfur resistance verified according
to ASTM B 809
• Superior temperature cycling robustness
Automotive grade MC AT professional thin film chip
resistors are the perfect choice for most fields of modern
professional electronics where reliability and stability is of
major concern. Typical applications include automotive,
telecommunication,
industrial,
medical
equipment,
precision test, and measuring equipment.
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Automotive
• Telecommunication
• Medical equipment
• Industrial equipment
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation
P
85 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
F max. (1)
Operating temperature range
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Failure rate: FIT
observed
Note
(1)
Please refer to APPLICATION INFORMATION below.
75 V
100 V
0.1 x 10
-9
/h
200 V
300 V
0.100 W
50 V
MCS 0402 AT
0402
RR1005M
2.43
to 221 k; 0
MCT 0603 AT
0603
RR1608M
1
to 511 k; 0
MCU 0805 AT
0805
RR2012M
1
to 1 M; 0
MCA 1206 AT
1206
RR3216M
1
to 1 M; 0
± 1 %, ± 0.5 %
± 50 ppm/K; ± 25 ppm/K
0.150 W
75 V
175 °C
-55 °C to 175 °C
0.200 W
150 V
0.400 W
200 V
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 01-Mar-17
Document Number: 28760
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402 AT, MCT 0603 AT, MCU 0805 AT, MCA 1206 AT - Professional
www.vishay.com
Vishay Beyschlag
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
STANDARD
P
70
MCS 0402 AT
MCT 0603 AT
Rated dissipation
MCU 0805 AT
MCA 1206 AT
Operating temperature range
Permissible film temperature,
F max.
MCS 0402 AT
MCT 0603 AT
MCU 0805 AT
Max. resistance change at rated
dissipation for resistance range,
|R/R| after:
MCA 1206 AT
1000 h
8000 h
225 000 h
0.125 W
0.250 W
-55 °C to 125 °C
125 °C
2.43
to 221 k
1
to 511 k
1
to 1 M
1
to 1 M
0.15 %
0.25 %
1.0 %
0.200 W
0.400 W
-55 °C to 155 °C
155 °C
2.43
to 221 k
1
to 511 k
1
to 1 M
1
to 1 M
0.3 %
0.5 %
-
0.200 W
0.400 W
-55 °C to 175 °C
175 °C
2.43
to 221 k
1
to 511 k
1
to 1 M
1
to 1 M
0.5 %
-
-
0.063 W
0.100 W
POWER
P
70
0.100 W
0.125 W
ADVANCED
TEMPERATURE
P
85
0.100 W
0.150 W
Note
• The presented operation modes do not refer to different types of resistors, but actually show examples of different loads, that lead to
different film temperatures and different achievable load-life stability (drift) of the resistance value. A suitable low thermal resistance of the
circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified limits. Please
consider the application note “Thermal Management in Surface-Mounted Resistor Applications” (www.vishay.com/doc?28844) for
information on the general nature of thermal resistance.
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 50 ppm/K
MCS 0402 AT
± 25 ppm/K
Jumper
(1)
,
I
max.
= 0.63 A
± 50 ppm/K
MCT 0603 AT
± 25 ppm/K
Jumper
(1)
,
I
max.
= 1 A
± 50 ppm/K
MCU 0805 AT
± 25 ppm/K
Jumper
(1)
,
I
max.
= 1.5 A
± 50 ppm/K
MCA 1206 AT
± 25 ppm/K
Jumper
(1)
,
I
max.
= 2 A
TOLERANCE
±1%
± 0.5 %
20 m
±1%
± 0.5 %
20 m
±1%
± 0.5 %
20 m
±1%
± 0.5 %
20 m
RESISTANCE
2.43
to 221 k
10
to 221 k
0
1
to 511 k
10
to 511 k
0
1
to 1 M
10
to 1 M
0
1
to 1 M
10
to 1 M
0
E-SERIES
E24; E96
E24; E192
-
E24; E96
E24; E192
-
E24; E96
E24; E192
-
E24; E96
E24; E192
-
Note
(1)
The temperature coefficient of resistance (TCR) is not specified for 0
jumpers.
Revision: 01-Mar-17
Document Number: 28760
2
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402 AT, MCT 0603 AT, MCU 0805 AT, MCA 1206 AT - Professional
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive
set of instructions established for reproducibility. A
homogeneous film of special metal alloy is deposited on a
high grade ceramic substrate (Al
2
O
3
) and conditioned to
achieve the desired temperature coefficient. Specially
designed inner contacts are deposited on both sides. A
special laser is used to achieve the target value by smoothly
cutting a meander groove in the resistive layer without
damaging the ceramics. The resistor elements are covered
by a unique protective coating designed for electrical,
mechanical and climatic protection. The terminations
receive a final pure matte tin on nickel plating.
The result of the determined production is verified by an
extensive testing procedure and optical inspection
performed on 100 % of the individual chip resistors. This
includes full screening for the elimination of products with
potential risk of early field failures (feasible for
R
10
).
Only accepted products are laid directly into the paper tape
in accordance with
IEC 60286-3 Type 1a
(1)
.
Vishay Beyschlag
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
APPROVALS
The resistors are approved within the IECQ-CECC Quality
Assessment System for Electronic Components to the detail
specification
EN 140401-801
which refers to
EN 60115-1,
EN 60115-8
and the variety of environmental test
procedures of the
IEC 60068
(1)
series. The detail
specification refers to the climatic categories 55/125/56,
which relates to the “standard operation mode” of this
datasheet.
Conformity is attested by the use of the
CECC
logo (
) as
the mark of conformity on the package label.
The resistors are qualified according to AEC-Q200.
Vishay
Beyschlag
has
achieved
“Approval
of
Manufacturer”
in accordance with
IECQ 03-1.
The release
certificate for
“Technology Approval Schedule”
in
accordance with
CECC 240001
based on
IECQ 03-3-1
is
granted for the Vishay Beyschlag manufacturing process.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS-compliant; the pure matte tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
RELATED PRODUCTS
For more information about products with better TCR and
tighter tolerance please refer to the precision datasheet:
MCS 0402 AT, MCT 0603 AT, MCU 0805 AT, MCA 1206 AT
- Precision (www.vishay.com/doc?28785).
Chip resistor arrays may be used in sensing applications or
precision amplifiers where close matching between multiple
resistors is necessary. Please refer to datasheet:
ACAS 0606 AT, ACAS 0612 AT - Precision
(www.vishay.com/doc?28770).
MC AT series is also available with gold termination for
conductive gluing. Please refer to datasheet:
MC ATAU - Precision (www.vishay.com/doc?28877).
For high power and high temperature applications
MCW 0406 AT wide terminal thin film chip resistors offer
extremely high power ratings in compact 0406 case size and
extraordinary temperature cycling robustness. Please refer
to the datasheets:
MCW 0406 AT - Precision
(www.vishay.com/doc?28847) and
MCW 0406 AT - Professional
(www.vishay.com/doc?28796).
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org.
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table.
Revision: 01-Mar-17
Document Number: 28760
4
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
