MMB0207-502%HFB2430R: DescriptionRES,MELF,THIN FILM,430 OHMS,2% +/-TOL,-50,50PPM TC; CategoryPassive components The resistor; File Size144KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

MMB0207-502%HFB2430R Overview

RES,MELF,THIN FILM,430 OHMS,2% +/-TOL,-50,50PPM TC

MMB0207-502%HFB2430R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1175594951
package instruction	MELF,
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Cylindrical
Manufacturer's serial number	MMB0207HF
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	2.2 mm
Package length	5.8 mm
Package shape	CYLINDRICAL PACKAGE
Package form	MELF
method of packing	TR, Blister, 7 Inch
Rated power dissipation(P)	1 W
resistance	430 Ω
Resistor type	FIXED RESISTOR
series	MMB 0207 HF
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Tolerance	2%

Preview

Download Datasheet

View All

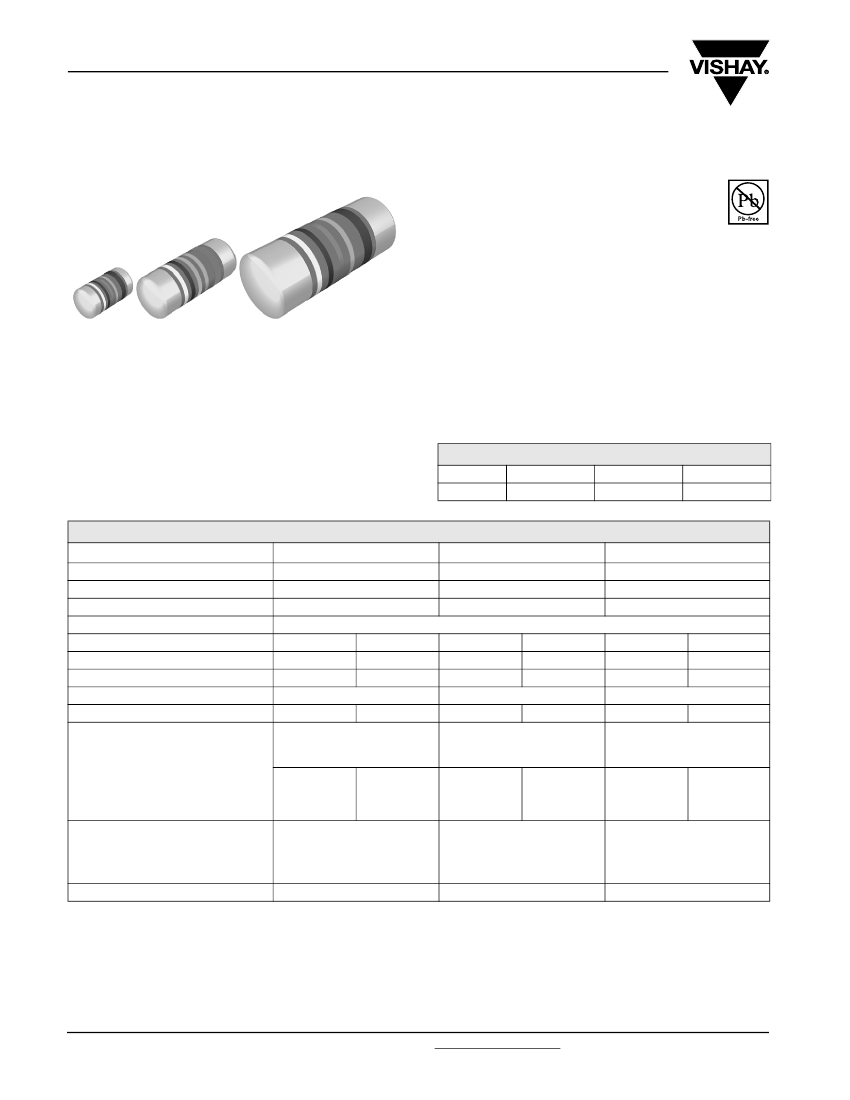

MMU 0102 HF, MMA 0204 HF, MMB 0207 HF

Vishay Beyschlag

High Frequency MELF Resistors

FEATURES

•

Speciality product for RF applications

•

Low-inductance non-helical trimmed product

•

Suitable for more than 10 GHz

•

Force fitted steel caps, tin plated on nickel barrier

•

Pure Sn termination on Ni barrier layer

•

Compatible with lead (Pb)-free and lead containing

soldering processes

•

Lead (Pb)-free and RoHS compliant

APPLICATIONS

MMU 0102 HF, MMA 0204 HF and MMB 0207 HF speciality

thin film MELF resistors for RF applications are the perfect

choice in high frequency circuit designs where the

impedance change due to the parasitic inductance of regular

and professional resistors can not be accepted. Typical

applications are in the fields of telecommunication

equipment and industrial electronics.

•

Telecommunication equipment

•

Industrial electronics.

METRIC SIZE

DIN:

CECC:

0102

RC 2211M

0204

RC 3715M

0207

RC 6123M

TECHNICAL SPECIFICATIONS

DESCRIPTION

Metric CECC size

Resistance range

Resistance tolerance

Temperature coefficient

Operation mode

Climatic category (LCT/UCT/days)

Rated dissipation,

701)

Operating voltage,

max

AC/DC

Film temperature

Max. resistance change at

for

resistance range,

|ΔR/R| max., after:

1000 h

8000 h

225 000 h

Permissible voltage against ambient

(insulation):

1 minute;

ins

continuous

Failure rate

standard

55/125/56

0.2 W

power

55/155/56

0.3 W

MMU 0102 HF

RC 2211M

6.8

to 470

±2%

standard

55/125/56

0.25 W

MMA 0204 HF

RC 3715M

1.5

to 475

±1%

± 50 ppm/K

power

55/155/56

0.4 W

standard

55/125/56

0.4 W

power

55/155/56

1.0 W

MMB 0207 HF

RC 6123M

6.8

to 470

±2%

limited by

125

°C

155

°C

6.8

to 470

limited by

125

°C

155

°C

1.5

to 475

limited by

125

°C

155

°C

6.8

to 470

≤

0.25 %

≤

0.5 %

≤

1.5 %

≤

0.5 %

≤

1.0 %

≤

0.25 %

≤

0.5 %

≤

1.5 %

≤

0.5 %

≤

1.0 %

≤

0.25 %

≤

0.5 %

≤

1.5 %

≤

0.5 %

≤

1.0 %

150 V

75 V

≤

2.0

-9

300 V

75 V

≤

0.7

-9

500 V

75 V

≤

0.7

-9

Note:

These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over

operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.

The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heatflow support of the

printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature is not exceeded. Furthermore, a

high level of ambient temperature or of power dissipation may raise the temperature of the solder joint, hence special solder alloys or board

materials may be required to maintain the reliability of the assembly.

Specified power rating requires dedicated heat-sink pads.

For technical questions contact: ff3bresistors@vishay.com

Document Number: 28718

Revision: 18-Jul-06

www.vishay.com
