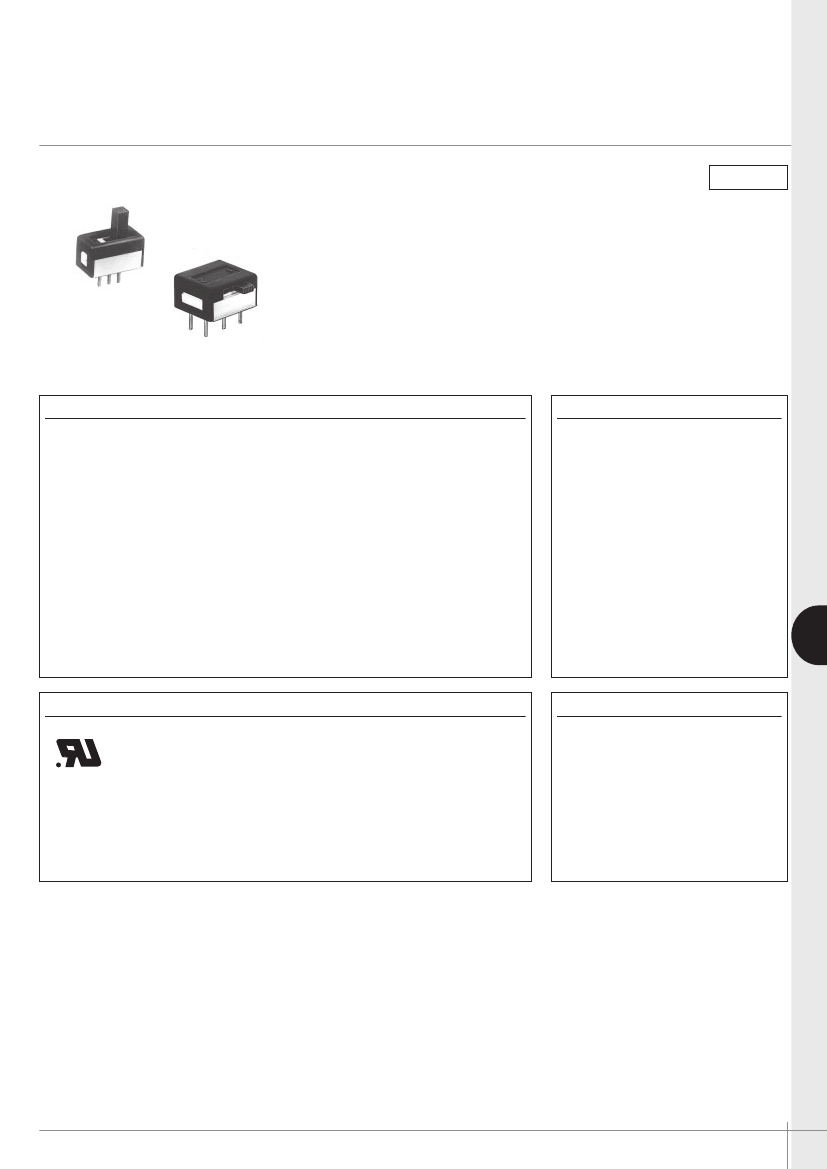

25000N series
Professional slide switches
Distinctive features and specifications
❑
Professional grade slide switches for PC boards
❑
Approved according to UL 1054
❑
Wave solderable
Not washable in aqueous process
UG1006-A
❑
Available with flush, high and side actuator
❑
Various actuator lengths
ELECTRICAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- silver contacts (A) : 2A 250VAC - 4A 125VAC - 1A 30VDC
- gold plated brass contacts (LD) : 100mA 30VDC
• Minimum load :
- silver contacts (A) : 100mA 10V
- gold plated brass contacts (LD) : 10μA 5VDC - 10mA 50mV
• Initial contact resistance :
- silver contacts (A) : 10mΩ max.
- gold plated brass contacts (LD) : 50mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
1.000 Vrms 50 Hz min. between terminals
2.000 Vrms 50 Hz min. between poles
2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10.000 cycles at full load
• Low level or mechanical life : 20.000 cycles
APPROVALS
• Case : PBT
• Actuator : polyamide, glass
filled
• Cover : polyamide, glass filled
• Contacts
A
: silver
LD
: brass, gold plated
• Terminal seal : epoxy
E
GENERAL SPECIFICATIONS
Availability
: consult factory for details of approved models.
Marking
: To order switches marked UL, complete the “Options and
Approvals” box of ordering format.
• Operating temperature :
-40°C to +85°C
• Overall length : 14 mm (.551)
• Actuator height (outside case) :
- high : 2,80 mm (.110)
- extra high : 6 mm (.236)
- side : 2,3 mm (.090)
- long side : 6 mm (.236)
• Travel : 4 mm (.157)
APEM
www.apem.com
E-15
25000N series
Professional slide switches

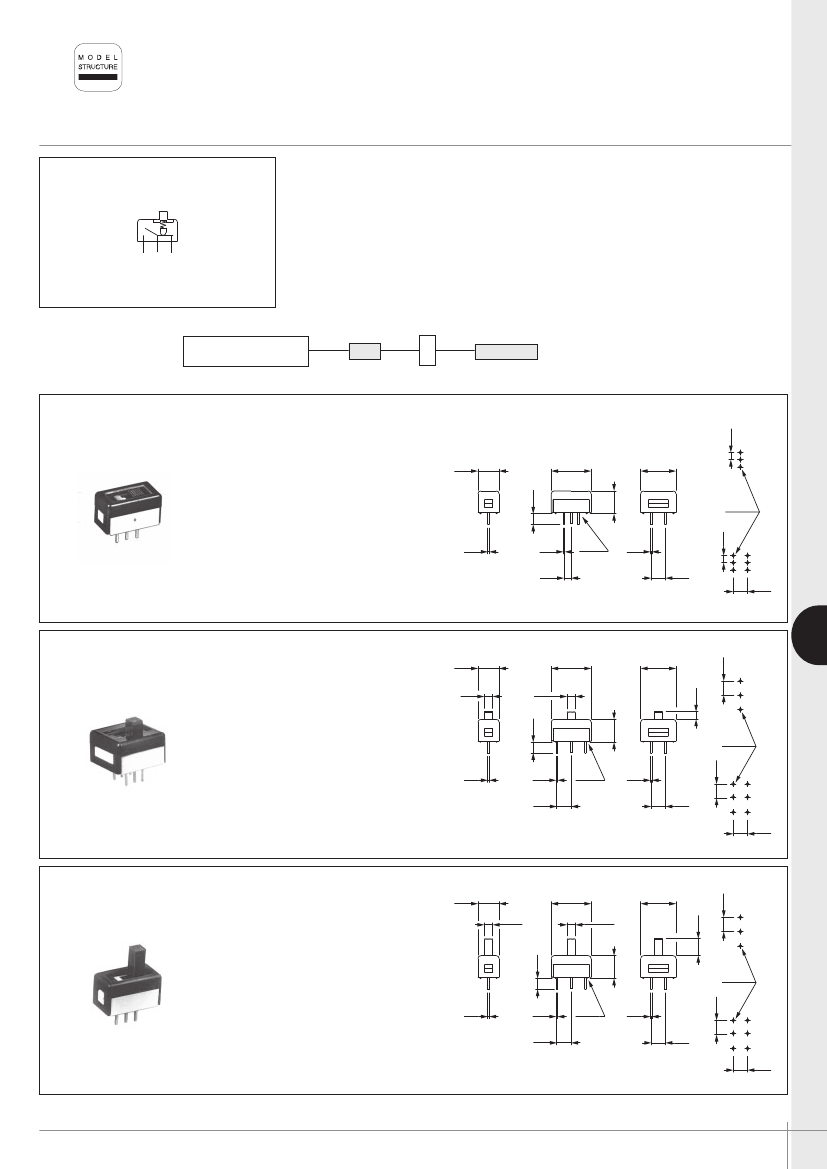

Overview
25
N
SERIES
Actuator and terminals
1
Flush or high actuator,
terminal spacing
2,54 (.100)
Flush or high actuator,
terminal spacing
5,08 (.200)
Side actuator, terminal
spacing 2,54 (.100)
Side actuator, terminal
spacing 5,08 (.200)
Number of poles
3
4
Single pole
Double pole
6
9
Electrical functions
ON
ON
-
OFF
ON
ON
Version
N
For all models
4
3
5
E
Contact materials
A
Silver
LD
Gold plated brass
B
H
H6
Blank
-6
Actuator
Flush
High
Extra high
Side
Long side
Options and approvals
X601
Special contact :
lower rating
Other : see following pages.
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches (including actuator options)
- contact options
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Packaging unit
: single pole : 100 pieces - double pole : 50 pieces
E-16
www.apem.com
APEM
25000N series
Professional slide switches

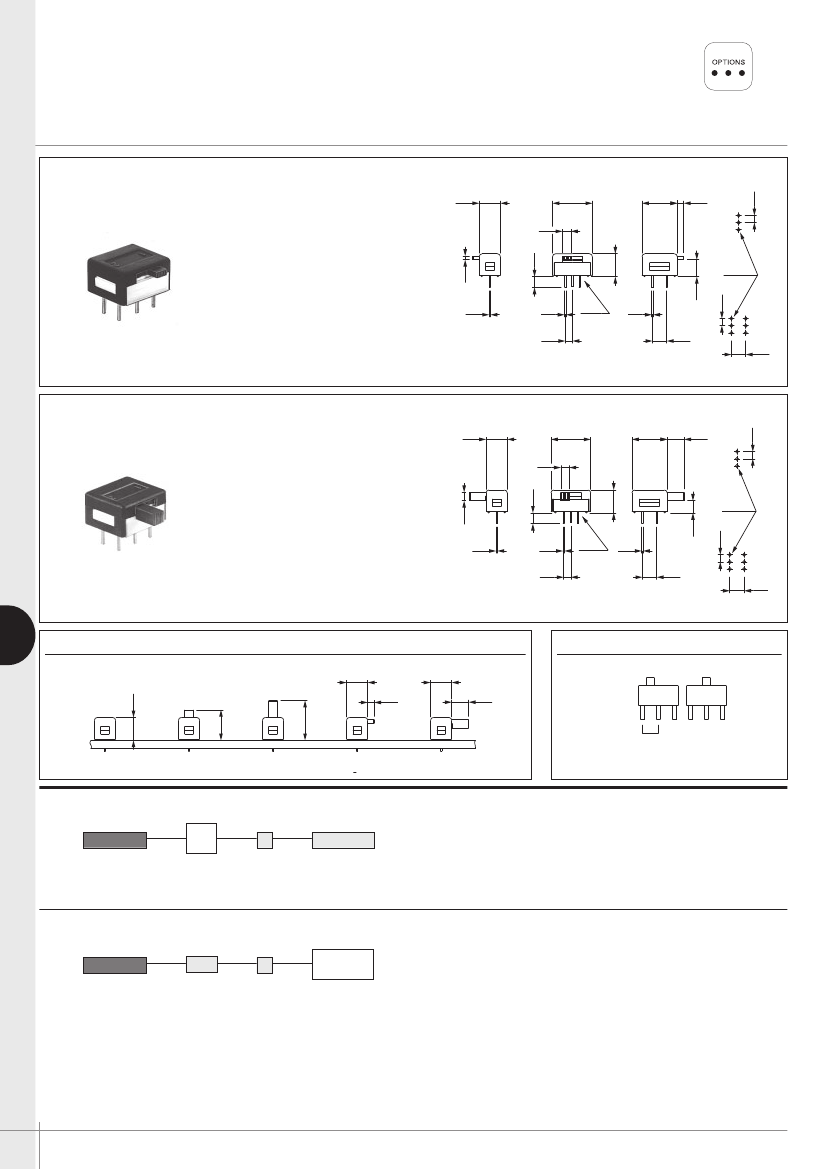

Side actuator : 25000N
Terminal spacing
2,54 (.100)
Single pole
25336N
25339N
Double pole
25346N
25349N
Terminal spacing
5,08 (.200)
Single pole
25536N
25539N
Double pole
25546N
25549N
3.00
(.118)
2.54
(.100)
Ø1.10
(.043DIA)
6.00
(.236)
5.08
(.200)
5.08
(.200)
Ø1.10
(.043DIA)
4.30
(.169)
2.54
(.100)
5.08
(.200)
1
7.50
(.295)
14.10
(.555)
12.50
(.465)
2.30
(.090)
3.80
(.149)
1.30
(.051)
8.10
(.318)
0.60
(.023)
0.50
(.019)
2.54
(.100)
EPOXY
0.60
(.023)
Long side actuator : 25000N-6
Terminal spacing
2,54 (.100)
Single pole
25336N -6
25339N -6
Double pole
25346N -6
25349N -6
Terminal spacing
5,08 (.200)
Single pole
25536N -6
25539N -6
Double pole
25546N -6
25549N -6
7.50
(.295)
3.00
(.118)
14.10
(.555)
12.50
(.465)
6.00
(.236)
3.80
(.149)
3.00
(.118)
8.10
(.318)
0.60
(.023)
0.50
(.019)
2.54
(.100)
EPOXY
0.60
(.023)
5.08
(.200)
E
8.10
(.318)
PCB MOUNTING
7.50
(.295)
2.30
(.090)
14.10
(.555)
7.50
(.295)
6.00
(.236)
POSITIONS AND CONNECTIONS
2
1
2
10.80
(.425)
B
H
H6
6
Function 6
Function 9
ON
ON
-
OFF
2.54
(.100)
2.54
(.100)
ON
ON
CONTACT MATERIALS
A
LD
Silver
Brass, gold plated
OPTIONS AND APPROVALS
X601
X693
X693UL
Silver plated brass contacts - Lower rating 3VA 30VDC. Min quantity : 5.000 pieces per model and shipment.
Flame retardant plastic materials
Switches approved and marked UL (silver contacts only)
E-18
www.apem.com
APEM
