BA6849FS-E2 datasheet, PDF - EEWORLD Datasheet

BA6849FS-E2: Descriptionmotor / motion / ignition controllers & drivers motor driver 3-phase 24pin; CategoryOther integrated circuit (IC) The signal circuit; File Size172KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA6849FS-E2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BA6849FS-E2	-	-	View	Buy Now

motor / motion / ignition controllers & drivers motor driver 3-phase 24pin

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP-24
Contacts	24
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	7 weeks
Samacsys Descripti	Motor / Motion / Ignition Controllers & Drivers MOTOR DRIVER 3-PHASE 24PIN
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G24
JESD-609 code	e3/e2
length	10 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP24,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.25 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

Motor driver ICs

3-phase motor driver for

CD-ROMs

BA6849FP / BA6849FP-Y / BA6849FM /

BA6849FS

The BA6849 series are ICs developed for CD-ROM spindle motor drives. These ICs possess a short brake and reverse-

rotation brake for two types of brake functions, and also contain FG output and rotation direction detection (FR) circuits,

making them high-functionality and high-performance ICs.

FApplications

CD-ROM, CD-R, CD-RW, DVD-ROM, and DVD-RAM

FFeatures

1) Three-phase, full-wave, pseudo-linear drive system.

2) Built-in power save and thermal shutdown functions.

3) Built-in current limiter and Hall bias circuits.

4) Built-in FG output.

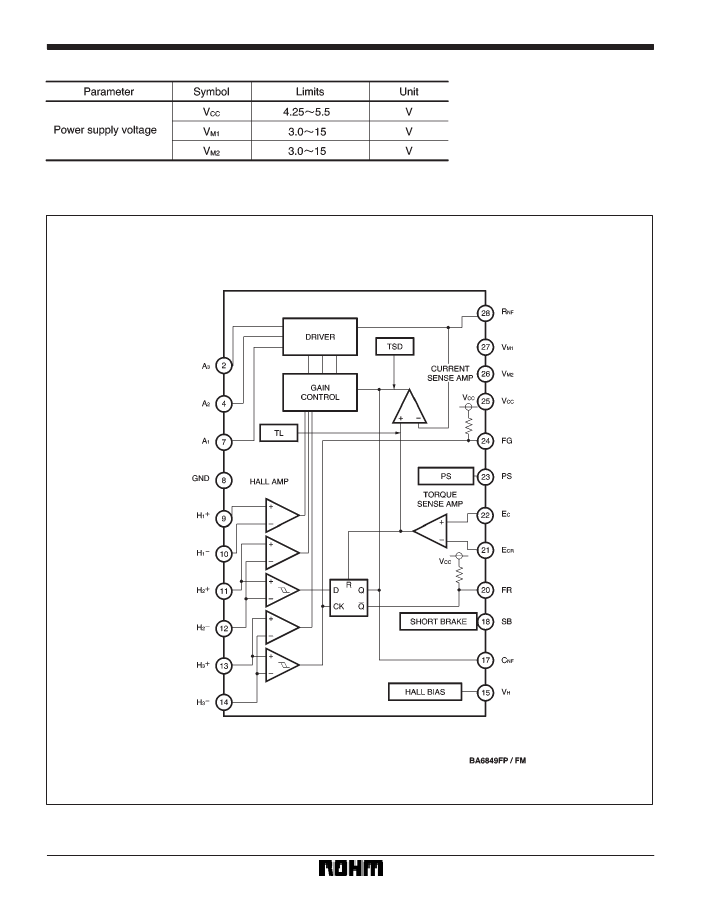

FAbsolute

maximum ratings (Ta = 25_C)

5) Built-in rotation direction detector.

6) Built-in reverse rotation prevention circuit.

7) Built-in short brake pin.
