Si53365-B-GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> Si53365-B-GT

Si53365-B-GT: Descriptionclock drivers & distribution 1:8 cmos bffr 200mhz tssop16; Categorysemiconductor Other integrated circuit (IC); File Size137KB，14 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric View All

Si53365-B-GT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Si53365-B-GT	-	-	View	Buy Now

Si53365-B-GT Overview

clock drivers & distribution 1:8 cmos bffr 200mhz tssop16

Si53365-B-GT Parametric

Parameter Name	Attribute value
Manufacture	Silicon Laboratories
Product Category	Clock Drivers & Distributi
RoHS	Yes
Multiply / Divide Fac	1
Output Type	LVCMOS
Max Output Freq	200 MHz
Supply Voltage - Max	3.63 V
Supply Voltage - Mi	1.71 V
Maximum Operating Temperature	+ 85 C
Package / Case	TSSOP-16
Packaging	Tube
Minimum Operating Temperature	- 40 C
Mounting Style	SMD/SMT
Factory Pack Quantity	96
Supply Curre	220 mA
Type	Low Jitter CMOS Clock Buffe

Preview

Download Datasheet

View All

Si53365

1:8 L

O W

I T T E R

CMOS C

LOCK

U FF E R

(<200 MH

)

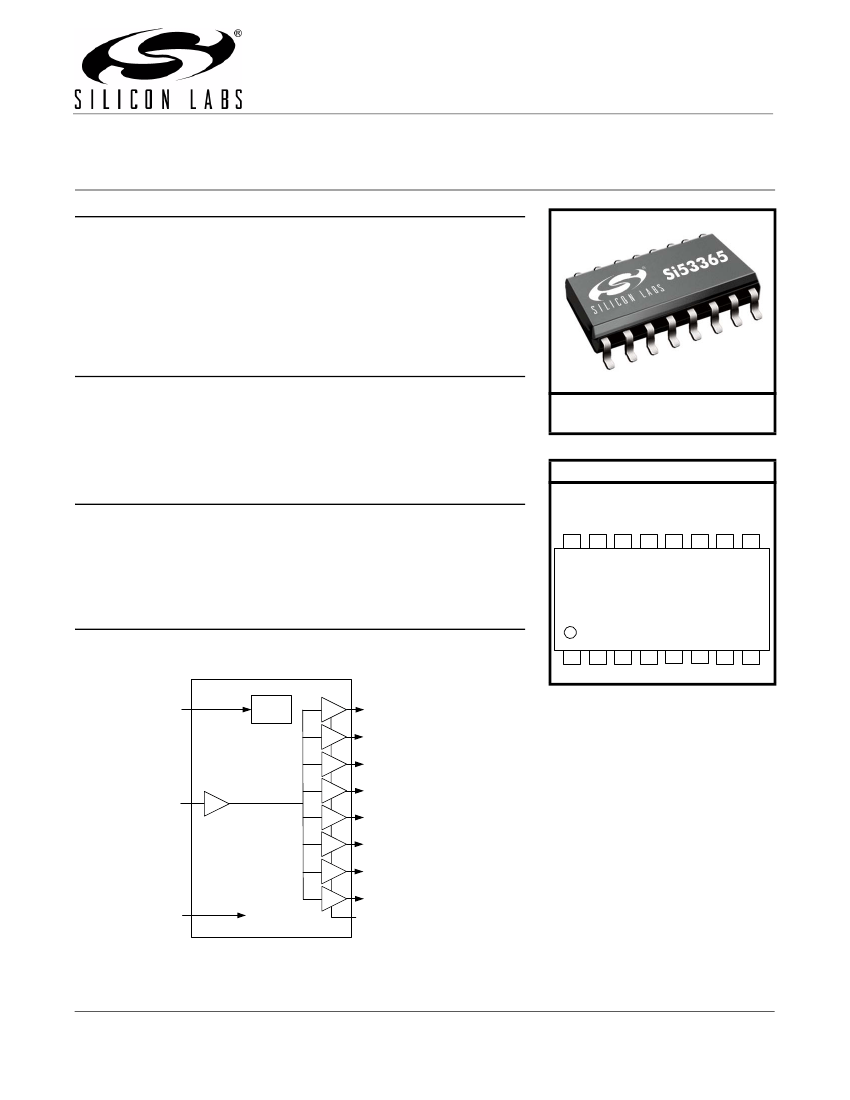

Features



8 LVCMOS outputs



Ultra-low additive jitter: 150 fs rms



Wide frequency range: 1 to 200 MHz



Asynchronous output enable

Low output-output skew: <150 ps



Low propagation delay variation:



<400 ps

RoHS compliant, Pb-free

Industrial temperature range:

–40 to +85 °C

Footprint-compatible with

CDCLVC1108

1.8, 2.5, or 3.3 V operation

16-TSSOP

Applications



High-speed clock distribution

Ethernet switch/router

Optical Transport Network (OTN)

SONET/SDH

PCI Express Gen 1/2/3



Storage

Telecom

Industrial

Servers

Backplane clock distribution

Ordering Information:

See page 9.

Pin Assignments

Si53365

VDD

GND

VDD

Description

The Si53365 is an ultra low jitter eight output LVCMOS buffer. The Si53365

utilizes Silicon Laboratories' advanced CMOS technology to fanout clocks from 1

MHz to 200 MHz with guaranteed low additive jitter, low skew, and low

propagation delay variability. The Si53365 supports operation over the industrial

temperature range and can be operated from a 1.8 V, 2.5 V, or 3.3 V supply.

Functional Block Diagram

CLK

GND

VDD

GND

VDD

Power

Supply

Filtering

Patents pending

CLK

GND

Preliminary Rev. 0.4 10/12

Si53365

This information applies to a product under development. Its characteristics and specifications are subject to change without notice.

Si53365

ABLE O F

ONTENTS

Section

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.1. Input Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.2. Output Enable Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.3. Output Clock Termination Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.4. AC Timing Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3. Pin Description: 16-Pin TSSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5. Package Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.1. 16-TSSOP Package Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

6. PCB Land Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

6.1. 16-TSSOP Package Land Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

7. Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.1. Si53365 Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.2. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Preliminary Rev. 0.4
