MCP6N11-005E/SN

Description
instrumentation amplifiers sin, 500khz, 800ua gmin 5 v/v, I/O
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size6MB,50 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Environmental Compliance
Download Datasheet Download user manual Parametric Compare View All

MCP6N11-005E/SN Overview

instrumentation amplifiers sin, 500khz, 800ua gmin 5 v/v, I/O

MCP6N11-005E/SN Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMicrochip
Parts packaging codeSOIC
package instructionSOP, SOP8,.25
Contacts8
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time13 weeks
Samacsys DescriptiMicrochip MCP6N11-005E/SN Instrumentation Amplifier, 0.35V Offset 2.5MHz GBW, CMMR 80dB, 1.8 → 5.5 V, 8-Pin SOIC
Amplifier typeINSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB)0.005 µA
Nominal bandwidth (3dB)35 MHz
Minimum Common Mode Rejection Ratio62 dB
Maximum input offset current (IIO)0.001 µA
Maximum input offset voltage3000 µV
JESD-30 codeR-PDSO-G8
JESD-609 codee3
length4.9 mm
Humidity sensitivity level3
maximum nonlinearity0.05%
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
power supply2/5 V
Certification statusNot Qualified
Maximum seat height1.75 mm
Nominal slew rate9 V/us
Supply voltage upper limit6.5 V
surface mountYES
Temperature levelAUTOMOTIVE
Terminal surfaceMatte Tin (Sn) - annealed
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
width3.9 mm

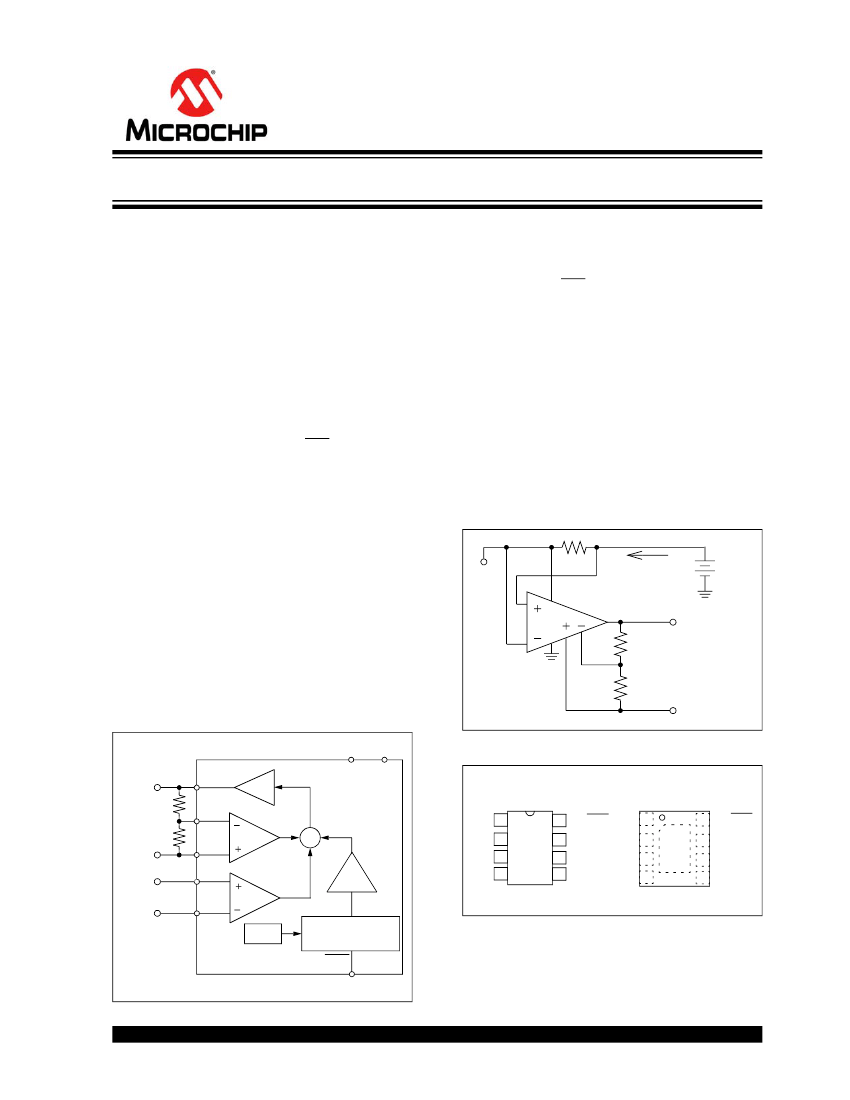

MCP6N11
500 kHz, 800 µA Instrumentation Amplifier
Features
• Rail-to-Rail Input and Output
• Gain Set by 2 External Resistors
• Minimum Gain (G
MIN
) Options:
1, 2, 5, 10 or 100 V/V
• Common Mode Rejection Ratio (CMRR): 115 dB
(typical, G
MIN
= 100)
• Power Supply Rejection Ratio (PSRR): 112 dB
(typical, G
MIN
= 100)
• Bandwidth: 500 kHz (typical, Gain = G
MIN
)
• Supply Current: 800
μA/channel
(typical)
• Single Channel
• Enable/V
OS
Calibration pin: (EN/CAL)
• Power Supply: 1.8V to 5.5V
• Extended Temperature Range: -40°C to +125°C
Description
Microchip Technology Inc. offers the single MCP6N11
instrumentation amplifier (INA) with Enable/V
OS
Cali-
bration pin (EN/CAL) and several minimum gain
options. It is optimized for single-supply operation with
rail-to-rail input (no common mode crossover distor-
tion) and output performance.
Two external resistors set the gain, minimizing gain
error and drift-over temperature. The reference voltage
(V
REF
) shifts the output voltage (V
OUT
).
The supply voltage range (1.8V to 5.5V) is low enough
to support many portable applications. All devices are
fully specified from -40°C to +125°C.
These parts have five minimum gain options (1, 2, 5, 10
and 100 V/V). This allows the user to optimize the input
offset voltage and input noise for different applications.
Typical Applications
High Side Current Sensor
Wheatstone Bridge Sensors
Difference Amplifier with Level Shifting
Power Control Loops
Typical Application Circuit
10
Ω
U
1
MCP6N11
R
F
200 kΩ
R
G
10 kΩ
V
REF
V
OUT
I
DD
V
BAT
+1.8V
to
+5.5V
V
DD
Design Aids
• Microchip Advanced Part Selector (MAPS)
• Demonstration Board
• Application Notes
V
FG
Block Diagram
Package Types
V
OUT
V
OUT
R
F
R
G
V
REF
V
IP
V
IM
V
FG
V
REF
V
IP
V
IM
G
M2
I
2
I
1
G
M1
POR
R
M4
V
DD
V
SS
I
4
Σ
MCP6N11
SOIC
V
FG
1
MCP6N11
2×3 TDFN *
8 EN/CAL
EP
9
7 V
DD
6 V
OUT
5 V
REF
8 EN/CAL V
FG
1
7 V
DD
6 V
OUT
5 V
REF
V
IM
2
V
IP
3
V
SS
4
I
3
G
M3
V
TR
V
IM
2
V
IP
3
V
SS
4
* Includes Exposed Thermal Pad (EP); see
Table 3-1.
Low Power
V
OS
Calibration
EN/CAL
©
2011 Microchip Technology Inc.
DS25073A-page 1

MCP6N11-005E/SN Related Products

MCP6N11-005E/SN MCP6N11-010E/SN MCP6N11-002E/SN MCP6N11T-002E/SN MCP6N11T-005E/SN
Description instrumentation amplifiers sin, 500khz, 800ua gmin 5 v/v, I/O instrumentation amplifiers sin, 500khz, 800ua gmin 10 v/v, I/O instrumentation amplifiers sin, 500khz, 800ua gmin 2 v/v, I/O instrumentation amplifiers sngl instrumentation amp mcal E temp instrumentation amplifiers sngl instrumentation amp mcal E temp
Is it Rohs certified? conform to conform to conform to conform to conform to
Maker Microchip Microchip Microchip Microchip Microchip
Parts packaging code SOIC SOIC SOIC SOIC SOIC
package instruction SOP, SOP8,.25 SOP, SOP8,.25 SOP, SOP8,.25 SOP, SOP8,.25 SOP, SOP8,.25
Contacts 8 8 8 8 8
Reach Compliance Code compli compli compli compli compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Factory Lead Time 13 weeks 8 weeks 8 weeks 8 weeks 13 weeks
Amplifier type INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB) 0.005 µA 0.005 µA 0.005 µA 0.005 µA 0.005 µA
Nominal bandwidth (3dB) 35 MHz 35 MHz 35 MHz 35 MHz 35 MHz
Minimum Common Mode Rejection Ratio 62 dB 62 dB 62 dB 62 dB 62 dB
Maximum input offset current (IIO) 0.001 µA 0.001 µA 0.001 µA 0.001 µA 0.001 µA
Maximum input offset voltage 3000 µV 3000 µV 3000 µV 3000 µV 3000 µV
JESD-30 code R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8
JESD-609 code e3 e3 e3 e3 e3
length 4.9 mm 4.9 mm 4.9 mm 4.9 mm 4.9 mm
Humidity sensitivity level 3 3 3 3 3
maximum nonlinearity 0.05% 0.05% 0.05% 0.05% 0.05%
Number of functions 1 1 1 1 1
Number of terminals 8 8 8 8 8
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP SOP SOP
Encapsulate equivalent code SOP8,.25 SOP8,.25 SOP8,.25 SOP8,.25 SOP8,.25
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260 260 260
power supply 2/5 V 2/5 V 2/5 V 2/5 V 2/5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 1.75 mm 1.75 mm 1.75 mm 1.75 mm 1.75 mm
Nominal slew rate 9 V/us 9 V/us 9 V/us 9 V/us 9 V/us
Supply voltage upper limit 6.5 V 6.5 V 6.5 V 6.5 V 6.5 V
surface mount YES YES YES YES YES
Temperature level AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE
Terminal surface Matte Tin (Sn) - annealed Matte Tin (Sn) - annealed Matte Tin (Sn) - annealed Matte Tin (Sn) - annealed Matte Tin (Sn) - annealed
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 40 40 40 40 40
width 3.9 mm 3.9 mm 3.9 mm 3.9 mm 3.9 mm
