Si8711AC-B-IS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> Si8711AC-B-IS

Si8711AC-B-IS: Descriptiondigital isolators opto-input isolator; CategoryAnalog mixed-signal IC The signal circuit; File Size2MB，39 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric View All

Si8711AC-B-IS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Si8711AC-B-IS	-	-	View	Buy Now

Si8711AC-B-IS Overview

digital isolators opto-input isolator

Si8711AC-B-IS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Silicon Laboratories Inc
package instruction	SOIC-8
Reach Compliance Code	compli
Samacsys Descripti	SILICON LABS - SI8711AC-B-IS - Digital Isolator, 1 Channel, 60 ns, 3 V, 30 V, NSOIC, 8 Pins
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

Preview

Download Datasheet

View All

Si87xx

V LED E

MULATOR

N PU T

, O

PEN

OLLECTOR

UTPUT

SOLA TORS

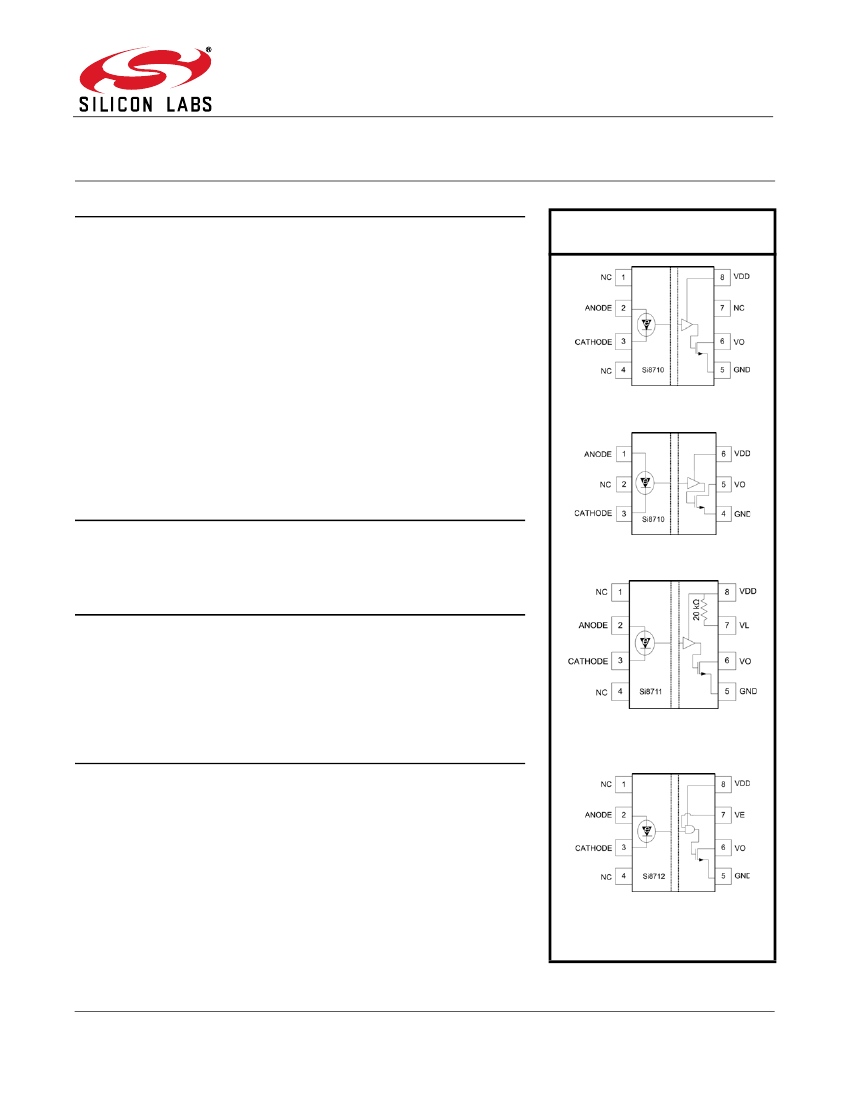

Features

Pin-compatible, drop-in upgrades for



popular high-speed digital



optocouplers



Performance and reliability



advantages vs. optocouplers



Resistant to temperature, age and



forward current effects





10x lower FIT rate for longer

service life





Higher common-mode transient



immunity: >50 kV/µs typical



Lower power and forward input



diode current



PCB footprint compatible with

optocoupler packaging



Wide range of product options

1 channel diode emulator input

3 to 30 V open collector output

Propagation delay 30 ns

Data rates dc to 15 Mbps

Up to 5000 V

RMS

isolation and 10 kV

surge protection

AEC-Q100 qualified

Wide operating temperature range



–40 to +125 °C

RoHS-compliant packages



SOIC-8 (Narrow body)



DIP8 (Gull-wing)



SDIP6 (Stretched SO-6)



LGA8

Pin Assignments:

See page 20

SOIC-8, DIP8, LGA8

Open Collector Output

Applications

Industrial automation



Isolated data acquisition



Motor controls and drives



Test and measurement equipment



Isolated switch mode power supplies



SDIP6

Open Collector Output

Safety Regulatory Approvals



UL 1577 recognized





VDE certification conformity



IEC60747-5-2/VDE0884

CSA component notice 5A

approval



IEC

to 5000 Vrms for 1 minute



CQC certification approval



GB4943.1

Part 10

(basic/reinforced insulation)

60950-1, 61010-1, 60601-1

(reinforced insulation)

Description

The Si87xx isolators are pin-compatible, one-channel, drop-in

replacements for popular optocouplers with data rates up to 15 Mbps.

These devices isolate high-speed digital signals and offer performance,

reliability, and flexibility advantages not available with optocoupler

solutions. The Si87xx series is based on Silicon Labs' proprietary CMOS

isolation technology for low-power and high-speed operation and are

resistant to the wear-out effects found in optocouplers that degrade

performance with increasing temperature, forward current, and device

age. As a result, the Si87xx series offer longer service life and

dramatically higher reliability compared to optocouplers. Ordering options

include open collector output with and without integrated pull-up resistor

and output enable options.

SOIC-8, DIP8, LGA8

Open Collector Output

with 20 k Pull-up Resistor

SOIC-8, DIP8, LGA8

Open Collector Output

with Output Enable

Patent pending

Si87xx

Rev. 1.1 4/14

Si87xx

ABLE

Section

ONTENTS

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.1. Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3. Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.1. Device Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.2. Device Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

4. Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.1. Input Circuit Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2. Output Circuit Design and Power Supply Connections . . . . . . . . . . . . . . . . . . . . . . . 17

5. Pin Descriptions (SOIC-8, DIP8, LGA8) Open Collector . . . . . . . . . . . . . . . . . . . . . . . . . 18

6. Pin Descriptions (SOIC-8, DIP8, LGA8) Output Enable . . . . . . . . . . . . . . . . . . . . . . . . . 19

7. Pin Descriptions (SDIP6) Open Collector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8. Pin Descriptions (SOIC-8, DIP8, LGA8) 20 kW Pull-Up Resistor . . . . . . . . . . . . . . . . . . 21

9. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

10. Package Outline: 8-Pin Narrow Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

11. Land Pattern: 8-Pin Narrow Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

12. Package Outline: DIP8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

13. Land Pattern: DIP8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

14. Package Outline: SDIP6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

15. Land Pattern: SDIP6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

16. Package Outline: LGA8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

17. Land Pattern: LGA8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

18. Top Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

18.1. Top Marking (8-Pin Narrow Body SOIC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

18.2. Top Marking Explanation (8-Pin Narrow Body SOIC) . . . . . . . . . . . . . . . . . . . . . . . 34

18.3. Top Marking (DIP8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

18.4. Top Marking Explanation (DIP8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

18.5. Top Marking (SDIP6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

18.6. Top Marking Explanation (SDIP6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

18.7. Top Marking (LGA8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

18.8. Top Marking Explanation (LGA8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
