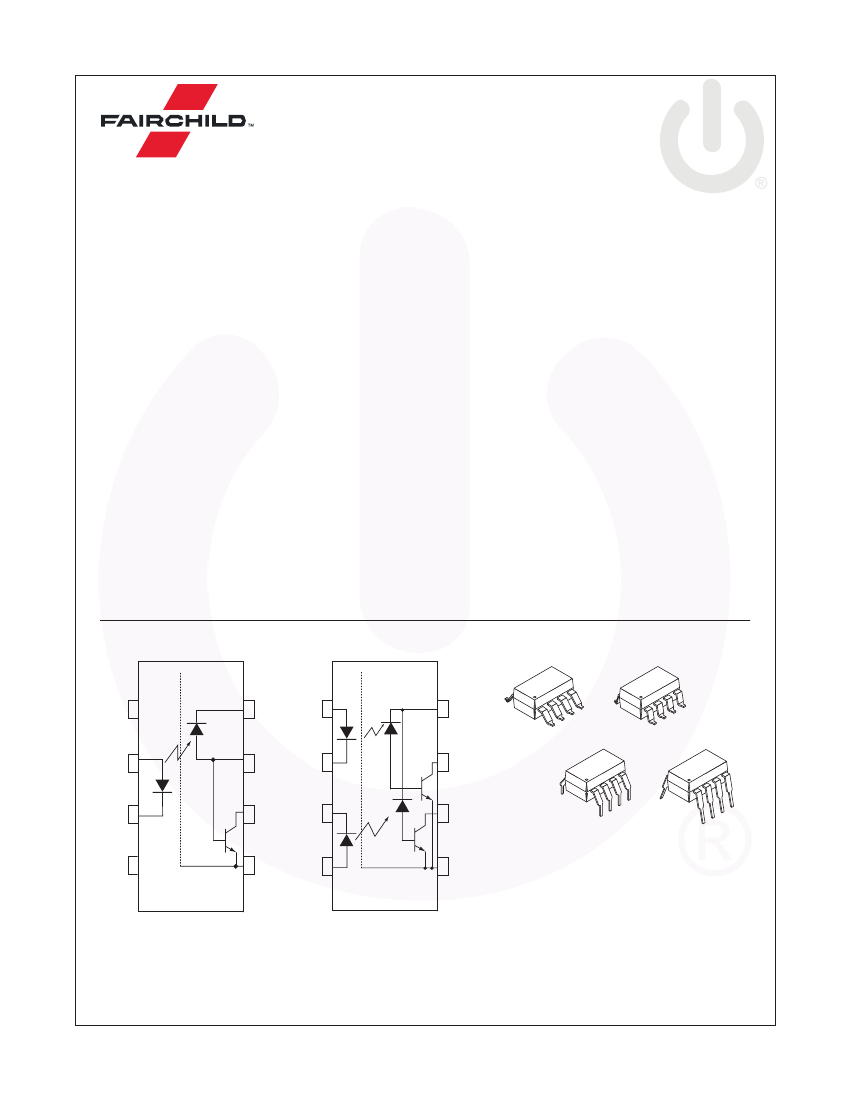

Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M
High Speed Transistor Optocouplers
Features
■
High Speed –1 MBit/s
■
Superior CMR – 10 kV/µs
■
Dual-Channel: HCPL2530M, HCPL2531M
■
CTR Guaranteed 0°C to 70°C
■
U.L. Recognized (File # E90700, Vol. 2)
■
DIN EN/IEC60747-5-5
Description
The HCPL4503M, 6N135M, 6N136M, HCPL2530M, and
HCPL2531M optocouplers consist of an AlGaAs LED
optically coupled to a high speed photodetector transistor.
A separate connection for the bias of the photodiode
improves the speed by several orders of magnitude over
conventional phototransistor optocouplers by reducing
the base-collector capacitance of the input transistor.
The HCPL4503M has no internal connection to the
phototransistor base for improved noise immunity.
An internal noise shield provides superior common
mode rejection of up to 50,000 V/µs.
– Ordering Option ‘V’, e.g., 6N135VM
■
5,000 V
RMS
(1 Minute) Isolation Rating
■
Superior CMR of 15,000 V/µs Minimum (HCPL4503M)
■
No Base Connection for Improved Noise Immunity
(HCPL4503M)
Applications
■
Line Receivers
■
Pulse Transformer Replacement
■
Output Interface to CMOS-LSTTL-TTL
■
Wide-Bandwidth Analog Coupling
Related Resources
■
www.fairchildsemi.com/products/opto/
■
www.fairchildsemi.com/pf/HC/HCPL0500.html
■
www.fairchildsemi.com/pf/FO/FODM452.html
■
www.fairchildsemi.com/pf/FO/FOD050L.html
Schematics
Package Outlines
N/C 1
8 V
CC
+ 1
V
F1
8 V
CC
8
1
8
1
+ 2
V
F
7 V
B
_
2
7 V
01
8
_
3
6 V
O
_
V
3
6 V
02
8
1
1
F2
Figure 2. Package Outlines
5 GND
N/C 4
5 GND
+ 4
6N135M, 6N136M, HCPL4503M
Pin 7 is not connected in the
HCPL4503M
HCPL2530M/HCPL2531M
Figure 1. Schematics
©2008 Fairchild Semiconductor Corporation
6N13XM, HCPLXXXM Rev. 1.0.12
www.fairchildsemi.com
Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M — High Speed Transistor Optocouplers
Safety and Insulation Ratings for 8-Pin DIP White
As per DIN EN/IEC 60747-5-5. This optocoupler is suitable for “safe electrical insulation” only within the safety limit
data. Compliance with the safety ratings shall be ensured by means of protective circuits.
Symbol
Parameter
Installation Classifications per DIN VDE 0110/1.89 Table 1
For Rated Mains Voltage < 150 V
RMS
For Rated Mains Voltage < 300 V
RMS
For Rated Mains Voltage < 450 V
RMS
For Rated Mains Voltage < 600 V
RMS
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Min.
Typ.
I–IV
I–IV
I–III
I–III
40/100/21
2
Max.
Unit
CTI
V
PR
Comparative Tracking Index
Input to Output Test Voltage, Method b,
V
IORM
x 1.875 = V
PR
, 100% Production Test with
t
m
= 1 s, Partial Discharge < 5 pC
Input to Output Test Voltage, Method a,
V
IORM
x 1.5 = V
PR
, Type and Sample Test with
t
m
= 60 s, Partial Discharge < 5 pC
175
1,669
1,335
V
IORM
V
IOTM
Max Working Insulation Voltage
Highest Allowable Over Voltage
External Creepage
External Clearance
External Clearance (for Option T, 0.4” Lead Spacing)
Insulation Thickness
Safety Limit Values, Maximum Values Allowed in the
Event of a Failure
890
6,000
8.0
7.4
10.16
0.5
V
PEAK
V
PEAK
mm
mm
mm
mm
T
S
I
S,INPUT
P
S,OUTPUT
R
IO
Case Temperature
Input Current
Output Power (Duty Factor
≤
2.7%)
Insulation Resistance at T
S
, V
IO
= 500 V
150
200
300
10
9
°C
mA
mW
Ω
©2008 Fairchild Semiconductor Corporation
6N13XM, HCPLXXXM Rev. 1.0.12
www.fairchildsemi.com
2
Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M — High Speed Transistor Optocouplers
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only. T
A
= 25°C unless otherwise specified.
Symbol
T
STG
T
OPR
T
SOL
EMITTER
I
F
(avg)
I
F
(pk)
I
F
(trans)
V
R
P
D
Parameter
Storage Temperature
Operating Temperature
Lead Solder Temperature
DC/Average Forward Input
Current Each Channel
(1)
Peak Forward Input Current
Each Channel
(2)
Peak Transient Input Current
Each Channel
Reverse Input Voltage Each
Channel
Input Power Dissipation Each
Channel
(3)
Condition
Value
-40 to +125
-40 to +100
260 for 10 s
25
Units
°C
°C
°C
mA
mA
A
V
mW
50% Duty Cycle, 1 ms P.W.
≤
1 µs P.W., 300 pps
50
1.0
5
6N135M, 6N136M, and HCPL4503M
HCPL2530M and HCPL2531M
45
DETECTOR
I
O
(avg)
I
O
(pk)
V
EBR
V
CC
V
O
I
B
PD
Average Output Current Each
Channel
Peak Output Current Each
Channel
Emitter-Base Reverse Voltage
Supply Voltage
Output Voltage
Base Current
Output Power Dissipation
Each Channel
(4)
6N135M and 6N136M
6N135M, 6N136M, and HCPL4503M
HCPL2530M and HCPL2531M
6N135M and 6N136M
8
16
5
-0.5 to 30
-0.5 to 20
5
100
35
mA
mA
V
V
V
mA
mW
mW
Notes:
1. Derate linearly above 70°C free-air temperature at a rate of 0.8 mA/°C.
2. Derate linearly above 70°C free-air temperature at a rate of 1.6 mA/°C.
3. Derate linearly above 70°C free-air temperature at a rate of 0.9 mW/°C.
4. Derate linearly above 70°C free-air temperature at a rate of 2.0 mW/°C.
©2008 Fairchild Semiconductor Corporation
6N13XM, HCPLXXXM Rev. 1.0.12
www.fairchildsemi.com
3
Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M — High Speed Transistor Optocouplers
Electrical Characteristics
T
A
= 0°C to 70°C unless otherwise specified.
Typical value is measured at T
A
= 25ºC and V
CC
= 5.0 V.
Individual Component Characteristics
Symbol
EMITTER
V
F
B
VR
Input Forward Voltage
Input Reverse
Breakdown Voltage
I
F
= 16 mA, T
A
= 25°C
I
F
= 16 mA
I
R
= 10 µA
I
F
= 16 mA
All
All
All
All
5.0
21
-1.7
1.45
1.7
1.8
V
mV/°C
V
Parameter
Test Conditions
Device
Min.
Typ.
Max.
Unit
Δ
V
F
/
Δ
T
A
Temperature Coefficient
of Forward Voltage
DETECTOR
I
OH
Logic High Output
Current
I
F
= 0 mA, V
O
= V
CC
= 5.5 V,
T
A
= 25°C
I
F
= 0 mA, V
O
= V
CC
= 15 V,
T
A
= 25°C
I
F
= 0 mA, V
O
= V
CC
= 15 V
All
6N135M
6N136M
HCPL4503M
All
6N135M
6N136M
HCPL4503M
HCPL2530M
HCPL2531M
6N135M
6N136M
HCPL4503M
6N135M
6N136M
HCPL4503M
HCPL2530M
HCPL2531M
0.0007
0.0019
0.5
1
µA
50
163
200
µA
I
CCL
Logic Low Supply
Current
I
F
= 16 mA, V
O
= Open,
V
CC
= 15 V
I
F1
= I
F2
= 16 mA,
V
O
= Open, V
CC
= 15 V
400
0.0002
1
µA
I
CCH
Logic High Supply
Current
I
F
= 0 mA, V
O
= Open,
V
CC
= 15 V, T
A
= 25°C
I
F
= 0 mA, V
O
= Open,
V
CC
= 15 V
I
F
= 0 mA, V
O
= Open,
V
CC
= 15 V
0.0004
2
4
©2008 Fairchild Semiconductor Corporation
6N13XM, HCPLXXXM Rev. 1.0.12
www.fairchildsemi.com
4
Single-Channel: 6N135M, 6N136M, HCPL4503M
Dual-Channel: HCPL2530M, HCPL2531M — High Speed Transistor Optocouplers
Electrical Characteristics
Transfer Characteristics
Symbol
COUPLED
CTR
Current Transfer
Ratio
(5)
(Continued)
T
A
= 0 to 70°C unless otherwise specified.
Typical value is measured at T
A
= 25ºC and V
CC
= 5.0 V.
Parameter
Test Conditions
I
F
= 16 mA, V
O
= 0.4 V,
V
CC
= 4.5 V, T
A
= 25°C
Device
6N135M
HCPL2530M
6N136M
HCPL4503M
HCPL2531M
Min.
7
19
Typ.
38
38
Max. Unit
50
50
%
%
I
F
= 16 mA,
V
CC
= 4.5 V
V
OL
= 0.4 V
V
OL
= 0.5 V
V
OL
= 0.4 V
V
OL
= 0.5 V
6N135M
HCPL2530M
6N136M
HCPL4503M
HCPL2531M
6N135M
HCPL2530M
6N136M
HCPL4503M
HCPL2531M
6N135M
HCPL2530M
HCPL4503M
HCPL2531M
5
15
%
%
V
OL
Logic LOW Output
Voltage
I
F
= 16 mA, I
O
= 1.1 mA,
V
CC
= 4.5 V, T
A
= 25°C
I
F
= 16 mA, I
O
= 3 mA,
V
CC
= 4.5 V, T
A
= 25°C
I
F
= 16 mA, I
O
= 0.8 mA,
V
CC
= 4.5 V
I
F
= 16 mA, I
O
= 2.4 mA,
V
CC
= 4.5 V
0.12
0.20
0.4
0.5
0.4
0.5
V
0.11
0.18
0.5
0.5
Note:
5. Current Transfer Ratio is defined as a ratio of output collector current, I
O
, to the forward LED input current, I
F
,
times 100%.
©2008 Fairchild Semiconductor Corporation
6N13XM, HCPLXXXM Rev. 1.0.12
www.fairchildsemi.com
5
