Series 219 SMT DIP
®
Surface Mount
DIP Switch —
Auto Placeable
Features
Optimized Mechanical Features
• Removable tape seal to withstand IR vapor phase
or wave soldering temperatures,and board washing
• Positive detent separate from contactor
• Available low profile, medium, and extended height
actuators
• Gull-wing and "J" lead terminal configurations
• Tube or tape and reel packaging available
Optimized Contact System
• Redundant, wiping contact
• Contactor does not deflect during actuation
Premium Materials
• Gold plated beryllium copper contacts
• All plastic rated UL 94 V-0
• High temperature body and actuator materials
• RoHS compliant
Electrical and Mechanical Specifications
Switch Function
SPST- 2 through 10 and 12 positions
Switch Contact Resistance
25 milliohms maximum initial
50 milliohms maximum at the end of life
Insulation Resistance
1,000 megohms minimum between
insulated terminals
Dielectric Strength
500 VDC for 1 minute between
adjacent switches
Nonswitching Rating
100 mA or 50 VDC maximum
Switch Capacitance
5 pF maximum between adjacent closed switches
Operating Temperature
- 55°C to +85°C
Actuation Life
2,000 cycles switching 100 mA @ 20 VDC or
0.1 mA @ 5 VDC (dry circuit)
Coplanarity
0.10mm (.004") maximum
Allowable Solder Time
Up to 60 seconds at 260°C
Vibration
Per MIL-STD-202F, method 204D, condition B
(.06" or 15 G’s between 10 HZ to 2K HZ) with no
contact inconsistencies greater than 1
microsecond.
Shock
Per MIL-STD-202F, method 213B, condition A
(50 G’s) with no contact inconsistencies greater
than 1 microsecond.
Sealing
Standard bottom seal
Optional top tape seal
Marking
Special marking available consult CTS.
Packaging
Standard : Anti-static tube packaging
Optional : Tape and reel packaging
1-2
CTS Electronic Components
© 2008 CTS Corporation. All rights reserved. Information subject to change.
www.ctscorp.com
2/12/08

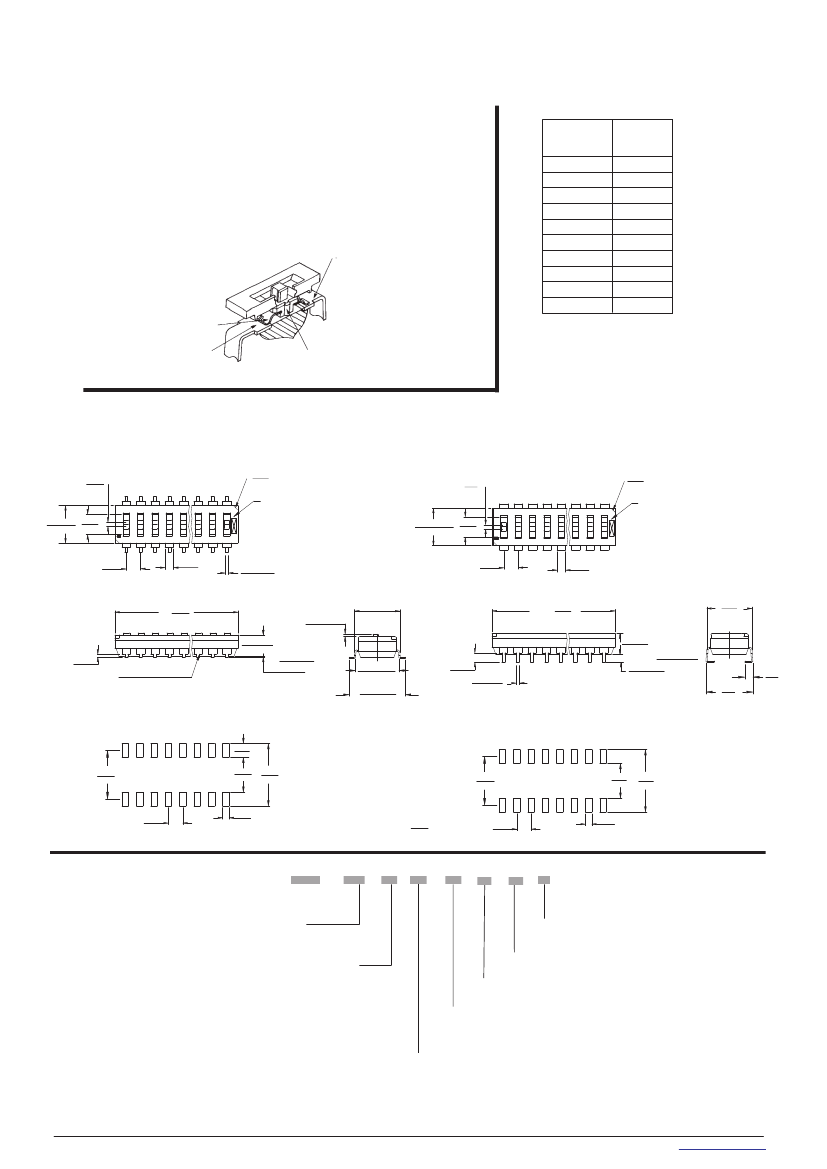

CTS SERIES 219 SMT CONTACT FEATURES
1. Value of Redundant (Bifurcated) Gold Plated Contacts: Redundancy
dramatically reduces the probability of contact failure while gold contact material
provides the highest environmental protection, IMPROVING RELIABILITY.
2. Value of Wiping Contact Action: Clean contact area, IMPROVING RELIABILITY.
3. Value of Contactor Not Deflecting During Actuation: Constant contact pressure
eliminates overstressing contacts, IMPROVING RELIABILITY.
4. Value of Detent Separate from Contactor: Separate detent allows optimization
of nondeflecting contactor and detent designs, IMPROVING RELIABILITY.
2. Wiping contact action
1. Redundant
(bifurcated) gold
plated cross radial
contactor
3. Contactor does not
deflect during actuation
4. Detent separate
from contactor
"A"
Overall
Dimension
6.55/.258
9.09/.358
11.63/.458
14.17/.558
16.71/.658
19.25/.758
21.79/.858
24.33/.958
26.87/1.058
31.95/1.258
No. of
Switch
positions
2
3
4
5
6
7
8
9
10
12
Gull Wing Terminals
Medium Height Actuator
TRAVEL 0.70
.028
ON
6.70±0.25 3.62
.264±.010 .143
219
CTS
1.0
X45° CHAMFER (2)
.039
DATE CODE
"J" Bend Terminals
Low Profile Actuator
1.0
X45° CHAMFER (2)
.039
DATE CODE
ON
6.70±0.25
.264±.010
3.62
.143
219
CTS
TRAVEL 0.70
.028
1
2
3
4
5
10
11
12
1
2.54
.100
TYP.
2
3
4
5
10
11
12
2.54
.100
TYP.
1.50
.059
TYP.
0.55±0.08
.022±.003
TYP.
1.50
.059
TYP.
"A" ±0.30
±.012
+0.05
3.80 -0.10
.150 +.002
-.004
0.55
.022
SOLDER COATED
+0.13
0.25 -0.00
+.005
.010 -.000
8.00
.315
"A"
±0.30
±.012
8.00
.315
STANDOFF
7.62±0.20
.300±.008
9.91±0.08
.390±.003
1.50
.059
0.55±0.08
.022±.003
3.80
-0.10
.150
+.002
-.004
+0.05
STANDOFF
1.3
.050
0.25±0.10
.010±.004
1.27±0.10
.050±.004
TYP.
8.51
.335
MAX
Gull Wing Surface Mount Pad Layouts
2.44
.096
8.60
.339
6.17
.243
11.04
.435
"J" Bend Surface Mount Pad Layouts
4.57
.180
6.73
.265
8.89
.350
2.54
.100 TYP.
1.13
.044
TYP.
DIMENSION:
mm
inch
2.54
.100 TYP.
1.13
.044
TYP.
Ordering Information
219 – 12
LP S
T
J
R
F
XX:
NO. OF POSITIONS
E:
EXTENDED HEIGHT ACTUATOR(0.60mm/.024")
M:
MEDIUM HEIGHT ACTUATOR(0.25mm/.010")
LP:
LOW PROFILE ACTUATOR(Flush)
BLANK:
SHIP AT ON POSITION
F:
SHIP AT OFF POSITION
BLANK :
ANTI-STATIC TUBE PACKAGING
R:
TAPE AND REEL PACKAGING
BLANK:
GULL-WING TERMINAL
J:
"J" BEND TERMINAL
BLANK:
NO TOP TAPE SEAL
* T :
TOP TAPE SEAL
*
Not available on extended actuator
S:
BOTTOM SEAL
© 2008 CTS Corporation. All rights reserved. Information subject to change.
2-2
CTS Electronic Components
2/12/08
www.ctscorp.com
