RPM851A datasheet, PDF - EEWORLD Datasheet

RPM851A: DescriptionIrDA wireless communication transceiver IC (supports Ver.1.0); CategoryOther integrated circuit (IC) Consumption circuit; File Size105KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RPM851A Overview

IrDA wireless communication transceiver IC (supports Ver.1.0)

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	,
Reach Compliance Code	compli
Commercial integrated circuit types	TRANSMITTER/RECEIVER IC
JESD-30 code	R-XSMA-X13
JESD-609 code	e2
Number of functions	1
Number of terminals	13
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	UNSPECIFIED
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
transmission media	INFRARED

Communication ICs

IrDA wireless communication

transceiver IC (supports Ver.1.0)

RPM851A Series

The RPM851A series is an IC that supports IrDA Ver 1.0, and is ideal for wireless communications.

An infrared LED, a pin-photo diode, and a receiver frequency formation LSI are all contained in a single package.

Also equipped with low power consumption and power down functions making this IC perfect for mobile sets.

FApplications

Personal computers, PDAs, DVCs, digital cameras, printers, cellular phones, PHS systems, hand-held terminals, and

others

FFeatures

1) Supports IrDA Ver. 1.0

2) Low power consumption while standing by for reception (typ. 220µA).

3) A power-down function is perfect for battery applications.

4) Supports a broad power supply voltage range from 2.7V to 5.5V.

5) The package supports mounting on both the upper and side surfaces.

6) Integrated shield case (RPM851A-H6)

FAbsolute

maximum ratings (Ta = 25_C)

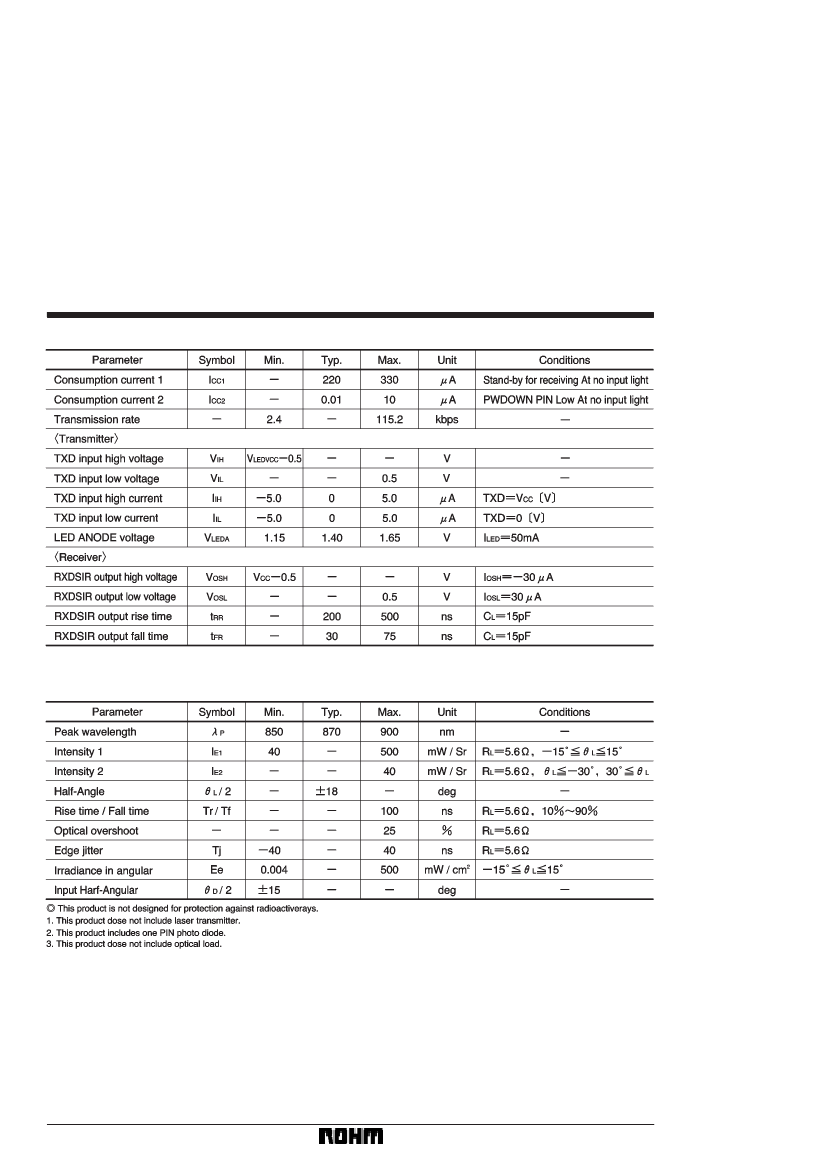

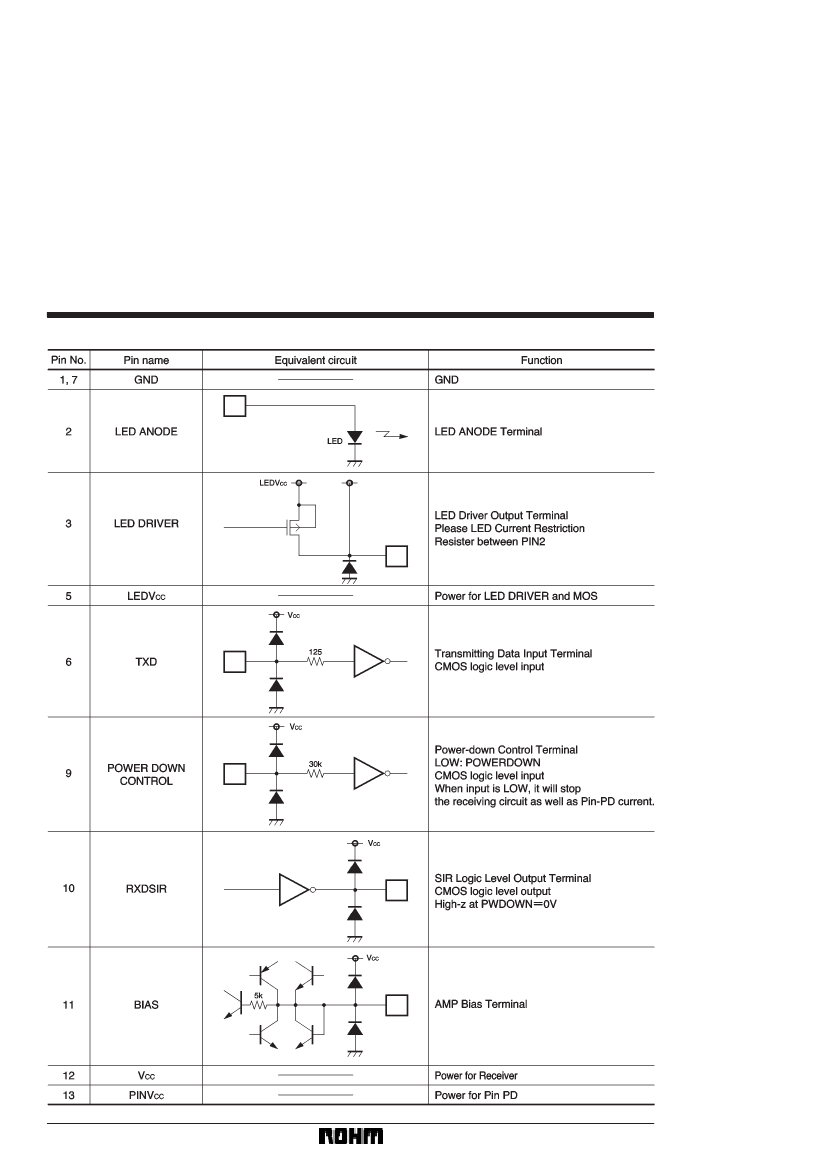

FRecommended

operating conditions (Ta = 25_C)

FSeries

651

	RPM851A	RPM851
Description	IrDA wireless communication transceiver IC (supports Ver.1.0)	IrDA wireless communication transceiver IC (supports Ver.1.0)
