UHR4-5020D22R900D0.1%

Description
Fixed Resistor, Metal Foil, 8W, 22.9ohm, 0.1% +/-Tol, -5,5ppm/Cel,
CategoryPassive components    The resistor
File Size136KB,2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

UHR4-5020D22R900D0.1% Overview

Fixed Resistor, Metal Foil, 8W, 22.9ohm, 0.1% +/-Tol, -5,5ppm/Cel,

UHR4-5020D22R900D0.1% Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid286243447
Reach Compliance Codecompliant
ECCN codeEAR99
structureRectangular
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formPCB Mount
Rated power dissipation(P)8 W
resistance22.9 Ω
Resistor typeFIXED RESISTOR
seriesUHR4-5020D
technologyMETAL FOIL
Temperature Coefficient5 ppm/°C
Tolerance0.1%

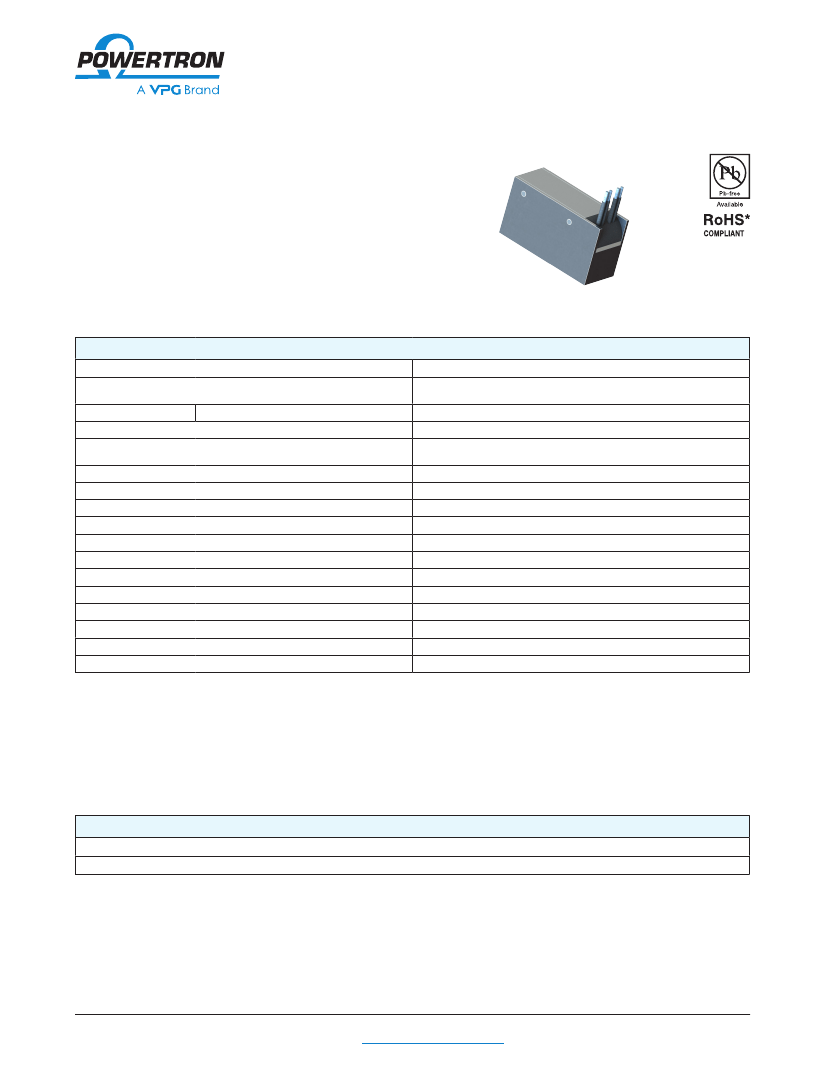

UHR 4-5020D
FEATURES
Resistances from 1Ohm to 40Ohms
Power Rating to 8Watt
Resistance Tolerances to ±0.1%
TCR to ±5ppm/K
Load Stability to 0.1%
TABLE 1—SPECIFICATIONS
TYPE
Resistance Range
Power Rating
Pulse Energy
Tolerances
Thermal Resistance
Stability (1000h)
Temperature Coefficient
Insolation Resistance
Maximum Current
Thermal EMF
Operating Temperature Range
Resistor Material
Substrate
Housing
Connector Material
Terminals
Free air 70°C
8W
1 KJ/1s
0.1%
Other tolerances upon request
10 K/W
0.1%
±5ppm/K (-55 to 155°C)
3 kVDC
3A
< 0.1µV/K
-55 to 155°C
NiCr-Foil
AlN
Al
Cu / tinned
4 (standard contact D)
UHR 4-5020D
1.0 to 40 Ohms
Other values upon request
ORDERING INFORMATION
Part Number - Resistance - Contact - Tolerance
UHR 4-5020D 10R000 D 0.1%
Document No.: 64216
Revision: 31-01-2015
For technical questions,
contact
powertron@vpgsensors.com
www.powertron.de
1
