ST035M1200B5F-1330 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> ST035M1200B5F-1330

ST035M1200B5F-1330: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1200uF; CategoryPassive components capacitor; File Size211KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

ST035M1200B5F-1330 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 1200uF

ST035M1200B5F-1330 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1223910898
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	13 mm
dielectric materials	ALUMINUM (WET)
ESR	30 mΩ
length	30 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	2650 mA
series	ST
Terminal pitch	5 mm

Preview

Download Datasheet

View All

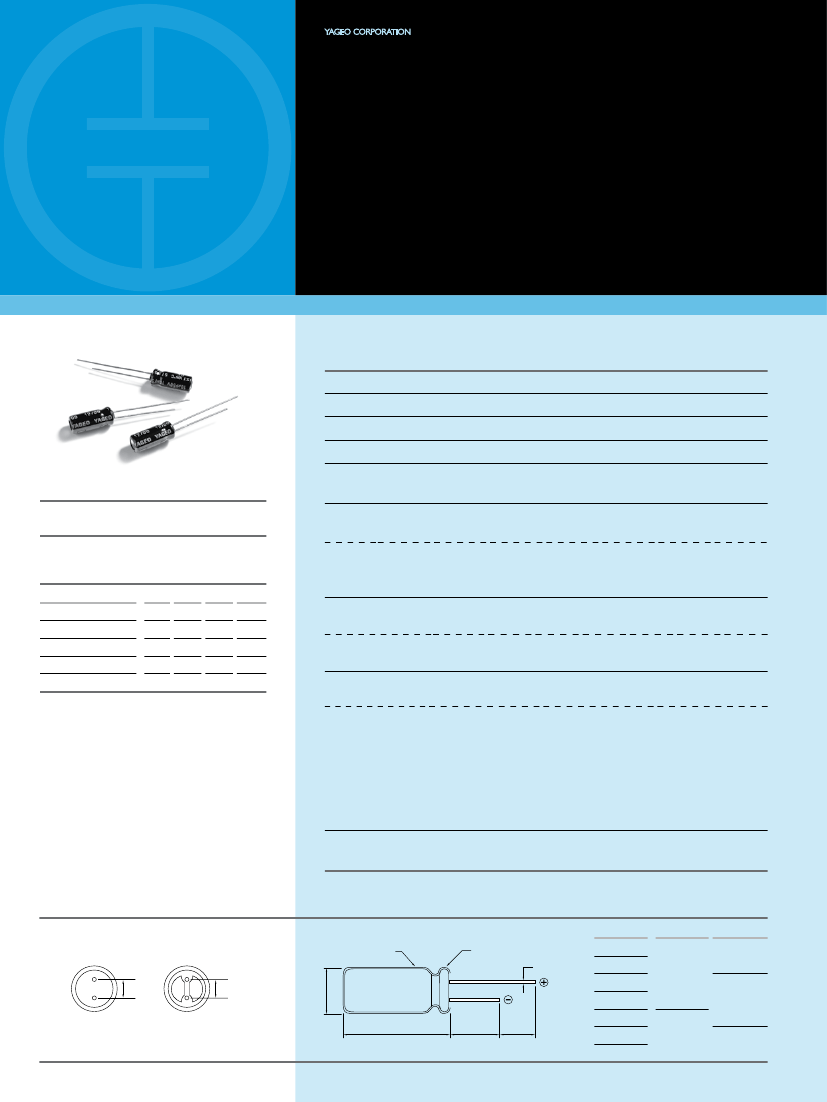

YAGEO CORPORATION

ELECTROLYTIC CAPACITORS

Miniature Aluminum

Electrolytic Capacitors

[ Low Impedance and Long Life ]

105°C 4000 ~ 10000 Hours, Low Impedance and Long Life

ELECTRICAL CHARACTERISTICS

Operating Temperature Range : -40 ~ +105°C

Rated Voltage Range : 6.3 ~ 63V

Rated Capacitance Range : 6.8 ~ 15000µF

Capacitance Tolerance : ±20% at 120Hz, 20°C

DESCRIPTION

Applicable for SMPS, Adaptor, Charger, Monitor/

Computer

MULTIPLIER FOR RIPPLE CURRENT

Frequency Coefficient

FREQUENCY (Hz)

6.8~180µF

220~560µF

680~1800µF

2200~3900µF

4700µF Higher

120

0.40

0.50

0.60

0.75

0.85

0.75

0.85

0.87

0.90

0.95

10K

0.90

0.94

0.95

0.98

100K

1.00

Leakage Current (Max.) (20°C): I = 0.01CV or 3µA whichever is greater. (After Rated Voltage Applied for 2

Minutes) I = Leakage Current (µA), C = Nominal Capacitance (µF), V = Rated Voltage (V)

Dissipation Factor (Max.) (tanδ) (120Hz, 20°C)

W V (V) :

D.F. (%) :

every 1000µF.

Low Temperature Stability Impedance Ratio (Max.)

W V (V) :

Z - 25°C / Z + 20°C :

Z - 40°C / Z + 20°C :

Endurance

VDC :

6.3~10 (V) :

16~100 (V) :

following requirements.

(a) Capacitance Change: Within ±25% of Initial Value

(b) Dissipation Factor: 200% or Less of Initial Specified Value

Shelf Life: After having been placed at 105°C without voltage applied for 1000 hours, the capacitors shall

meet the same requirements as load life.

5ø~6.3ø

4000hrs

5000hrs

8ø~10ø

6000hrs

7000hrs

12.5ø~18ø

8000hrs

10000hrs

6.3

When nominal capacitance is over 1000µF, tanδ shall be added 0.02 to the listed value with increase of

After the rated voltage has been applied at 105°C for 4000~10000 hours. The capacitors shall meet the

DIAGRAM OF DIMENSIONS

Dø

Vinyl Sleeve

Rubber End Seal

dø

0.5

Dø

0.5

Dimensions: mm

1.5

dø

0.5

0.6

2.0

0.8

5.0

6.3

8.0

10.0

13.0

15Min.

4Min.

Dø

20 Dø + 0.5

Dø

≥

20 Dø + 1

16.0

18.0
