5-176-3A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5-176-3A

Preview

5-176-3A: DescriptionBarrier Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s); CategoryThe connector; File Size55KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

5-176-3A Overview

Barrier Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s)

5-176-3A Parametric

Parameter Name	Attribute value
Objectid	1463419398
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PHENOLIC, 94V-1
Fastening method	SCREW
Manufacturer's serial number	176
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	5
Rated current	15 A
Rated voltage	250 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	16 AWG

Preview

Download Datasheet

View All

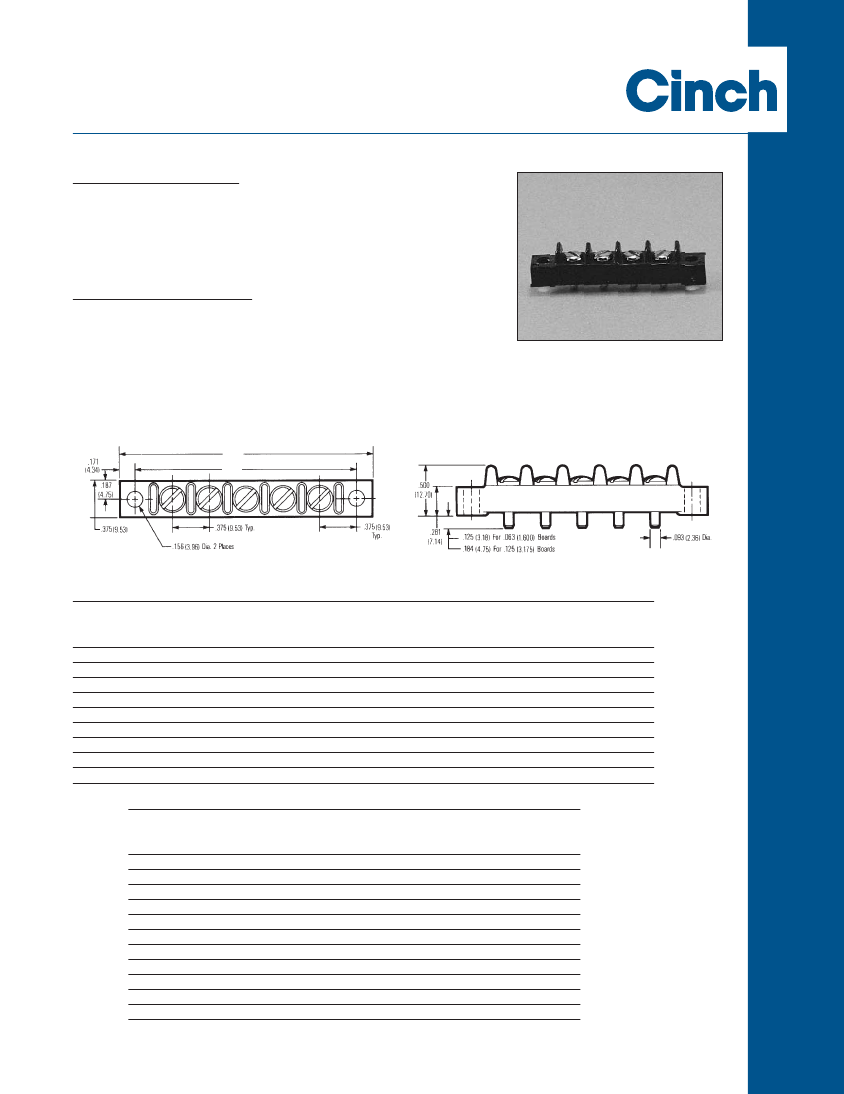

Barrier Blocks

Series 176

.375 Density, 5-40 x 3/16"

BH Screw, Dip Solder,

Single Row

Electrical Characteristics

Voltage Rating:

250 Volts maximum

Current Rating:

15 Amps maximum

Maximum Watts Per Terminal:

3750

Mechanical Characteristics

Maximum Wire Size:

16 AWG

Recommended Tightening Torque:

16 lb.-in.

Dimensions

L

M

Ordering Information

With Mounting Ears

Catalog No.

.125 Tail Lgth

.184 Tail Lgth

2-176-2

2-176-3

3-176-2

3-176-3

4-176-2

4-176-3

5-176-2

5-176-3

6-176-2

6-176-3

7-176-2

7-176-3

8-176-2

8-176-3

9-176-2

9-176-3

10-176-2

10-176-3

Without Mounting Ears

Catalog No.

.125 Tail Lgth

.184 Tail Lgth

2-176-2A

2-176-3A

3-176-2A

3-176-3A

4-176-2A

4-176-3A

5-176-2A

5-176-3A

6-176-2A

6-176-3A

7-176-2A

7-176-3A

8-176-2A

8-176-3A

9-176-2A

9-176-3A

10-176-2A

10-176-3A

11-176-2A

11-176-3A

12-176-2A

12-176-3A

No. of

Terminals

2

3

4

5

6

7

8

9

10

“M”

Dimension

1.125

1.500

1.875

2.250

2.625

3.000

3.375

4.125

“L”

Dimension

1.469

1.844

2.219

2.594

2.969

3.344

3.719

4.094

4.469

No. of

Terminals

2

3

4

5

6

7

8

9

10

11

12

“L”

Dimension

.719

1.094

1.469

1.844

2.219

2.594

2.969

3.344

3.719

4.094

4.469

Marketed exclusively through distribution.

2-27

Call Toll Free: 1 (800) 323-9612
