RP34L-5P-3SC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> RP34L-5P-3SC

RP34L-5P-3SC: Description3 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size355KB，7 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

RP34L-5P-3SC Overview

3 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, CRIMP, PLUG

RP34L-5P-3SC Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknow
Other features	POLARIZATION
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	RP34L
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYPHENYLENE SULFIDE
Termination type	CRIMP
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Low Profile Connectors for AC power supply

RP34L Series

Receptacle installed height

(3 pos.type)

(2 pos.type)

RP34L

Existing RP34

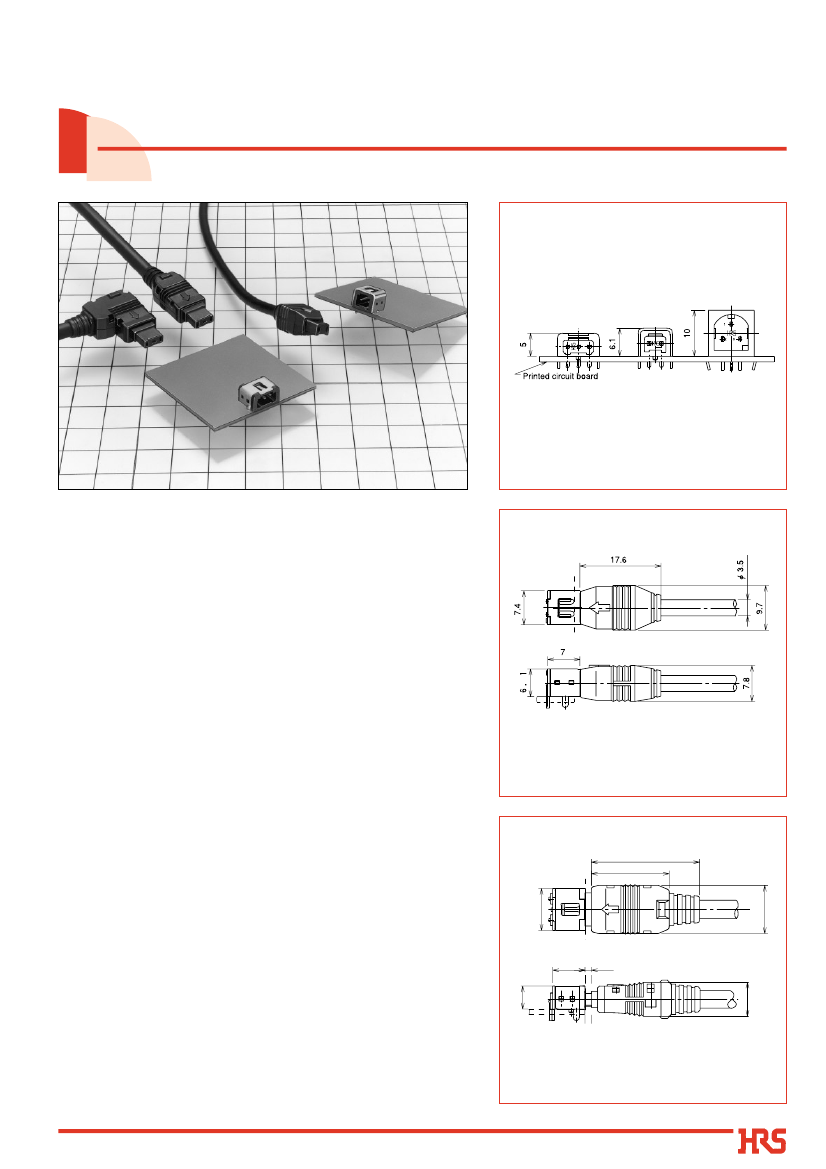

sFeatures

1. Low profile

Receptacles are designed with their installation heights to be

shorter than those of conventional RP34 series.

Mated dimensions

2. Space saving

Both 2 and 3 position receptacles are miniaturized to 7mm

length, resulting in a small board mounting area.

3. Snap-lock mechanism

Audible click when connector is fully mated.

4. Precise mated connection

Secure hold of the plug on au 3 axis.

RP34L-5PA-2SC(

½½½½

) & RP34L-5R-2PD

5. Sequence mating

The 3 contact type has sequenced mating. One pin makes

contact as a ground terminal before the other contacts.

This 2 contact plug is an over-molded (i.e., cable-integrated form) type.

Recommended cable diameter is 3.5mm

dia

6. No Mismating

Two polarized keys prevent any insertion error.

Mated dimensions

23.5

16.9

7. Ease of Mating

An arrow on the top of the plug shows the proper direction for

insertion.

10.45

1.4

7.8

9.1

sApplications

Notebook PCs, portable remote terminals, AV equipment, etc.

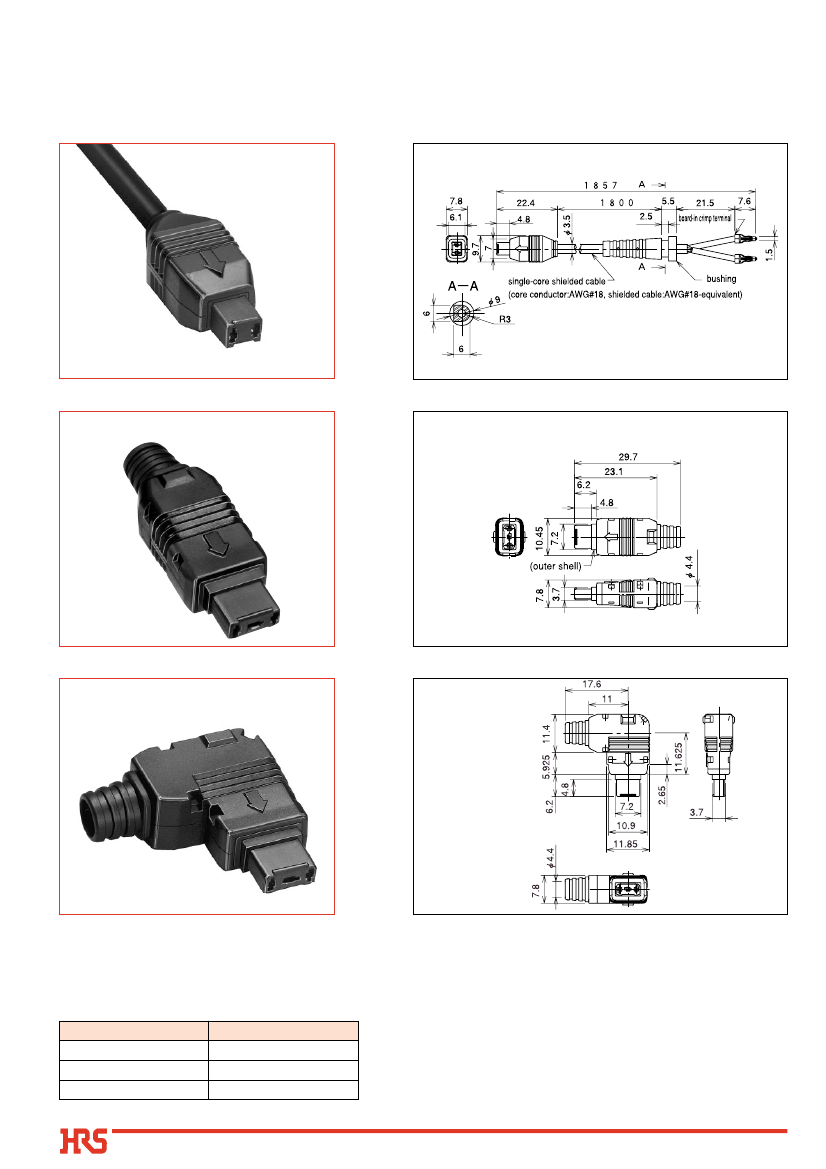

RP34L-5PA-3SC & RP34L-5R-3PD

This 3-contact plug is a field assembly type.

Recommended cable diameter is 4mm dia.

2004.8
