ADVANCE
S25FL256L, S25FL128L
256 Mbit (32 Mbyte),128 Mbit (16 Mbyte)
3.0 V FL-L Flash Memory
Features
Serial Peripheral Interface (SPI) with Multi-I/O
Clock polarity and phase modes 0 and 3
Double Data Rate (DDR) option
Quad peripheral Interface (QPI) option
Extended Addressing: 24- or 32-bit address options
Serial Command subset and footprint compatible with S25FL-A,
S25FL1-K, S25FL-P, S25FL-S and S25FS-S SPI families
– Multi I/O Command subset and footprint compatible with S25FL-P,
S25FL-S and S25FS-S SPI families
–
–
–
–
–
Security features
–
–
–
–
Status and Configuration Register Protection
Four Security Regions of 256 bytes each outside the main Flash array
Legacy Block Protection: Block range
Individual and Region Protection
– Individual Block Lock: Volatile individual Sector/Block
– Pointer Region: Non-Volatile Sector/Block range
– Power Supply Lock-down, Password, or Permanent protection of
Security Regions 2 and 3 and Pointer Region
Read
– Commands: Normal, Fast, Dual I/O, Quad I/O, DualO, QuadO, DDR
Quad I/O.
– Modes: Burst Wrap, Continuous (XIP), QPI
– Serial Flash Discoverable Parameters (SFDP) for configuration
information.
Technology
– 65nm Floating Gate Technology
Single Supply Voltage with CMOS I/O
– 2.7 V to 3.6 V
Temperature Range
– Industrial (
–
40
°
C to +85
°
C)
– Industrial Plus (
–
40
°
C to +105
°
C)
– Extended (
–
40°C to +125°C)
Program Architecture
– 256 Bytes Page Programming buffer
– Program suspend and resume
Erase Architecture
– Uniform 4KB Sector Erase
– Uniform 32KB Half Block Erase
– Uniform 64KB Block Erase
– Chip erase
– Erase suspend and resume
100,000 Program-Erase Cycles, min
20 Year Data Retention, typical
Packages (all Pb-free)
8-pin SOIC 208 mil (SOC008) - S25FL128L only
WSON 5
6 mm (WND008) - S25FL128L only
WSON 6
8 mm (WNH008) - S25FL256L
16-pin SOIC 300 mil (SO3016)
BGA-24 6
8 mm
– 5
5 ball (FAB024) footprint
– 4
6 ball (FAC024) footprint
– Known Good Die and Known Tested Die
–
–
–
–
–

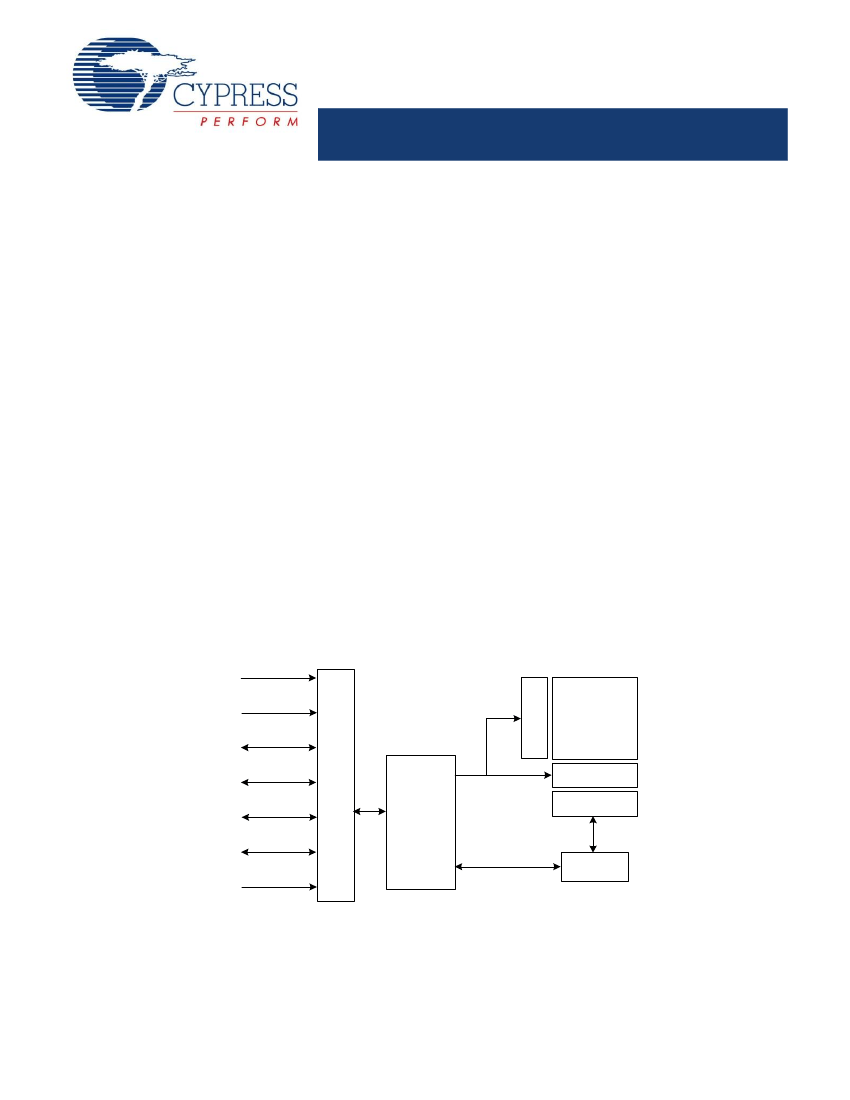

Block Diagram
CS#
SCK
SI/IO0
SO/IO1
I/O
WP#/IO2
RESET#/IO3
RESET#
Data Path
Control
Logic
X Decoders
Memory Array
Y Decoders
Data Latch
Cypress Semiconductor Corporation
Document Number: 002-00124 Rev. **
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised September 07, 2015
S25FL256L, S25FL128L
Performance Summary
Maximum Read Rates SDR
Command
Read
Fast Read
Dual Read
Quad Read
Clock Rate (MHz)
50
133
133
133
MBps
6.25
16.5
33
66
Maximum Read Rates DDR
Command
DDR Quad Read
Clock Rate (MHz)
66
MBps
66
Typical Program and Erase Rates
Operation
Page Programming
4 KBytes Sector Erase
32 KBytes Half Block Erase
64 KBytes Block Erase
KBytes/s
854
80
168
237
Typical Current Consumption,
–
40°C to +85°C
Operation
Fast Read 5MHz
Fast Read 10 MHz
Fast Read 20 MHz
Fast Read 50 MHz
Fast Read 108 MHz
Fast Read 133 MHz
Quad I/O / QPI Read 108 MHz
Quad I/O / QPI Read 133 MHz
Quad I/O / QPI DDR Read 33MHz
Quad I/O / QPI DDR Read 66MHz
Program
Erase
Standby SPI
Standby QPI
Deep Power Down
Typical Current
10
10
10
15
25
30
25
30
15
30
40
40
20
60
2
Unit
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
µA
µA
µA
Document Number: 002-00124 Rev. **
Page 2 of 153
ADVANCE
S25FL256L, S25FL128L
