MAX3540 Evaluation Kit
General Description
The MAX3540 evaluation kit (EV kit) simplifies the test-
ing and evaluation of the MAX3540 NTSC, ATSC, and
hybrid tuner. The EV kit is fully assembled and tested at
the factory. Standard 50Ω SMA connectors are includ-
ed on the EV kit for the inputs and outputs to allow
quick-and-easy evaluation on the test bench.
This document provides a list of equipment required to
evaluate the device, a straightforward test procedure to
verify functionality, a description of the EV kit circuit, the
circuit schematic, a component list of materials for the
kit, and artwork for each layer of the PCB.
♦
Easy Evaluation of the MAX3540
♦
50Ω SMA Connectors
♦
All Critical Peripheral Components Included
♦
Fully Assembled and Tested
♦
PC Control Software Available at
www.maxim-ic.com
Features
Evaluates: MAX3540
Ordering Information
PART
MAX3540EVKIT
TYPE
EV Kit
Component List
DESIGNATION
+3.3V, +5V,
IF_AGC, MUX,
TP1
C1, C6, C26,
C27, C37,
C70–C74
C2, C4, C5, C19,
C20, C53, C54,
C56, C59, C62,
C63, C64, C66,
C86
C3
QTY
5
DESCRIPTION
Red test points, PC mini red
Keystone 5000
100pF ±5% ceramic capacitors
(0603)
Murata GRM1885C1H101J
1000pF ±5% ceramic capacitors
(0402)
Murata GRM1555C1H102J
0.033µF ±5% ceramic capacitor
(0805)
Murata GRM21A7U1H333J
2.0pF ±0.1pF ceramic capacitor
(0402)
Murata GRM1555C1H3R9B
1000pF ±10% ceramic capacitors
(0603)
Murata GRM188R71H102K
22pF ±5% ceramic capacitors
(0402)
Murata GRM1555C1H220J
0.1µF ±10% ceramic capacitors
(0402)
Murata GRM155R71C104K
5.6pF ±0.25pF ceramic capacitors
(0402)
Murata GRM1555C1H5R6C
DESIGNATION
C14
QTY
1
DESCRIPTION
1.2pF ±0.1pF ceramic capacitor
(0402)
Murata GRM1555C1H1R2B
22nF ±10% ceramic capacitor
(0603)
Murata GRM188R71H223K
4.7pF ±0.25pF ceramic capacitor
(0402)
Murata GRM1555C1H4R7C
22pF ±5% ceramic capacitors
(0603)
Murata GRM1885C1H220J
330pF ±10% ceramic capacitor
(0402)
Murata GRM155R71H331K
0.1µF ±10% ceramic capacitors
(0603)
Murata GRM188R71C104K
120pF ±5% ceramic capacitor
(0603)
Murata GRM1885C1H121J
30pF ±5% ceramic capacitors
(0603)
Murata GRM1885C1H300J
47pF ±5% ceramic capacitor
(0603)
Murata GRM1885C1H470J
10
C17
1
C18
1
14
C21, C25
1
2
C22
1
C7
1
C24, C75, C77
3
C8, C23, C78
C9, C12, C13,
C15, C16, C45
C10, C30, C87
3
C28
1
6
C29, C31
2
3
C35
1
C11, C96
2
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX3540 Evaluation Kit
Evaluates: MAX3540
Component List (continued)
DESIGNATION
C36
C38, C39
C52
QTY
1
0
1
DESCRIPTION
0.01µF ±10% ceramic capacitor
(0402)
Murata GRM155R71C103K
Not installed, capacitors
1500pF ±10% ceramic capacitor
(0402)
Murata GRM155R71H152K
10µF ±10% ceramic capacitor
(0805)
Murata GRM21BR61A106K
120pF ±5% ceramic capacitors
(0402)
Murata GRM1555C1H121J
0.47µF ±10% ceramic capacitor
(0805)
Murata GRM21BR71C474K
10µF ±10% tantalum capacitor
(R case)
AVX TAJR106K006
4700pF ±10% ceramic capacitor
(0603)
Murata GRM188R71H472K
470pF ±10% ceramic capacitor
(0402)
Murata GRM155R71H471K
DA221 dual switching diode
ROHM DA221TL
X6941 bandpass filter
EPCOS B39440-X6941-D100
Black test points, PC mini black
Keystone 5001
Not installed, SMA end-launch
jacks
Connector SMA end-launch jack
receptacles, 0.062in
Johnson 142-0701-801
DB25 right-angle female connector
AMP 5745783-4
1 x 2-pin headers
Sullins PEC36SAAN
Not installed
1 x 3-pin headers
Sullins PEC36SAAN
Shunt shorting jumpers
Sullins SSC02SYAN
22nH ±5% inductor (0603)
Murata LQG18HN22NJ00
270nH ±5% inductors (0603)
TOKO LL1608-FSLR27J
DESIGNATION
L3, L16
L4
L5
L6
L7, L8
L9
L11
L12, L13
L14
L18
Q1
R1, R2, R17, R18,
R34, R56
R3, R8, R48
R4, R15, R16,
R55
R5
R6, R13, R40,
R41, R42
R7, R9
R10
R11
R12, R28
R14
R19
R20, R21
R22, R23
R24
R25
R26, R27
R29, R31
R30
R33
R38
R39
R43, R44, R58
R45, R46, R47
R49
QTY
2
1
1
1
2
1
1
2
1
0
1
0
3
4
1
5
2
1
1
2
1
1
2
2
1
1
2
2
0
1
1
1
3
3
1
DESCRIPTION
3.3µH ±10% inductors (0805)
Murata LQM21NN3R3K10
Not installed, inductor (0805)
TOKO LL2012-FHLR68J
15nH ±3% inductor (0402)
Murata LQW15AN15NH00
1.8µH ±5% inductor (1008)
Coilcraft 1008CS-182XJLC
150nH ±5% inductors (0603)
Murata LQW18ANR15J00
82nH ±5% inductor (0603)
Murata LQW18AN82NJ00
220nH ±5% inductor (0603)
Murata LQW18ANR22J00
0Ω resistors (0603)
47nH ±5% inductor (0603)
Murata LQG18HN47NJ00
Not installed, inductor
UPA801T npn silicon high-
frequency transistor
NEC UPA801T
Not installed, resistors
100Ω ±5% resistors (0402)
0Ω resistors (0603)
75Ω ±5% resistor (0402)
100Ω ±5% resistors (0603)
10kΩ ±5% resistors (0402)
86.6Ω ±1% resistor (0603)
43.2Ω ±1% resistor (0603)
1.0kΩ ±5% resistors (0603)
300Ω ±5% resistor (0603)
0Ω resistor (0402)
1.0kΩ ±5% resistors (0402)
1.1kΩ ±5% resistors (0402)
2.4kΩ ±5% resistor (0402)
2.2kΩ ±5% resistor (0402)
120Ω ±5% resistors (0402)
51Ω ±5% resistors (0402)
Not installed, resistor
33Ω ±5% resistor (0402)
1.3kΩ ±5% resistor (0402)
270Ω ±5% resistor (0402)
5.1kΩ ±5% resistors (0603)
2.7kΩ ±5% resistors (0603)
2.7kΩ ±5% resistor (0402)
C55
1
C60, C61
2
C65
1
C76
1
C82
1
C85
D1
FL2
GND1, GND2,
GND4
J1, J4
J3, J19
J13
JP1, JP2, JP6
JP3, JP4, JP5
JP11, JP12
JP2, JP11, JP12
L1
L2, L15
1
1
1
3
0
2
1
3
0
2
3
1
2
2
_______________________________________________________________________________________
MAX3540 Evaluation Kit
Component List (continued)
DESIGNATION
T1
T8
U3
U4
QTY
0
1
1
1
DESCRIPTION
Not installed
4:1 transformer
TOKO #617PT-1664
SN74LV07ADR hex buffer/driver
Texas Instruments SN74LV07ADR
Complete single-conversion
television tuner (48 fcLGA-EP*)
Maxim MAX3540ULM+
DESIGNATION
Y2
VCC2
—
—
QTY
1
0
8
1
DESCRIPTION
4MHz crystal
Citizen Am HCM49-4.000MABJ-UT
Not installed, PC mini red
Shunts (JPB1–JPB7, RXBBBUF)
Sullins SSC02SYAN
PCB: MAX3540 Evaluation Kit
Evaluates: MAX3540
*EP
= Exposed pad.
Component Suppliers
SUPPLIER
AVX Corporation
Citizen America Corp.
Coilcraft, Inc.
EPCOS AG
Johnson Components
Keystone Electronics Corp.
Murata Electronics North America, Inc.
NEC Corp.
ROHM Co., Ltd.
Sullins Electronics Corp.
Texas Instruments Inc.
TOKO America, Inc.
PHONE
843-946-0238
310-781-1460
847-639-6400
732-906-4300
507-833-8822
209-796-2032
770-436-1300
408-588-6000
858-625-3630
760-744-0125
972-644-5580
847-297-0070
WEBSITE
www.avxcorp.com
www.citizencrystal.com
www.coilcraft.com
www.epcos.com
www.johnsoncomponents.com
www.keyelco.com
www.murata-northamerica.com
www.nec.com
www.rohm.com
www.sullinselectronics.com
www.ti.com
www.tokoam.com
Note:
Indicate that you are using the MAX3540 when contacting these component suppliers.
Quick Start
Test Equipment Required
This section lists the recommended test equipment to
verify operation of the MAX3540. It is intended as a
guide only, and some substitutions are possible:
• One power supply capable of supplying at least
500mA at +3.3V
• One power supply capable of supplying at least
100mA at +5V for external IF LNA
• One dual-output power supply capable of supplying
at least 5mA up to 3V (to apply gain control voltages)
• One RF signal generator capable of delivering at
least 0dBm of output power at frequency (HP 8482A
or equivalent)
• One RF spectrum analyzer capable of covering the
operating frequency range of the device
• One PC (486DX33 or better) with Windows
®
95/98,
2000, NT 4.0, XP or later operating system, 64MB of
memory, and an available parallel port
• One 25-pin parallel cable
• 50Ω SMA cables
• (Optional) One multichannel digital oscilloscope
• (Optional) One network analyzer to measure return
loss
• (Optional) One ammeter to measure supply current
Windows is a registered trademark of Microsoft Corp.
_______________________________________________________________________________________
3
MAX3540 Evaluation Kit
Evaluates: MAX3540
Connections and Setup
This section provides a step-by-step guide to testing
the basic functionality of the EV kit in UHF mode.
Caution: Do not turn on DC power or RF signal gen-
erators until all connections are completed:
1) Verify that the JP1 and JP6 shunts are removed, the
JP2 shunt is installed, and JP11 and JP12 have
shunts across pins 1-2.
2) With its output disabled, set the DC power supply to
+3.3V. Connect the power supply to the +3.3V
(through an ammeter if desired) and GND1 termi-
nals on the EV kit. If available, set the current limit to
500mA.
3) With its output disabled, set the second DC power
supply to +5V. Connect the power supply to the
+5V (through an ammeter if desired) and GND1 ter-
minals on the EV kit. If available, set the current limit
to 100mA.
4) With its output disabled, set both outputs of the dual-
output DC power-supply voltages to +3V. Connect
one of the outputs to the TP1 terminal and connect
the other output to the IF_AGC terminal.
5) With its output disabled, set the RF signal generator
to a 55.25MHz frequency and a -80dBm power
level. Connect the output of the RF signal generator
to the SMA connector labeled RFIN on the evalua-
tion board.
6) Connect a 25-pin parallel cable between the PC’s
parallel port and the MAX3540 evaluation board.
7) Turn on the +3.3V V
CC
power supply, +5V V
CC
power supply, and the +3V dual-output gain-control
power supply. The supply current from the +3.3V
V
CC
supply should read approximately 200mA. The
supply current from the +5V V
CC
supply should
read approximately 20mA. Be sure to adjust the
power supply to account for any voltage drop
across the ammeter.
8) Install and run the MAX3540 control software.
Software is available for download on the Maxim
website at www.maxim-ic.com/evkitsoftware.
9) Load the default register settings from the control
software by clicking Edit: Load Defaults.
10) Connect the SMA connector labeled IF_OUT on the
evaluation board to a spectrum analyzer or to an
oscilloscope.
11) Enable the RF signal generator’s output.
12) Set the center frequency of the RF spectrum analyz-
er to the IF frequency set on the control software.
Check the output.
Gain Adjustment Calculations
Add an additional 6dB to the voltage gain to account
for the 2:1 transformer on the output. Add another
3.96dB to the voltage gain to account for the minimum
loss pad (R11 and R10) on the input. When measuring
noise figure, account for 5.7dB power loss of the mini-
mum loss pad.
An anti-aliasing filter is provided on the IF output (C21,
C25–C29, C31, C35, L9, L11). The passband of this fil-
ter is 6MHz centered at the IF frequency of 44MHz, and
is designed for a 200Ω termination. Anti-aliasing filter
requirements vary depending on application; the filter
architecture and component values are provided as
general guidelines only.
Layout Considerations
The MAX3540 EV kit serves as a guide for PCB layout.
Keep RF signal lines as short as possible to minimize
losses and radiation. Use controlled impedance on all
high-frequency traces. The exposed pad must be sol-
dered evenly to the board’s ground plane for proper
operation. Use abundant vias beneath the exposed
pad for maximum heat dissipation. Use abundant
ground vias between RF traces to minimize undesired
coupling.
To minimize coupling between different sections of the
IC, the ideal power-supply layout is a star configuration,
which has a large decoupling capacitor at the central
V
CC
node. The V
CC
traces branch out from this node,
with each trace going to separate V
CC
pins of the
MAX3540. Each V
CC
pin must have a bypass capacitor
with a low impedance to ground at the frequency of
interest. Do not share ground vias among multiple con-
nections to the PCB ground plane.
4
_______________________________________________________________________________________
MAX3540 Evaluation Kit
Evaluates: MAX3540

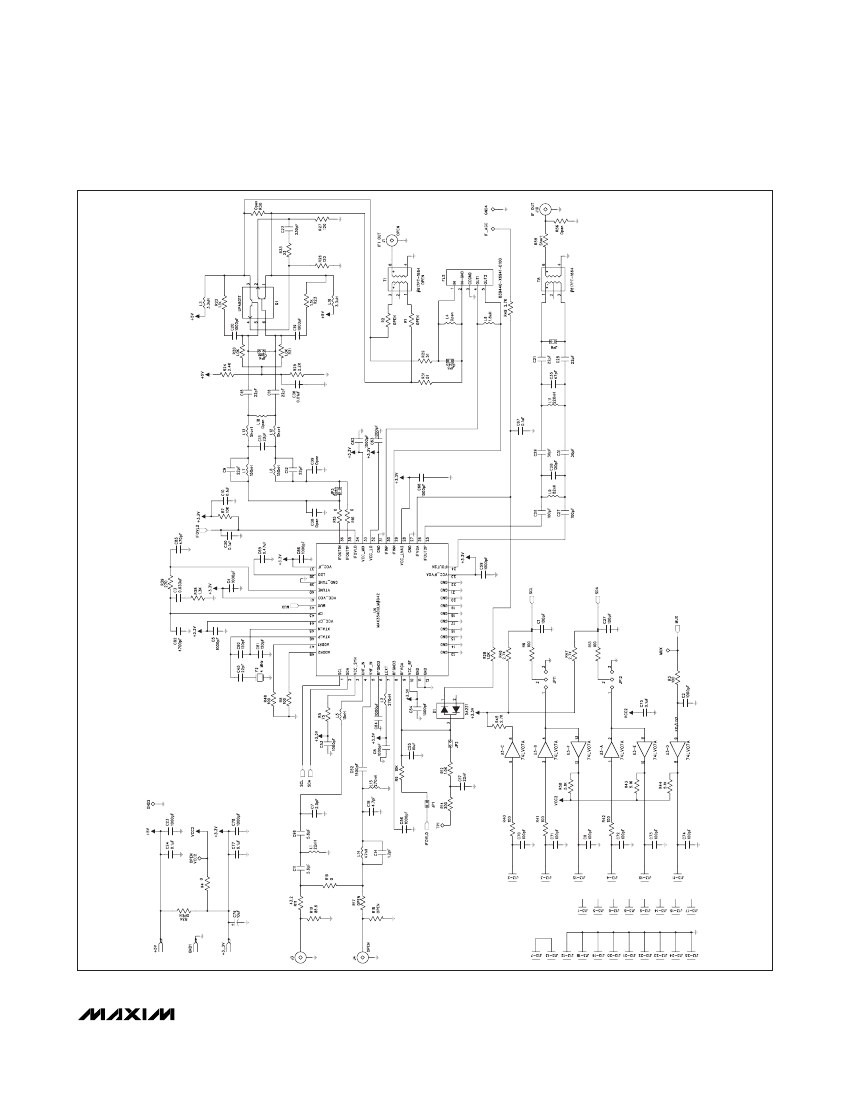

Figure 1. EV Kit Schematic
_______________________________________________________________________________________
5
京公网安备 11010802033920号
EEWORLD
