0620-013G500-AL222 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 0620-013G500-AL222

0620-013G500-AL222: DescriptionPotentiometer, Cermet, 1W, 2200ohm, 1 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size292KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

0620-013G500-AL222 Overview

Potentiometer, Cermet, 1W, 2200ohm, 1 Turn(s), ROHS COMPLIANT

0620-013G500-AL222 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1739693479
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SHAFT
gang number	1
Manufacturer's serial number	0620
Installation features	PANEL MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	CIRCULAR PACKAGE
Rated power dissipation(P)	1 W
resistance	2200 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
surface mount	NO
technology	CERMET
Terminal shape	LUG

Preview

Download Datasheet

View All

Features

■

Sealed construction (housing sealing according to DIN IEC 68 part 2 - 17 Qc2)

Additional models and versions available; i.e., locking bushing for locking the shaft

Cermet resistive element

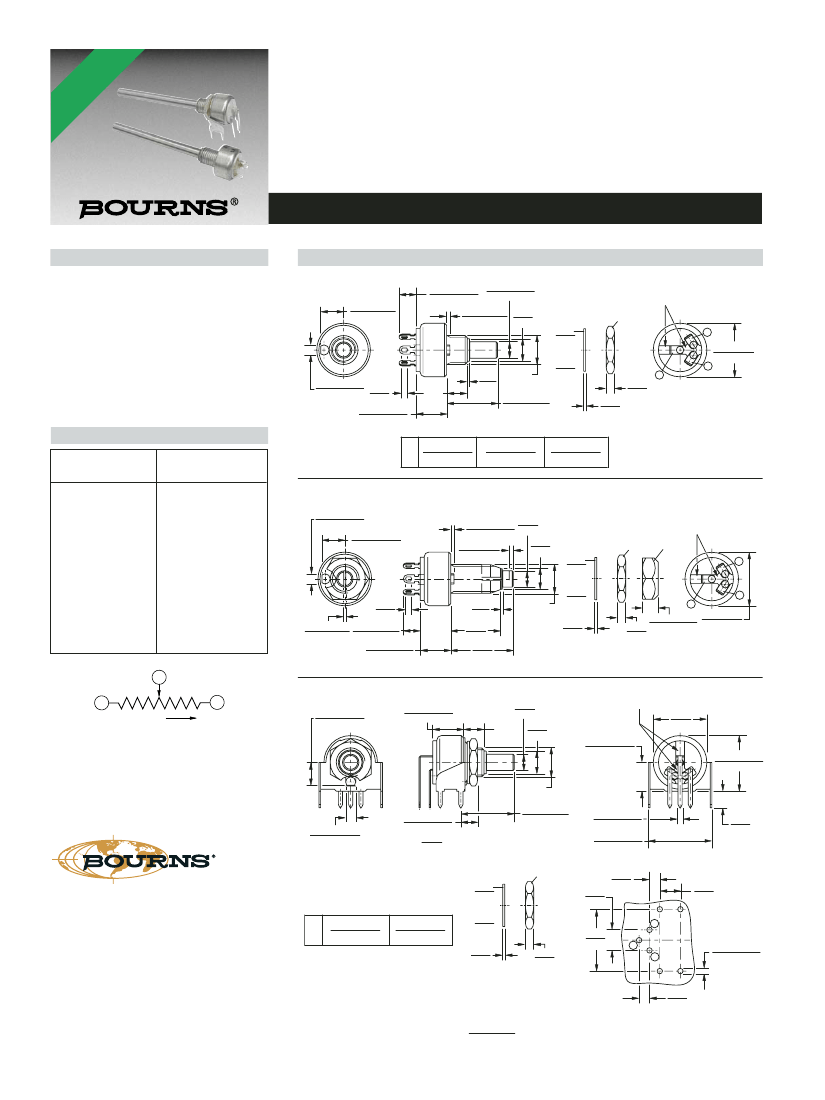

0620 - Rotary Potentiometer

Characteristics

Mechanical Angle.............285 ° +0 °/-5 °

Starting Torque ................0.5 to 1.5 Ncm

End Stop Strength .............40 Ncm max.

Shaft Push-Pull Force.............50 N max.

Resistance Range

.......................100 ohms to 1 megohm

Resistance Curve ..........................Linear

Power Rating ....................................1 W

Temperature Range ....-55 °C to +125 °C

Rotational Life ...................25,000 cycles

Standard Resistance Table

Product Dimensions

0620-013

5.5 +0/-0.2

(.217 +0/-.008)

4.0 +0/-0.03

4.3 +0/-0.3

DIA.

(.157 +0/-.001)

(.169 +0/-.012)

0.8 +0/-0.1

5.5

DIA.

(.031 +0/-.004) (.217)

SCREW NUTS

AND WASHER

SUPPLIED LOOSE

SW10

7.2

(.283)

DIA.

10.3

(.406)

0.5 M7x0.75

DIA.

(.020)

50 ± 0.5

(1.969 ± .020)

0.5

(.020)

2.0

(.079)

13.0 - 0.05

(.512 - .002)

SEALED WITH

POTTING COMPOUND

2.5 +0/-0.1

(.098 +0/-.004)

1.5

(.059)

7.3 +0.5/-0

(.287 +.020/-0)

Resistance

(Ohms)

100

220

470

1,000

2,200

4,700

10,000

22,000

47,000

100,000

220,000

470,000

1,000,000

Resistance

Code

101

221

471

102

222

472

103

223

473

104

224

474

105

5.0 ± 0.05

(.197 ± .002)

8.0 ± 0.05

(.315 ± .002)

12.0 ± 0.05

(.472 ± .002)

0620-057

2.5 +0/-0.1

(.098 +0/-.004)

5.5 +0/-0.2

(.217 +0/-.008)

4.0

0.8 +0/-0.1

DIA.

(.157)

(.031 +0/-.004)

5.0

1.0 +0.2/-0

DIA.

(.197)

(.039 +.008/-0)

7.2

(.283)

DIA.

0.3

(.012)

12.0

(.472)

15.0

(.591)

M7x0.75

10.3

(.406)

DIA.

0.5

(.020)

SEALED WITH

POTTING COMPOUND

SW10

3.8 +0.2/-0 13.0 ± 0.05

2.0 (.150 +.008/-0) (.512 ± .002)

(.079)

1.5

(.059)

4.3 +0.3/-0

0.5 +0.2/-0

(.020 +.008-0) (.169 +.012/-0)

7.3 +0.5/-0

(.287 +.020/-0)

SCREW NUTS AND WASHER

SUPPLIED LOOSE

CCW

WIPER

CLOCKWISE

0620-313

5.5 +0/-0.2

(.217 +0/-.008)

7.3 +0.5/-0

(.287 +.020/-0)

4.0

DIA.

(.157)

5.5

DIA.

(.217)

SEALED WITH

POTTING COMPOUND

13.0

(.512)

7.0 +0/-0.2

(.276 +0/-.008)

13.5 +0/-0.2

(.531 +0/-.008)

M7x0.75

50 ± 0.5

(1.969 ± .020)

1.1 +0/-0.1

(.043 +0/-.004)

15.5 +0/-0.2

(.610 +0/-.008)

2.5 +0/-0.1

(.098 +0/-.004)

4.0 +0.3/-0

(.157 +.012/-0)

4.5

0620-340

(.177)

4.0

(.157)

SW10

Recommended PCB Layout

5.0

(.197)

2.5

(.098)

5.0

(.197)

15.0

(.591)

1.3 +0.1/-0

(.051 +.004/-0)

Sensors & Controls

Asia-Pacific:

Tel: +886-2 2562-4117

Fax: +886-2 2562-4116

Europe:

Tel: +41-41 768 5555

Fax: +41-41 768 5510

The Americas:

Tel: +1-951 781-5500

Fax: +1-951 781-5700

www.bourns.com

8.0 ± 0.05

(.315 ± .002)

12.0 ± 0.05

(.472 ± .002)

7.2

(.283)

DIA.

10.3

(.406)

DIA.

0.5

(.020)

2.0

(.079)

SCREW NUTS AND WASHER

SUPPLIED LOOSE

2.5

(.098)

DIMENSIONS ARE:

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

(INCHES)
