2EZ3.6D5 thru 2EZ200D5, e3
Silicon 2 Watt Zener Diode
SCOTTSDALE DIVISION

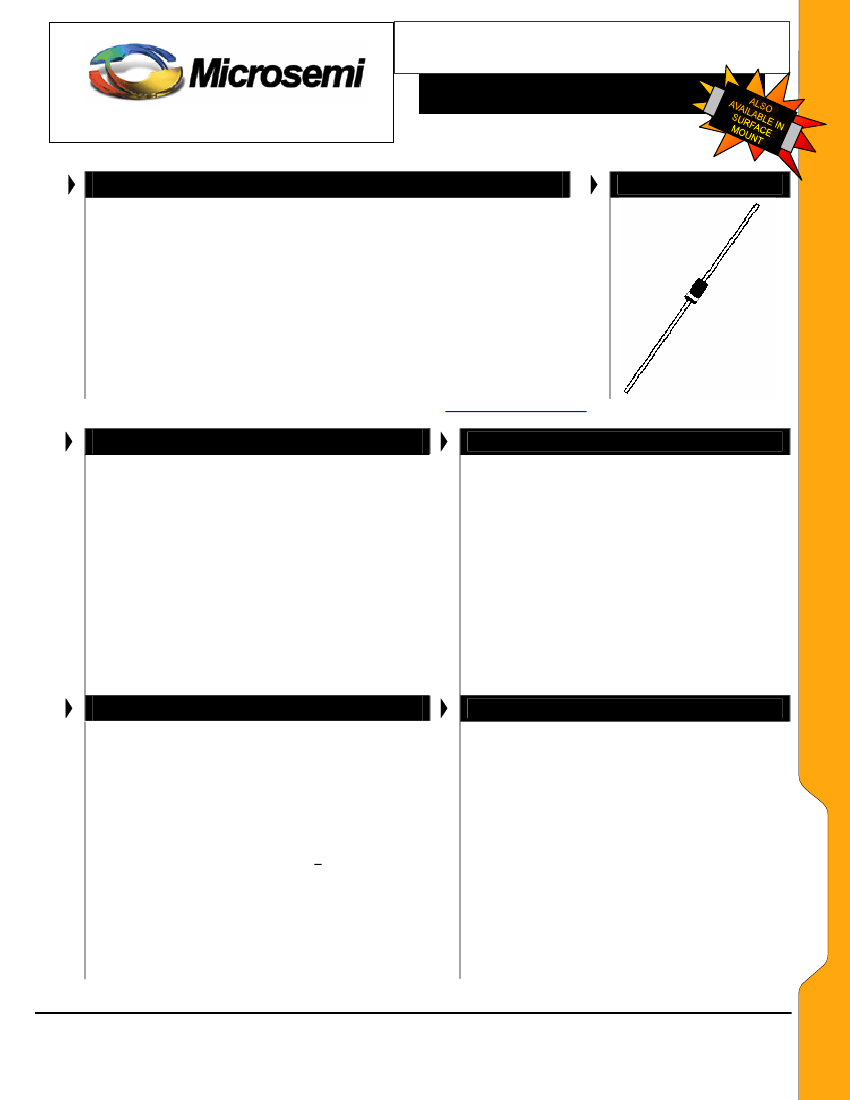

DESCRIPTION
The 2EZ3.6D5 thru 2EZ200D5 series of axial-leaded 2.0 watt Zeners
provides voltage regulation selections with 5% tolerances from 3.6 to 200
volts in a DO-41 plastic package size. Other Zener voltage tolerances are
also available by changing the suffix number to the tolerance desired such
as 1 and 2 for tighter tolerances or 10 for wider tolerance. These plastic
encapsulated Zeners are also available in various military equivalent
screening levels by adding a prefix identifier as also described in the
Features section. They may be operated at high maximum dc currents or
full power rating with adequate heat. Microsemi also offers numerous other
Zener products to meet higher and lower power applications.
APPEARANCE
WWW .
Microsemi
.C
OM
DO-41 or
DO-204AL
(Plastic)
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
FEATURES
•
•
•
•
Zener voltage available 3.6 V to 200 V
Standard voltage tolerances are plus/minus 5% with
a 5 suffix and 10 % with 10 suffix identification
Tight tolerances available in plus or minus 2% or 1%
with 2 or 1 suffix respectively
Options for screening in accordance with MIL-PRF-
19500 for JAN, JANTX, JANTXV, and JANS are
available by adding MQ, MX, MV, or MSP prefixes
respectively to part numbers.
Surface mount equivalents available as
SMBJ2EZ3.6D5 to SMBJ2EZ200D5 in the DO-
214AA package, or SMBG2EZ3.6D5 to SMBG200D5
in the DO-215AA package
RoHS compliant devices available by adding “e3” suffix
•
•
•
•
•
•
APPLICATIONS / BENEFITS
Regulates voltage over a broad operating current
and temperature range
Wide selection from 3.6 to 200 V
Flexible axial-lead mounting terminals
Nonsensitive to ESD per MIL-STD-750 Method
1020
Withstands surge stresses
High specified maximum current (I
ZM
) when
adequately heat sunk
•
•
MAXIMUM RATINGS
•
•
•
Power dissipation at 25
º
C: 3.0 watts (also see
derating in Figure 1).
Operating and Storage temperature: -65
º
C to +150
º
C
Thermal Resistance: 45
º
C/W junction to lead at 3/8
(10 mm) lead length from body, or 105
º
C/W junction
to ambient when mounted on FR4 PC board (1oz Cu)
with 4 mm
2
copper pads and track width 1 mm, length
25 mm
Steady-State Power: 2 watts at T
L
< 60
o
C 3/8 inch
(10 mm) from body, or 1.19 watts at T
A
= 25
º
C when
mounted on FR4 PC described for thermal resistance
(also see Figure 1)
Forward voltage @200 mA: 1.2 volts (maximum)
Solder Temperatures: 260
º
C for 10 s (max)
•
•
MECHANICAL AND PACKAGING
CASE: Void-free transfer molded thermosetting
epoxy body meeting UL94V-0
TERMINALS: Leads, tin-lead or RoHS compliant
annealed matte-Tin plating solderable per MIL-
STD-750, method 2026
POLARITY: Cathode indicated by band where
diode is to be operated with the banded end
positive with respect to the opposite end for Zener
regulation.
MARKING: Part number
TAPE & REEL option: Standard per EIA-296 (add
“TR” suffix to part number)
WEIGHT: 0.4 grams

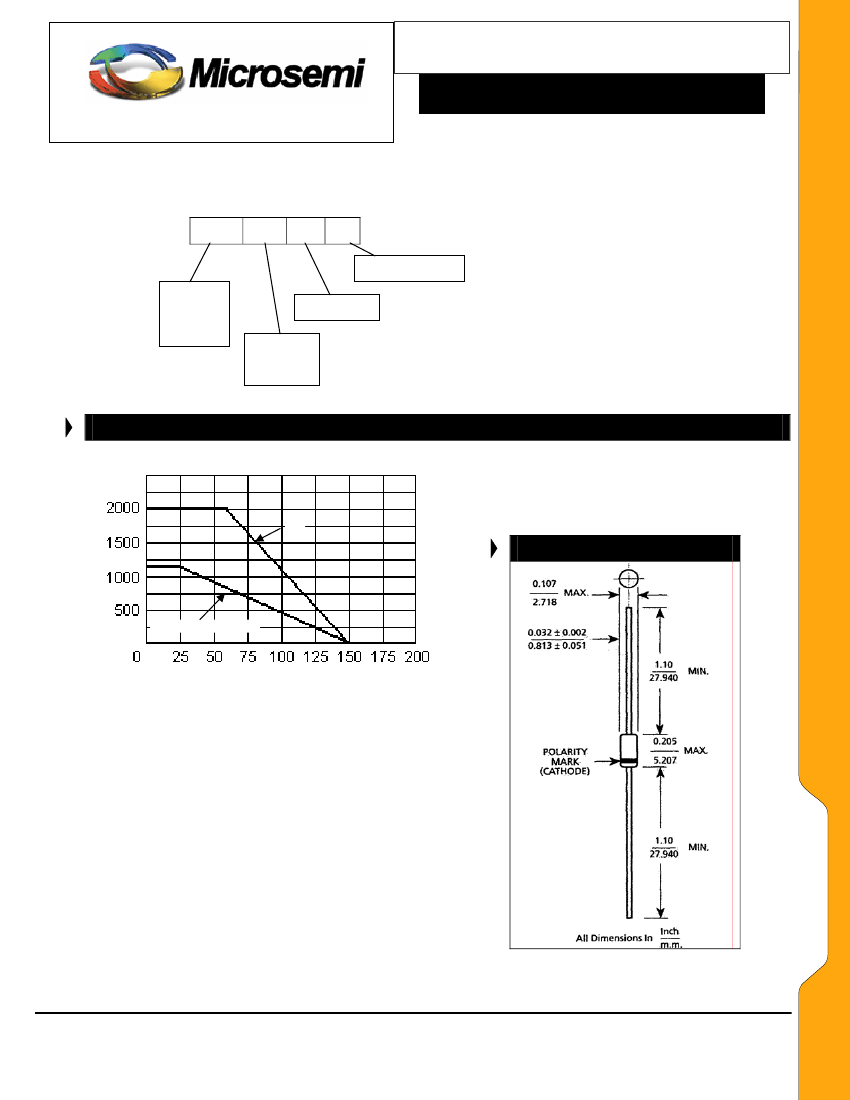

See package dimensions on last page
2EZ3.6D5
2EZ200D5, e3
•
•
•
•
•
•
•
•
Copyright
©
2006
6-20-2006 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
2EZ3.6D5 thru 2EZ200D5, e3
Silicon 2 Watt Zener Diode
SCOTTSDALE DIVISION
ELECTRICAL CHARACTERISTICS @ 25
o
C
MICRO
TYPE
NUMBER
(Note 1)
NOMINAL ZENER
VOLTAGE
(Note 2)
MAXIMUM ZENER IMPEDANCE
(Note 3)
MAXIMUM
REVERSE
CURRENT
MAXIMUM
RATED
ZENER
CURRENT
o
@ 100 C
MAXIMUM
SURGE
CURRENT
(Note 4)
WWW .
Microsemi
.C
OM
V
Z
@
I
ZT
Z
ZT
@ I
ZT
Z
ZK
@
I
ZK
I
R
@
V
R
I
ZM
I
ZSM
VOLTS
mA
OHMS
OHMS
mA
VOLTS
mA
A
μA
2EZ3.6D5
3.6
139
5.0
400
1.0
80
1.0
504
4.6
2EZ3.9D5
3.9
128
5.0
400
1.0
30
1.0
468
4.4
2EZ4.3D5
4.3
116
4.5
400
1.0
20
1.0
434
4.1
2EZ4.7D5
4.7
106
4.5
550
1.0
5.0
1.0
386
3.3
2EZ5.1D5
5.1
98
3.5
600
1.0
5.0
1.0
356
3.5
2EZ5.6D5
5.6
89.5
2.5
500
1.0
5.0
2.0
324
3.3
2EZ6.2D5
6.2
80.5
1.5
700
1.0
5.0
3.0
292
3.1
2EZ6.8D5
6.8
73.5
2.0
700
1.0
5.0
4.0
266
2.9
2EZ7.5D5
7.5
66.5
2.0
700
0.5
5.0
5.0
242
2.66
2EZ8.2D5
8.2
61
2.3
700
0.5
5.0
6.0
220
2.44
2EZ9.1D5
9.1
55
2.5
700
0.5
3.0
7.0
200
2.2
2EZ10D5
10
50
3.5
700
0.25
3.0
7.6
182
2.0
2EZ11D5
11
45.5
4.0
700
0.25
1.0
8.4
166
1.82
2EZ12D5
12
41.5
4.5
700
0.25
1.0
9.1
152
1.66
2EZ13D5
13
38.5
5.0
700
0.25
0.5
9.9
138
1.54
2EZ14D5
14
35.7
5.5
700
0.25
0.5
10.6
130
1.43
2EZ15D5
15
33.4
7.0
700
0.25
0.5
11.4
122
1.33
2EZ16D5
16
31.2
8.0
700
0.25
0.5
12.2
114
1.25
2EZ17D5
17
29.4
9.0
750
0.25
0.5
13.0
107
1.18
2EZ18D5
18
27.8
10
750
0.25
0.5
13.7
100
1.11
2EZ19D5
19
26.3
11
750
0.25
0.5
14.4
95
1.05
2EZ20D5
20
25
11
750
0.25
0.5
15.2
90
1.0
2EZ22D5
22
22.8
12
750
0.25
0.5
16.7
82
0.91
2EZ24D5
24
20.8
13
750
0.25
0.5
18.2
76
0.83
2EZ27D5
27
18.5
18
750
0.25
0.5
20.6
68
0.74
2EZ30D5
30
16.6
20
1000
0.25
0.5
22.5
60
0.67
2EZ33D5
33
15.1
23
1000
0.25
0.5
25.1
55
0.61
2EZ36D5
36
13.9
25
1000
0.25
0.5
27.4
50
0.56
2EZ39D5
39
12.8
30
1000
0.25
0.5
29.7
47
0.51
2EZ43D5
43
11.6
35
1500
0.25
0.5
32.7
43
0.45
2EZ47D5
47
10.6
40
1500
0.25
0.5
35.8
39
0.42
2EZ51D5
51
9.8
48
1500
0.25
0.5
38.8
36
0.39
2EZ56D5
56
9.0
55
2000
0.25
0.5
42.6
32
0.36
2EZ62D5
62
8.1
60
2000
0.25
0.5
47.1
29
0.32
2EZ68D5
68
7.4
75
2000
0.25
0.5
51.7
27
0.29
2EZ75D5
75
6.7
90
2000
0.25
0.5
56
24
0.27
2EZ82D5
82
6.1
100
3000
0.25
0.5
62.2
22
0.24
2EZ91D5
91
5.5
125
3000
0.25
0.5
69.2
20
0.22
2EZ100D5
100
5.0
175
3000
0.25
0.5
76.0
18
0.20
2EZ110D5
110
4.5
250
4000
0.25
0.5
83.6
17
0.18
2EZ120D5
120
4.2
325
4500
0.25
0.5
91.2
15
0.16
2EZ130D5
130
3.8
400
5000
0.25
0.5
98.8
14
0.15
2EZ140D5
140
3.6
500
5500
0.25
0.5
106.4
13
0.14
2EZ150D5
150
3.3
575
6000
0.25
0.5
114
12
0.13
2EZ160D5
160
3.1
650
6500
0.25
0.5
121.6
11
0.12
2EZ170D5
170
2.9
675
7000
0.25
0.5
130.4
11
0.12
2EZ180D5
180
2.8
725
7000
0.25
0.5
136.8
10
0.11
2EZ190D5
190
2.6
825
8000
0.25
0.5
144.8
10
0.10
2EZ200D5
200
2.5
900
8000
0.25
0.5
152
9
0.10
NOTES:
1. Suffix 1 indicates +/-1% tolerance, suffix 2 indicates +/-2% tolerance, suffix 5 indicates +/-5% tolerance. Suffix 10 indicates +/-10%,
no suffix indicates +/-20%.
2. The V
Z
is measured after allowing a 90 second stabilization period when mounted with a 3/8” minimum lead length from body.
o
o
o
Ambient temperature, T
A
= 25 C (+8 C/-2 C).
3. The Zener impedance is derived from 60 cycle ac voltage resulting from an ac current having an rms value equal to 10%
of the dc Zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
.
4. Maximum Surge Current I
ZSM
is a non-recurrent maximum peak reverse surge with a pulse width of 8.3 ms.
Copyright
©
2006
6-20-2006 REV B
2EZ3.6D5
2EZ200D5, e3
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
