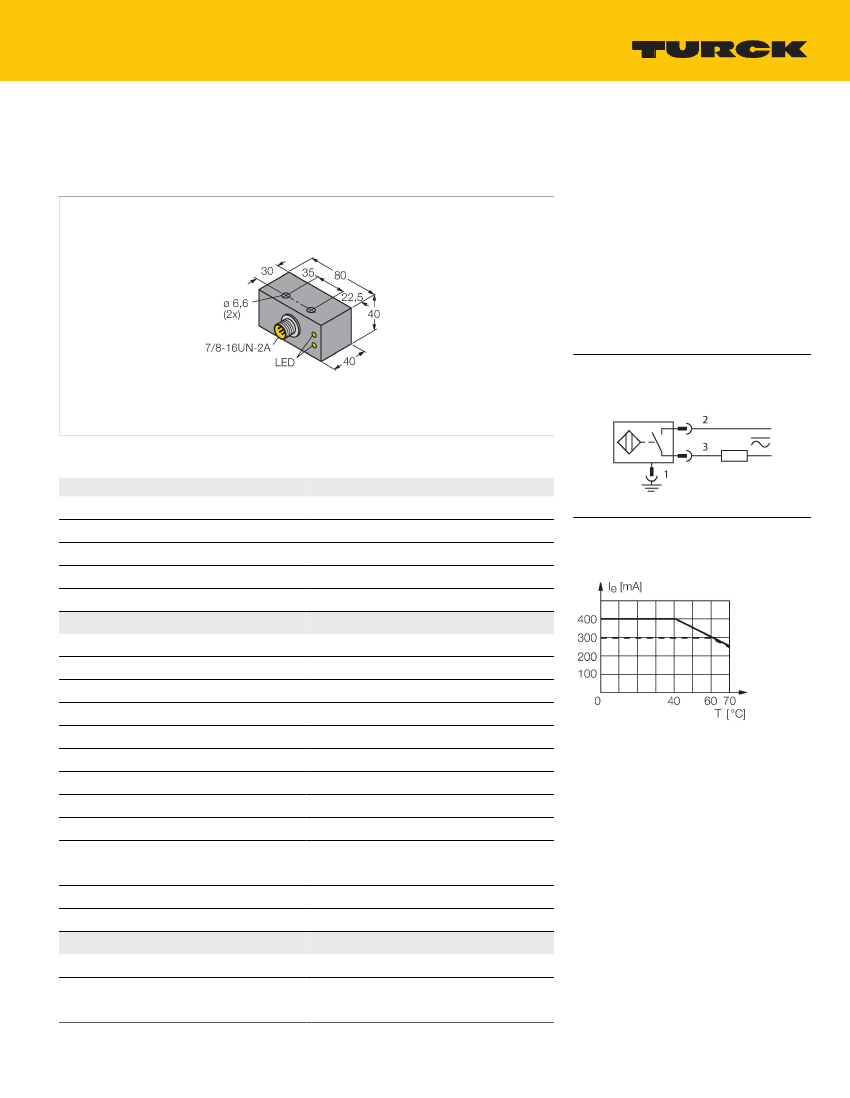

BI20-CK4080-ADZ30X2-B1131

Inductive sensor

Features

■

Rectangular, height 40 mm

■

Sensor housing, PBT

■

Active face, PBT

■

AC 2-wire, 20…250 VDC

■

DC 2-wire, 10…300 VDC

■

NO contact

■

7/8" male connector

Wiring diagram

Technical data

Type

Ident. no.

Rated switching distance

Mounting conditions

Repeat accuracy

Hysteresis

Operating voltage

AC rated operational current

DC rated operational current

Frequency

Residual current

Isolation test voltage

Surge current

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Smallest operating current

Switching frequency

Design

Dimensions

Housing material

Active area material

BI20-CK4080-ADZ30X2-B1131

4283493

20 mm

Flush

≤ 2 % of full scale

3…15 %

20…250 VAC

10…300 VDC

≤ 300 mA

≥ 50…≤ 60 Hz

≤ 1.7 mA

≤ 1.5 kV

≤ 3 A (≤ 20 ms max. 5 Hz)

yes / Latching

≤ 6 V

yes / Complete

2-wire, NO contact

≥ 3 mA

0.03 kHz

Rectangular,CK4080

80 x 40 mm

Plastic, PBT, Black

PBT

BI20-CK4080-ADZ30X2-B1131| 09/15/2019 16-45 | technical changes reserved

1|2

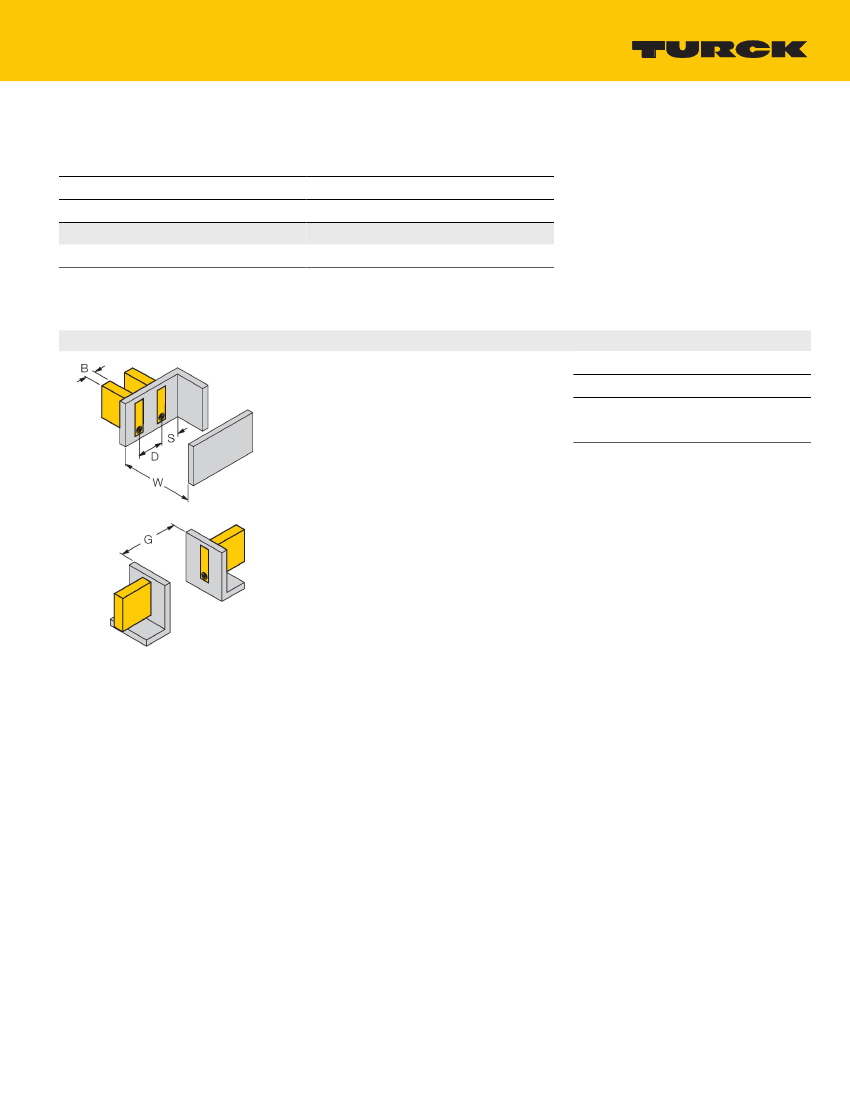

Functional principle

≤ 400 mA
