BI50U-Q80-VP4X2-B1141 datasheet, PDF

Datasheet> All Categories > The sensor> BI50U-Q80-VP4X2-B1141

BI50U-Q80-VP4X2-B1141: DescriptionInductive Sensor,; CategoryThe sensor; File Size238KB，2 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI50U-Q80-VP4X2-B1141 Overview

Inductive Sensor,

BI50U-Q80-VP4X2-B1141 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IP68; SHORT CIRCUIT PROTECTION; REVERSE POLARITY PROTECTION
body height	40 mm
shell	PLASTIC
Installation features	FLUSH MOUNT
Maximum working current	200 mA
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Output interface type	4-WIRE INTERFACE
Output type	PNP
Package Shape/Form	RECTANGULAR
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	65 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

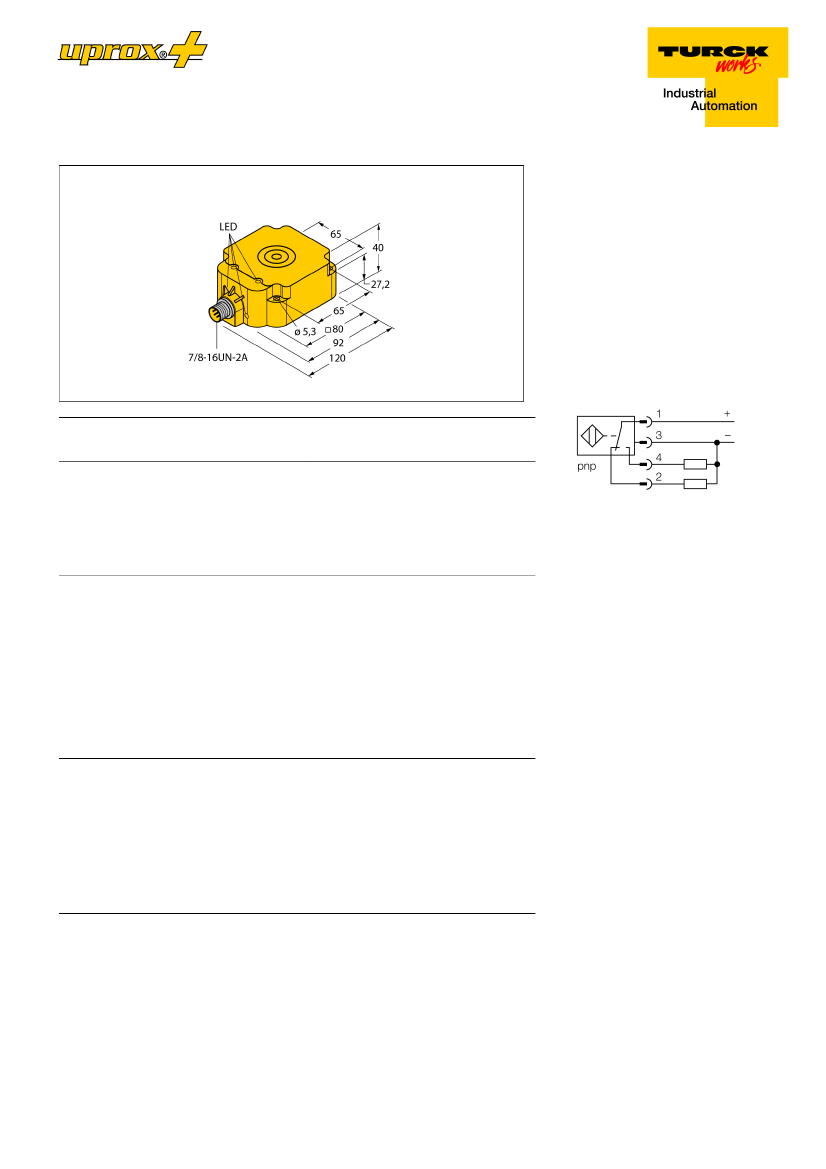

Inductive sensor

BI50U-Q80-VP4X2-B1141

■

Rectangular, height 40 mm

■

Active face on top

■

Plastic, PBT-GF30-V0

■

Factor 1 for all metals

■

Increased switching distance

■

Protection class IP68

■

Resistant to magnetic fields

■

DC 4-wire, 10…65 VDC

■

Changeover contact, PNP output

■

7/8" male connector

Wiring Diagram

Type designation

Ident-No.

Rated switching distance Sn

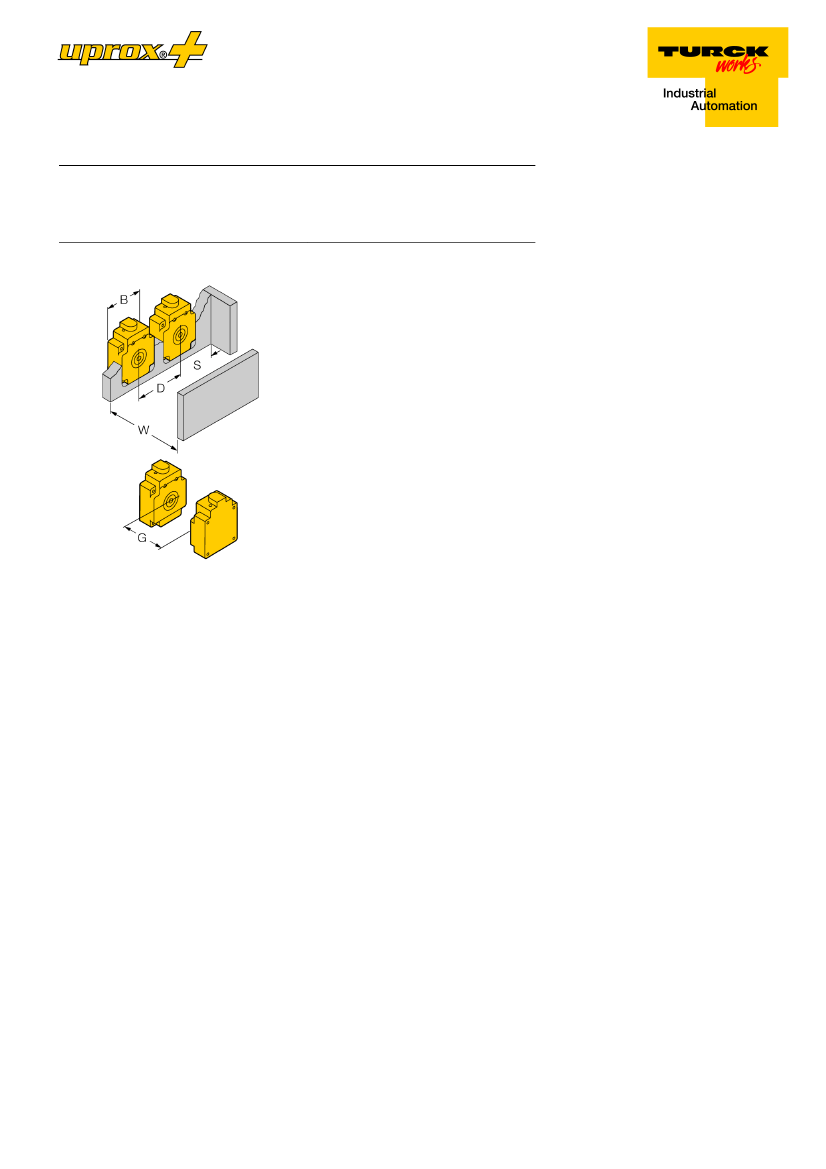

Mounting conditions

Secured operating distance

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Protection class

Switching frequency

Design

Dimensions

Housing material

Tightening torque fixing screw

Electrical connection

Vibration resistance

Shock resistance

Protection class

MTTF

Packaging unit

Power-on indication

Switching state

Edition • Rev. A • 2018-05-20T10:49:36+02:00

BI50U-Q80-VP4X2-B1141

1562005

50 mm

Flush

(0,81 x Sn) mm

2 % of full scale

± 10 %

1…15 %

-25…+70 °C

10…65 VDC

10 % U

200 mA

15 mA

0.1 mA

0.5 kV

yes

1.8 V

yes/ Complete

4-wire, Complementary contact, PNP

0.25 kHz

Rectangular,Q80

92 x 80 x 40 mm

Plastic, PBT-GF30-V0

4 Nm

Connectors, 7/8"

55 Hz (1 mm)

30 g (11 ms)

IP68

874 years acc. to SN 29500 (Ed. 99) 40 °C

LED,Green

LED,Yellow

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. Due to the patented

multi-coil system,

uprox®+

sensors have dis-

tinct advantages over conventional sensors.

They excel in largest switching distances,

maximum flexibility and operational reliability

as well as efficient standardization.

1/2

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
