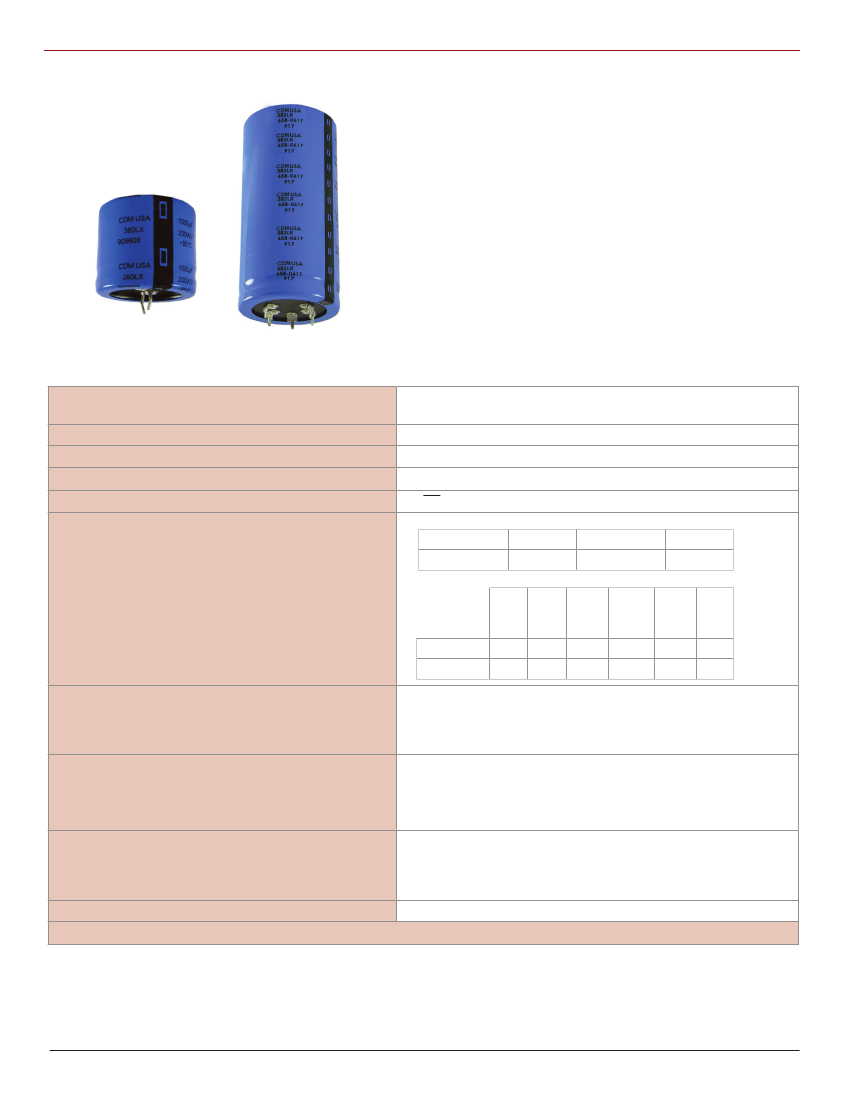

Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
The excellent value of Type 380L/LX capacitors finds application in
switching power supply input and output circuits and even motor
drives where the high surface area of multiple units in parallel
approaches the ripple capability of our Type 520C computer-grade
capacitor. Type 380LX delivers more capacitance per can size while
Type 380L available in the largest case sizes gives lower ESR for the
same capacitance. Types 382L and 382LX give the choice of 4 or 5
leads for stable, reverse proof mounting.
Highlights
- Latest available ratings, worldwide
- Top performance in power supplies and motor drives
- Big selection of 46 case sizes
- 2, 4 and 5 leads available
–40 °C to +85 °C ≤ 250 Vdc
–25 °C to +85 °C ≥ 315 Vdc
16 Vdc to 500 Vdc
33 µF to 270,000 µF
± 20%
≤3√CV µA at 5 min
Ambient Temperature
45 ºC
1.5
Frequency
60 ºC
1.4
70 ºC
1.3
85 ºC
1.0
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
16 - 100 WV
0.93
0.95
0.80
1.00
1.00
1.05
1.20
1.08
1.25
1.15
1.40
160 - 450 WV 0.75
Low Temperature Characteristics
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–500 Vdc)
3,000 h @ full load at +85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1,000 h @ 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Part Numbering System
382LX
272
M
200
N05
Case
Type
380L / LX
(2 pins)
Cap
272
= 2700 µF
Tolerance
M =
±20%
Voltage
200
= 200 Vdc
Code
Insulation
2
= PVC
# of pins
Blank
= 2 pins / 4 pins snap-in 6.3mm L
A
= 2 pins / 4 pins snap-in 4.0mm L
VS
= 5 pins snap-in 6.3mm L
V
= 5 pins standoff
2
V
+D
Blank =
no end disk if <250 V
D =
end disk, any voltage
382L / LX
(4 or 5 pins)
333
= 33000 µF

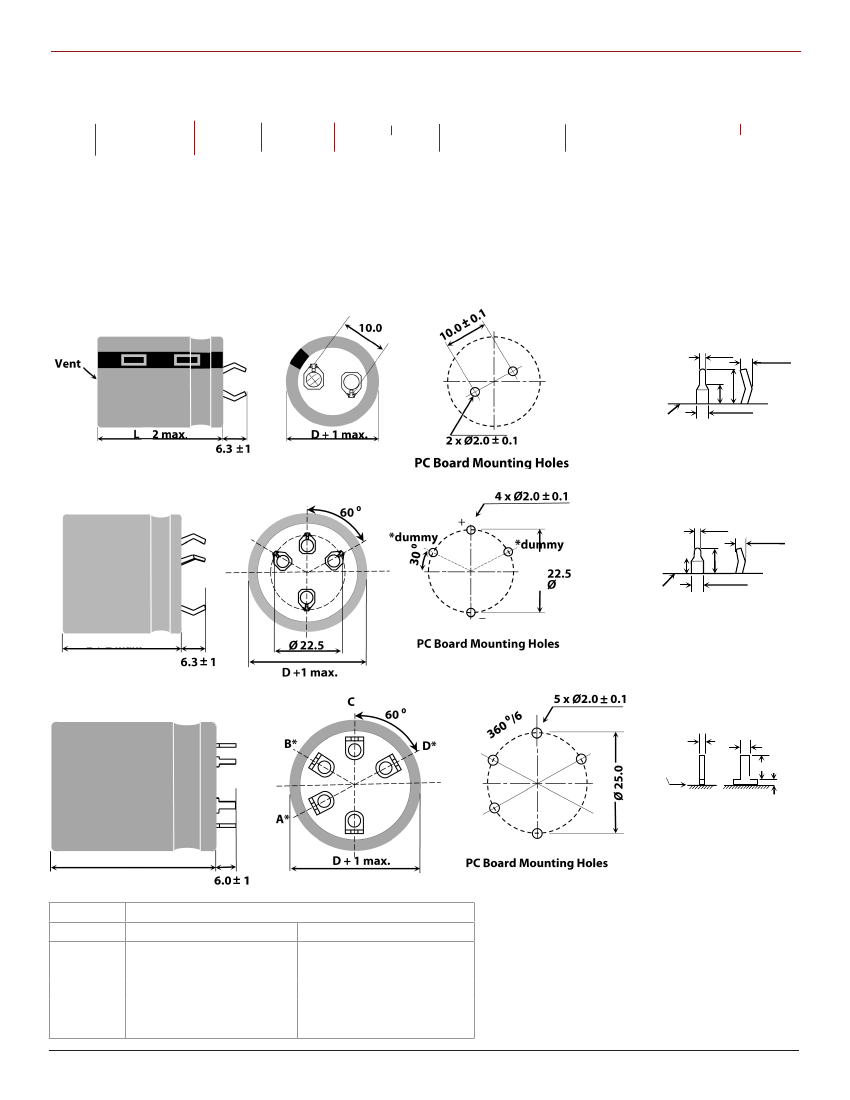

Outline Drawings
Dimensions shown are in mm
Two Pins
380L/LX (22 through 40 mm diameter)
Available in 2, 4 and 5 pins
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
±
Four Pins
382L/LX (35 and 40mm diameter)
Top of
Capacitor
Body
1.5 0.2
6.3 mm
pin length
6.3
pin length
Available
in 2 and 4 pins
Available
in 2 and 4 pins
+0.2
0.8 -0.1
2.0max.
4.0
1.5 0.2
0.7
3.5
Top of
Capacitor
Body
L ± 2 max.
Five Pins
382L/LX (40 and 50mm diameter)
4.0
4.0 pin length
mm pin length
option (add “A” to end
of part#)
Available in 5 pins
1.5 0.1
3.75 0.1
Top of
Capacitor
Body
0.6 min.
L ± 2 max.
5 pin Standoff pin
style (add “V” to end
of part#)
Note that for 200 volts and under the insulating end disc is optional - If one is needed add a (+D) to the end of the part numbering system.
Connection
Terminal
A
B
C
D
–
40 mm Dia.
dummy
dummy
positive (+)
dummy
negative (–)
50 mm Dia.
negative (–)
dummy
positive (+)
positive (+)
negative (–)
Notes:
* Use dummy terminals for mechanical support only. Make
no electrical connection because they resistively connect
through the electrolyte to the negative terminal.
** Safety Vent may be on the bottom or on the side of the can.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
LENGTH
Insulated Case
DIAMETER
Dimensions
"L"
"D"
Case
Code
H20
H01
H02
H03
H04
H45
H05
J20
J01
J02
J03
J04
J45
J05
K20
K01
K02
K03
K04
K45
K05
mm
22
22
22
22
22
22
22
25
25
25
25
25
25
25
30
30
30
30
30
30
30
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
0.98
1.18
1.18
1.18
1.18
1.18
1.18
1.18
mm
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
40
45
50
inches
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
14
16
19
22
24
28
31
16
20
24
27
31
35
38
25
30
35
40
44
48
53
Case
Code
A20
A01
A02
A03
A04
A45
A05
A55
A06
A07
A08
A10
N04
N05
N06
N08
N10
B05
B06
B08
B09
B10
DIAMETER
"D"
mm
35
35
35
35
35
35
35
35
35
35
35
35
40
40
40
40
40
50
50
50
50
50
inches
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.57
1.57
1.57
1.57
1.57
1.97
1.97
1.97
1.97
1.97
LENGTH
"L"
mm
20
25
30
35
40
45
50
55
63
70
80
105
40
50
63
80
105
50
63
80
92
105
inches
0.79
0.98
1.18
1.38
1.57
1.77
1.97
2.17
2.48
2.76
3.15
4.13
1.57
1.97
2.48
3.15
4.13
1.97
2.48
3.15
3.62
4.13
Typical
Weight
(grams)
35
42
48
54
62
67
74
80
88
98
112
144
82
105
130
185
265
136
168
239
241
325
Typical Performance Curves
1000
Type 380L/LX Operating Life in Kilohours vs Ripple Current
Expected Operating Life, kh
100
45 ºC
55 ºC
65 ºC
75 ºC
10
85 ºC
1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
Rated Ripple-Current Multiple
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Typical Performance Curves
Life Test Data 380LX222M100J042
Capacitance, DF, Leakage Current
50
Life Test Data 380LX151M400J02
Capacitance, DF, Leakage Current
60
Capacitance, DF, Leakage Current
Leakage
(uADC)
40
30
20
10
0
Capacitance, DF, Leakage Current
50
40
30
20
10
0
-10
Leakage
(uADC)
DF
(%)
DF
(%)
Cap Change (%)
-10
0
500
1000
1500
Hours @ Rated Max Temp, Voltage, Ripple
2000
Cap
Change
(%)
0
500
1000
1500
Hours @ Rated Max Temp, Voltage, Ripple
2000
60
Life Test Data 380LX331M450K052
Capacitance, DF, Leakage Current
Capacitance, DF, Leakage Current
50
40
30
20
10
0
0
Leakage (uADC)
DF
(%)
Cap Change (%)
500
1000
1500
2000
Hours @ Rated Max Temp, Voltage, Ripple
18
Life Test Data 380L222M050K012
Capacitance, DF, Leakage Current
Leakage (uADC)
Capacitance, DF, Leakage Current
16
14
12
10
8
6
4
2
0
-2
0
DF
(%)
Cap
Change
(%)
500
1000
1500
Hours @ Rated Max Temp, Voltage, Ripple
2000
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Cap.
(µF)
Max. ESR
Ω@ 25 °C
Catalog Part Number
Ripple Amps Nominal
Max. @ 85 °C Size D x L
(mm)
22 x 20
22 x 25
22 x 25
25 x 20
22 x 25
22 x 30
25 x 25
30 x 20
22 x 30
25 x 25
22 x 35
25 x 30
35 x 20
22 x 40
25 x 30
22 x 45
25 x 35
30 x 30
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
40 x 40
35 x 50
35 x 63
40 x 50
35 x 80
40 x 63
35 x 105
40 x 80
50 x 50
50 x 63
40 x 105
50 x 80
50 x 92
50 x 105
3300
3300
4700
4700
5600
6800
6800
6800
8200
8200
10000
10000
10000
10000
12000
12000
12000
15000
15000
15000
18000
18000
22000
22000
27000
27000
33000
33000
33000
39000
39000
47000
47000
56000
56000
56000
56000
68000
68000
82000
100000
100000
Cap.
(µF)
Max. ESR
Ω@ 25 °C
Catalog Part Number
Ripple Amps Nominal
Max. @ 85 °C Size D x L
(mm)
22 x 20
22 x 25
22 x 25
25 x 20
22 x 25
22 x 30
25 x 25
30 x 20
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
35 x 20
22 x 40
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
25 x 50
30 x 40
30 x 45
35 x 35
30 x 50
35 x 40
40 x 40
35 x 45
40 x 40
35 x 50
35 x 63
35 x 70
40 x 63
35 x 63
40 x 50
35 x 80
40 x 63
50 x 50
35 x 105
50 x 63
120 Hz 20 kHz 120 Hz 20 kHz
0.160
0.160
0.110
0.110
0.090
0.075
0.143
0.084
0.119
0.119
0.054
0.054
0.055
0.045
0.045
0.065
0.065
0.065
0.031
0.031
0.025
0.025
0.025
0.022
0.022
0.030
0.030
0.020
0.022
0.018
0.016
0.016
0.015
0.018
0.014
0.017
0.014
0.012
0.013
0.011
0.010
0.009
0.135
0.135
0.092
0.092
0.078
0.062
0.118
0.070
0.098
0.098
0.045
0.045
0.048
0.040
0.040
0.055
0.055
0.055
0.025
0.025
0.021
0.021
0.021
0.018
0.018
0.026
0.026
0.018
0.021
0.017
0.015
0.015
0.014
0.017
0.013
0.016
0.013
0.011
0.012
0.010
0.009
0.008
1.60
1.77
2.60
1.80
3.10
3.80
3.80
2.40
4.50
4.50
5.30
5.30
3.20
5.60
5.60
6.10
6.10
6.10
6.30
6.30
6.80
6.80
6.80
6.95
6.95
7.50
7.50
8.70
9.00
9.00
10.00
10.30
11.00
11.40
12.81
12.40
13.17
14.40
14.85
15.69
16.73
17.79
1.80
2.00
3.00
2.10
3.60
4.30
4.30
2.80
5.20
5.20
6.00
6.00
3.70
6.40
6.40
7.00
7.00
7.00
7.30
7.30
7.80
7.90
7.90
8.00
8.00
8.60
8.60
10.00
10.40
10.40
11.50
11.80
12.70
13.00
14.73
14.30
15.15
16.56
17.08
18.04
19.24
20.46
120 Hz 20 kHz 120 Hz 20 kHz
0.177
0.161
0.110
0.125
0.095
0.078
0.078
0.078
0.065
0.065
0.058
0.058
0.136
0.060
0.050
0.050
0.050
0.040
0.040
0.040
0.035
0.035
0.030
0.030
0.023
0.023
0.020
0.020
0.026
0.020
0.020
0.024
0.017
0.015
0.015
0.024
0.016
0.013
0.017
0.016
0.010
0.014
0.140
0.130
0.090
0.100
0.075
0.063
0.063
0.063
0.049
0.049
0.046
0.046
0.108
0.050
0.040
0.040
0.040
0.030
0.030
0.030
0.028
0.028
0.023
0.023
0.020
0.020
0.017
0.017
0.016
0.017
0.018
0.021
0.009
0.008
0.009
0.020
0.015
0.011
0.015
0.015
0.008
0.013
1.60
1.70
2.40
1.80
2.90
3.50
3.50
2.30
3.60
3.60
3.80
3.80
3.28
2.70
4.10
4.10
4.10
4.60
4.60
4.60
5.50
5.50
6.10
6.10
6.20
6.20
6.80
6.80
7.30
7.40
8.00
8.00
8.30
9.10
9.50
8.60
9.00
10.40
10.25
12.29
11.97
13.45
1.80
1.90
2.75
2.10
3.30
4.00
4.00
2.60
4.10
4.10
4.30
4.30
3.68
3.10
4.70
4.70
4.70
5.30
5.30
5.30
6.30
6.30
7.00
7.00
7.10
7.10
7.90
7.90
8.00
8.50
9.20
9.20
9.50
10.30
10.30
9.90
10.30
12.00
11.80
14.13
13.77
15.47
16 Vdc (20 Vdc Surge)
4700
4700
6800
6800
8200
10000
10000
10000
12000
12000
15000
15000
15000
18000
18000
22000
22000
22000
27000
27000
33000
33000
33000
39000
39000
47000
47000
56000
56000
68000
82000
82000
100000
100000
120000
120000
120000
150000
180000
180000
220000
270000
380LX472M016H202
380LX472M016H012
380LX682M016H012
380LX682M016J202
380LX822M016H012
380LX103M016H022
380LX103M016J012
380LX103M016K202
380LX123M016H022
380LX123M016J012
380LX153M016H032
380LX153M016J022
380LX153M016A202
380LX183M016H042
380LX183M016J022
380LX223M016H452
380LX223M016J032
380LX223M016K022
380LX273M016J452
380LX273M016K032
380LX333M016J052
380LX333M016K042
380LX333M016A022
380LX393M016K452
380LX393M016A032
380LX473M016K052
380LX473M016A042
380LX563M016A452
382LX563M016N042
380LX683M016A052
380LX823M016A062
382LX823M016N052
380LX104M016A082
382LX104M016N062
380LX124M016A102
382LX124M016N082
382LX124M016B052V
382LX154M016B062V
382LX184M016N102
382LX184M016B082V
382LX224M016B092V
382LX274M016B102V
25 Vdc (32 Vdc Surge)
380LX332M025H202
380LX332M025H012
380LX472M025H012
380LX472M025J202
380LX562M025H012
380LX682M025H022
380LX682M025J012
380LX682M025K202
380LX822M025H022
380LX822M025J012
380LX103M025H032
380LX103M025J022
380LX103M025K012
380LX103M025A202
380LX123M025H042
380LX123M025J032
380LX123M025K022
380LX153M025H052
380LX153M025J042
380LX153M025K022
380LX183M025J452
380LX183M025K032
380LX223M025J052
380LX223M025K042
380LX273M025K452
380LX273M025A03
380LX333M025K052
380LX333M025A042
382L333M025N042
380LX393M025A452
382LX393M025N042
380LX473M025A052
380L473M025A062
380L563M025A072
382L563M025N062
380LX563M025A062
382LX563M025N052
380LX683M025A082
382LX683M025N062
382LX823M025B052V
380LX104M025A102
382LX104M025B062V
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
京公网安备 11010802033920号
EEWORLD
