FEATURES AND SPECIFICATIONS
3.81 and 5.08mm
(.150 and .200") Pitch
Beau
®
EuroMate
®
Pluggable Barrier Strip
39930, 39940

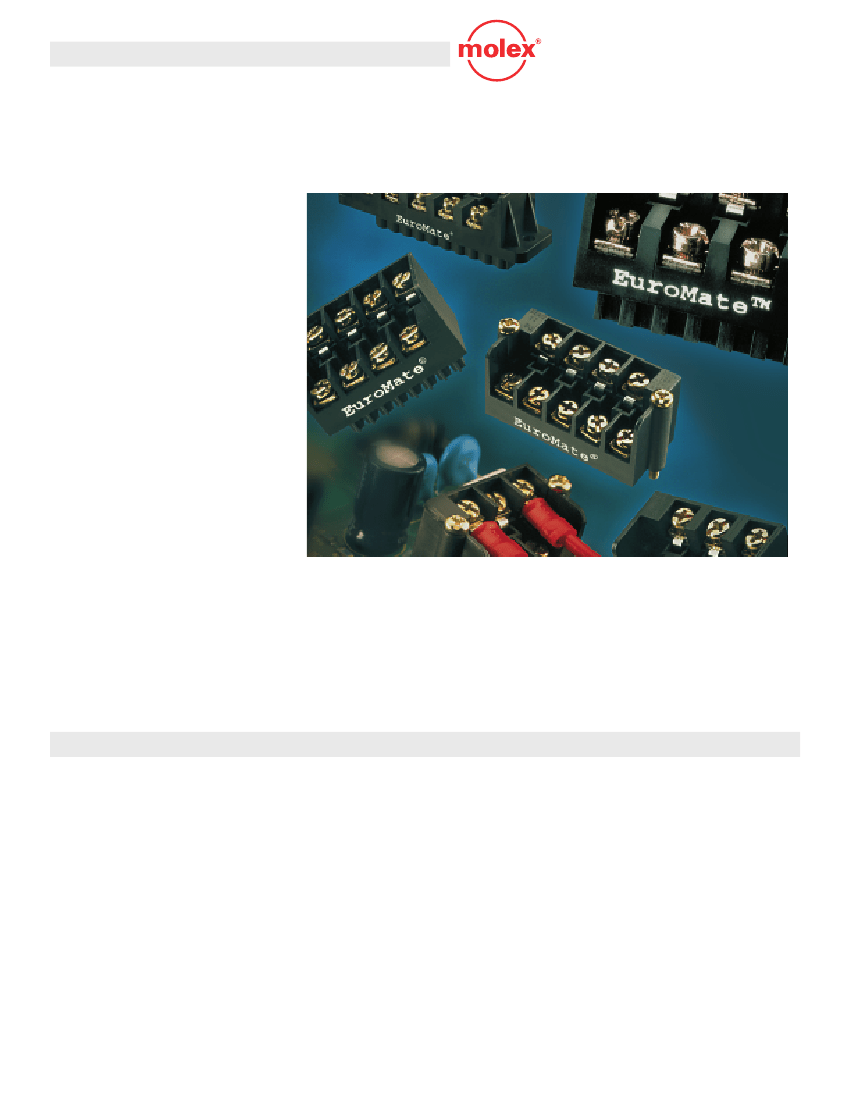

Beau EuroMate pluggable PCB terminal blocks have a higher density PCB
connection and are available in pitches of 3.81 and 5.08mm (.150 and .200”)
Connector technology has not allowed power
monitoring and controls system designers to
realize the packaging densities made possible
by modern electronics. In order to increase
packaging densities, the EuroMate has a large
and robust wiring terminal interface with a
higher density PCB connection. In addition,
the PCB connection is pluggable to allow for
ease of factory assembly and field repair
service. Molex offers the EuroMate with
optional retention screws or mounting flanges,
so you can find the best fit for your needs.
One of the most important benefits of the
Beau EuroMate is that it uses a single piece
insulator for cost efficiency.
I
Single row of female contacts interface
with industry-standard European style
headers, which produces twice the pitch at
the wiring terminal
I
Wiring terminals are staggered and offset
vertically to facilitate easier wiring access
Features and Benefits
I
Mounting flanges accommodate panel
mounting to prevent any bowing or
flexing during connector mating and
unmating
I
Accepts 1/4” ring and spade wiring
terminals to assure acceptance in all
markets
I
Rear barrier prevents over-insertion of
wire into device
SPECIFICATIONS
Reference Information
Packaging: Box
UL File No.: E48521
Guide No.: XCFR2
UL for Canada File No.: E48521
Guide No.: XCFR8
Electrical
Voltage: 300V
Current:
39930 – 12.0A
39940 – 15.0A
Insulation Resistance: 3000 Megohms min.
Mechanical
Wire Range:
39930 – 14 to 22 AWG
(2.08 to 0.32mm
2
)
39940 – 12 to 22 AWG
(3.30 to 0.32mm
2
)
Strip Length: 6.00mm (.250”)
Tightening Torque: 0.79 Nm (7.00 in-lbs)
Operating Temperature: +105°C
Physical
Housing: Polyamide 6.6 UL 94V-0, Black
Contact:
39930 – Berylium Copper
39940 – Phosphor Bronze
Screws:
39930 – M3 Steel with Clamp Washer
39940 – M3.5 Steel with Clamp Washer
Plating:
Contact – Tin
Screw – Zinc Chromate
APPLICATIONS
I
Gas and oxygen analyzers
I
Digital process meters
I
Controller boards
I
Power monitoring devices
I
Power supplies
I
Telecom racks
I
UPS systems
I
Measurement systems
I
Process controls
I
Industrial automation equipment

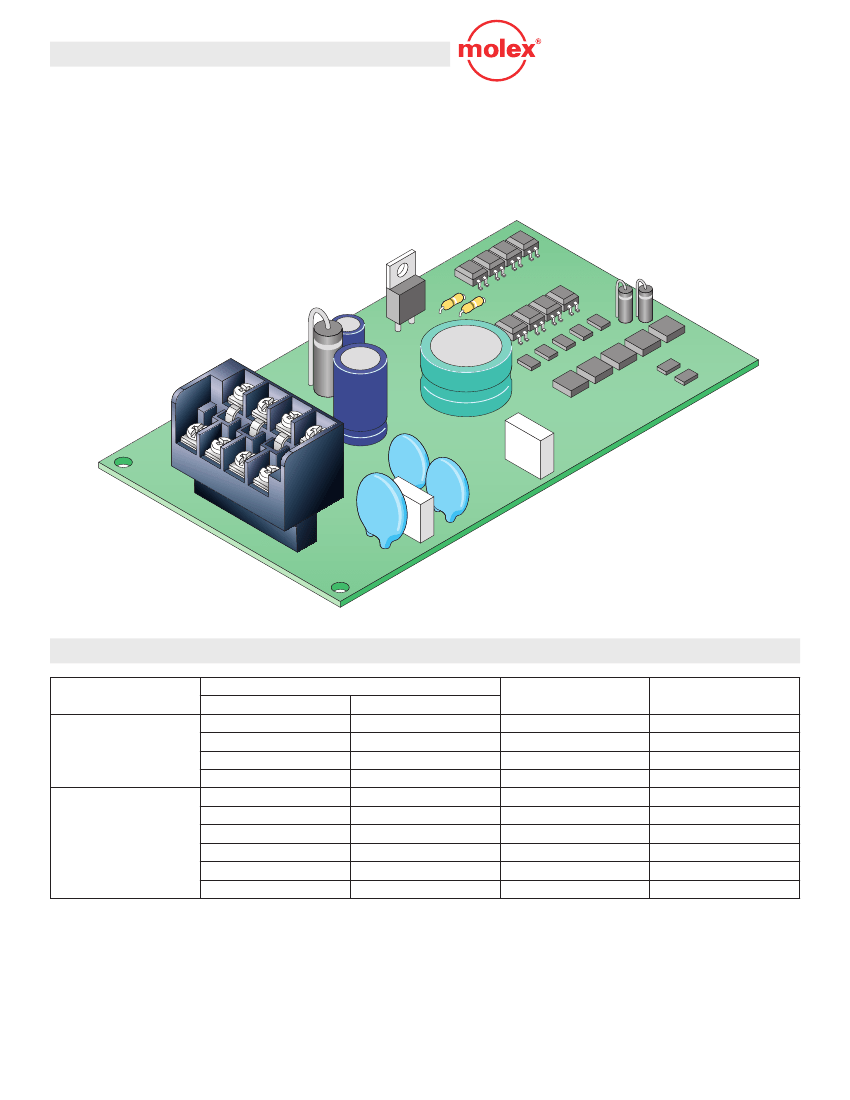

3.81 and 5.08mm
(.150 and .200") Pitch
Beau
®
EuroMate
®
Pluggable Barrier Strip
39930, 39940
ORDERING INFORMATION
Pitch
Order No.
Forward Polarization
39930-02XX
39930-04XX
39931-02XX
39931-04XX
39940-02XX
39940-04XX
39940-06XX
39941-02XX
39941-04XX
39941-06XX
Reverse Polarization
39930-03XX
39930-05XX
39931-03XX
39931-05XX
39940-03XX
39940-05XX
39940-07XX
39941-03XX
39941-05XX
39941-07XX
Plating
Tin
Tin
Gold
Gold
Tin
Tin
Tin
Gold
Gold
Gold
Accessories
3.81 (.150)
Retention Screws
Retention Screws
Retention Screws
Mounting Flange
Retention Screws
Mounting Flange
5.08 (.200)
For 3.81mm (.150”) products, replace XX with no. of circuits, 03 to 21.
For 5.08mm (.200”) products, replace XX with no. of circuits 03 to 24.
Americas Headquarters
Lisle, Illinois 60532 U.S.A.
1-800-78MOLEX
amerinfo@molex.com
Far East North Headquarters
Yamato, Kanagawa, Japan
81-462-65-2324
feninfo@molex.com
Far East South Headquarters
Jurong, Singapore
65-6-268-6868
fesinfo@molex.com
European Headquarters
Munich, Germany
49-89-413092-0
eurinfo@molex.com
Corporate Headquarters
2222 Wellington Ct.
Lisle, IL 60532 U.S.A.
630-969-4550
Fax:630-969-1352
Visit our Web site at http://www.molex.com/products/tblocks.html
Order No. USA-264
Printed in USA/5K/JI/JI/2004.09
©2004, Molex
