MAADSS0018
Digital Attenuator, 5-Bit, Single Control
15.5 dB, 2.0 - 6.0 GHz
Features
•
•
•
•
•
•
•
•
•
Integrated Logic
Positive Single Control
Insertion Loss: 2.0 dB @ 3.4 GHz
IP3: >42 dBm typical @ 2.0 GHz
Attenuation Accuracy: 0.3 dB + 3% @ 3.4 GHz
0.5 dB Attenuation Steps to 15.5 dB
Lead-Free 3 mm 16-Lead PQFN Package
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Re-flow Compatible
Rev. V1
Functional Schematic
3
Description
M/A-COM’s MAADSS0018 is a 5-bit, 0.5-dB step
GaAs MMIC digital attenuator in a lead-free 3mm 16
lead PQFN surface mount plastic package. The
MAADSS0018 is ideally suited for use where high
accuracy, very low power consumption and low
intermodulation products are required. Typical
applications include radio, cellular, wireless LANs,
GPS equipment and other gain / level control
circuits.
The MAADSS0018 is part of a digital attenuator
family. This family includes 4, 5 and 6 bit attenuators
with 0.5, 1 or 2 dB steps and up to 31.5 range.
3. Blocking capacitors are required on all RF ports
Pin Configuration
Pin No.
1
2
Function
V0.5 (0.5dB Bit)
Ground
RF In/Out
Ground
Ground
Ground
Ground
Ground
Pin No.
9
10
11
12
13
14
15
16
Function
RF In/Out
Ground
VDD
Ground
V8 (8dB Bit)
V4 (4dB Bit)
V2 (2dB Bit)
V1 (1dB Bit)
Ordering Information
1,2
Part Number
MAADSS0018TR-1000
MAADSS0018TR-3000
MAADSS0018SMB
Package
1000 piece reel
3000 piece reel
Sample Board
3
4
5
6
7
8
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAADSS0018
Digital Attenuator, 5-Bit, Single Control
15.5 dB, 2.0 - 6.0 GHz
Electrical Specifications
4
: T
A
= 25°C, Z
0
= 50
Ω,
V
DD
= 5 V, V
C
= 5 V
Parameter
Reference Insertion Loss
Attenuation Accuracy
VSWR
Trise, Tfall
Ton, Toff
Transients
Input P1dB
IP
2
Test Conditions
3.4 GHz
3.4 GHz
2.0 - 6.0 GHz
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF,
50% Control to 10% RF
In Band
2.0 GHz
2-Tone, +5 dBm/tone, 1 MHz Spacing
2.0 - 6.0 GHz
2-Tone, +5 dBm/tone, 1 MHz Spacing
2.0 - 6.0 GHz
V
C
= 5 V
V
DD
= 5 V
Units
dB
Min.
0.0
Typ.
2.0
Max.
3.0
Rev. V1
± (0.3 dB + 3% of attenuation setting in dB) dB
Ratio
ns
ns
mV
dBm
dBm
—
—
—
—
—
—
1.45:1
50
50
75
25
80
—
—
—
—
—
—
IP
3
I
C
I
DD
dBm
µA
µA
—
—
—
42
15
225
—
25
300
4. External DC blocking capacitors are required on all RF ports.
Truth Table
5
VC0.5 VC1
0
1
0
0
0
0
1
0
0
1
0
0
0
1
VC2
0
0
0
1
0
0
1
VC4
0
0
0
0
1
0
1
VC8
0
0
0
0
0
1
1
Attenuation (dB)
Reference IL
0.5
1
2
4
8
15.5
Absolute Maximum Ratings
6,7
Parameter
Input Power
2.0 - 6.0 GHz
Control Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+33 dBm
-0.5 V < V
C
< 5.5 V
-40°C to +85°C
-65°C to +150°C
5. 0 = 0 V, 1 = 2.8 to 5V
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. M/A-COM does not recommend sustained operation near
these survivability limits.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAADSS0018
Digital Attenuator, 5-Bit, Single Control
15.5 dB, 2.0 - 6.0 GHz

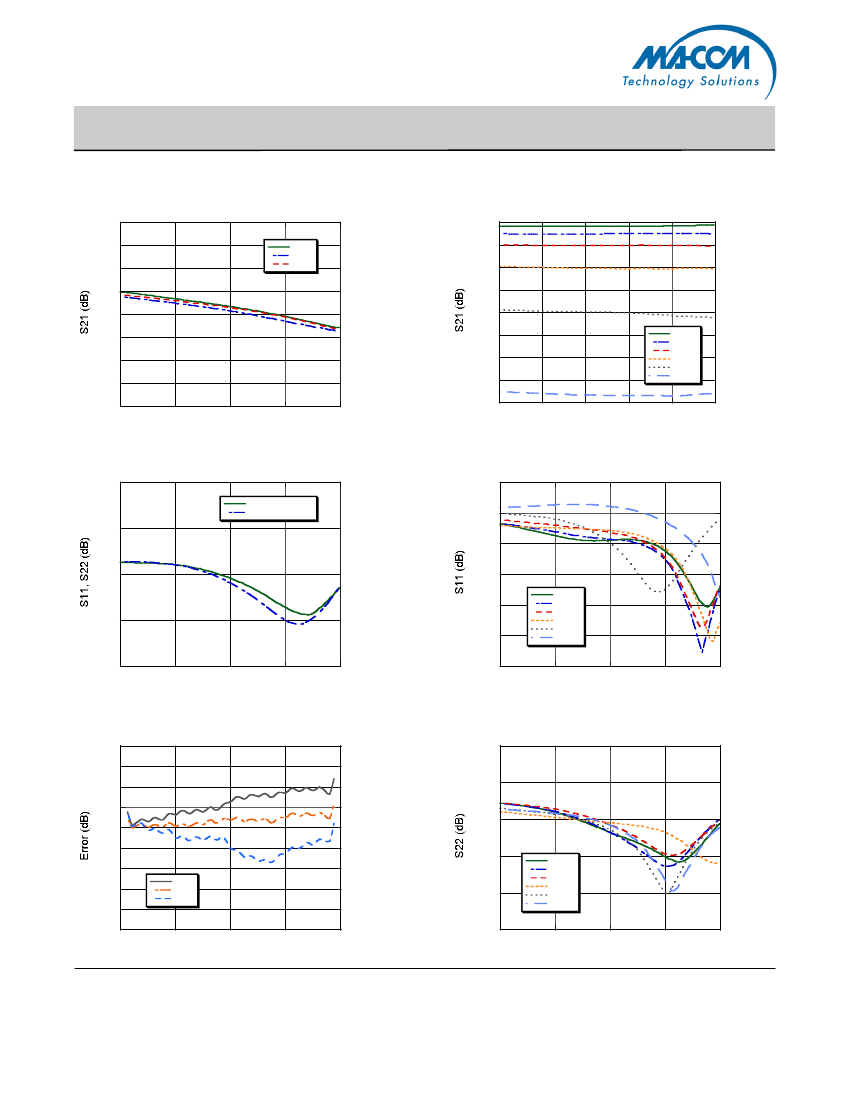

Typical Performance Curves
Insertion Loss
0.0
-0.5
-1.0
-1.5
-2.0
-2.5
-3.0
-3.5
-4.0
2.0
3.0
4.0
5.0
6.0
+25°C
-40°C
+85°C
Rev. V1
Relative Attenuation across all major states
0
-2
-4
-6
-8
-10
-12
-14
-16
2.0
3.0
4.0
5.0
0.5 dB
1 dB
2 dB
4 dB
8 dB
15.5 dB
6.0
7.0
Frequency (GHz)
Frequency (GHz)
Return Loss, Insertion Loss State
0
Input Return Loss
Output Return Loss
Input Return Loss, across all major attenuation states
-10
-15
-20
-10
-20
-25
-30
0.5 dB
1 dB
2 dB
4 dB
8 dB
15.5 dB
-30
-35
-40
2.0
3.0
4.0
5.0
6.0
-40
2.0
3.0
4.0
5.0
6.0
Frequency (GHz)
Frequency (GHz)
Step Error vs. State over Frequency
0.8
0.6
0.4
0.2
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
0.0
4.0
8.0
12.0
16.0
2 GHz
4 GHz
6 GHz
Output Return Loss, across all major attenuation states
0
-10
-20
-30
-40
0.5 dB
1 dB
2 dB
4 dB
8 dB
15.5 dB
-50
2.0
3.0
4.0
5.0
6.0
State (dB)
Frequency (GHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAADSS0018
Digital Attenuator, 5-Bit, Single Control
15.5 dB, 2.0 - 6.0 GHz

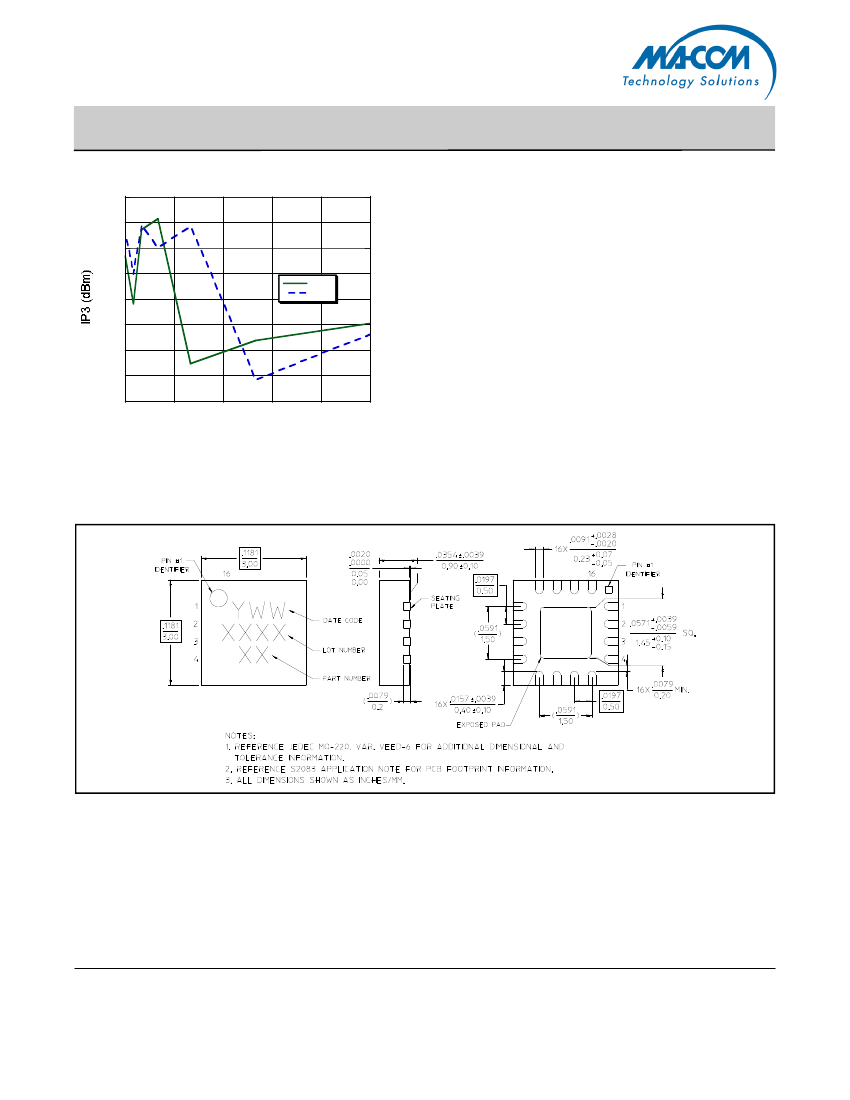

IP3
49
48
47
46
45
44
43
42
41
0
3
6
9
12
15
2 GHz
5 GHz
Rev. V1
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
State
Lead Free
3 mm 16-Lead PQFN
†
† Reference Application Note S2083 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Plating is 100% matte tin over copper.
4
