Part Number

Search

C01005C0G250-820JPP

Description
Ceramic Capacitor, Ceramic,
CategoryPassive components    capacitor
File Size901KB,29 Pages
ManufacturerVENKEL LTD
Environmental Compliance
Download Datasheet Parametric View All

C01005C0G250-820JPP Overview

Ceramic Capacitor, Ceramic,

C01005C0G250-820JPP Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7328402166
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.000082 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.2 mm
JESD-609 codee4
length0.4 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, PAPER, 7 INCH
positive tolerance5%
Rated (DC) voltage (URdc)25 V
size code01005
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfacePalladium/Silver (Pd/Ag)
Terminal shapeWRAPAROUND
width0.2 mm
C

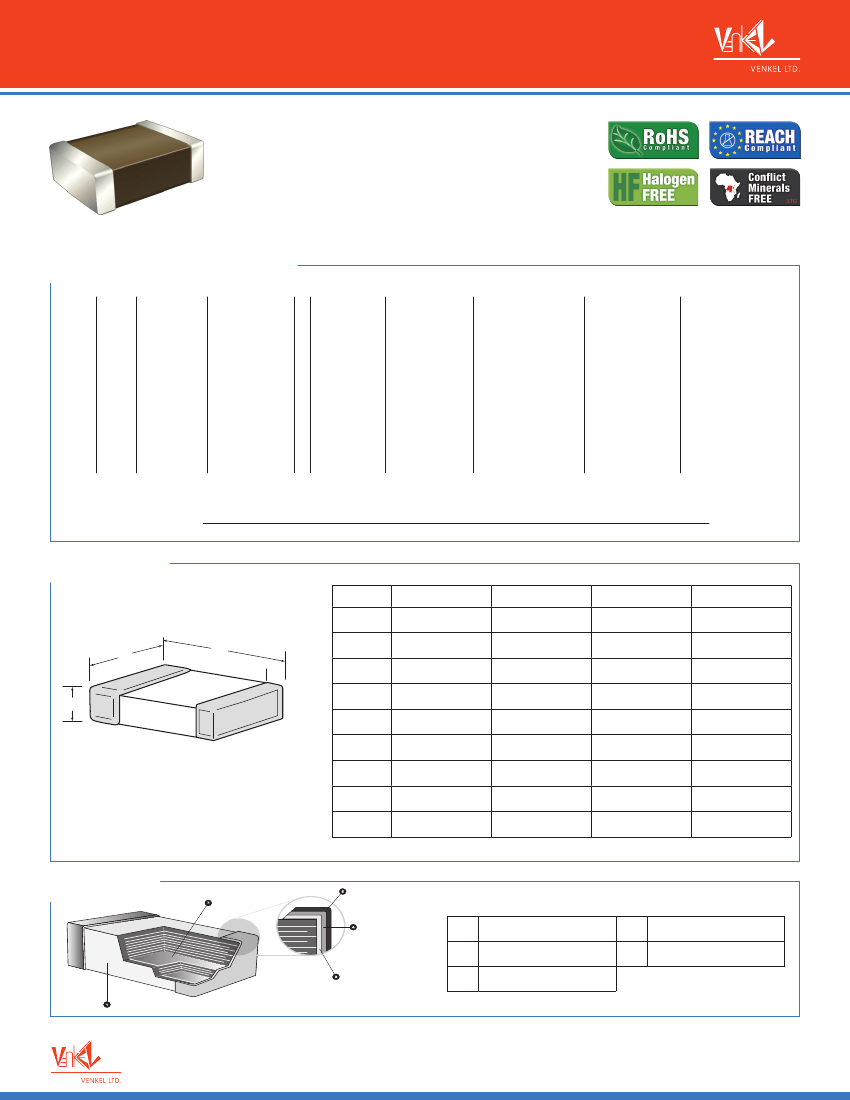

GENERAL PURPOSE CERAMIC CAPACITORS
FEATURES:
• Capacitance range: 0.1pF to 220uF
• Voltage range: 4V to 100V
• Terminations: 100% matte Tin (Sn), Palladium (Pd-Ag),
Gold (Au) and Lead (Pb)
• Very low ESR in X7R/X7S/X6S/X5R (<10mΩ typical)
• Ceramic monolithic structure provides excellent reliability
SERIES
PART NUMBER STRUCTURE
C
Series
0805 C0G
Size
01005
0201
0402
0504
0603
0805
1206
1210
1812
2220
22212
Temperature
Characteristic
(Dielectric)
C0G
X7R
X7S
X6S
X5R
Y5V
Z5U
500
Rated Voltage
1st two digits
are significant
followed by
number of zeroes.
4R0 = 4.0 VDCW
6R3 = 6.3 VDCW
100 = 10 VDCW
160 = 16 VDCW
250 = 25 VDCW
500 = 50 VDCW
630 = 63 VDCW
101 = 100 VDCW
-
101
Capacitance
(picofarads)
1st two digits
are significant,
followed by
number of
zeroes. e.g:
101 = 100pF
R denotes
decimal
6R8 = 6.8pF
J
Tolerance
* B = ± 0.1pF
* C = ± 0.25pF
* D = ± 0.5pF
F = ± 1%
G = ± 2%
J = ± 5%
K = ± 10%
M = ± 20%
N = ± 30%
Z = +80 - 20%
* For values below
10pF only.
N
Termination
N = 100% matte
Tin (Sn) over Nickel
* P = Palladium Silver
* G = Gold over Nickel
Pb = 90% Tin (Sn) /10%
Lead (Pb)
* Pd/Ag & Gold
terminations have
limited values &
sizes available.
P
Packaging
D = Paper Tape
(10” Reel)
E = Embossed Tape
(7” Reel)
P = Paper Tape
(7” Reel)
R = Paper Tape
(13” Reel)
U = Embossed Tape
(13” Reel)
☐☐
Optional Thickness
Identifier
Leave blank for stan-
dard thickness.
Designate
“-” for Min.
“*” for Max.
followed by Thickness
Code
e.g:
- E (min. thickness
of .026”)
* E (max. thickness
of .026”)
Example P/N:
C0805C0G500-101JNP
CODE:
DIMENSION:
C
D
E
F
G
Optional Thickness Identifier Codes:
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
6
.110 .023
.015 .020 .026 .030 .035 .040 .045 .050 .055 .060 .065 .070 .075 .080 .085 .090 .095 .100 .105
DIMENSIONS
SIZE
01005
L
0.016 ± 0.0008
(0.4 ± 0.02)
0.024 ± 0.002
(0.6 ± 0.05)
0.040 ± 0.002
(1.0 ± 0.05)
0.063 ± 0.006
(1.6 ± 0.15)
0.08 ± 0.008
(2.0 ± 0.20)
0.126 ± 0.008
(3.2 ± 0.20)
0.126 ± 0.157
(3.2 ± 0.40)
0.177 ± 0.012
(4.495 ± 0.30)
0.225 ± 0.016
(5.715 ± 0.41)
W
0.008 ± 0.0008
(0.2 ± 0.02)
0.012 ± 0.002
(0.3 ± 0.05)
0.020 ± 0.002
(0.5 ± 0.05)
0.031 ± 0.0046
(0.8 ± 0.15)
0.050 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.6 ± 0.20)
0.098 ± 0.0118
(2.50 ± 0.30)
0.126 ± 0.012
(3.20 ± 0.30)
0.200 ± 0.006
(5.08 ± 0.41)
T
See Specific Value
See Specific Value
See Specific Value
See Specific Value
See Specific Value
See Specific Value
See Specific Value
See Specific Value
See Specific Value
Unit: inches (mm)
MIN. E/B
0.002
(0.05)
0.002
(0.05)
0.004
(0.10)
0.008
(0.20)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
w
L
E/B
0201
0402
*
0603
0805
1206
1210
1812
2220
T
*
0402 size in the X6S/X7S dielectric will have a dimensional tolerance of ±0.20mm
STRUCTURE
1
2
3
Ceramic Body (dielectric)
Inner Electrode
Inner Termination
4
5
Nickel Plating
Tin Plating
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev: 01/2022-A
1
