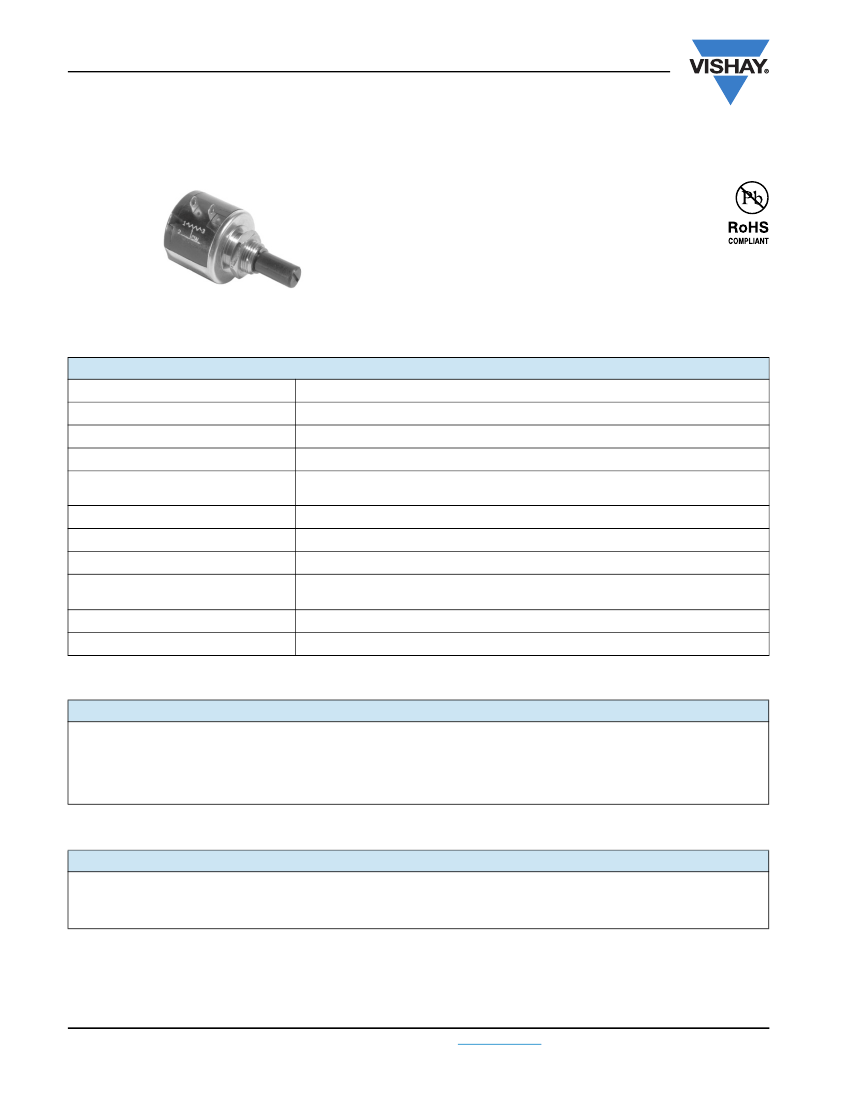

Model 536
Vishay Spectrol
(22.2 mm) Ten Turn Wirewound
Precision Potentiometer with a Plastic Shaft
FEATURES
•
10 standard resistance values
•
Plastic shaft
•
Rugged integrated construction
•
0.25 % linearity
•
Compliant to RoHS directive 2002/95/EC
7
/
8
"
ELECTRICAL SPECIFICATIONS
PARAMETER
Total Resistance
Linearity (Independent)
Noise
Electrical Angle
Power Rating
Insulation Resistance
Dielectric Strength
Absolute Minimum Resistance
Temperature Coefficient
End Voltage
Range 100
Ω
to 100 kΩ, tolerance ± 5 %
± 0.25 %
100
Ω
ENR maximum
3600°
+ 10°
- 0°
2.0 W at 70 °C derated to zero at 125 °C
1000 MΩ minimum, 500 V
DC
1000 V
RMS
, 60 Hz
Not to exceed 0.10 % of total resistance or 1
Ω
whichever is greater
20 ppm/°C (wire only)
0.25 % of total applied voltage maximum
ORDERING INFORMATION/DESCRIPTION
536
MODEL
B
MOUNTING
B:
Bushing
10K
OHMIC VALUE
BO10
PACKAGING
Box of 10 pieces
e4
LEAD FINISH
SAP PART NUMBERING GUIDELINES
536
MODEL
B
STYLE
103
OHMIC VALUE
B10
PACKAGING
www.vishay.com
126
For technical questions, contact:
sfer@vishay.com
Document Number: 57066
Revision: 17-May-10
Model 536
(22.2 mm) Ten Turn Wirewound
Precision Potentiometer with a Plastic Shaft
DIMENSIONS
in inches (millimeters)
BUSHING MOUNT
0.750
(19.05)
0.312
(7.92)
0.062
(1.57)
1
± 0.015
± 0.031
7
/
8
"
Vishay Spectrol
0.812
(20.62)
0.030 MAX. (0.76)
3
/
8
± 0.015
- 32 UNEF - 2A
30°
0.200 MIN.
(5.08)
2
3
0.625 R
MAX.
(15.88)
± 0.015
Ø 0.875
(22.22)
+ 0.0000
Ø 0.4062
- 0.0020
(10.32)
Ø 0.250 (6.35)
+ 0.000
- 0.002
SCREWDRIVER SLOT
0.032 WIDE x 0.032 ± 0.010
DEEP (0.81 x 0.81)
METRIC SHAFT/BUSHING THREAD
9 mm: 0.75 P
Ø 6.00
+ 0.00
- 0.05
2
CW
1
3
TOLERANCES: UNLESS OTHERWISE NOTED.
DECIMALS ± 0.005 ANGLES ± 2°
SCHEMATIC
MECHANICAL SPECIFICATIONS
PARAMETER
Rotation
Torque (Maximums)
Mechanical Runouts
Shaft (TIR)
Pilot Dia. (TIR)
Lateral Runout (TIR)
Shaft End Play
Shaft Radial Play
Weight (Maximum)
Stop Strength
STARTING
0.5 oz. - in (36.00 g - cm)
0.005" (0.13 cm)
0.003" (0.08 cm)
0.005" (0.13 cm)
0.010" (0.25 cm)
0.005" (0.13 cm)
0.75 oz. (21.26 g)
75 oz. - in (static) (5.4 kg - cm)
3600°
+ 10°
- 0°
RUNNING
0.4 oz. - in (28.80 g - cm)
Document Number: 57066
Revision: 17-May-10
For technical questions, contact:
sfer@vishay.com
www.vishay.com
127
Model 536
Vishay Spectrol
(22.2 mm) Ten Turn Wirewound
Precision Potentiometer with a Plastic Shaft
ENVIRONMENTAL SPECIFICATIONS
Vibration
Shock
Rotational Life
Load Life
Operating Temperature Range
15 g thru 2000 Hz
50 g
1 million shaft revolutions
900 h
- 55 °C to + 125 °C
7
/ "
8
MATERIAL SPECIFICATIONS
Front Lid
Housing
Rear Lid
Shaft
Terminals
Mounting Hardware
Lockwasher Internal Tooth:
Panel Nut:
Stainless steel and nickel
plated brass bushing
Thermoplastic nylon glass filled
Thermo-glass filled
Thermo-glass filled
Brass plated for solderability
Steel nickel plated
Brass, nickel plated
POWER RATING CHART
RESISTANCE ELEMENT DATA
4
RESISTANCE
VALUES
(Ω)
100
200
500
RESOLUTION
(%)
OHMS
PER
TURN
0.0603
0.0746
0.1520
0.2459
0.4113
0.8206
1.7230
3.0160
4.6690
7.4560
MAXIMUM MAXIMUM
CURRENT VOLTAGE
ACROSS
AT 70 °C
COIL
AMBIENT
(V)
(mA)
141.0
100.0
63.2
44.7
31.6
20.0
14.1
10.0
6.32
4.47
14.1
20.0
31.6
44.7
63.2
100.0
141.0
200.0
316.0
447.0
RATED POWER IN W
3
0.060
0.037
0.031
0.025
0.021
0.016
0.017
0.015
0.009
0.007
2
1K
2K
5K
10K
20K
50K
100K
1
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE IN °C
MARKING
Unit
Identification
Units shall be marked with Vishay Spectrol
name and model no, resistance, resistance
tolerance, linearity, terminal identification and
date code
www.vishay.com
128
For technical questions, contact:
sfer@vishay.com
Document Number: 57066
Revision: 17-May-10
Legal Disclaimer Notice
