UPM-12/420-D28 datasheet, PDF - EEWORLD Datasheet

UPM-12/420-D28: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 2 X 2 INCH, 0.750 INCH HEIGHT, PLASTIC, PACKAGE-14; CategoryPower/power management The power supply circuit; File Size178KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric View All

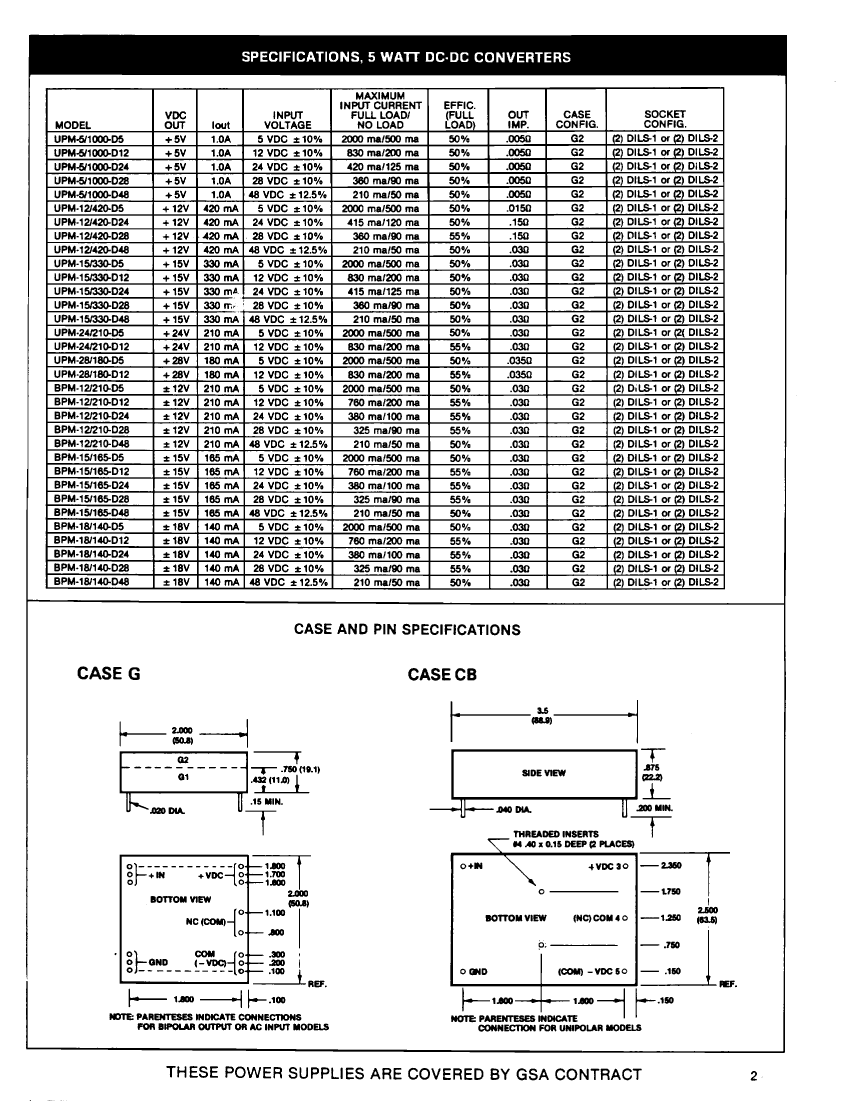

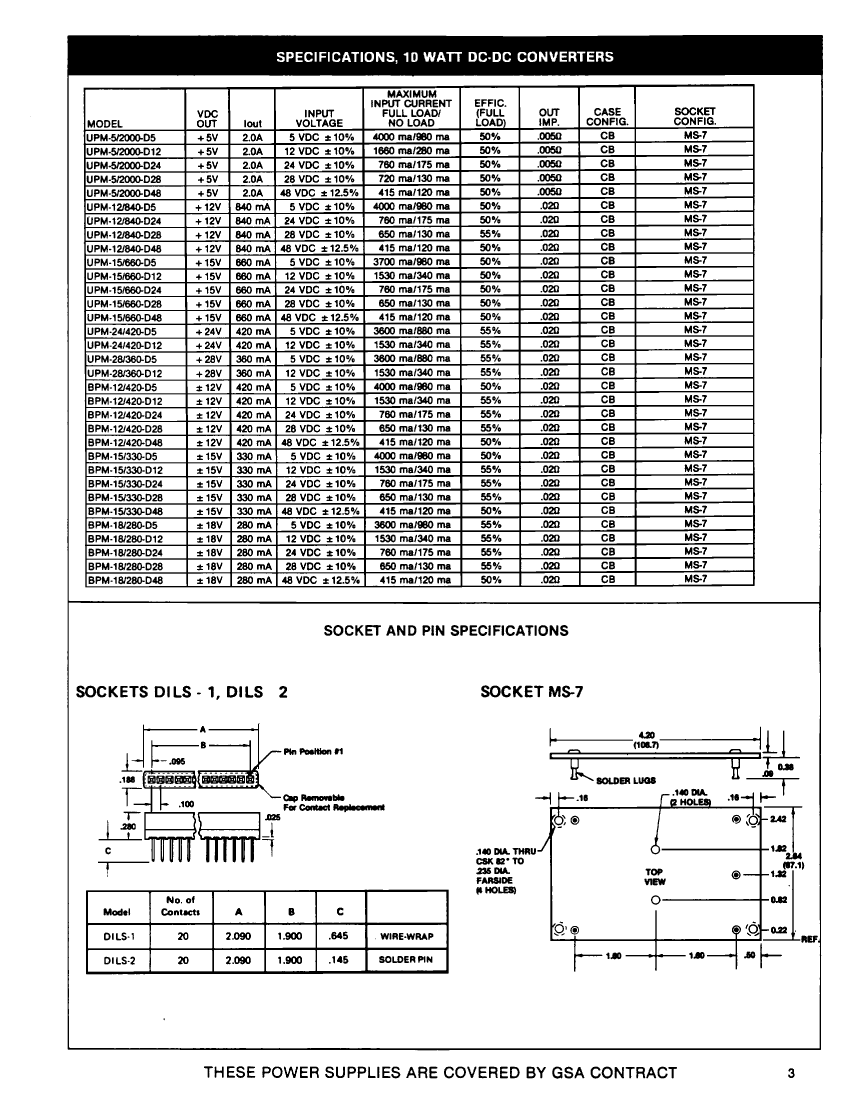

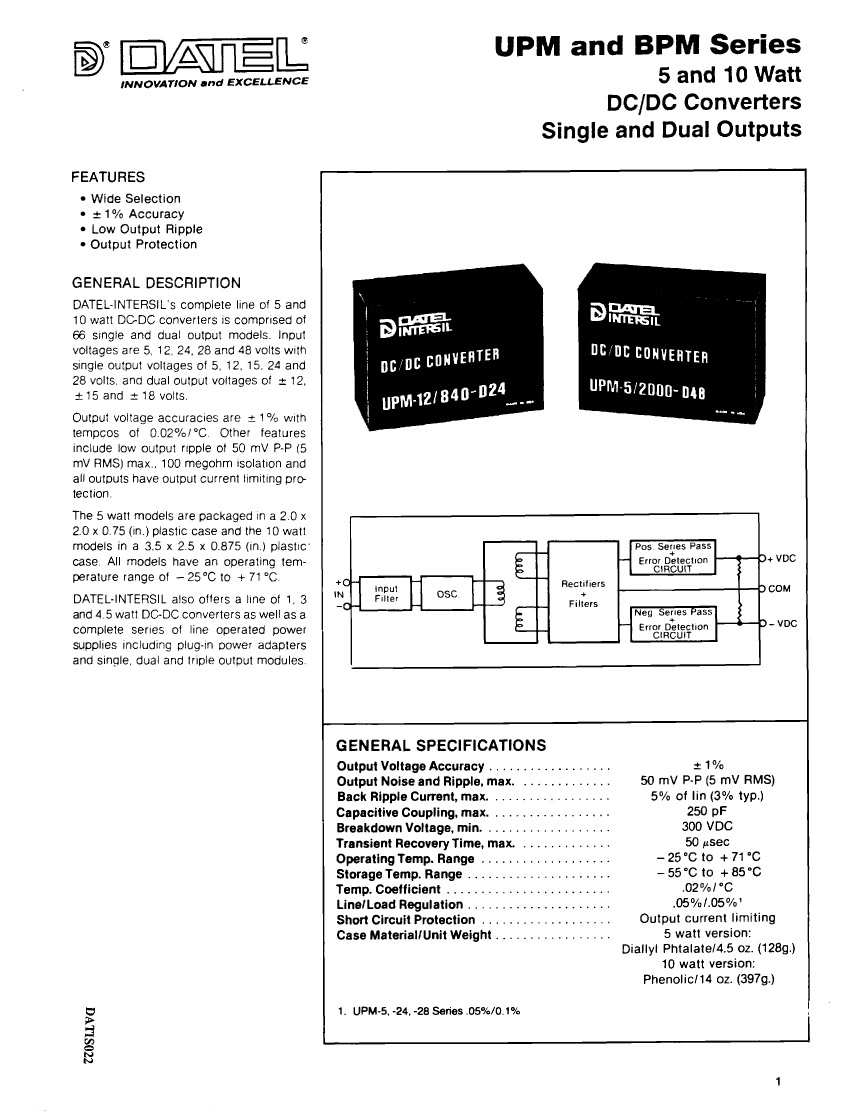

UPM-12/420-D28 Overview

DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 2 X 2 INCH, 0.750 INCH HEIGHT, PLASTIC, PACKAGE-14

Parameter Name	Attribute value
Objectid	1409910420
Parts packaging code	MODULE
package instruction	,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	55%
Maximum input voltage	30.8 V
Minimum input voltage	25.2 V
Nominal input voltage	28 V
JESD-30 code	S-PDMA-P14
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	NO
