TS12001
Version 1.3
nanoSmart® Battery Management Under-Voltage Load Switch
DESCRIPTION
The TS12001 Off-Active™ battery management
load switch is used to protect a battery from
excessive discharge. It consists of an internally
generated
threshold
voltage
(V
THRESH
),
comparator with hysteresis, slew rate control for
the load switch, a P-Channel load switch, and an
open-drain indicator pin. When the input battery
voltage is above V
THRESH
, the load switch is on-
active. When the input battery voltage falls to
V
THRESH
, the load switch is Off-Active™ and the
quiescent current draw is approximately 100pA.
FEATURES
Off-Active™ feature with ultra-low pico-amp
current
Best-in-class Off-active™ quiescent current of
100pA
Ultra-low on-active quiescent current of 70nA
Accurate on to Off-active™ voltage threshold
Threshold voltage options of 1.2V - 4.2V in
100mV steps (programmed at manufacturing)
Supervisory over-current limit shutdown
Low Rds(on): 175mΩ typical @ 5V
Low drop out disconnect from VBAT to loads
Turn-on slew rate controlled
500mV off to on-active hysteresis
APPLICATIONS
Portable Battery
Industrial
Medical
SmartCard
RFID
Energy Harvesting Systems
SUMMARY SPECIFICATIONS
Wide input voltage range: 1.2V – 5.5V
Packaged in a 8pin DFN (2x2)
Block Diagram
VCC
VOUT
R e g u la te d
T h re s h o ld
nPG
GND
Specifications subject to change
WWW.TRIUNESYSTEMS.COM
Copyright
©
2012, Triune Systems, LLC
-1-
TS12001
Version 1.3
TYPICAL APPLICATIONS
Disconnect the Battery
Charger
TS12001
VOUT
VCC
nPG
C
BYP
GND
Load
Note: When the TS12001 is Off-Active™, the battery will continue to charge through the body diode between VOUT and
VCC.
Disconnect the Load
Charger
TS12001
VOUT
VCC
nPG
GND
Load
C
BYP
Specifications subject to change
WWW.TRIUNESYSTEMS.COM
Copyright
©
2012, Triune Systems, LLC
-2-
TS12001
Version 1.3
PIN-OUT CONFIGURATION
PIN #
1
2
3
4
5
6
7
8
NAME
GND
V
OUT
NC
NC
NC
V
CC
V
CC
nPG
I/O/P
P
O
DESCRIPTION
GND
Output to System Load
No Connect (connect to GND or float)
No Connect (connect to GND or float)
No Connect (connect to GND or float)
Supply Input
Supply Input
Open-Drain N-Channel Output (low indicates Power
Good)
I/P
I/P
O
ABSOLUTE MAXIMUM RATINGS
Over operating free–air temperature range unless otherwise noted
(1,2,3)
PIN / PARAMETER
V
CC
, V
OUT
, nPG
Electrostatic Discharge – Human Body Model
Operating Junction Temperature Range, T
J
Storage Temperature Range, T
STG
Lead Temperature (soldering, 10 seconds)
VALUE
-0.3 to 6.0
2
-20 to 85
-65 to 150
260
UNIT
V
kV
C
C
C
Note 1: Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute–maximum–rated conditions for extended periods may affect device reliability.
Note 2: All voltage values are with respect to network ground terminal.
Note 3: ESD testing is performed according to the respective JESD22 JEDEC standard.
THERMAL CHARACTERISTICS
Package
DFN
8 pin
JA
(C/W)
(See Note 4)
73.1
JC
(C/W)
(See Note 5)
10.7
Note 4: This assumes a FR4 board only.
Note 5: This assumes a 1 Oz. Copper JEDEC standard board with thermal vias – See Exposed Pad section and application note for more information.
Specifications subject to change
WWW.TRIUNESYSTEMS.COM
Copyright
©
2012, Triune Systems, LLC
-3-
TS12001
Version 1.3
RECOMMENDED OPERATING CONDITIONS
Parameter
Unregulated Supply Input Voltage (V
CC
)
Operating Ambient Temperature, T
A
(Note 6)
Operating Junction Temperature, T
J
Input Bypass Capacitor (C
BYP
)
Min
1.2
-20
-20
100
Typ
Max
5.5
55
85
Unit
V
°C
°C
nF
Note 6: T
A
Max shown here is a guideline. Higher T
A
can be tolerated if T
J
does not exceed the Absolute Maximum Rating.
CHARACTERISTICS
Electrical characteristics, V
CC
= 1.2V to 5.5V, T
J
= 25C, unless otherwise noted
Symbol
Parameter
Condition
Input Supply
V
CC
Input Supply Voltage
Quiescent current:
I
q-ON
V
CC
= 5V, No Load
on-active Mode
I
q-OFF
Load Switch
I
OC
T
OC
I
LEAK-SW
Quiescent current:
Off-Active™ Mode
Over Current Shutdown
Over Current Retry Period
Output Switch Leakage
Current
Switch On Resistance
V
CC
< V
THRESH
, No Load
V
CC
= 5.0V
V
CC
= 5.0V
V
CC
< V
THRESH
;
V
OUT
Grounded
V
CC
= 5.0V
V
CC
= 3.3V
V
CC
= 1.8V
Transition times
t
d1
t
d2
T
ON
nPG Output
I
LEAK-nPG
Transition delay:
on-active to Off-Active™
Transition delay:
Off-Active™ to on-active
Output turn-on rise time
Output Leakage
V
OFF
= 2.0V, V
CC
= 3.0V
1.5V
V
OFF
= 2.0V, V
CC
= 1.5V
3.0V
V
CC
= 2.5V, R
LOAD
= 50
V
CC
= 5.0V, V
nPG
= 5.5V
I
nPG
= 5 mA
0.95*
V
THRESH
650
1.7
200
100
0.4
1.05*
V
THRESH
s
ms
s
nA
V
Min
1.2
70
100
3
1.7
100
175
200
350
Typ
Max
5.5
150
Unit
V
nA
pA
A
ms
pA
m
m
m
Rds-on
Low-Level Output Voltage
V
OL-nPG
Off-Active Thresholds
V
OFF
V
Hys
Off-Active™ Threshold
Off-Active™ to on-active
Hysteresis
V
THRESH
= 1.2V to 3.3V
Rising Transition:
Off-Active™ to on-active
V
THRESH
500
V
mV
Specifications subject to change
WWW.TRIUNESYSTEMS.COM
Copyright
©
2012, Triune Systems, LLC
-4-
TS12001
Version 1.3

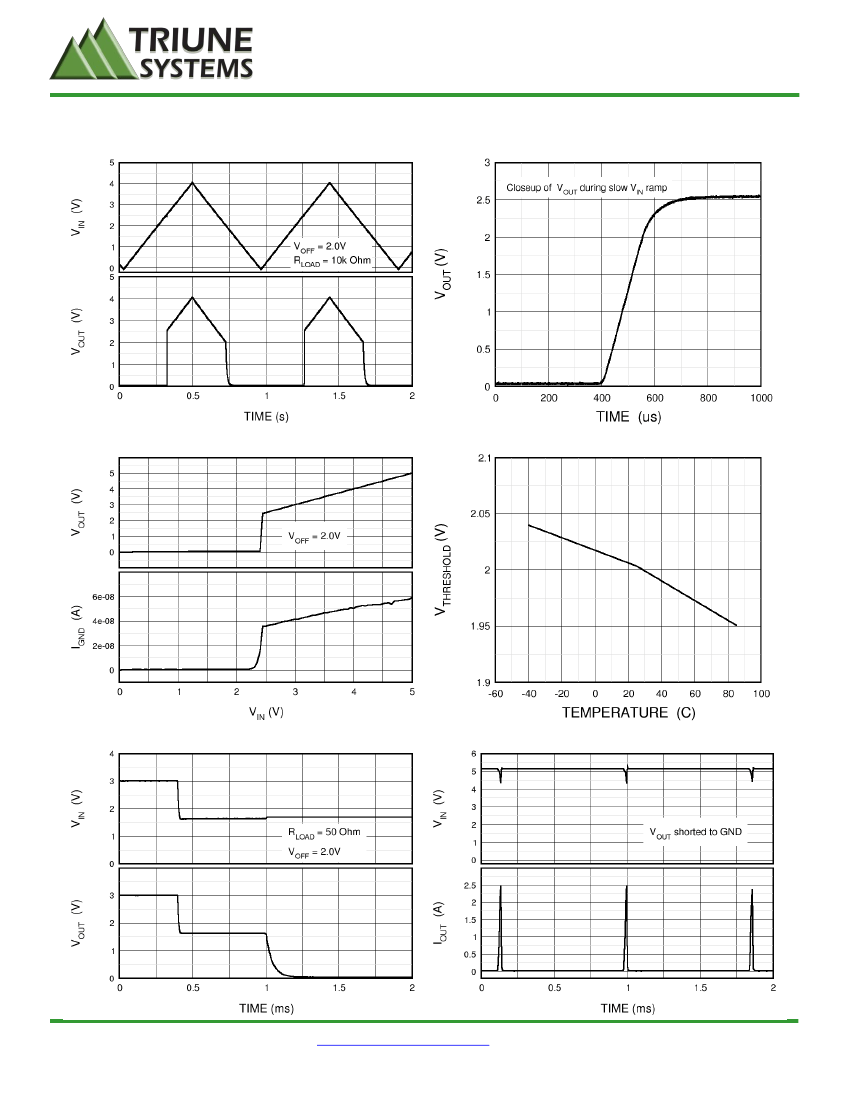

TYPICAL CHARACTERISTICS
On-Active / Off-Active™ Characteristics
On-Active Switching Behavior
On-Active / Off-Active™ I
q
Off-Active™ V
THRESH
Temperature Performance
On-Active / Off-Active™
Transition Delay
Over Current Retry Performance
Specifications subject to change
WWW.TRIUNESYSTEMS.COM
Copyright
©
2012, Triune Systems, LLC
-5-
