IDT71V3556S/XS
128K x 36, 256K x 18
3.3V Synchronous ZBT SRAMs
IDT71V3558S/XS
3.3V I/O, Burst Counter
IDT71V3556SA/XSA
Pipelined Outputs
IDT71V3558SA/XSA
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
Features
128K x 36, 256K x 18 memory configurations
Supports high performance system speed - 200 MHz (x18)
(3.2 ns Clock-to-Data Access)
Supports high performance system speed - 166 MHz (x36)
(3.5 ns Clock-to-Data Access)
ZBT
TM
Feature - No dead cycles between write and read
cycles
Internally synchronized output buffer enable eliminates the
need to control
OE
Single R/W (READ/WRITE) control pin
Positive clock-edge triggered address, data, and control
signal registers for fully pipelined applications
4-word burst capability (interleaved or linear)
Individual byte write (BW
1
-
BW
4
) control (May tie active)
Three chip enables for simple depth expansion
3.3V power supply (±5%), 3.3V I/O Supply (V
DDQ)
Optional- Boundary Scan JTAG Interface (IEEE 1149.1
compliant)
Packaged in a JEDEC standard 100-pin plastic thin quad
flatpack (TQFP), 119 ball grid array (BGA) and 165 fine pitch
ball grid array (fBGA)
Description
The IDT71V3556/58 are 3.3V high-speed 4,718,592-bit (4.5 Mega-
bit) synchronous SRAMS. They are designed to eliminate dead bus
cycles when turning the bus around between reads and writes, or
writes and reads. Thus, they have been given the name ZBT
TM
, or
Zero Bus Turnaround.
Address and control signals are applied to the SRAM during one
clock cycle, and two cycles later the associated data cycle occurs, be
it read or write.
The IDT71V3556/58 contain data I/O, address and control signal
registers. Output enable is the only asynchronous signal and can be
used to disable the outputs at any given time.
A Clock Enable (CEN) pin allows operation of the IDT71V3556/58
to be suspended as long as necessary. All synchronous inputs are
ignored when (CEN) is high and the internal device registers will hold
their previous values.
There are three chip enable pins (CE
1
, CE
2
,
CE
2
) that allow the
user to deselect the device when desired. If any one of these three are
not asserted when ADV/LD is low, no new memory operation can be
initiated. However, any pending data transfers (reads or writes) will be
completed. The data bus will tri-state two cycles after chip is deselected
or a write is initiated.
Pin Description Summary
A
0
-A
17
CE
1
, CE
2
,
CE
2
OE
R/W
CEN
BW
1
,
BW
2
,
BW
3
,
BW
4
CLK
ADV/LD
LBO
TMS
TDI
TCK
TDO
TRST
ZZ
I/O
0
-I/O
31
, I/O
P1
-I/O
P4
V
DD
, V
DDQ
V
SS
Address Inputs
Chip Enables
Output Enable
Read/Write Signal
Clock Enable
Individual Byte Write Selects
Clock
Advance burst address / Load new address
Linear / Interleaved Burst Order
Test Mode Select
Test Data Input
Test Clock
Test Data Output
JTAG Reset (Optional)
Sleep Mode
Data Input / Output
Core Power, I/O Power
Ground
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Output
Input
Input
I/O
Supply
Supply
Synchronous
Synchronous
Asynchronous
Synchronous
Synchronous
Synchronous
N/A
Synchronous
Static
Synchronous
Synchronous
N/A
Synchronous
Asynchronous
Synchronous
Synchronous
Static
Static
5281 tbl 01
JANUARY 2015
1
©
2015 Integrated Device Technology, Inc. All rights reserved. Product specifications subject to change without notice.
DSC-5281/12
IDT71V3556, IDT71V3558, 128K x 36, 256K x 18, 3.3V Synchronous SRAMS with
ZBT™ Feature, 3.3V I/O, Burst Counter, and Pipelined Outputs
™
Commercial and Industrial Temperature Ranges
Description continued
The IDT71V3556/58 has an on-chip burst counter. In the burst
mode, the IDT71V3556/58 can provide four cycles of data for a single
address presented to the SRAM. The order of the burst sequence is
defined by the
LBO
input pin. The
LBO
pin selects between linear and
interleaved burst sequence. The ADV/LD signal is used to load a new
external address (ADV/LD = LOW) or increment the internal burst
counter (ADV/LD = HIGH).
The IDT71V3556/58 SRAMs utilize IDT's latest high-performance
CMOS process and are packaged in a JEDEC standard 14mm x
20mm 100-pin thin plastic quad flatpack (TQFP) as well as a 119 ball
grid array (BGA) and a 165 fine pitch ball grid array (fBGA).
Pin Definition
(1)
Symbol
A
0
-A
17
Pin Function
Address Inputs
I/O
I
Active
N/A
Description
Synchronous Address inputs. The address register is triggered by a combination of the rising edge of CLK,
ADV/LD low,
CEN
low, and true chip enables.
ADV/LD is a synchronous input that is used to load the internal registers with new address and control when it
is sampled low at the rising edge of clock with the chip selected. When ADV/
LD
is low with the chip
deselected, any burst in progress is terminated. When ADV/LD is sampled high then the internal burst counter
is advanced for any burst that was in progress. The external addresses are ignored when ADV/
LD
is sampled
high.
R/W signal is a synchronous input that identifies whether the current load cycle initiated is a Read or Write
access to the memory array. The data bus activity for the current cycle takes place two clock cycles later.
Synchronous Clock Enable Input. When
CEN
is sampled high, all other synchronous inputs, including clock are
ignored and outputs remain unchanged. The effect of
CEN
sampled high on the device outputs is as if the low
to high clock transition did not occur. For normal operation,
CEN
must be sampled low at rising edge of clock.
Synchronous byte write enables. Each 9-bit byte has its own active low byte write enable. On load write cycles
(When R/W and ADV/LD are sampled low) the appropriate byte write signal (BW
1
-BW
4
) must be valid. The byte
write signal must also be valid on each cycle of a burst write. Byte Write signals are ignored when R/W is
sampled high. The appropriate byte(s) of data are written into the device two cycles later.
BW
1
-BW
4
can all be
tied low if always doing write to the entire 36-bit word.
Synchronous active low chip enable.
CE
1
and
CE
2
are used with CE
2
to enable the IDT71V3556/58. (CE
1
or
CE
2
sampled high or CE
2
sampled low) and ADV/LD low at the rising edge of clock, initiates a deselect cycle.
The ZBT
TM
has a two cycle deselect, i.e., the data bus will tri-state two clo ck cycles after deselect is initiated.
Synchronous active high chip enable. CE
2
is used with
CE
1
and
CE
2
to enable the chip. CE
2
has inverted
polarity but otherwise identical to
CE
1
and
CE
2
.
This is the clock input to the IDT71V3556/58. Except for
OE,
all timing references for the device are made with
respect to the rising edge of CLK.
Synchronous data input/output (I/O) pins. Both the data input path and data output path are registered and
triggered by the rising edge of CLK.
Burst order selection input. When
LBO
is high the Interleaved burst sequence is selected. When
LBO
is low
the Linear burst sequence is selected.
LBO
is a static input and it must not change during device operation.
Asynchronous output enable.
OE
must be low to read data from the 71V3556/58. When
OE
is high the I/O pins
are in a high-impedance state.
OE
does not need to be actively controlled for read and write cycles. In normal
operation,
OE
can be tied low.
Gives input command for TAP controller. Sampled on rising edge of TDK. This pin has an internal pullup.
Serial input of registers placed between TDI and TDO. Sampled on rising edge of TCK. This pin has an internal
pullup.
Clock input of TAP controller. Each TAP event is clocked. Test inputs are captured on rising edge of TCK,
while test outputs are d riven from the falling edge of TCK. This pin has an internal pullup.
Serial output of registers placed between TDI and TDO. This output is active depending on the state of the TAP
controller.
Optional Asynchronous JTAG reset. Can be used to reset the TAP controller, but not required. JTAG reset
occurs automatically at power up and also resets using TMS and TCK per IEEE 1149.1. If not used
TRST
can
be left floating. This pin has an internal pullup. Only available in BGA package.
Synchronous sleep mode inp ut. ZZ HIGH will gate the CLK internally and power down the IDT71V3556/3558 to
its lowest power consumption level. Data retention is guaranteed in Sleep Mode. This pin has an internal
pulldown.
3.3V core power supply.
3.3V I/O Supply.
Ground.
5281 tbl 02
ADV/LD
Advance / Load
I
N/A
R/W
Read / Write
I
N/A
CEN
Clock Enable
I
LOW
BW
1
-BW
4
Individual Byte
Write Enables
I
LOW
CE
1
,
CE
2
Chip Enables
I
LOW
CE
2
CLK
I/O
0
-I/O
31
I/O
P1
-I/O
P4
LBO
Chip Enable
Clock
Data Input/Output
Linear Burst Order
I
I
I/O
I
HIGH
N/A
N/A
LOW
OE
TMS
TDI
TCK
TDO
Output Enable
Test Mode Select
Test Data Input
Test Clock
Test Data Output
JTAG Reset
(Optional)
I
I
I
I
O
LOW
N/A
N/A
N/A
N/A
TRST
I
LOW
ZZ
V
DD
V
DDQ
V
SS
Sleep Mode
Power Supply
Power Supply
Ground
I
N/A
N/A
N/A
HIGH
N/A
N/A
N/A
NOTE:
1. All synchronous inputs must meet specified setup and hold times with respect to CLK.
6.42
2
IDT71V3556, IDT71V3558, 128K x 36, 256K x 18, 3.3V Synchronous SRAMS with
ZBT™ Feature, 3.3V I/O, Burst Counter, and Pipelined Outputs
™
Commercial and Industrial Temperature Ranges

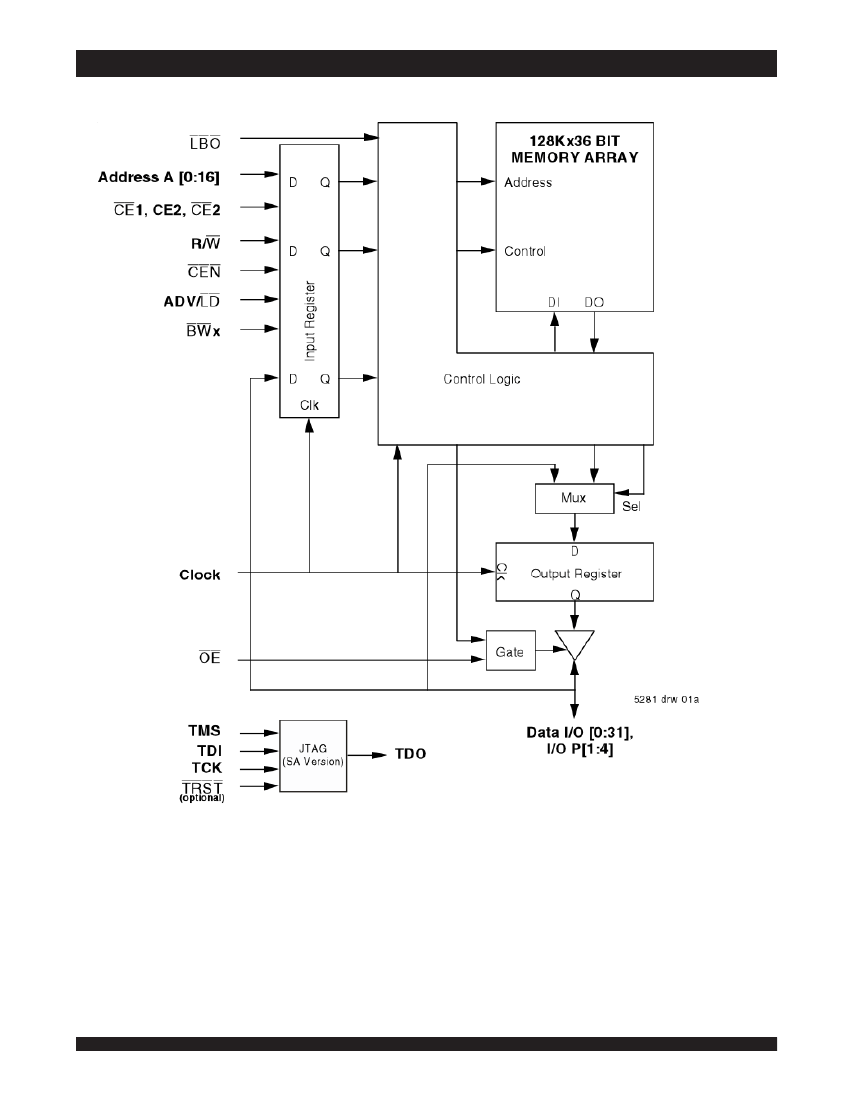

Functional Block Diagram
6.42
3
IDT71V3556, IDT71V3558, 128K x 36, 256K x 18, 3.3V Synchronous SRAMS with
ZBT™ Feature, 3.3V I/O, Burst Counter, and Pipelined Outputs
™
Commercial and Industrial Temperature Ranges

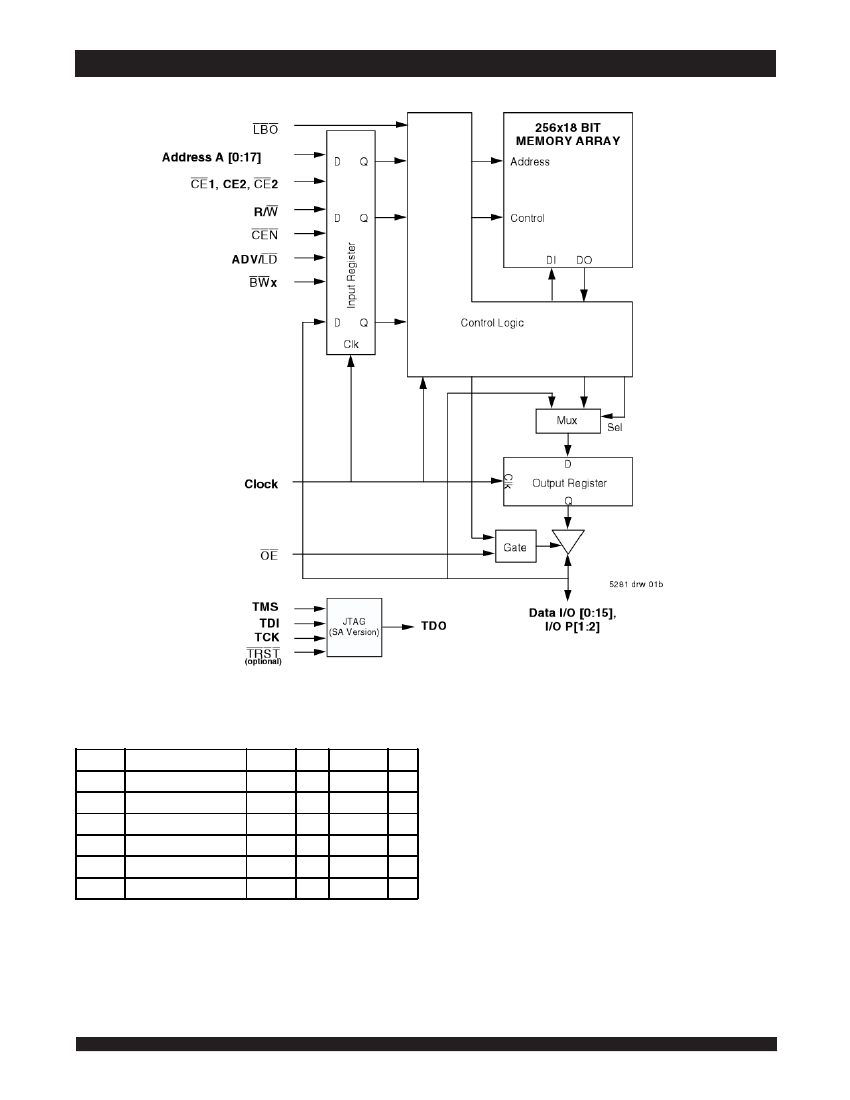

Functional Block Diagram
Recommended DC Operating
Conditions
Symbol
V
DD
V
DDQ
V
SS
V
IH
V
IH
V
IL
Parameter
Core Supply Voltage
I/O Supply Voltage
Supply Voltage
Input High Voltage - Inputs
Input High Voltage - I/O
Input Low Voltage
Min.
3.135
3.135
0
2.0
2.0
-0.3
(1)
Typ.
3.3
3.3
0
____
____
____
Max.
3.465
3.465
0
V
DD
+0.3
V
DDQ
+0.3
(2)
0.8
Unit
V
V
V
V
V
V
5281 tbl 04
NOTES:
1. V
IL
(min.) = –1.0V for pulse width less than t
CYC
/2, once per cycle.
2. V
IH
(max.) = +6.0V for pulse width less than t
CYC
/2, once per cycle.
6.42
4
IDT71V3556, IDT71V3558, 128K x 36, 256K x 18, 3.3V Synchronous SRAMS with
ZBT™ Feature, 3.3V I/O, Burst Counter, and Pipelined Outputs
™
Commercial and Industrial Temperature Ranges
Recommended Operating
Temperature and Supply Voltage
Grade
Commercial
Industrial
Temperature
(1)
0°C to +70°C
-40°C to +85°C
V
SS
0V
0V
V
DD
3.3V±5%
3.3V±5%
V
DDQ
3.3V±5%
3.3V±5%
5281 tbl 05
NOTES:
1. T
A
is the "instant on" case temperature.
Pin Configuration - 128K x 36
CE
2
BW
4
BW
3
BW
2
BW
1
CE
2
V
DD
V
SS
CLK
R/W
CEN
OE
ADV/LD
NC
(2)
NC
(2)
A
8
A
9
A
6
A
7
CE
1
100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81
I/O
P3
I/O
16
I/O
17
V
DDQ
V
SS
I/O
18
I/O
19
I/O
20
I/O
21
V
SS
V
DDQ
I/O
22
I/O
23
V
DD
(1)
V
DD
V
DD
(1)
V
SS
I/O
24
I/O
25
V
DDQ
V
SS
I/O
26
I/O
27
I/O
28
I/O
29
V
SS
V
DDQ
I/O
30
I/O
31
I/O
P4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
I/O
P2
I/O
15
I/O
14
V
DDQ
V
SS
I/O
13
I/O
12
I/O
11
I/O
10
V
SS
V
DDQ
I/O
9
I/O
8
V
SS
V
DD
(1)
V
DD
V
SS
/ZZ
(3)
I/O
7
I/O
6
V
DDQ
V
SS
I/O
5
I/O
4
I/O
3
I/O
2
V
SS
V
DDQ
I/O
1
I/O
0
I/O
P1
,
5281 drw 02
NOTES:
1. Pins 14, 16 and 66 do not have to be connected directly to V
DD
as long as the input voltage is
≥
V
IH
.
2. Pins 83 and 84 are reserved for future 8M and 16M respectively.
3. Pin 64 does not have to be connected directly to V
SS
as long as the input voltage is
≤
V
IL
; on the latest die revision this pin
supports ZZ (sleep mode).
LBO
A
5
A
4
A
3
A
2
A
1
A
0
NC
NC
V
SS
V
DD
NC
NC
A
10
A
11
A
12
A
13
A
14
A
15
A
16
Top View
100
TQFP
6.42
5
京公网安备 11010802033920号
EEWORLD
