ICL7135CQI+T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ICL7135CQI+T

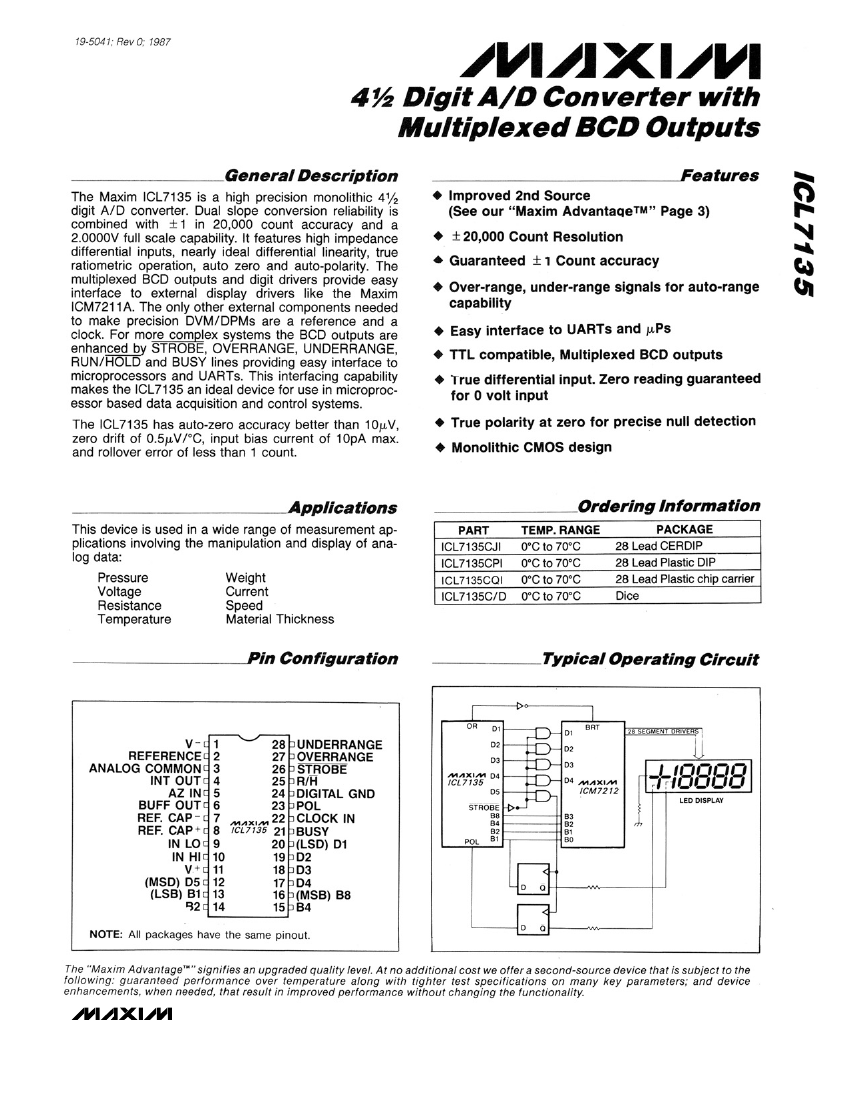

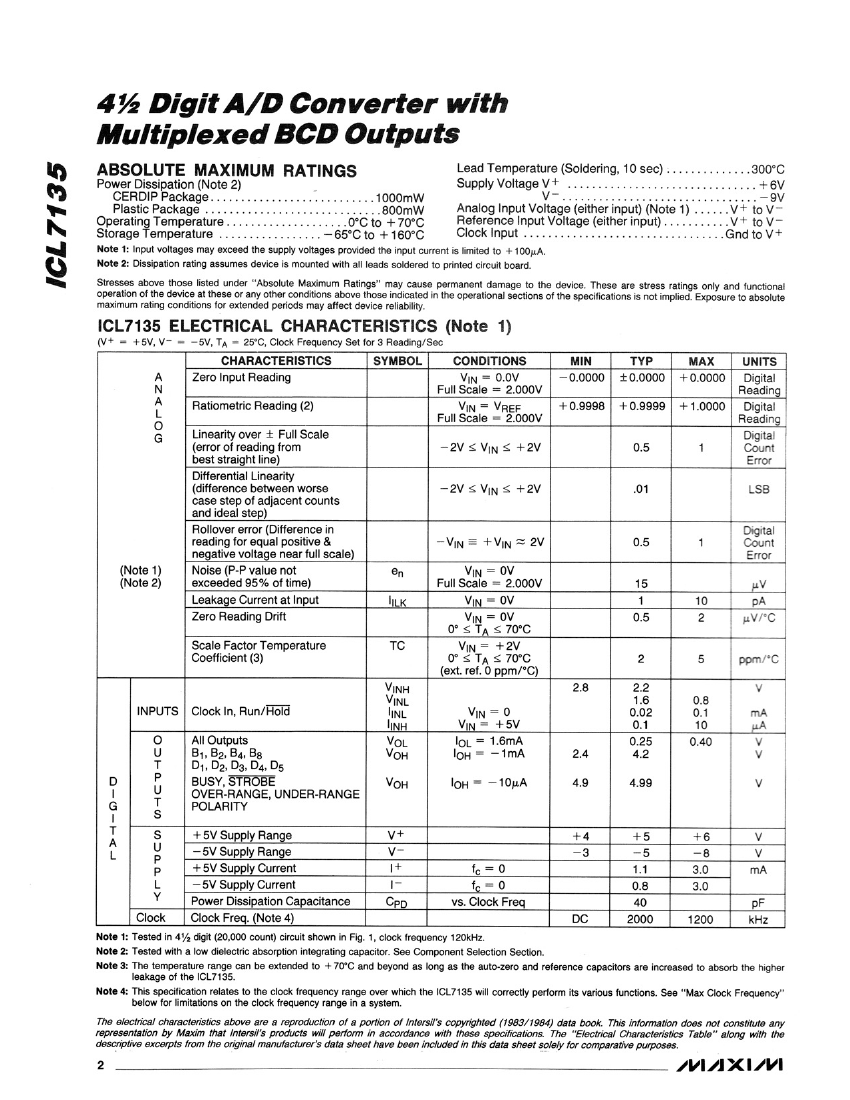

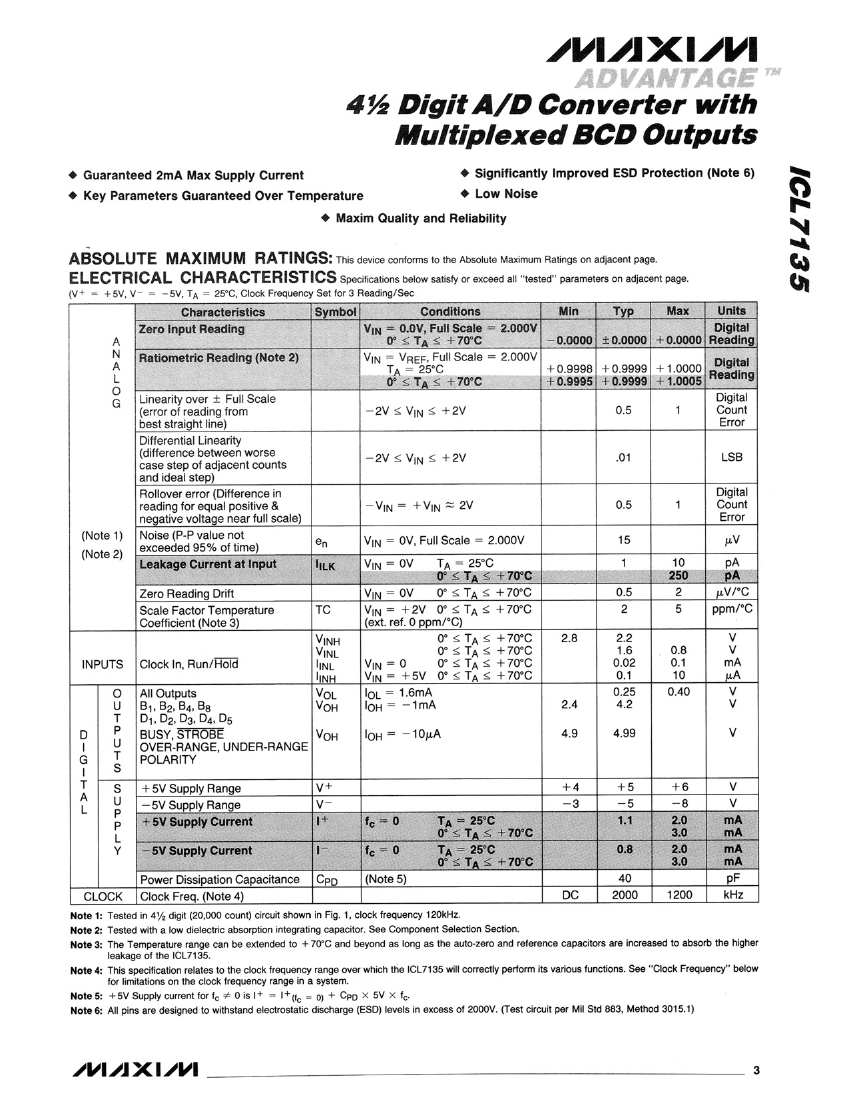

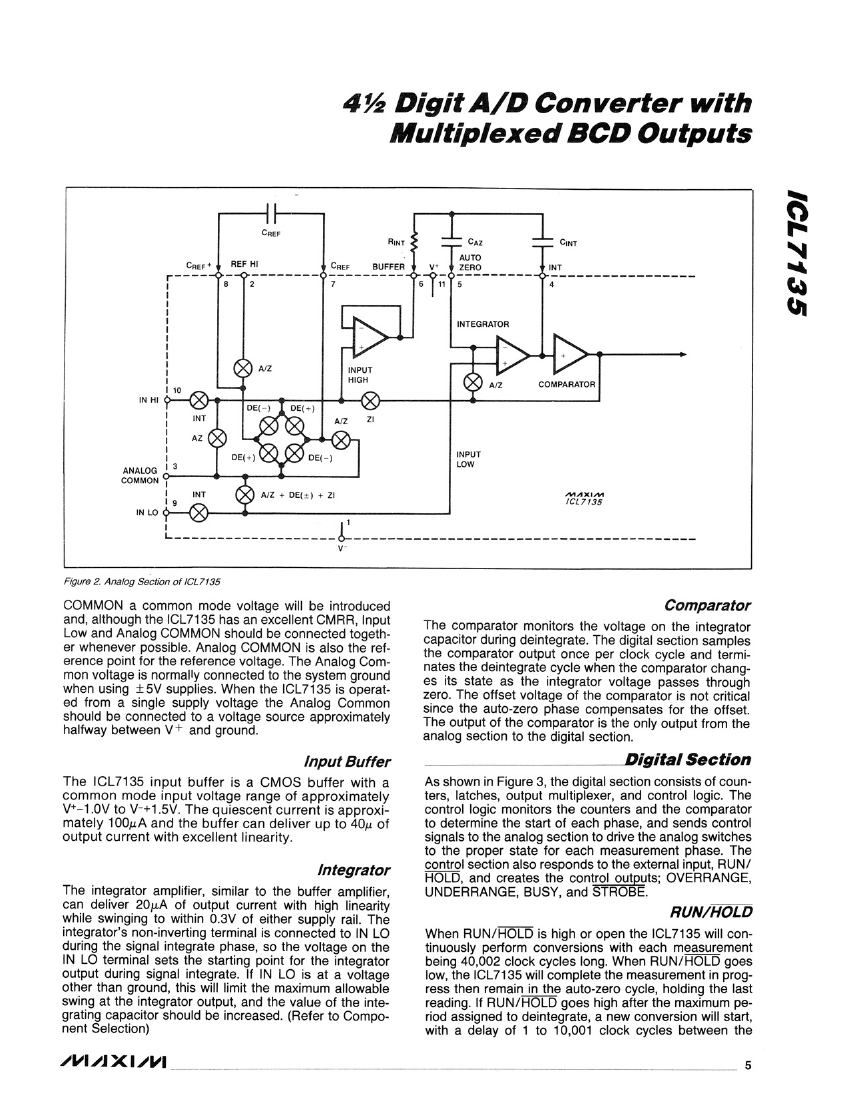

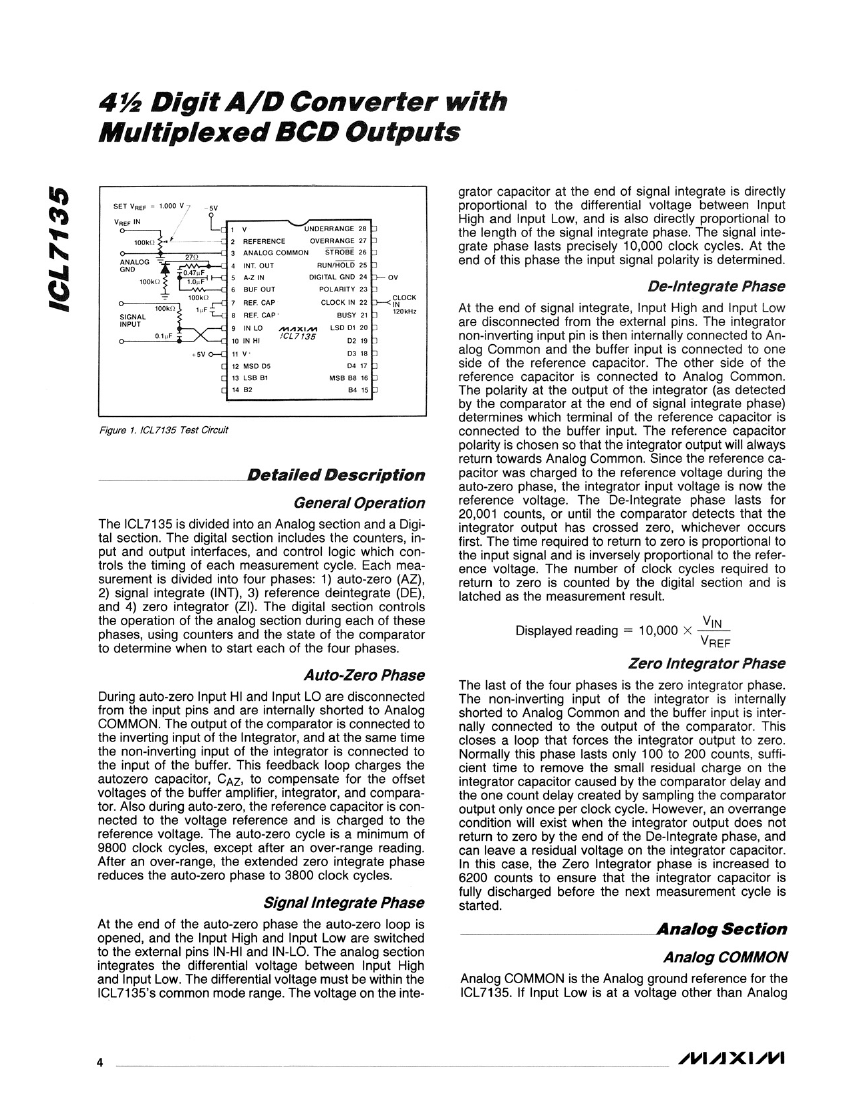

ICL7135CQI+T: Descriptiondisplay drivers & controllers 4 1/2 digit adc w/ muxd bcd outputs; CategoryAnalog mixed-signal IC converter; File Size6MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ICL7135CQI+T Overview

display drivers & controllers 4 1/2 digit adc w/ muxd bcd outputs

ICL7135CQI+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	QLCC
package instruction	PLASTIC, LCC-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Maximum analog input voltage	2 V
Minimum analog input voltage	-2 V
Converter type	ADC, DUAL-SLOPE
JESD-30 code	S-PQCC-J28
JESD-609 code	e3
length	11.505 mm
Maximum linear error (EL)	0.005%
Humidity sensitivity level	1
Nominal negative supply voltage	-5 V
Number of analog input channels	1
Number of digits	4
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, BINARY CODED DECIMAL
Output format	PARALLEL, 4 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
power supply	+-5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.505 mm
Base Number Matches	1
