Terminal Block
EUROSTYLE P.C.B. TERMINAL BLOCK
ETB13 SERIES
■
FEATURES
Easy to assemble for any number of positions
End stackable without any loss of P.C.B. space
Special wire protector design to ensure reliable wire clamping
UL 94V-0 grade fire retardant engineering plastic used for the housing
Be capable of clamping a wide range of wire diameters
Compact size for P.C.B.
R50002918
E133988(R)
CLAMPING TYPE
PITCH=5.0 / 10.0mm
■
SPECIFICATIONS
5.0mm, 10.0mm
22~12 AWG (4.0mm²)
2P or 3P
16 Amp, 300 VAC
PA66
Tin plated over Brass
M2.6x0.45P, Zinc plated over Steel
Nickel plated over Zinc Alloy
0.47 N-m (4.2 lb-in) (tested by
manual torque screwdriver)
Operating temperature -30℃~+110℃
(includes temperature rise limit)
Stripping length
6mm
UL Approval
300V, 16A, 22~12 AWG
TUV Approval
250V, T80, 1.5mm²
Pitch
Wire range
No. of pole per block
Rating
Housing
Terminals
Screws
Wire cage
Torque
■

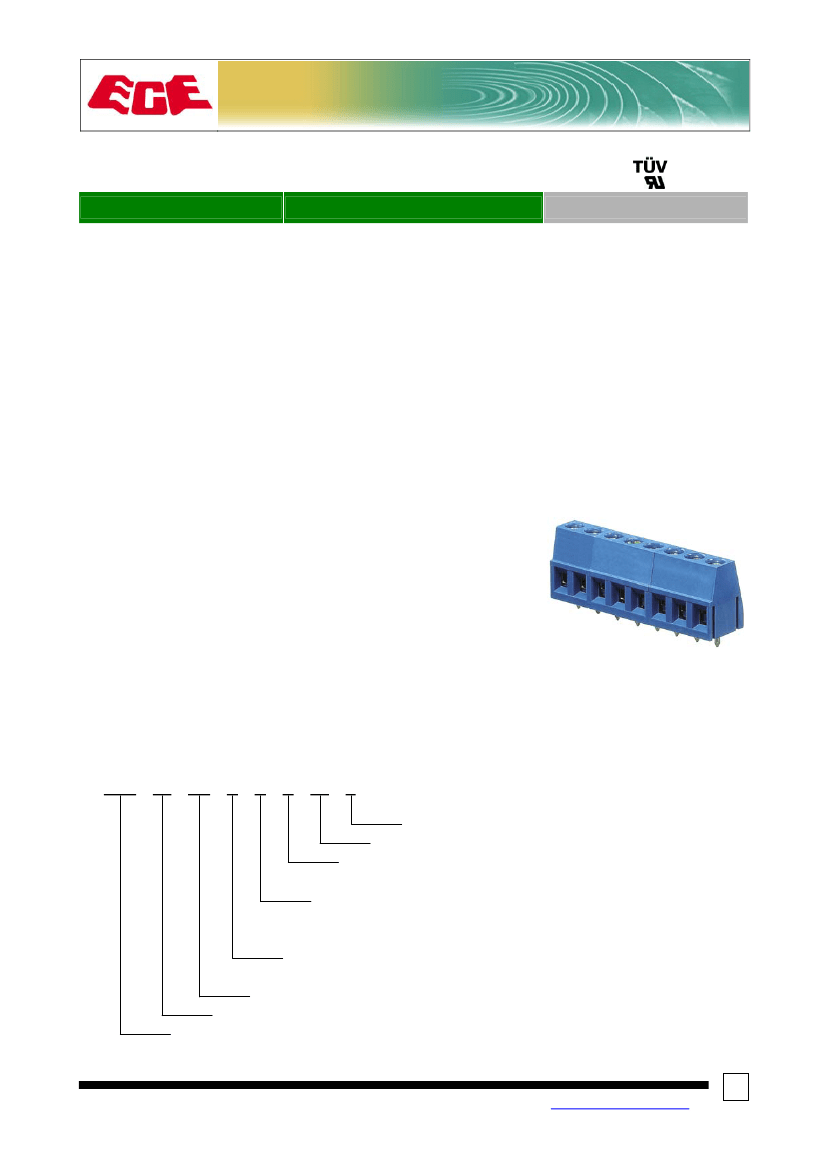

PART NUMBERING SYSTEM
ETB 13
XX X
X
X 00
Z
Z: RoHS Compliant
Special number
Screw type: 0: “+” screw
1: “-” screw
Housing color: B: Blue
G: Green
K: Black
Pitch: 0: Standard pitch
1: Standard pitchx2
Number of poles
Series
Model
1
For the latest product information, Please visit our website at
http://www.ece.com.tw
Terminal Block
■

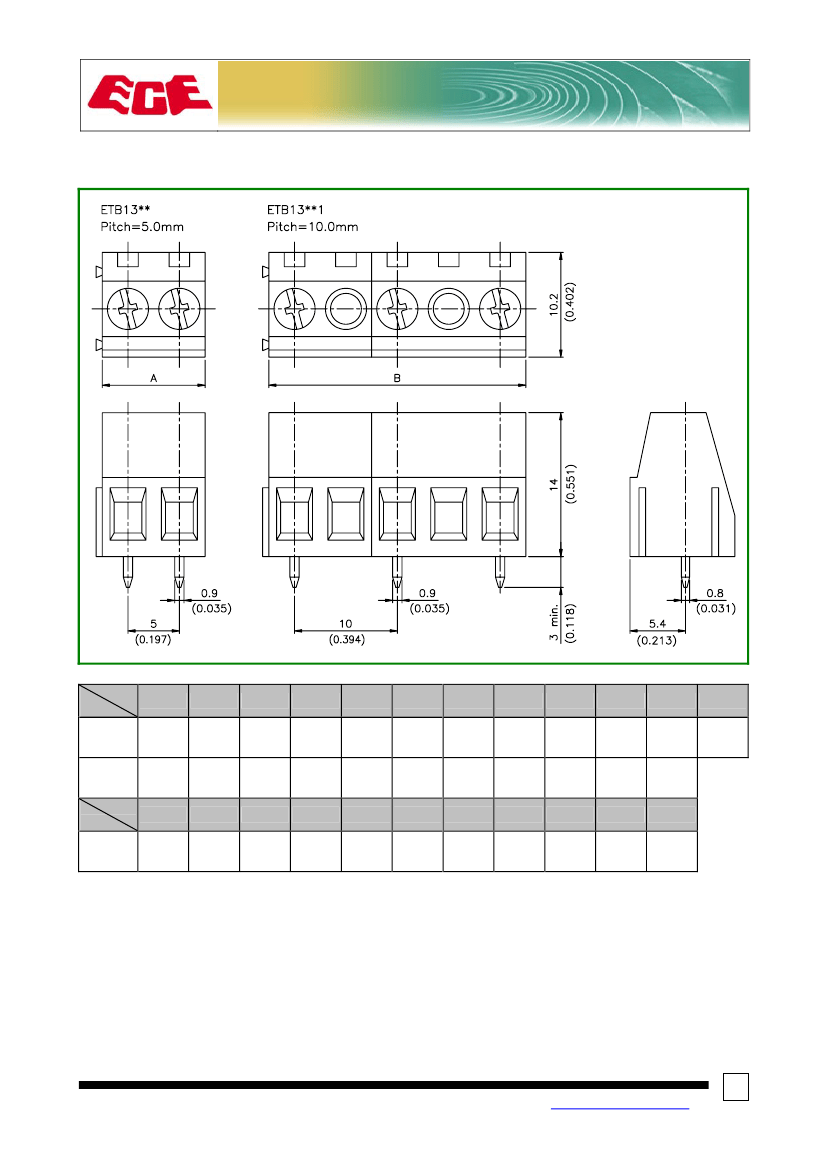

DRAWING
POLE
DIM.
A
B
POLE
DIM.
A
2
3
4
5
6
7
8
9
10
11
12
13
10
15
20
25
30
35
40
45
50
55
60
65
(0.394) (0.591) (0.787) (0.984) (1.181) (1.378) (1.575) (1.772) (1.969) (2.165) (2.362) (2.559)
15
25
35
45
55
65
75
85
95
105
115
(0.591) (0.984) (1.378) (1.772) (2.165) (2.559) (2.953) (3.346) (3.740) (4.134) (4.528)
14
15
16
17
18
19
20
21
22
23
24
70
75
80
85
90
95
100
105
110
115
120
(2.756) (2.953) (3.150) (3.346) (3.543) (3.740) (3.937) (4.134) (4.331) (4.528) (4.724)
2
