RUT-SS-124DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RUT-SS-124DM

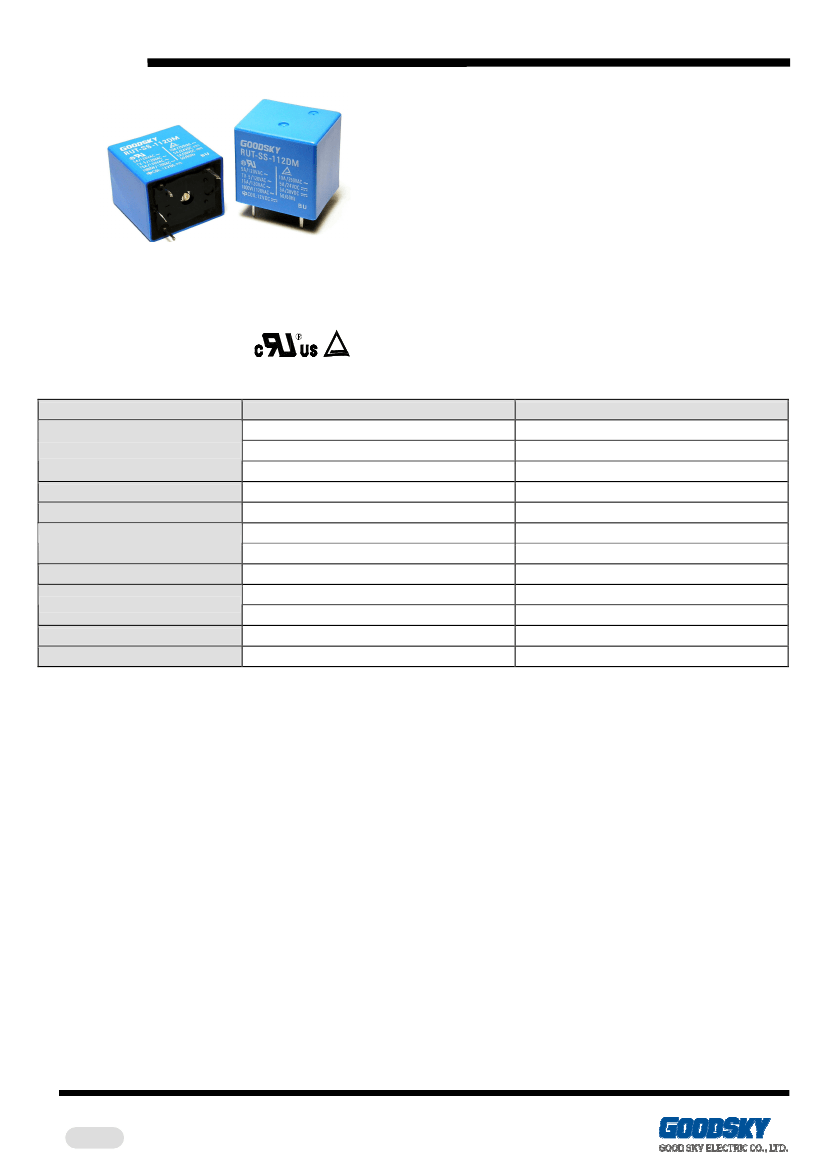

RUT-SS-124DM: DescriptionElectromechanical Relay, SPST, Latched, 31.2VDC (Coil), 15A (Contact), 110VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size246KB，2 Pages; ManufacturerGood Sky Electric Co., Ltd.

Download Datasheet Parametric View All

RUT-SS-124DM Overview

Electromechanical Relay, SPST, Latched, 31.2VDC (Coil), 15A (Contact), 110VDC (Contact), Random, AC/DC Output

RUT-SS-124DM Parametric

Parameter Name	Attribute value
Objectid	406117794
Reach Compliance Code	unknown
ECCN code	EAR99
body width	16.7 mm
body height	20.3 mm
Body length or diameter	20.5 mm
Coil operating voltage (DC)	18 V
Coil release voltage (DC)	1.2 V
Coil resistance	1600 Ω
Maximum coil voltage (DC)	31.2 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	15 A
Contact (DC) maximum rated R load	15A@110VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	110 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	4
operating hours	15 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	4
physical size	20.5mm x 16.7mm x 20.3mm
Guideline	TUV; UL
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
release time	5 ms
seal	FLUX-TIGHT
Terminal length	0.0045 inch
Termination type	SOLDER
weight	11.4 g

Preview

Download Datasheet

View All

RUT

Main Feature

15A in small size.

Surge Strength is 3,000V.

UL approval for 1/2 HP.

UL approval for 15A Tungsten (1800W).

TUV approval for 7.5A Tungsten (1800W).

Halogen Free series available.

UL Class F insulation available.

Comply with RoHS and REACH regulations

Contact Rating

Load Type

Rated Load (Resistive)

Contact Capacity

Rated Carrying Current

Max. Allowable Voltage

Max. Allowable Current

Max. Allowable Power Force

Contact Material

Contact Form

RUT (DM)

15A 125VAC(UL)

10A 250VAC

5 A 30VDC(TUV)

TV-5 120VAC

10A

AC 250V

DC 110V

15A

2,500VA

150W

Ag Alloy

SPST

RUT (DM8)

15A 125VAC(UL)

10A 250VAC

5 A 30VDC(TUV)

TV-8 120VAC

10A

AC 250V

DC 110V

15A

2,500VA

150W

Ag Alloy

SPST

Coil Temperature Rise .........30°C Max.

Vibration:

Endurance............................10 to 55 Hz dual

amplitude width 1.5mm

Error Operation ....................10 to 55 Hz dual

amplitude width 1.5mm

Shock:

Endurance ..........................1,000 m/S

Error Operation ....................100 m/S

Life Expectancy:

Mechanical .........................10 Operations at No

Load condition

Electrical .............................10 Operations at Rated

Resistive Load

2.5x10 Operations at

TV Rated Load

Weight..................................About 11.4 g

Application

Remote Control TV Receivers, Monitor Displays, Audio

Equipment and High Inrush Current Use Application.

Performance (at Initial Value)

Contact Resistance ............. 100mΩMax.@1A,6VDC

Operate Time....................... 15 mSec. Max

Release Time ...................... 5 mSec. Max

Dielectric Strength:

Between Coil & Contact....... 1,500VAC at 50/60 Hz

for one minute

Between Contacts ............... 750VAC at 50/60 Hz

for one minute

Surge Strength..................... 3,000V (between Coil

& Contact 1.2x50µSec.)

Insulation Resistance ........... 100 MegaΩ Min. at

500VDC

Max. On/Off Switching:

Electrical .............................. 6 Cycles per Minute

Mechanical .......................... 300 Cycles per Minute

Temperature Range............. -30½+85°C

Humidity Range ................... 45½85% RH.

■

Safety Standard & File Number

UL & C-UL............................E141060

TÜV......................................R09352326
