SRT Resistor Technology
High Power Resistors, radial leaded
Type: RXG1 (RXG1-T; RXG1-N)
Size : 20 ... 1200 W
Features:
•
•
•
•
•
•
Power rating up to 1200 W
Temperature range -55 … +155°C (extensible up to 275°C)
High mechanical stability (full-welded structure)
Adjustable version is available (RXG1-T)
Non-inductive version is available (RXG1-N)
Coating: green or grey

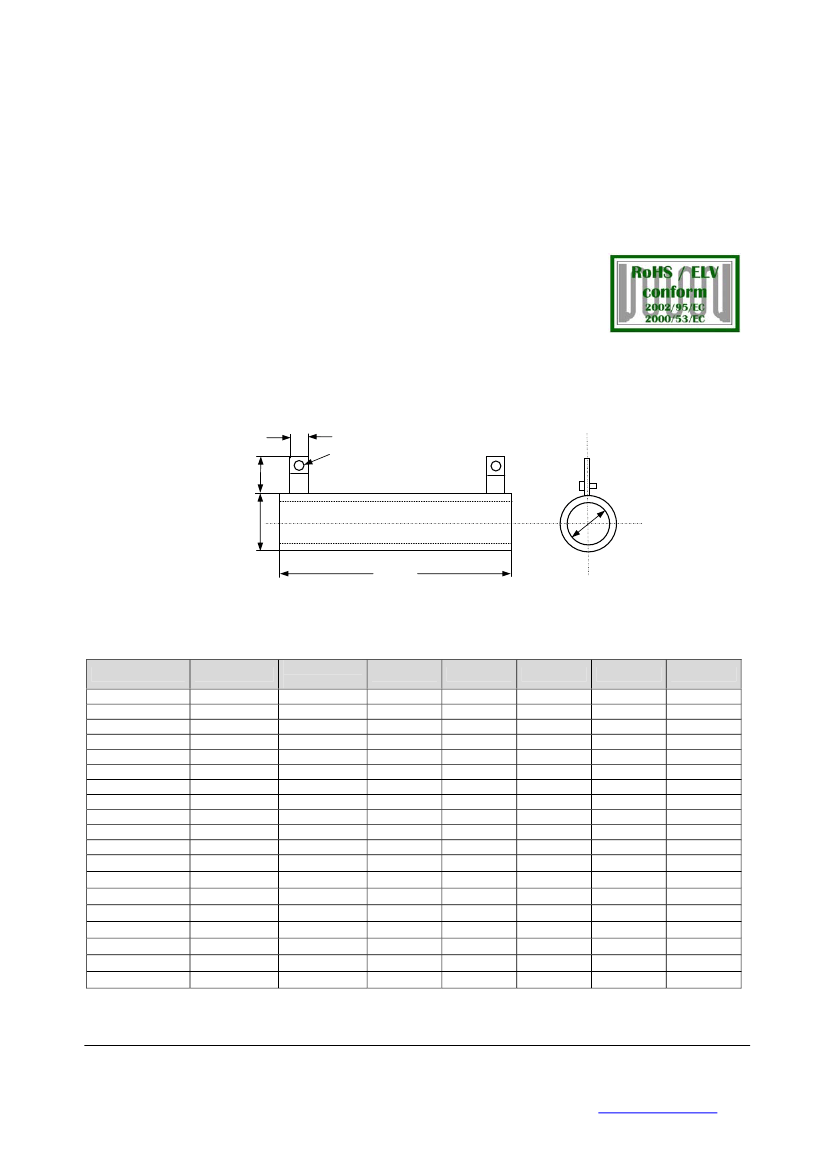

Dimensions:
H
Ø 3.2 (20-250W)
4.2 (300-1200W)
h
D
d
L
Technical data – depending on size:
Type
RXG1-20W
RXG1-25W
RXG1-30W
RXG1-40W
RXG1-50W
RXG1-70W
RXG1-100W
RXG1-150W
RXG1-200W
RXG1-240W
RXG1-250W
RXG1-300W
RXG1-400W
RXG1-550W
RXG1-650W
RXG1-750W
RXG1-850W
RXG1-1000W
RXG1-1200W
Power P
70
20W
25W
30W
40W
50W
70W
100W
150W
200W
240W
250W
300W
400W
550W
650W
750W
850W
1000W
1200W
Resistance
range
5R1-3K3
5R1-3K3
5R1-4K7
5R1-4K7
5R1-5K1
5R1-10K
5R1-12K
5R1-12K
5R1-15K
5R1-18K
5R1-18K
5R1-22K
5R1-22K
5R1-33K
5R1-47K
5R1-47K
5R1-68K
5R1-68K
5R1-68K
L
53
53
73
90
93
144
175
220
270
220
270
308
408
608
410
610
410
610
615
D
16
18
21
21
29
29
30
30
30
50
50
50
50
50
67
67
84
84
84
d
8
8
12
12
17
17
17
17
17
35
35
35
35
35
40
40
50
50
50
H
5
5
5
5
8
8
8
8
8
10
10
30
30
30
30
30
30
30
30
h
12
12
12
12
16
16
16
16
16
20
20
Issue 07-2009
SRT Resistor Technology GmbH
Ostlandstr. 31
D-90556 Cadolzburg
Germany
Fon:
Fax:
E-mail:
Internet:
+49 (0)9103 / 7952-0
+49 (0)9103 / 5128
info@srt-restech.de
www.srt-restech.de
SRT Resistor Technology
High Power Resistors, radial leaded
Type: RXG1 (RXG1-T; RXG1-N)
Size : 20 ... 1200 W
Technical data - general:
Tolerances
TCR
Temperature range
Short time overload acc. to IEC 60115-1 4.13 (5s @ 2.5*V
R
)
Load life acc. to IEC 60115-1 4.25 (1000h @ 70°C)
Resistance to soldering heat acc. to IEC 60115-1 4.18 (3.5s @ 350°C)
Vibrations acc. to IEC 60115-1 4.22
± 5%, ± 2%
± 250 ppm/K
-55°C ... +155°C
∆R
< 1%
∆R
< 5%
∆R
< 1%
∆R
< 5%
Derating curve:
100
70°C
80
155°
Power (%)
60
40
20
275°
0
0
50
100
150
200
250
Temperature (°C)
Ordering Data:
Type – style – power - value – tolerance
Example: RXG1-N-400W 100R
±5%
Specifications subject to change without notice
Issue 07-2009
Fon:
Fax:
E-mail:
Internet:
+49 (0)9103 / 7952-0
+49 (0)9103 / 5128
info@srt-restech.de
www.srt-restech.de
SRT Resistor Technology GmbH
Ostlandstr. 31
D-90556 Cadolzburg
Germany
