DG381ACJ+ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG381ACJ+

Preview

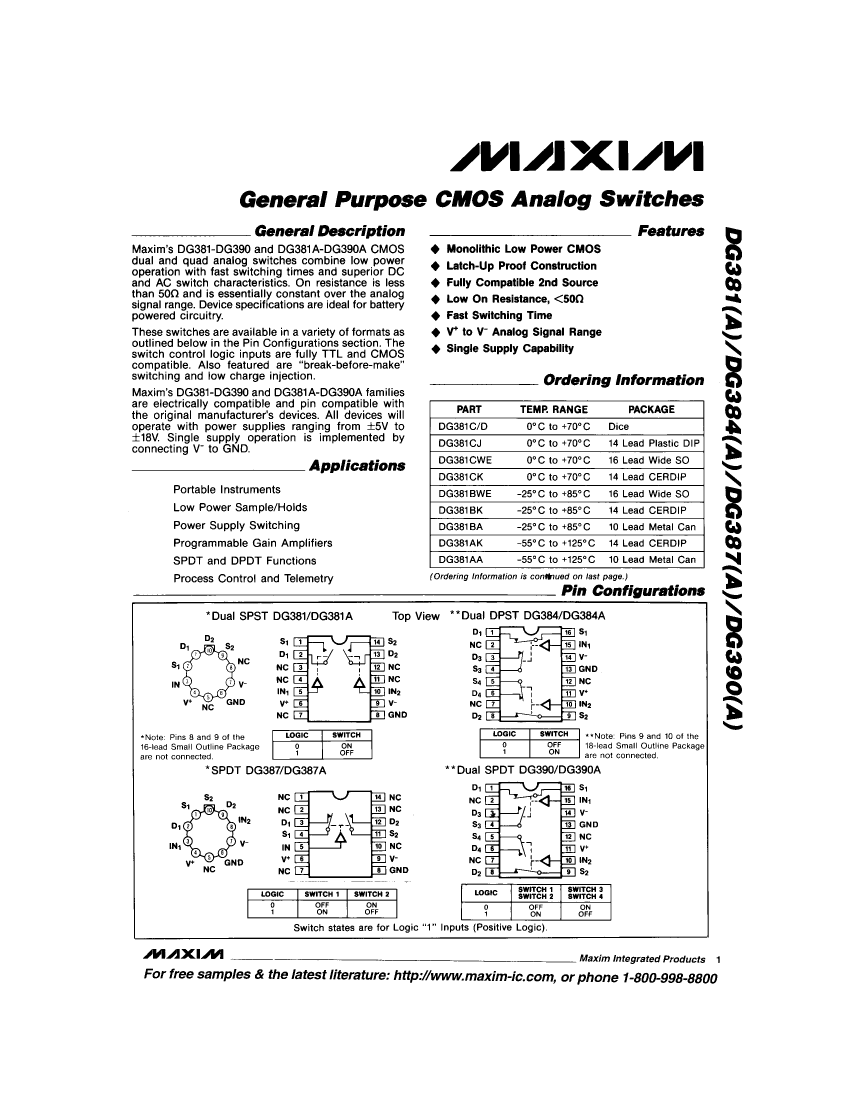

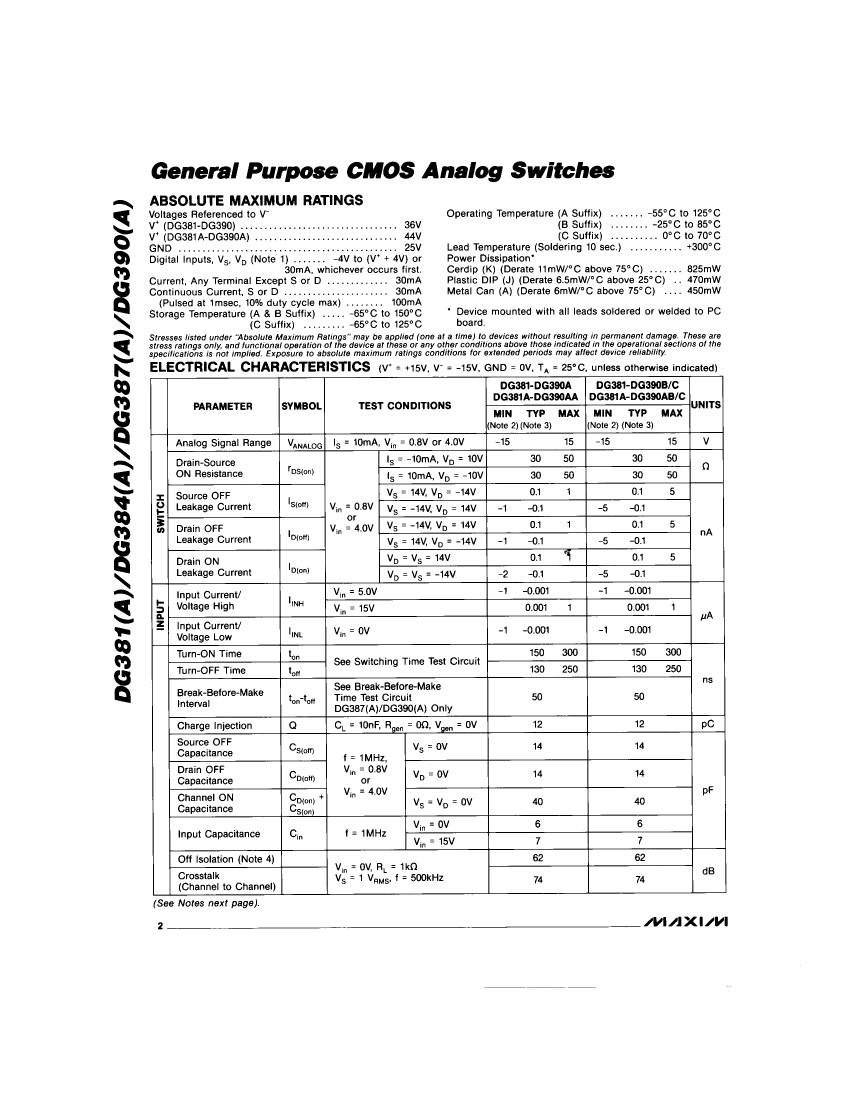

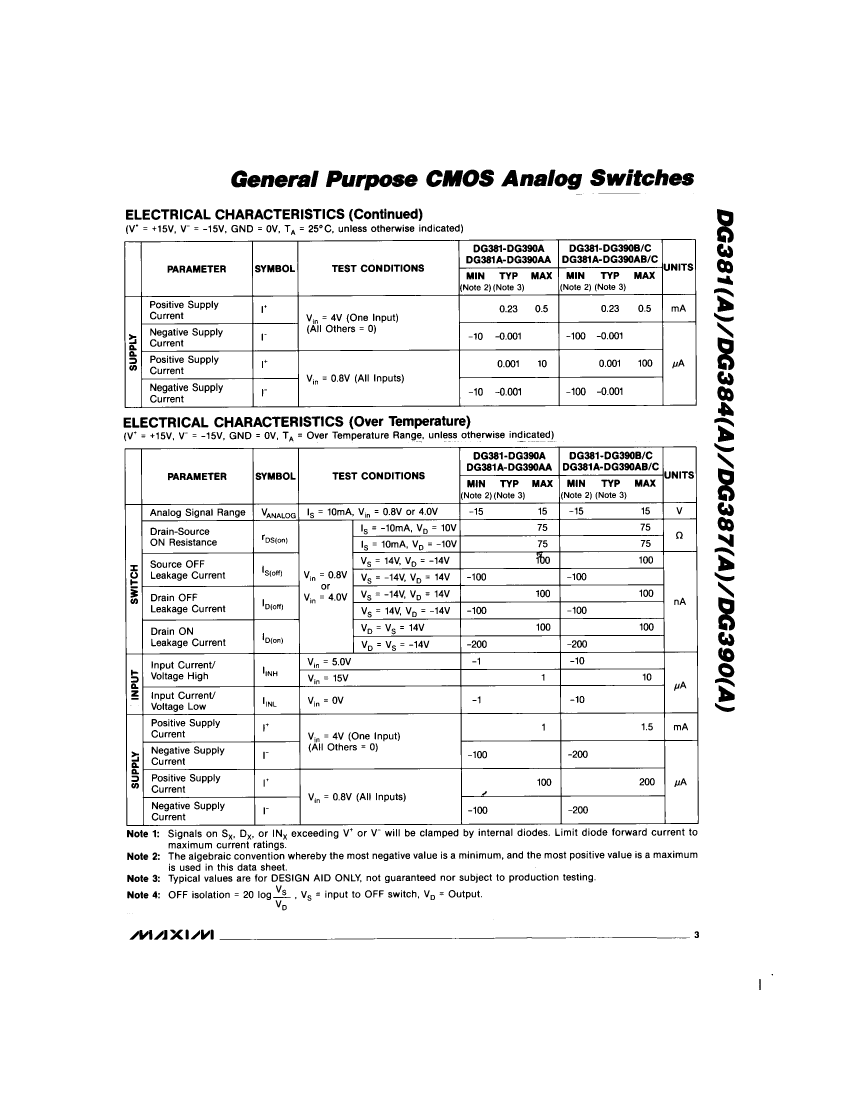

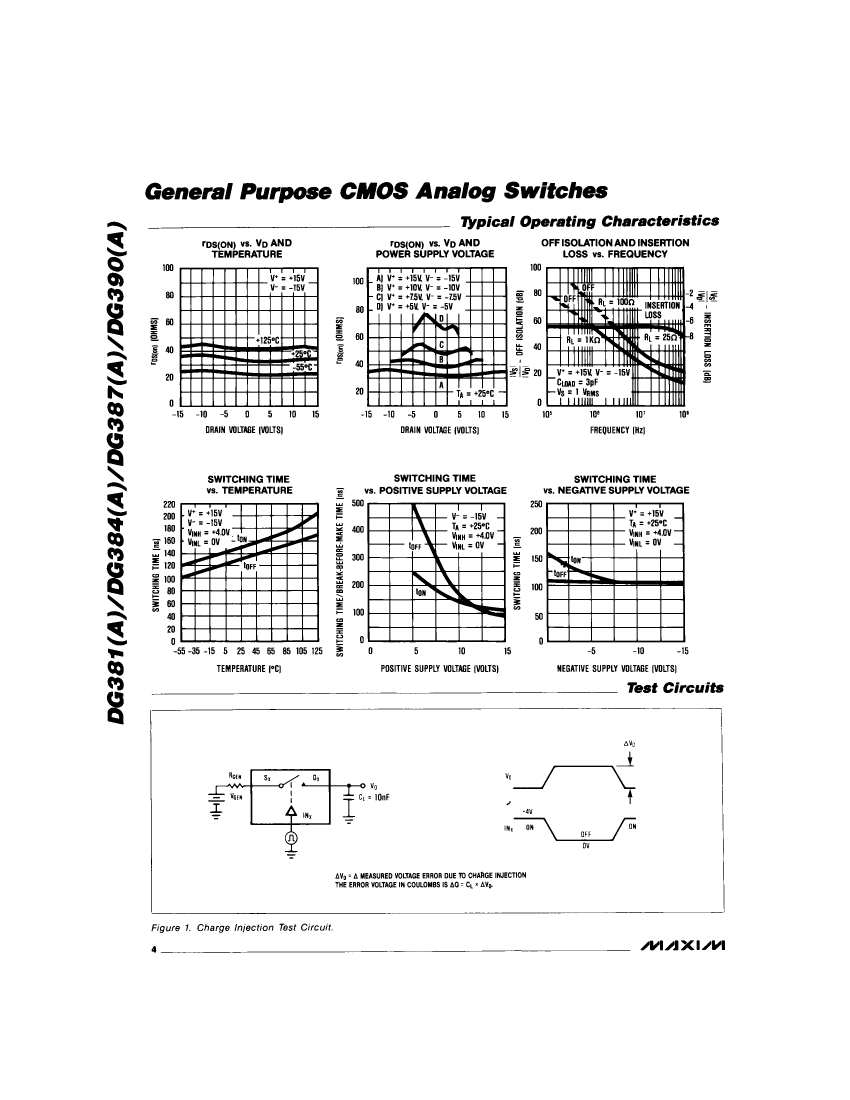

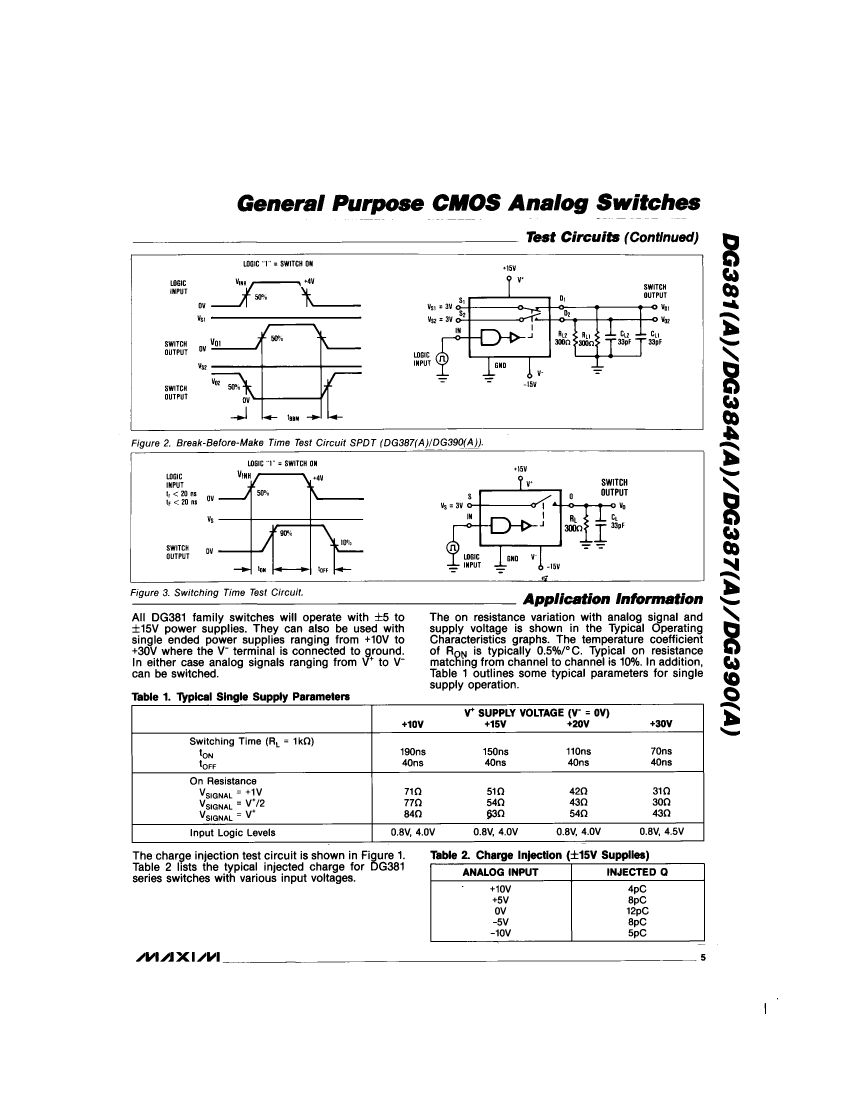

DG381ACJ+: Descriptionanalog switch ics dual spst cmos normally open; CategoryAnalog mixed-signal IC The signal circuit; File Size296KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

DG381ACJ+ Overview

analog switch ics dual spst cmos normally open

DG381ACJ+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	6 weeks
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T14
JESD-609 code	e3
length	19.05 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	2
Number of terminals	14
Nominal off-state isolation	62 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	250 ns
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DG381ACJ+ Related Products

	DG381ACJ+	DG390ACJ+	DG390ACWE+	DG381ACWE+T
Description	analog switch ics dual spst cmos normally open	analog switch ics dual spdt cmos	analog switch ics dual spdt cmos	analog switch ics dual spst cmos normally open
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	DIP	DIP	SOIC	SOIC
package instruction	0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-14	DIP, DIP14,.3	SOP, SOP16,.4	SOP, SOP16,.4
Contacts	14	16	16	16
Reach Compliance Code	compli	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SPST	SPDT	SPDT	SPST
JESD-30 code	R-PDIP-T14	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3	e3	e3	e3
length	19.05 mm	19.175 mm	10.3 mm	10.3 mm
Humidity sensitivity level	1	1	1	1
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-5 V	-5 V	-5 V	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1
Number of functions	2	2	2	2
Number of terminals	14	16	16	16
Nominal off-state isolation	62 dB	62 dB	62 dB	62 dB
Maximum on-state resistance (Ron)	50 Ω	50 Ω	50 Ω	50 Ω
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	SOP16,.4	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	4.572 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	YES
Maximum disconnect time	250 ns	250 ns	250 ns	250 ns
Maximum connection time	300 ns	300 ns	300 ns	300 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.5 mm	7.5 mm
ECCN code	EAR99	EAR99	EAR99	-
Base Number Matches	1	1	1	-
Maker	-	Maxim	Maxim	Maxim
