ACPL-M50L, ACPL-054L, ACPL-W50L and ACPL-K54L
Low Power, 1MBd Digital Optocoupler
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The ACPL-M50L (single-channel in SO-5 footprint),
ACPL-054L (dual-channel in SO-8 footprint), ACPL-W50L
(single-channel in stretched SO-6 footprint) and ACPL-
K54L (dual-channel in stretched SO-8 footprint) are low
power, low-input current, 1MBd digital optocouplers.
This digital optocouplers use an insulating layer between
the light emitting diode and an integrated photon detector
to provide electrical insulation between input and output.
Separate connections for the photodiode bias and output
transistor collector increase the speed up to a hundred
times over that of a conventional photo-transistor coupler
by reducing the base-collector capacitance.
The ACPL-M50L/054L/W50L/K54L have an increased com-
mon mode transient immunity of 15kV/s minimum at
V
CM
= 1500V over a temperature range of -40 to 105°C.
The current transfer ratio (CTR) is 140% typical for ACPL-
M50L or 130% typical for ACPL-054L/W50L/K54L at I
F
= 3mA. This digital optocoupler can be use in any TTL/
CMOS, TTL/LSTTL or wide bandwidth analog applications.
Features
Wide supply voltage Vcc: 2.7V to 24V
Low Drive Current: 3mA
Open-Collector Output
TTL compatible
Compact SO-5, SO-8, stretched SO-6 and stretched
SO-8 package
15 kV/s High Common-Mode Rejection at V
CM
= 1500 V
Guaranteed performance from Temperature Range:
-40°C to +105°C
Low Propagation Delay: 1s max at 5V
Worldwide Safety Approval:
(Pending except ACPL-M50L)
– UL1577 recognized,
3750Vrms/1min for ACPL-M50L/054L,
5000Vrms/1min for ACPL-W50L/K54L,
– CSA Approval
– IEC 60747-5-5, IEC/EN/DIN EN 60747-5-2
Functional Diagram
6 V
CC
Anode 1
5 V
O
Cathode 3
4 GND
Anode
1
2
6
V
CC
5
V
O
4
GND
Applications
Communications Interface
Digital Signal Isolation
Micro-controller Interface
Feedback Elements in Switching Power Supplies
Digital isolation for A/D, D/A conversion Digital field
ACPL-W50L
8 V
CC
7 V
O1
6 V
O2
5 GND
NC
Cathode
3
ACPL-M50L
Anode1 1
Cathode1 2
Cathode2 3
Anode2 4
Truth Table
LED
ON
OFF
Vo
LOW
HIGH
ACPL-054L/K54L
The connection of a 0.1
F
bypass capacitor between pins 4 and 6 for
ACPL-M50L/W50L and between pins 5 and 8 for ACPL-054L/K54L is
recommended.
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.

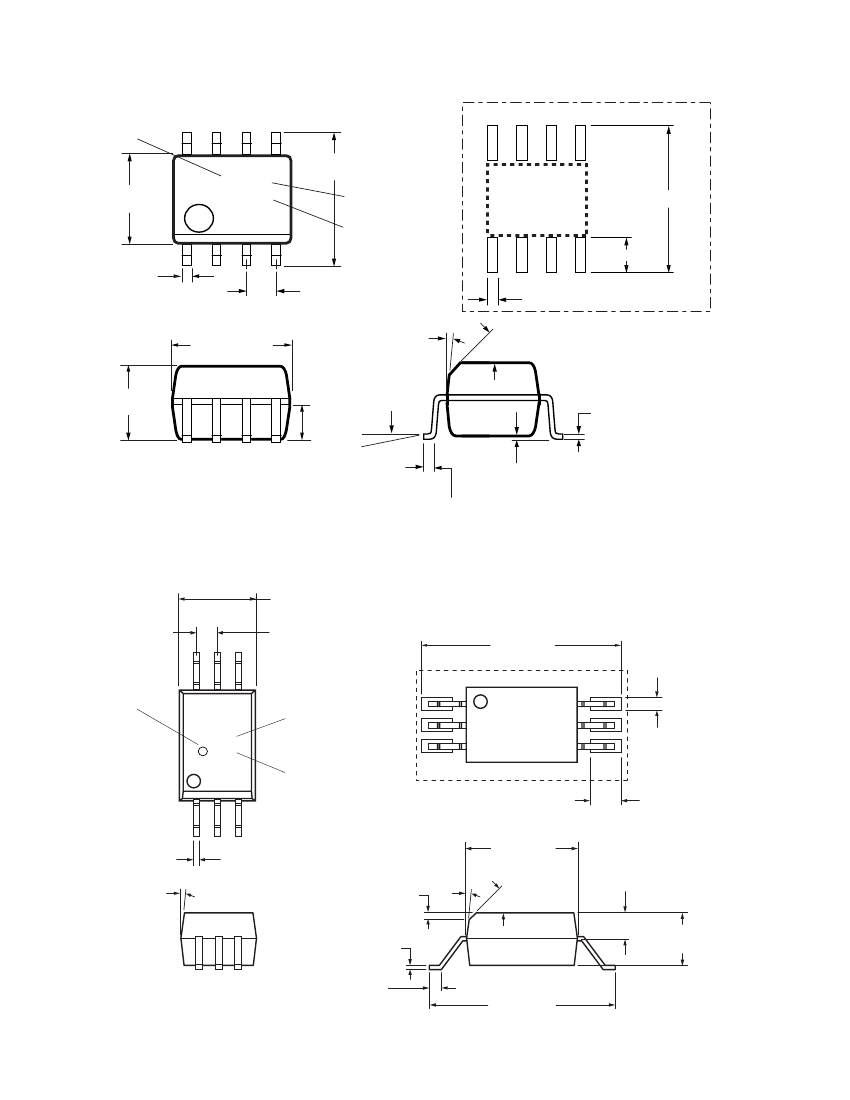

ACPL-K54L Stretched SO-8 Package
5.850±0.254
(0.230±0.010)
1.270 (0.050)
BSG
8
7
6
5
LAND
PATTERN RECOMMENDATION
ROHS-COMPLIANCE
INDICATOR
K54L
YWW
PART NUMBER
DATE CODE
1.905 (0.1)
1
2
3
4
0.381±0.13
(0.015±0.005)
0.450
(0.018)
12.650 (0.5)
1.590±0.127
(0.063±0.005)
45°
3.180±0.127
(0.125±0.005)
6.807±0.127
(0.268±0.005)
11.5±0.250
(0.453±0.010)
7°
7°
0.200±0.100
(0.008±0.004)
Dimensions
in
Millimeters
(Inches).
Lead coplanarity =
0.1
mm (0.004 inches).
0.750±0.250
(0.0295±0.010)
Solder Reflow Profile
Recommended reflow condition as per JEDEC Standard, J-STD-020 (latest revision). Non-Halide Flux should be used.
Regulatory Information
The ACPL-M50L/054L/W50L/K54L will be approved by the following organizations:
UL
Approval under UL 1577, component recognition program up to V
ISO
= 3750 V
RMS
for ACPL-M50L/054L and V
ISO
= 5000
V
RMS
for ACPL-W50L/K54L.
CSA
Approval under CSA Component Acceptance Notice #5.
IEC 60747-5-5, IEC/EN/DIN EN 60747-5-2 (Option 060E only)
