DHVR25F10MT26: DescriptionFixed Resistor, 0.25W, 10000000ohm, 1600V, 1% +/-Tol, -200,200ppm/Cel,; CategoryPassive components The resistor; File Size373KB，2 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DHVR25F10MT26 Overview

Fixed Resistor, 0.25W, 10000000ohm, 1600V, 1% +/-Tol, -200,200ppm/Cel,

DHVR25F10MT26 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	996629793
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Cylindrical
Lead diameter	0.55 mm
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	2.4 mm
Package length	6.3 mm
Package shape	CYLINDRICAL PACKAGE
Package form	Axial
method of packing	Ammo Pack
Rated power dissipation(P)	0.25 W
resistance	10000000 Ω
Resistor type	FIXED RESISTOR
series	DHVR
Temperature Coefficient	200 ppm/°C
Tolerance	1%
Operating Voltage	1600 V

Preview

Download Datasheet

View All

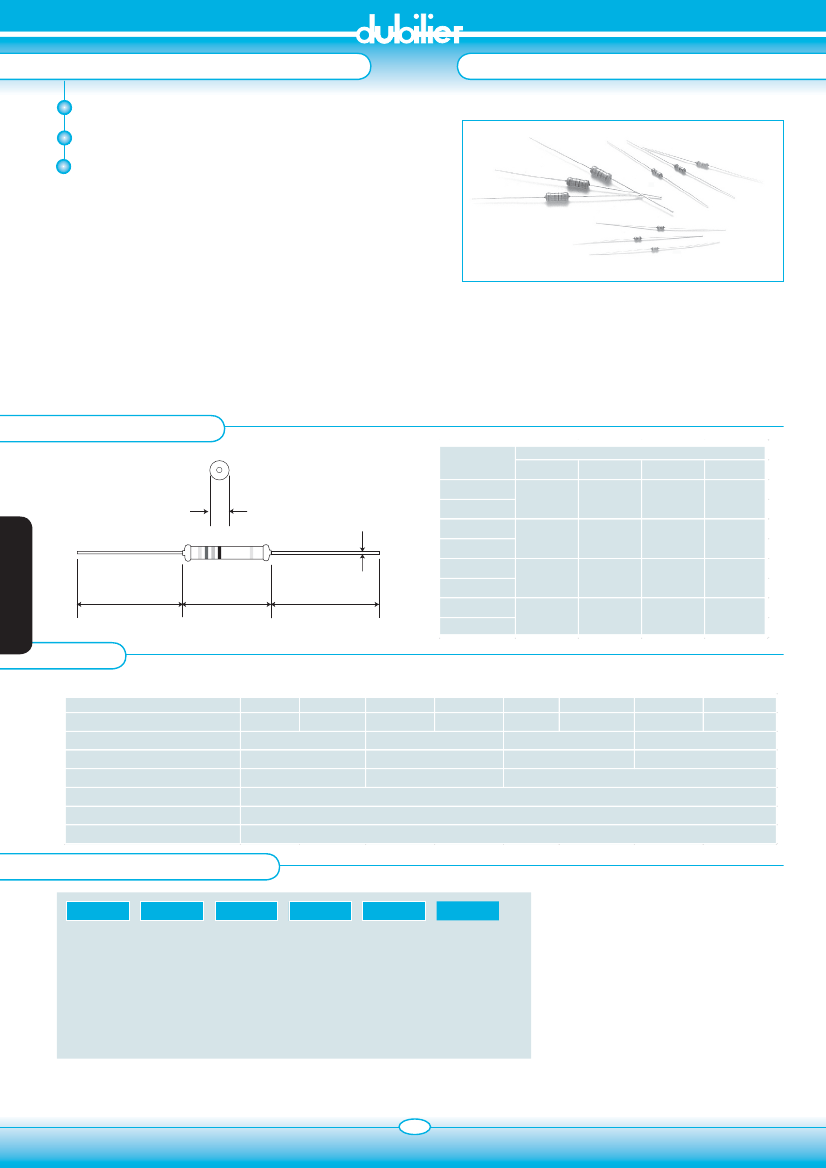

Resistors

Operating temperature -55°C to +155°C

1/4W to 3W

Working Voltage up to 7000V

High Voltage Flame Proof Resistors

The DHVR series is available in power ratings from 1/4W to 3W

With tolerances of 5% and 10%

The resistors are coated with a pink lacquer, the 5thband is yellow for

tolerance 5% to represent high Voltage resistors.

OUTLINE DRAWING

STYLE

Dimension

ØD

2.4±0.2

3.3±0.3

4.5±0.5

5.0±0.5

28±2.0

26±2.0

35±2.0

33±2.0

Ød

0.55±0.05

0.8±0.05

DHVR25

6.3±0.5

DHVR50SS

DHVR50

9.0±0.5

DHVR100SS

DHVR100

11.5±1.0

DHVR200SS

DHVR200

15.5±1.0

DHVR300SS

Tolerance

5% = J

1% = F

SECTION 4

RANGE

Style

DHVR25 DHVR50SS

Power Rating at 70°C

0.25W

0.5W

1600V

Maximum Working Voltage DC

3000V

Maximum Overload Voltage DC

300V

Dielectric Withstand Voltage

Resistance Range

Operating Temperature Range

Temperature Coefﬁcient

DHVR50 DHVR100SS DHVR100 DHVR200SS DHVR200 DHVR200SS

0.5W

3500V

5000V

7000V

10000V

14000V

500V

600V

100K ~ 68M for E24 values

-55°C to +155°C

±200 ppm/°C

ORDERING INFORMATION

DHVR

100K

Value

In Ohms

Power Rating Tolerance

J = 5%

25 = 0.25W

50SS = 0.5W F = 1%

50 = 0.5W

100SS = 1W

100 = 1W

200SS = 2W

200 = 2W

300SS = 3W

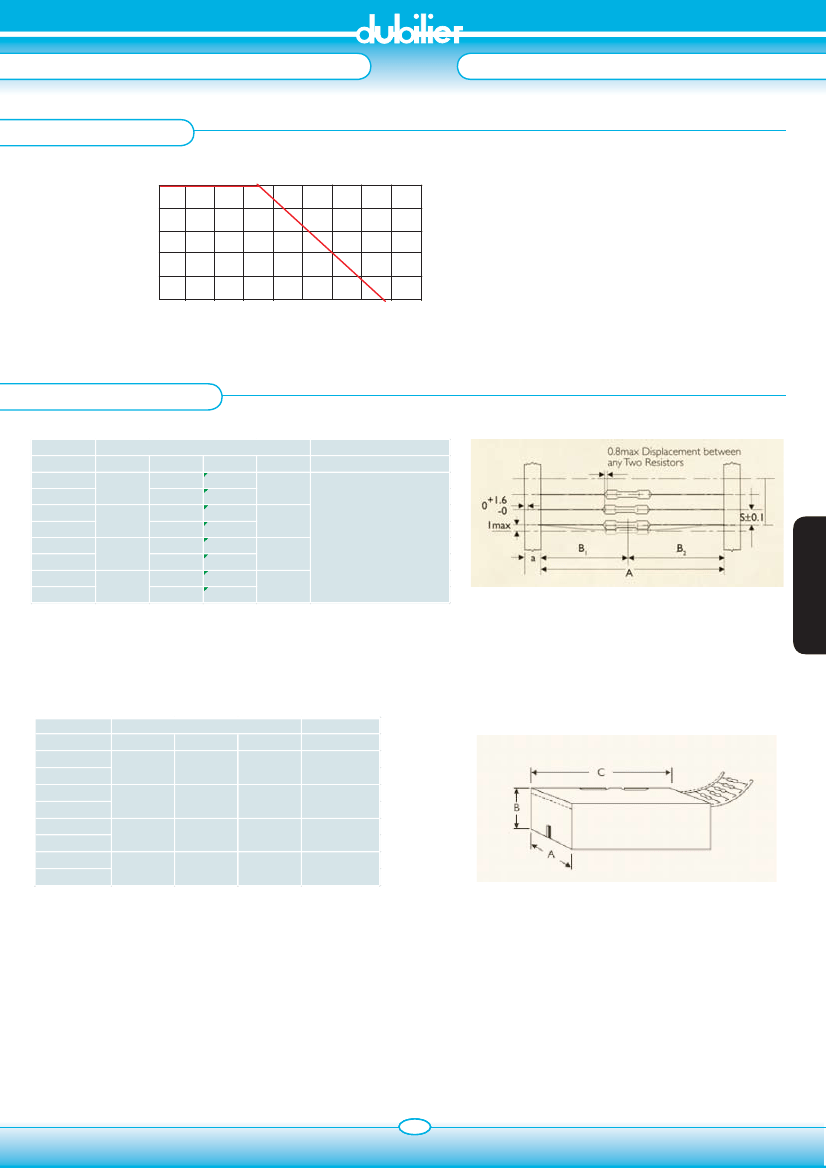

Packaging

T = Tape in

Ammo

Blank = Bulk

Packaging Option

26 = 26mm

52 = 52.4mm

73 = 73mm

www.dubilier.co.uk
