BTM781GP datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> BTM781GP

Preview

BTM781GP: Descriptionmotor / motion / ignition controllers & drivers trilith/novalith; Categorysemiconductor Other integrated circuit (IC); File Size65KB，3 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTM781GP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BTM781GP	-	-	View	Buy Now

BTM781GP Overview

motor / motion / ignition controllers & drivers trilith/novalith

BTM781GP Parametric

Parameter Name	Attribute value
Manufacture	Infine
Product Category	Motor / Motion / Ignition Controllers & Drivers
RoHS	Yes
Mounting Style	SMD/SMT
Package / Case	TO-263-15
Packaging	Reel
Factory Pack Quantity	500

Preview

Download Datasheet

View All

Trilith IC and NovalithIC™ product families go green - Infineon Technologies

Page 1 of 3

Home > Design:)Link > Issue 1/2008 > Power >

New Trilith IC and NovalithIC™ product families

Trilith IC and NovalithIC™ product families go

green

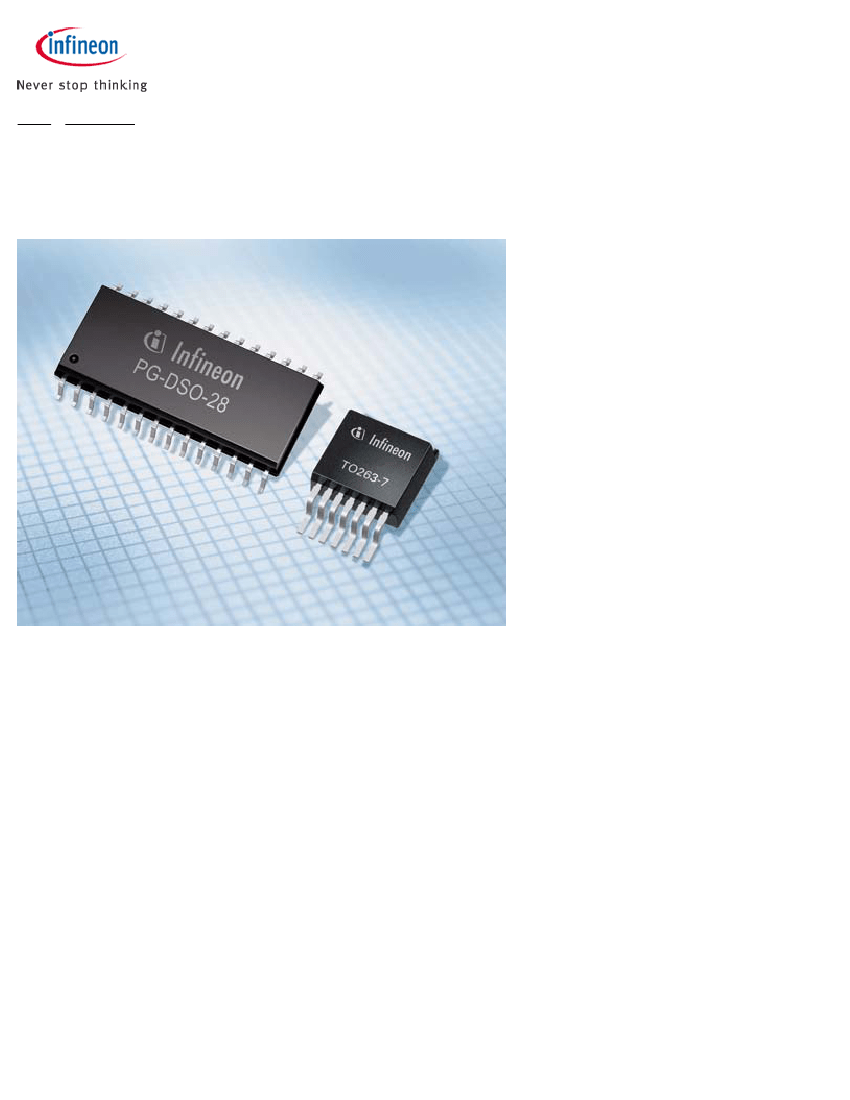

In 2008, Infineon will be rolling out its green and robust solutions for the motor control product families Trilith IC (multi-purpose configurable full-

bridge drivers) and NovalithIC™ (multi-purpose half-bridge drivers). The switch to green will be accompanied by new names for these product

families:

BTM Trilith IC motor driver, RoHS-compliant

BTN NovalithIC™ half-bridge motor driver, RoHS-compliant

The new green design offers improved product performance and better reliability by following the automotive power robust package approach,

supporting our zero-defect target.

Key features

Integration of power stage, driver and protection in small package

Integrated protection against overtemperature, overcurrent, over- and undervoltage

Status flag diagnostics with analog current sense (NovalithIC™)

Pulse-width modulation (PWM) capability up to 25 kHz (NovalithIC™) combined with active freewheeling

Low quiescent current, down to 7 µA

Applications

Motor drive applications with 1 A DC up to 70 A peak

Automotive: door locks, gear boxes, belt pretensioners

Industrial: sliding doors, robotics, heating, ventilation and airconditioning (HVAC) systems

Consumer: battery-driven tools and toys, household goods such as coffee machines

http://www.infineon.com/cms/en/product/technology/designlink/2008-1/c_power/g_new_tril_nov.html

7/9/2009

BTM781GP Related Products

	BTM781GP	BTM781GPAUMA1
Description	motor / motion / ignition controllers & drivers trilith/novalith	IC MOTOR DRIVER TO263-15
