508-AG8D-3E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 508-AG8D-3E

508-AG8D-3E: DescriptionIC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder; CategoryThe connector socket; File Size76KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

508-AG8D-3E Overview

IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder

508-AG8D-3E Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.75 inch
subject depth	0.519 inch
body length	1.2 inch
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP24
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC POLYESTER
Insulation resistance	5000000000 Ω
Manufacturer's serial number	500
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

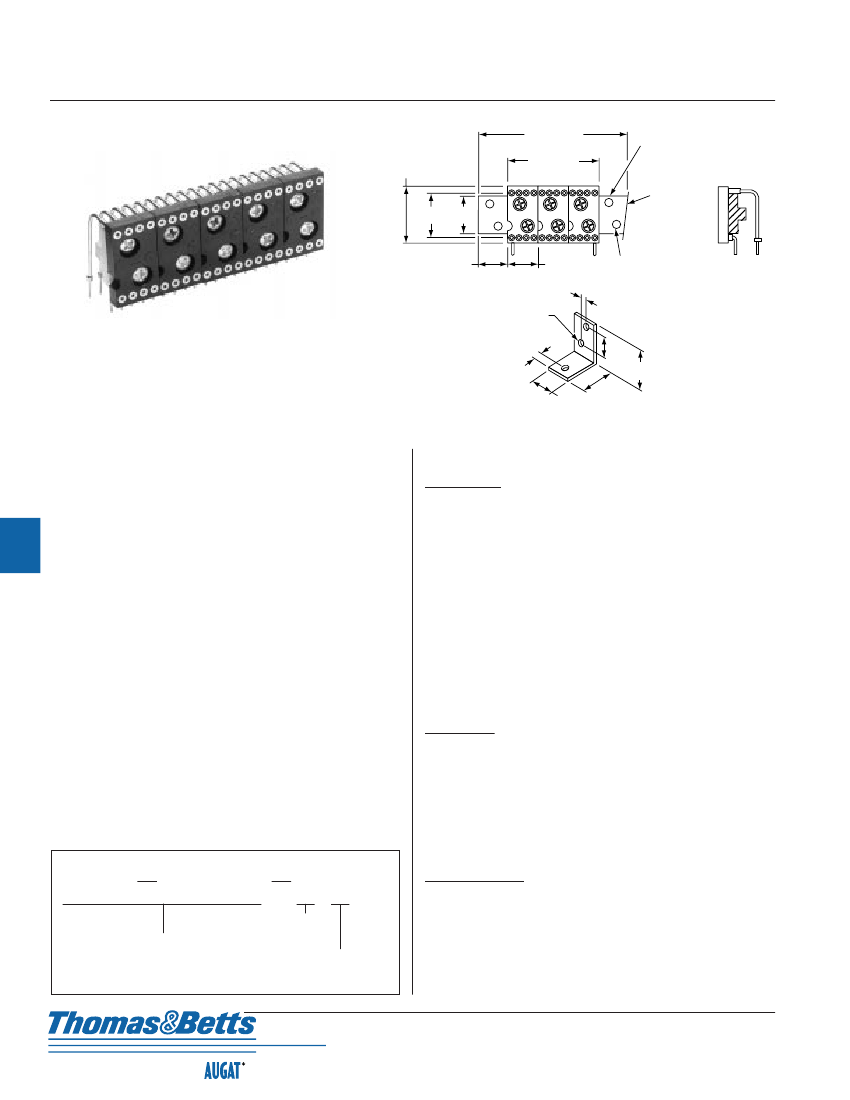

500 Series

Ganged DIP Sockets

508-AG8D-3E

(with mounting ears)

.750

.010

(19,05

0,25)

508-AG8D-3

(without

mounting ears)

Any required

length in

multiples of

.400

(10,16)

Extrusion

.600

.500

(15,24) (12,70)

.400

(10,16)

Typ.

.400

(10,16)

Typ.

.076

(1,93)

Dia. Typ.

508-AG8D-5

.093

(2,36)

Dia. Typ.

3 Places

.100

(2,54)

.125

(3,18)

.270

(6,86)

.300

(7,62)

.625

(15,88)

.500

(12,70)

Mounting Tab

GANGED UNIT ASSEMBLIES:

The 508 Series numbers in part block are individual sockets. Add required

dash number to appropriate socket part number for ganged unit assemblies.

With or without extrusion extension (serves as mounting ears). Units

with extrusion extensions are furnished with four No. 2 x 1/4" long self-

tapping screws.

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1,

Condition II, 10 G's

Shock .............................. Passed MIL-STD-1344, Method 2004.1,

Condition C, 100 G's

Durability ...................... Passed MIL-STD-1344, Method 2016

Normal Force ................ 200 Grams (7.0 oz.) average with .018" (0,46) dia.

polished steel pin

Insertion Force .............. 179 Grams (6.3 oz.) average with .018" (0,46) dia.

polished steel pin

Withdrawal Force .......... 63 Grams (2.2 oz.) average with .018" (0,46) dia.

polished steel pin

Solderability .................. Passed MIL-STD-202F, Method 208

Sleeve Retention

in Plastic .................... 3.0 Lbs. per line minimum PC tail

Inner Contact

Retention .................... 7.5 Lbs. per line average

ELECTRICAL

Contact Resistance ........ 10 Milliohms

Contact Rating .............. 3 Amps

Capacitance .................... 1.0 pF per MIL-STD-202, Method 305

(contact to contact)

Insulation Resistance .... 5,000 Megohms min. @ 500 VDC per

MIL-STD-1344, Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,

Method 3001.1

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Cond. II

Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1, Cond. A

Operation Temperature .. Gold inner contact -55°C to +125°C

Tin/lead inner contact -55°C to +105°C

EXTRUSION:

Extrusion for ganging also available separately, part number 508-5G1.

Simply add suffix number to indicate required length. Each extrusion is

furnished with No. 2 x 1/4" long self-tapping screws, quantity same as

number of holes in extrusion.

MOUNTING TAB:

Part number 508-4P1 is used for mounting ganged unit assemblies.

Sold separately if required.

MATERIAL SPECIFICATIONS:

Inner Contact .................. Four-fingered beryllium copper, gold

Outer Sleeve .................. Machined brass, tin/lead plated

Insulator ........................ Thermoplastic polyester UL rated 94V-0

Extrusion ........................ Vinyl

Mounting Tab ................ Stainless steel .032 (0,81) thick

HOW TO ORDER

5 0 8

AG 8 D

3 E

Number

of Units

Mounting Ears

(extrusion)

Blank - No mounting ears

Socket Part Number

Part No. Example: 508-AG8D-3E

Quality & Innovation From The

Product Group

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805

508-AG8D-3E Related Products

	508-AG8D-3E	508-AG8D-3
Description	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.75 inch	0.75 inch
subject depth	0.519 inch	0.519 inch
body length	1.2 inch	1.2 inch
Contact to complete cooperation	AU	NOT SPECIFIED
Contact material	BE-CU	NOT SPECIFIED
Contact style	RND PIN-SKT	RND PIN-SKT
current rating	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET
Type of equipment used	DIP24	DIP24
Dielectric withstand voltage	1000VAC V	1000VAC V
Shell material	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER
Insulation resistance	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	500	500
Plug contact pitch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE
Number of contacts	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.6 mm	0.6 mm
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
