MIL-DTL-83513/22 Thru /27 Micro-D BS
Straight PCB Terminated Connector
High Performance
These connectors feature goldplated TwistPin contacts for
best performance. PC tails are .020 inch diameter. Specify
nickel-plated shells or cadmium plated shells for best
availability.
Solder-Dipped
Terminals are coated with Sn60/Pb40 tin-lead solder for
best solderability.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
No Jackpost
© 2013 Glenair, Inc.
Jackpost
N
Thru Hole
Hardware Options
Slash Number-
Shell Sizes

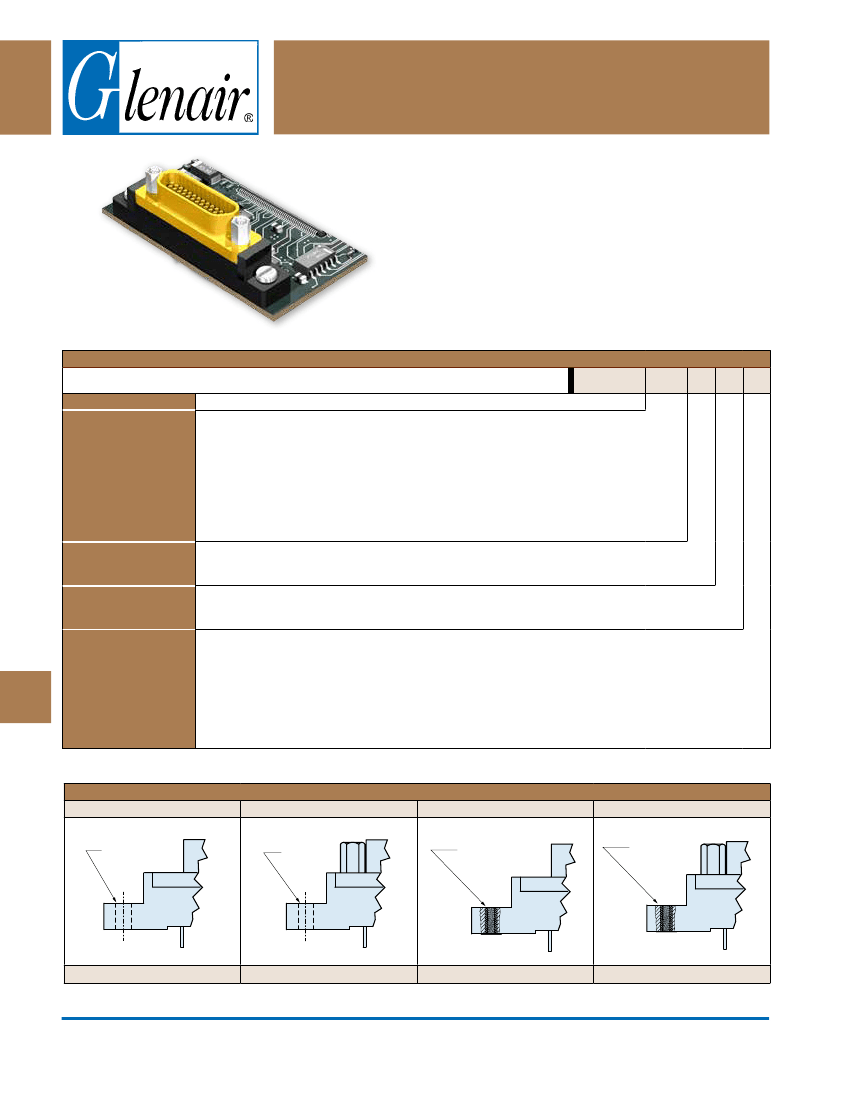

How To Order MIL-DTL-83513 Straight PCB Micro-D Connectors
Sample Part Number
Base Part Number
m83513/
M83513
Plug (Pin Contacts)
Receptacle (Socket Contacts)
22–A
– 9 Contacts
25–A
– 9 Contacts
22–B
– 15 Contacts
25–B
– 15 Contacts
22–C
– 21 Contacts
25–C
– 21 Contacts
22–D
– 25 Contacts
25–D
– 25 Contacts
22–E
– 31 Contacts
25–E
– 31 Contacts
22–F
– 37 Contacts
25–F
– 37 Contacts
23–G
– 51 Contacts
26–G
– 51 Contacts
24–H
– 100 Contacts
27–H
– 100 Contacts
(See Table I)
01
- .109 Inch (2.77 mm)
PC Tail Length
02
- .140 Inch (3.56 mm)
± .015 (0.38)
03
- .172 Inch (4.37 mm)
C
- Cadmium
A
- Electrodeposited Aluminum
N
- Electroless Nickel
K
-Zinc Nickel
P
- Passivated SST
T
- Nickel Fluorocarbon Polymer
N
- No Jackpost
P
- Jackposts Installed
Sizes 9-51
T
- Threaded Insert in Board Mount Hole (No Jackposts)
W
- Threaded Insert in Board Mount Hole and jackposts Installed
Shell Size 100 (H)
U
- #4-40 Threaded Insert
Y
- #4-40 Threaded Insert & Jackpost
(See Table I)
/26-g
03
c
w
PC Tail Length
Shell Finish
Table I: Hardware options
P
T or U
Threaded
Insert
W or Y
Threaded
Insert
Thru Hole
Threaded Insert
Jackpost, Threaded Insert
Printed in U.S.A.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-18
E-Mail: sales@glenair.com
MIL-DTL-83513/22 Thru /27 Micro-D BS
Straight PCB Terminated Connector

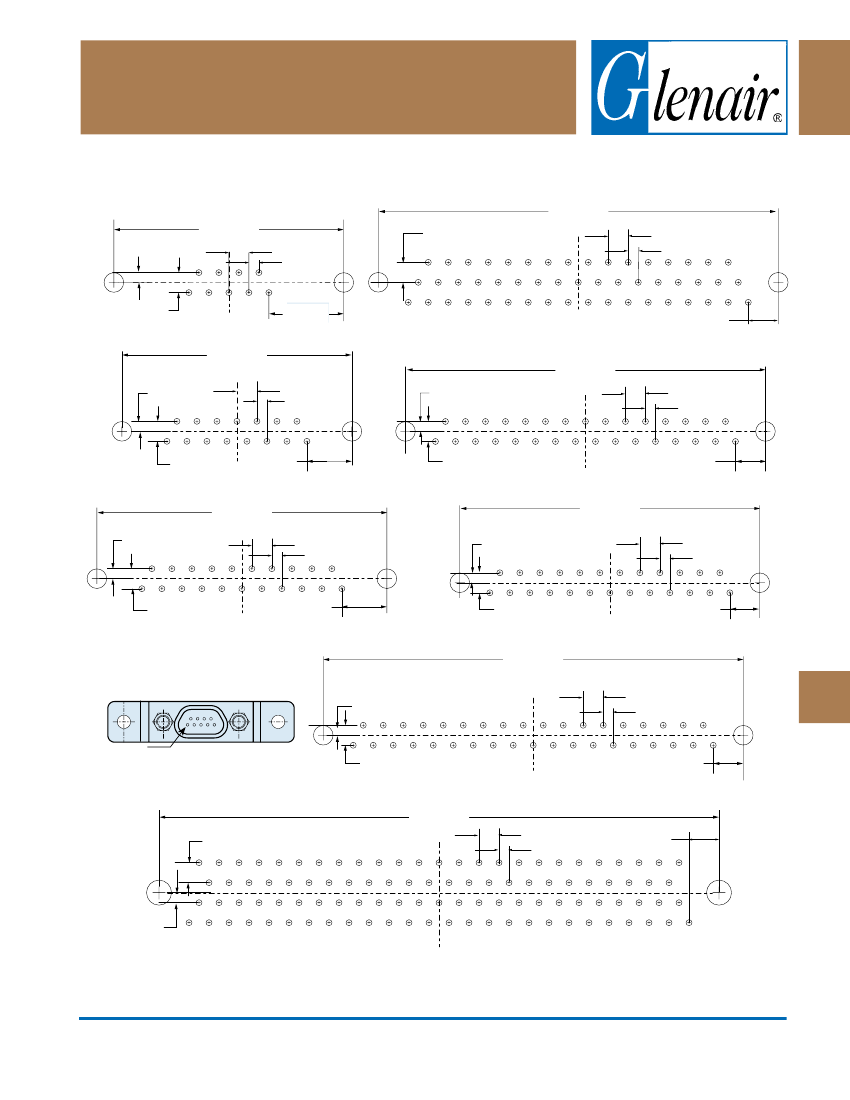

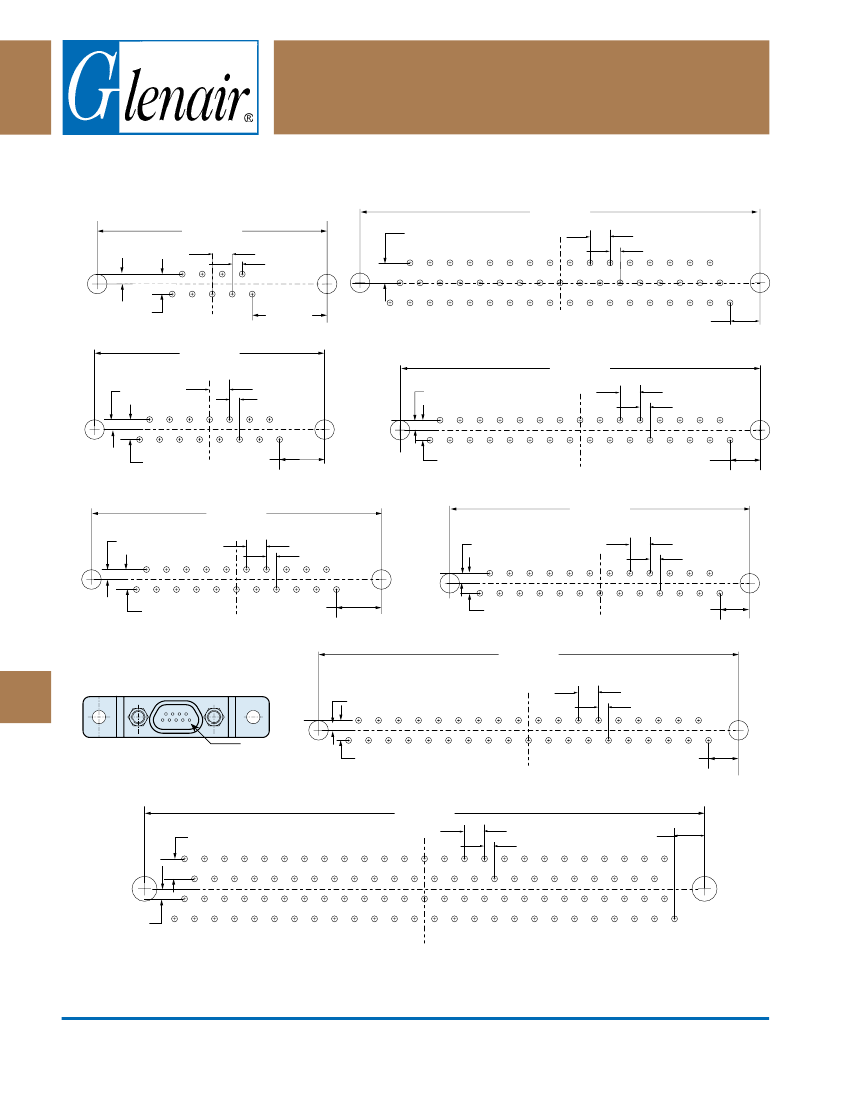

Table II: Dimensions
