M83513/31-F03AT datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83513/31-F03AT

M83513/31-F03AT: DescriptionD Microminiature Connector, 37 Contact(s), Female, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size402KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/31-F03AT Overview

D Microminiature Connector, 37 Contact(s), Female, Solder Terminal, Locking, Receptacle,

M83513/31-F03AT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1925652940
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
Board mount options	#2-56 UNC
body width	0.31 inch
subject depth	0.355 inch
body length	1.485 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn60Pb40)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	32 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER/POLYPHENYLENE SULFIDE
JESD-609 code	e0
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE

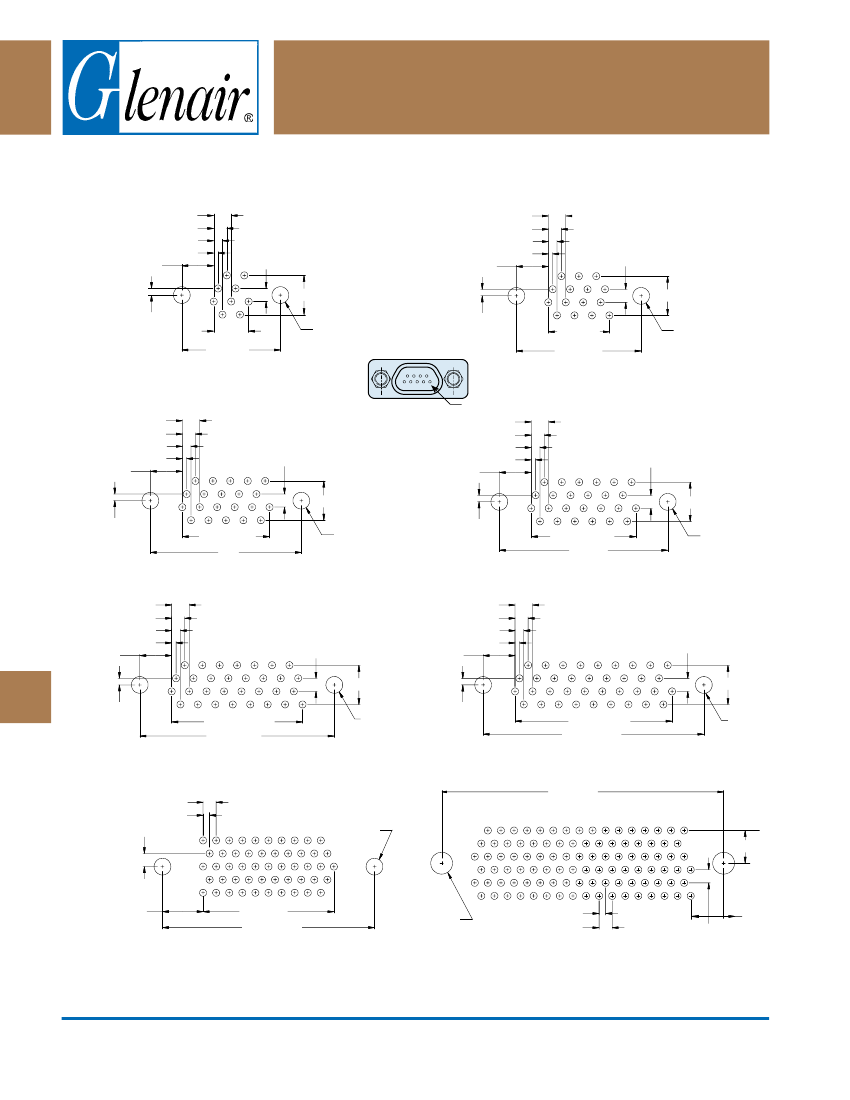

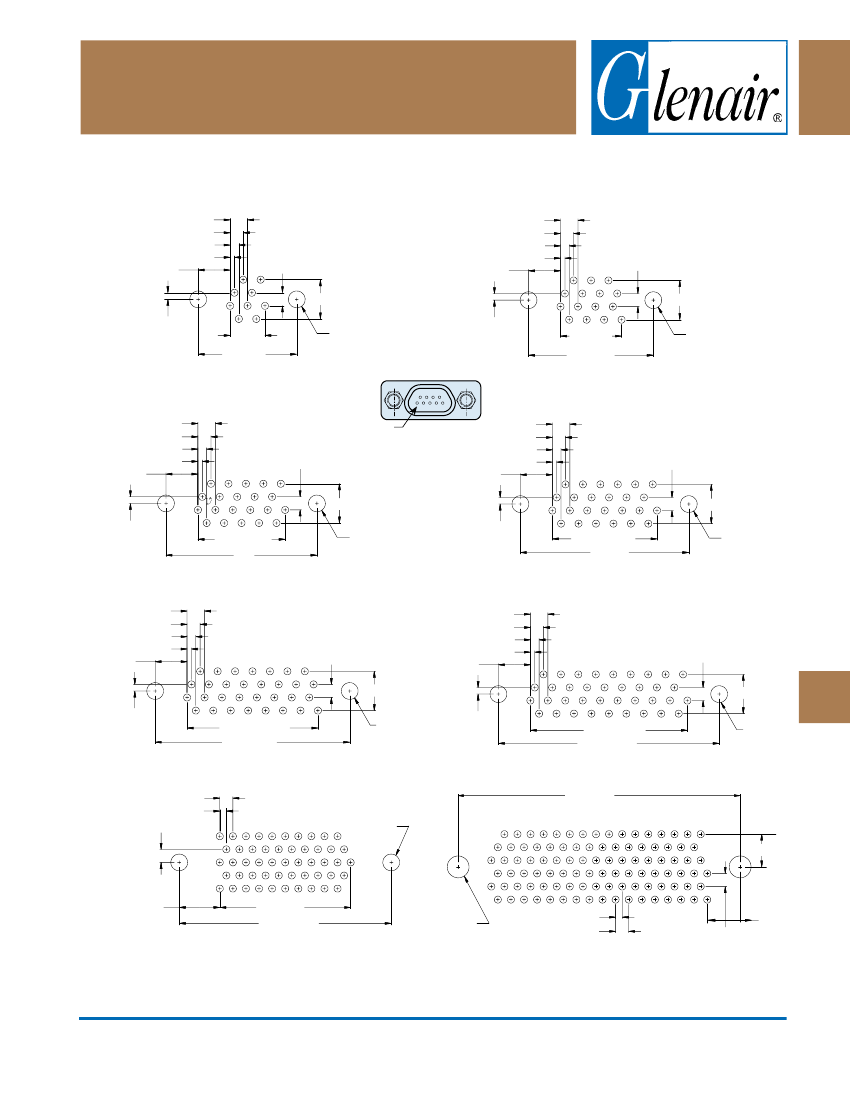

PCB contact pattern	STAGGERED
PCB contact row spacing	1.91 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
reliability	MIL-C-83513
Shell material	ALUMINUM ALLOY
Housing size	F
Terminal length	0.172 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

Micro-D

MIL-DTL-83513

MIL-DTL-83513/28 Thru /33 Micro-D CBS

Condensed Straight PCB Terminated Connectors

Space-Saving

— These connectors take up less room on the PC board. PC tail

spacing is .075 inch (1.9mm) between rows.

Threaded Inserts

— Stainless steel inserts are insert molded into plastic trays.

These inserts provide a ground path from the PC board to the mating cable.

Solder-Dipped

— Terminals are coated with Sn60/Pb40 tin-lead solder for best

solderability.

INDEX

9-51 CONTACTS

.096/.088 (2.44/2.24)

100 CONTACTS

.150/.145 (3.81/3.68)

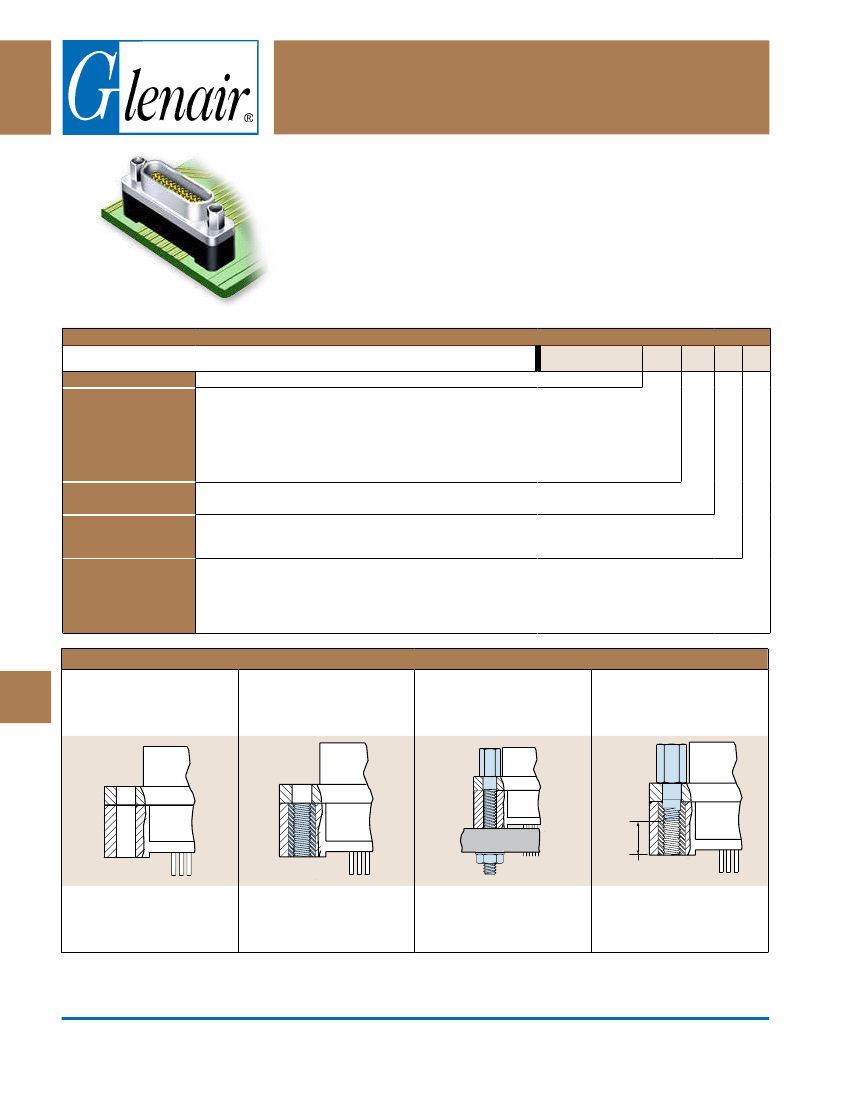

How To Order Straight PCB Micro-D Connectors

Sample Part Number

Base Part Number

M83513/

Plug (Pin Contacts)

28–A

- 9 Contacts

28–B

- 15 Contacts

28–C

- 21 Contacts

28–D

- 25 Contacts

33-H

Slash Number-

Shell Sizes

28–E

- 31 Contacts

28–F

- 37 Contacts

29–G

- 51 Contacts

30–H

- 100 Contacts

Receptacle (Socket Contacts)

31–A

- 9 Contacts

31–E

- 31 Contacts

31–B

- 15 Contacts

31–F

- 37 Contacts

31–C

- 21 Contacts

32–G

- 51 Contacts

31–D

- 25 Contacts

33–H

- 100 Contacts

- .172 Inch (4.37 mm)

PC Tail Length

Shell Finish

(See Table II)

- .109 Inch (2.77 mm)

PC Tail Length

± .015 (0.38)

- Cadmium

- Electroless Nickel

- Passivated SST

- No Jackpost

- .140 Inch (3.56 mm)

- Electrodeposited Aluminum

- Zinc Nickel

- Nickel Fluorocarbon Polymer

- Jackposts Installed

Hardware Options

Sizes 9-51

- Threaded Insert in Board Mount Hole (No Jackposts)

- Threaded Insert in Board Mount Hole and Jackposts Installed

(See Table I)

Shell Size 100 (H)

- #4-40 Threaded Insert

- #4-40 Threaded Insert & Jackpost

Table I: Hardware Options

NO JACKPOST, NO THREADED

INSERT

HARDWARE OPTION N

THREADED INSERT,

NO POST

HARDWARE

OPTIONS T or U

JACKPOST AND THRU-HOLE

HARDWARE OPTION P

HARDWARE

OPTIONS W or Y

JACKPOST AND

THREADED INSERT

PC BOARD

.160 (4.1) MIN. (9-51 PINS)

.225 (5.7) MIN. (100 PIN)

MTNG HOLE DIA.

9-51 CONTACTS # 2-56 UNC-2B

100 CONTACTS # 4-40 UNC-2B

THREAD SIZE

9-51 CONTACTS # 2-56 UNC

100 CONTACTS # 4-40 UNC

USE WITH .156 (3.96) MAX. PC

BOARD THICKNESS

THREAD SIZE

9-51 CONTACTS #2-56 UNC

100 CONTACTS #4-40 UNC

THREAD SIZE

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-22
