MS27501T13AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> MS27501T13AN

MS27501T13AN: DescriptionConnector Accessory,; CategoryThe connector Connector bracket; File Size71KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MS27501T13AN Overview

Connector Accessory,

MS27501T13AN Parametric

Parameter Name	Attribute value
Objectid	1830824319
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	MS27501

Preview

Download Datasheet

View All

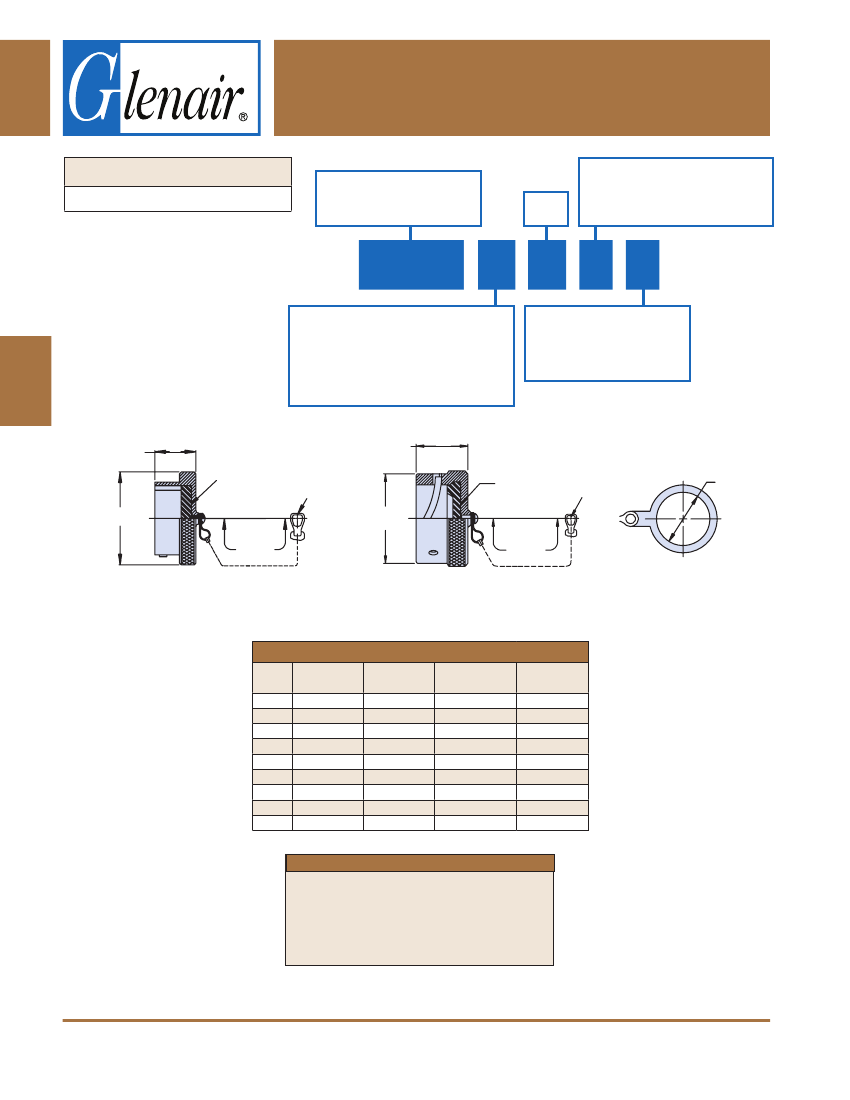

.90 (22.9)

Max

Gasket

MIL-DTL-38999

MATING CONNECTOR

MIL-DTL-38999, Series I

MS27501 and MS27502

Protective Plug and ReceptacleCovers

Basic Part Number

MS27501

= Plug Cover

MS27502

= Receptacle Cover

Shell

Size

Attachment Option

= No Attachment

= Chain

= Chain with Ring (MS27502 Only)

MS27501

Finish

Gold Iridite over Cadmium over Nickel

500 Hour Cadmium Olive Drab

Anodize

Electroless Nickel

Nickel Fluorocarbon Polymer

Zinc Nickel

Length

(Inches)

= 5.0 (127.0)

= 6.0 (152.4) MS27501 Only

= 7.0 (177.8) MS27501 Only

(Omit for Standard)

.82 (20.8)

Attachment

Max

.167 (4.2)

Dia

Attachment

Style C

.167 (4.2)

Gasket

Dia

MS27501 Plug Cover

MS27502 Receptacle Cover

MS27502

Attachment

Type N

TABLE I: Shell Size, Attachment and Dimensions

Shell

Size

G Dia

Max

.820 (20.8)

.940 (23.9)

1.070 (27.2)

1.190 (30.2)

1.320 (33.5)

1.440 (36.6)

1.570 (39.9)

1.690 (42.9)

1.820 (46.2)

Max

.820 (20.8)

.940 (23.9)

1.100 (27.9)

1.220 (31.0)

1.340 (34.0)

1.460 (37.1)

1.580 (40.1)

1.700 (43.2)

1.830 (46.5)

J Attachment

Length

(Inches)

3.000 (76.2)

3.500 (88.9)

4.000 (101.6)

K Dia

Min

.700 (17.8)

.840 (21.3)

1.010 (25.7)

1.140 (29.0)

1.260 (32.0)

1.390 (35.3)

1.510 (38.4)

1.640 (41.7)

1.760 (44.7)

APPLICATION NOTES

Assembly identified with manufacturer’s name

and part number, space permitting.

For complete dimensions, see the applicable

Military Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-2

E-Mail: sales@glenair.com
