250-066-0031G datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 250-066-0031G

Preview

250-066-0031G: DescriptionRF SMA Connector, Male, Panel Mount, Receptacle; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

250-066-0031G Overview

RF SMA Connector, Male, Panel Mount, Receptacle

250-066-0031G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	250
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

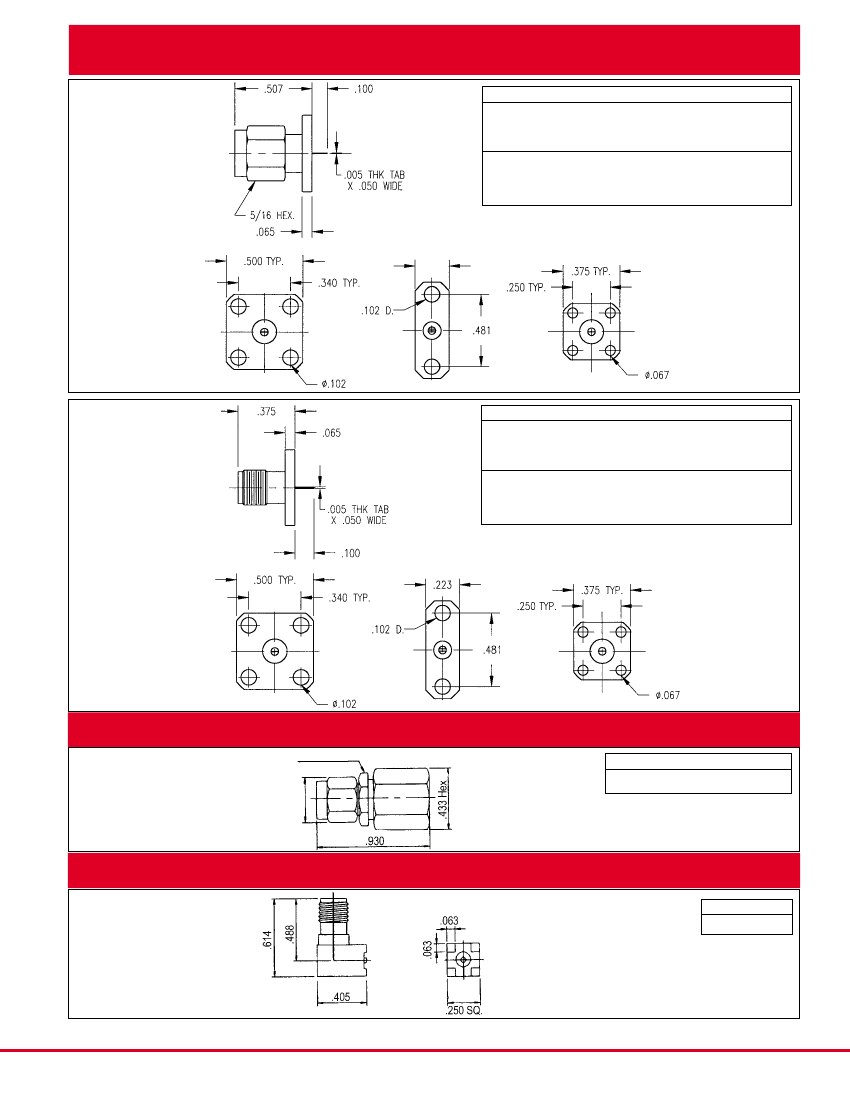

SMA STAINLESS STEEL:

Straight Plug

Flange Mount

Tab Contact

Flange Mount Receptacle

Part Number

Mounting Hole

250-065-0030G

No. 065

250-066-0030G

No. 066

250-055-0030G

No. 055

250-065-0031G

No. 065

250-066-0031G

No. 066

250-055-0031G

No. 055

Contact

Figure

captivated

1

captivated

2

captivated

3

non-captivated 1

non-captivated 2

non-captivated 3

Figure 2

.260

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 1

Figure 3

Straight Jack

Flange Mount

Tab Contact

Part Number

Mounting Hole

251-065-0030G

No. 065

251-066-0030G

No. 066

251-055-0030G

No. 055

251-065-0031G

No. 065

251-066-0031G

No. 066

251-055-0031G

No. 055

Contact

Figure

captivated

1

captivated

2

captivated

3

non-captivated

1

non-captivated

2

non-captivated

3

Figure 2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 1

Figure 3

SMA:

Direct Solder Attachment

Straight Plug

5/16 HEX

3/8 HEX

Part Number Cable

250-600-2500Y RG-401 (.250”)

• Nickel Body

SMA:

Surface Mount Receptacles

Part Number

253-077-0040Y

Right Angle

Surface

Mount Jack

Receptacle

Winchester/Retconn

Note: Dimensions shown in inches.

RF/13

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
